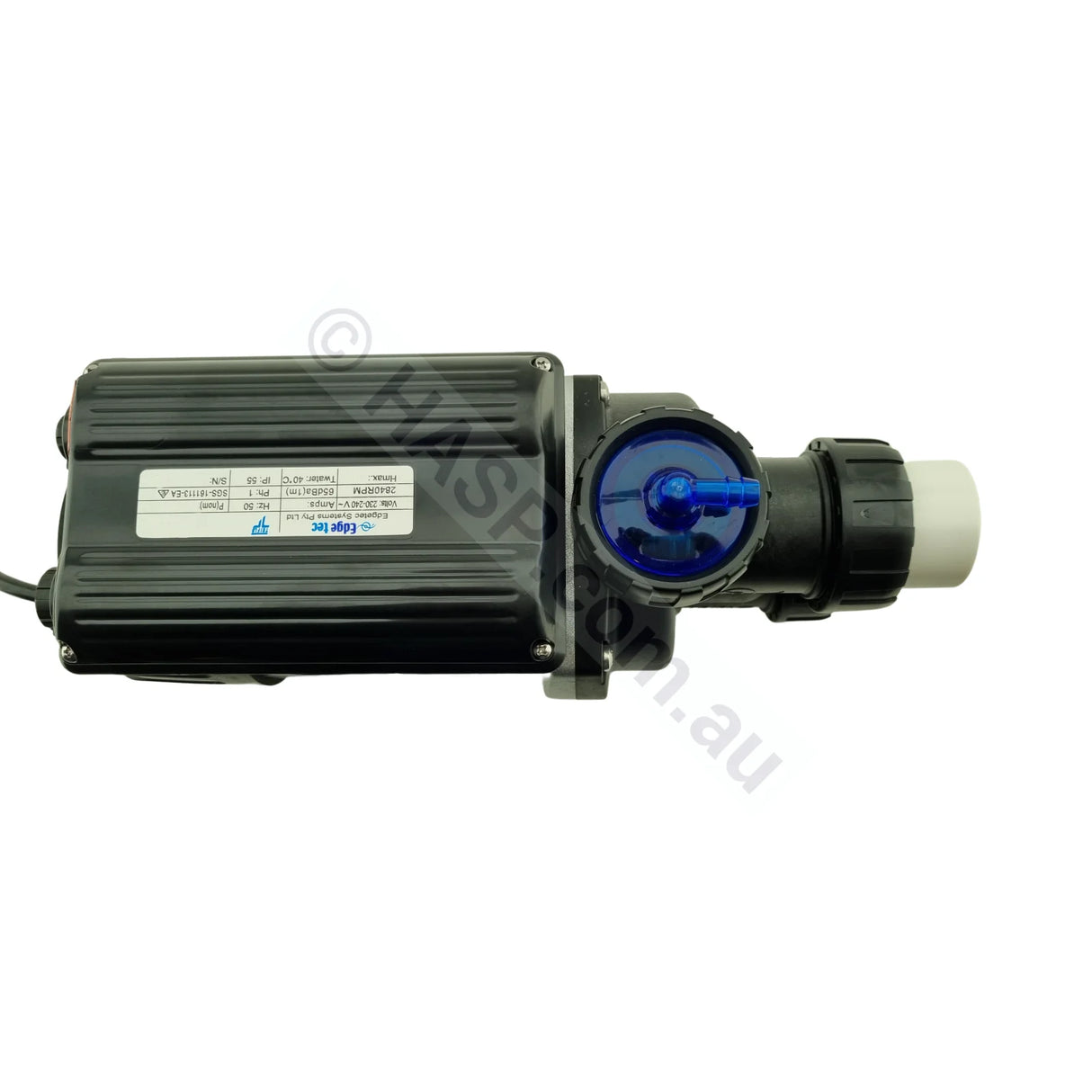

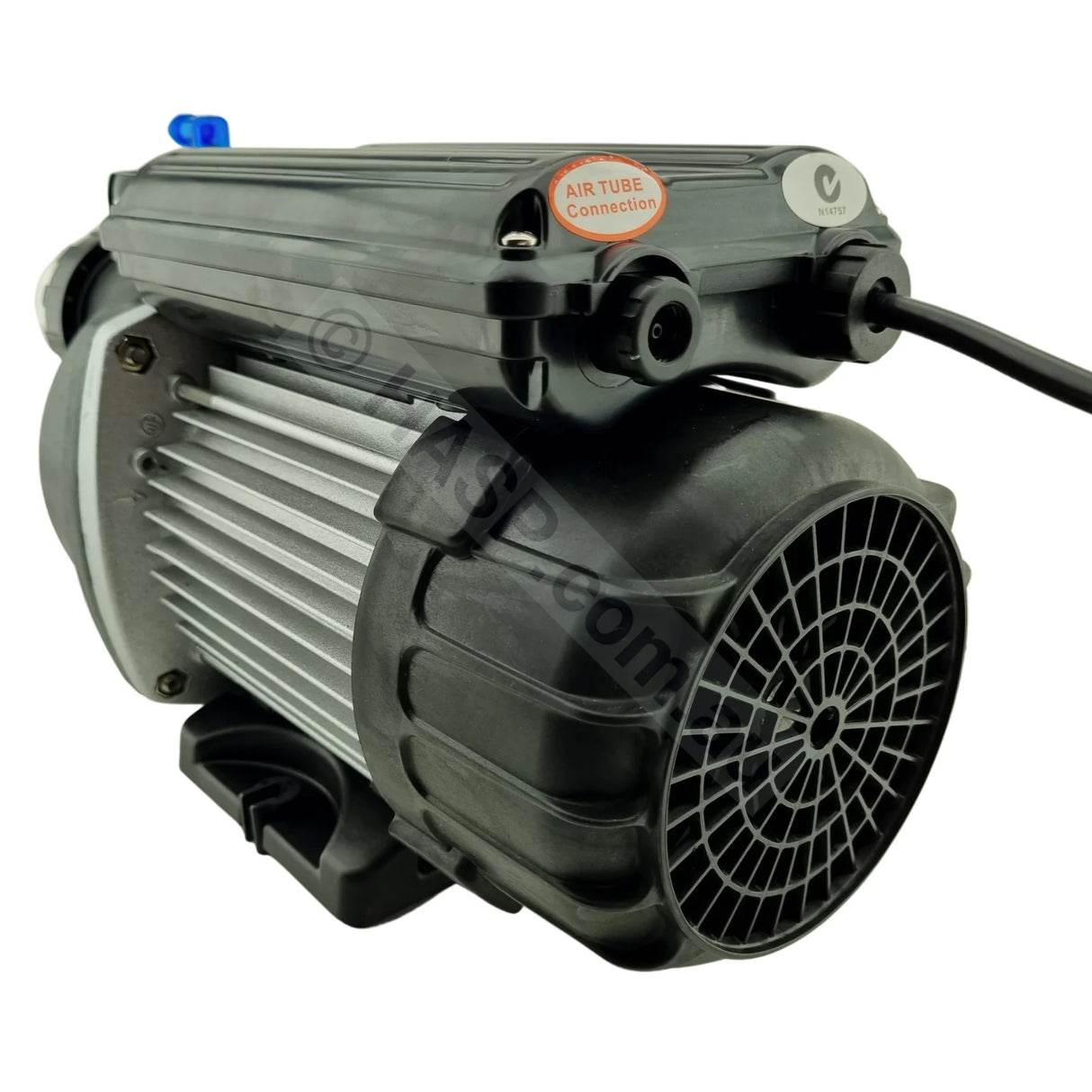

Spa-Craft Edgetec / Decina Triflo 1.0HP Auto-Heat w/ Air Switch - Spa Bath Pump
Spa-Craft Edgetec / Decina Triflo 1.0HP Auto-Heat w/ Air Switch - Spa Bath Pump is backordered and will ship as soon as it is back in stock.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Spa-Craft Edgetec / Decina Triflo 1.0HP Auto-Heat w/ Air Switch - S...
Spa-Craft Edgetec / Decina Triflo 1.0HP Auto-Heat w/ Air Switch - Spa Bath Pump is backordered and will ship as soon as it is back in stock.

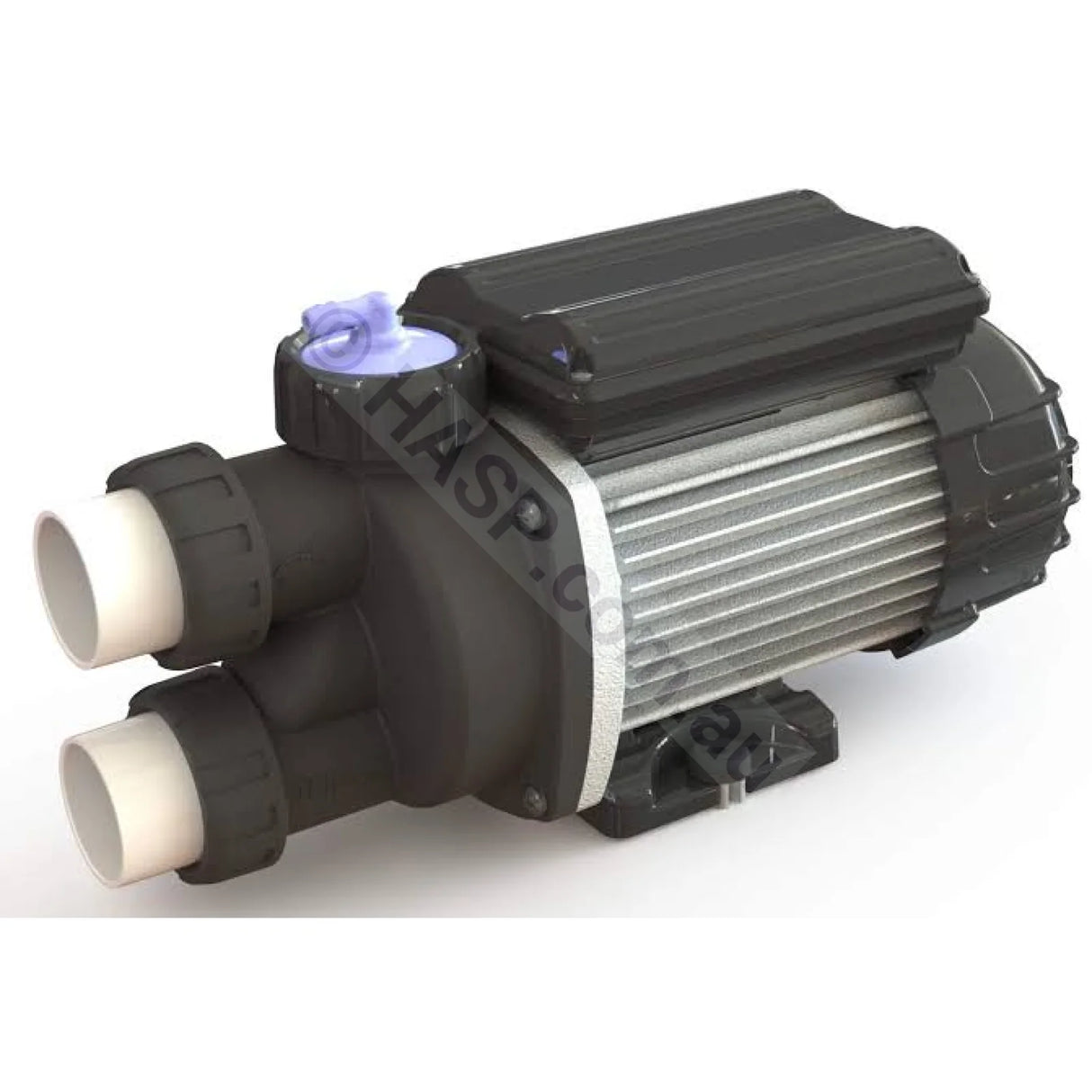

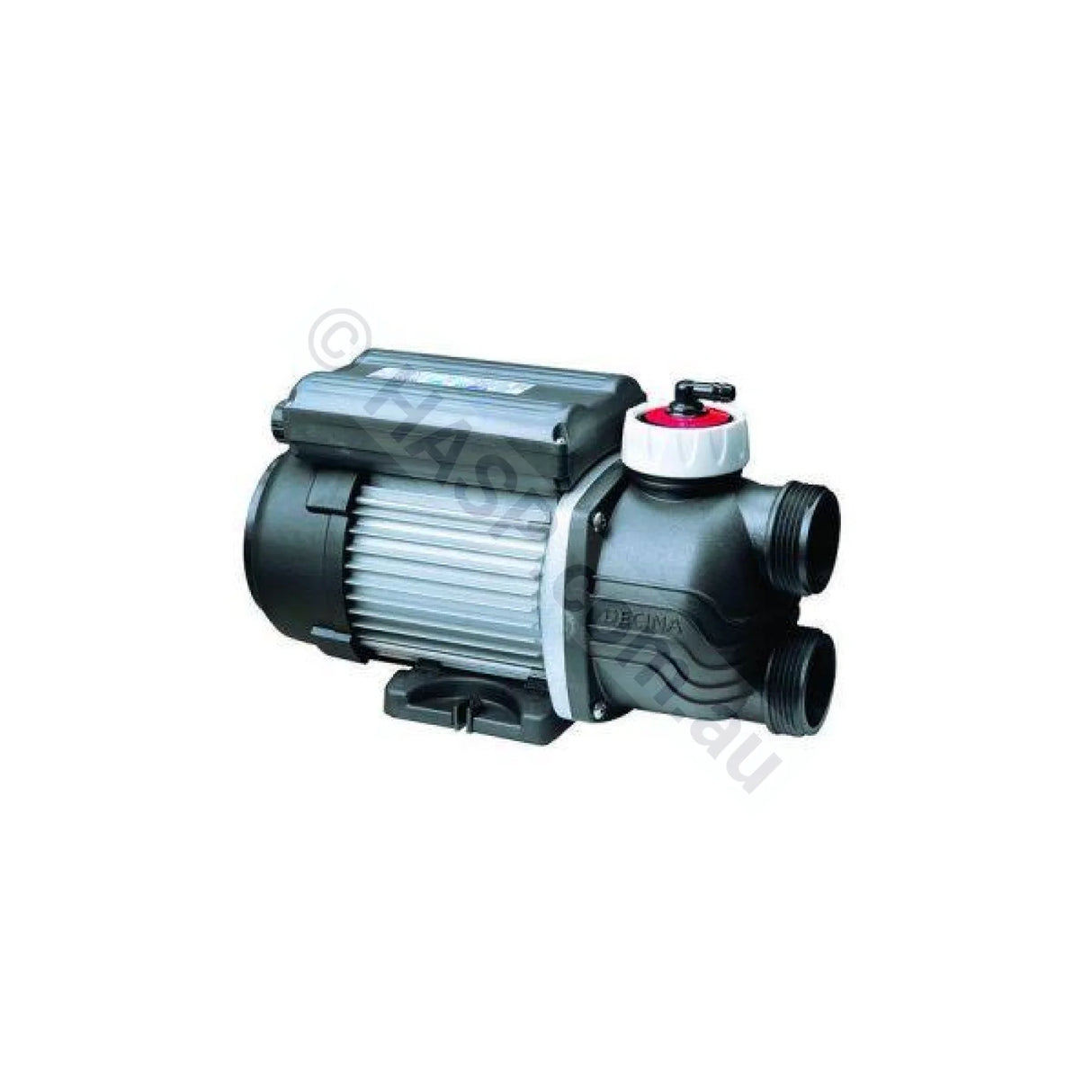

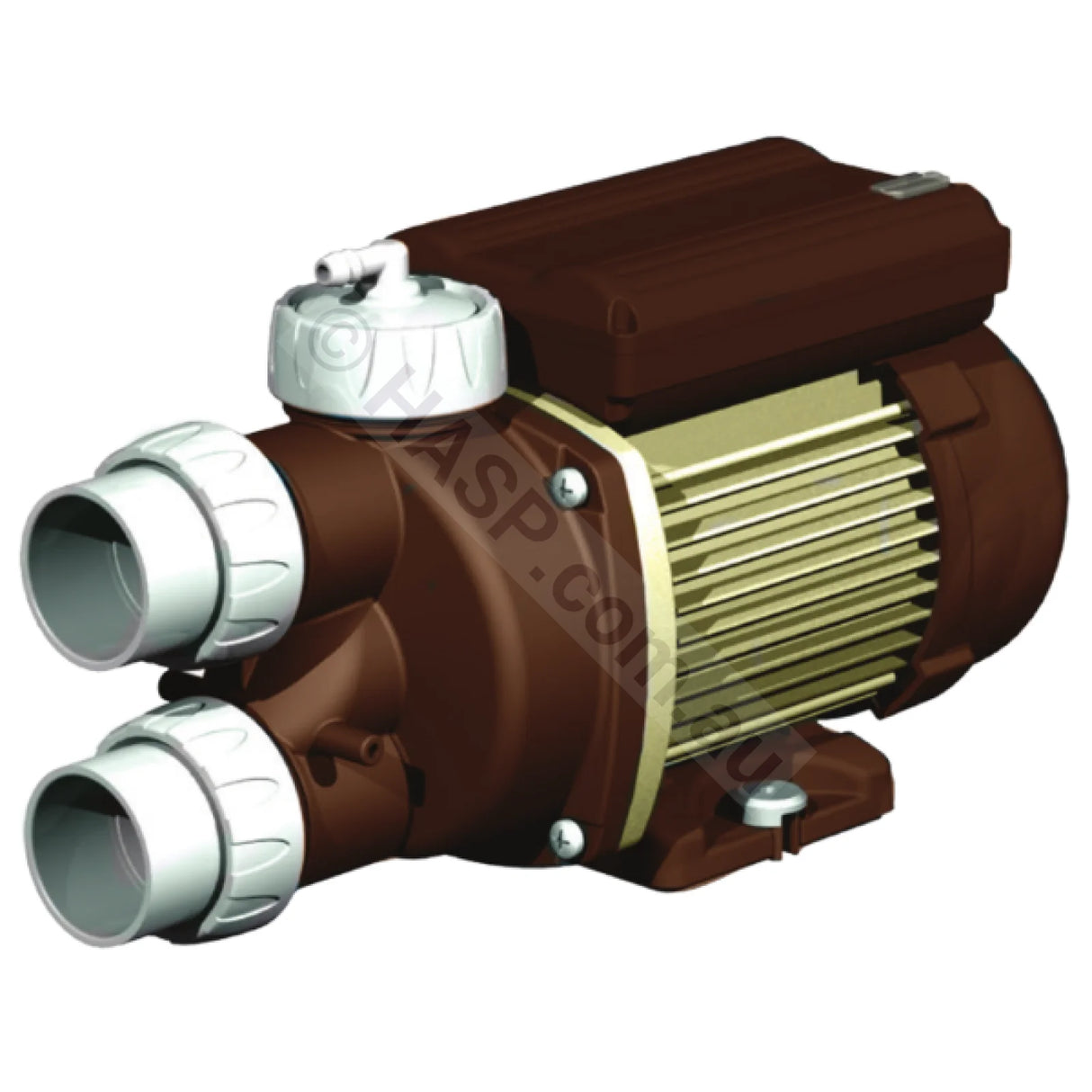

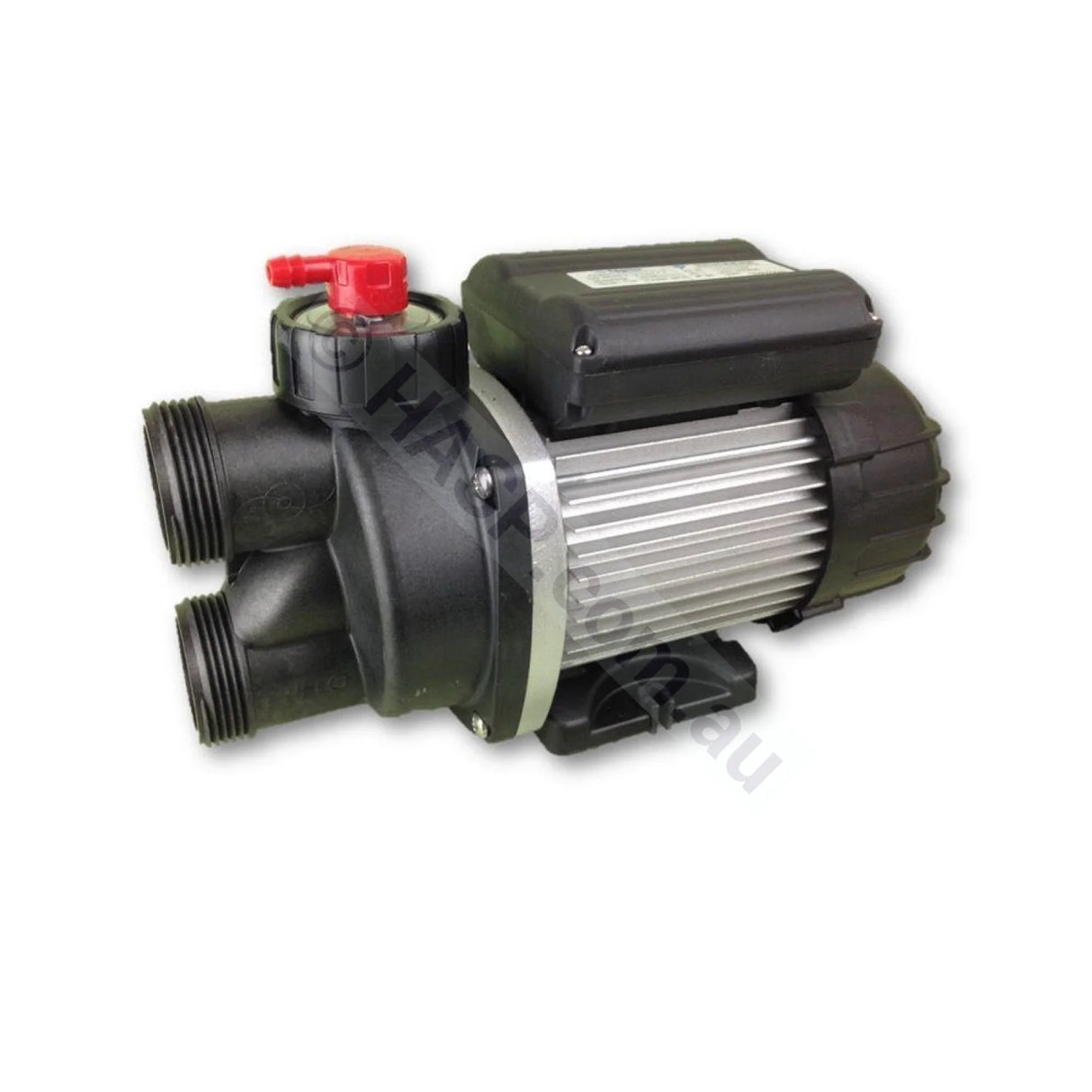

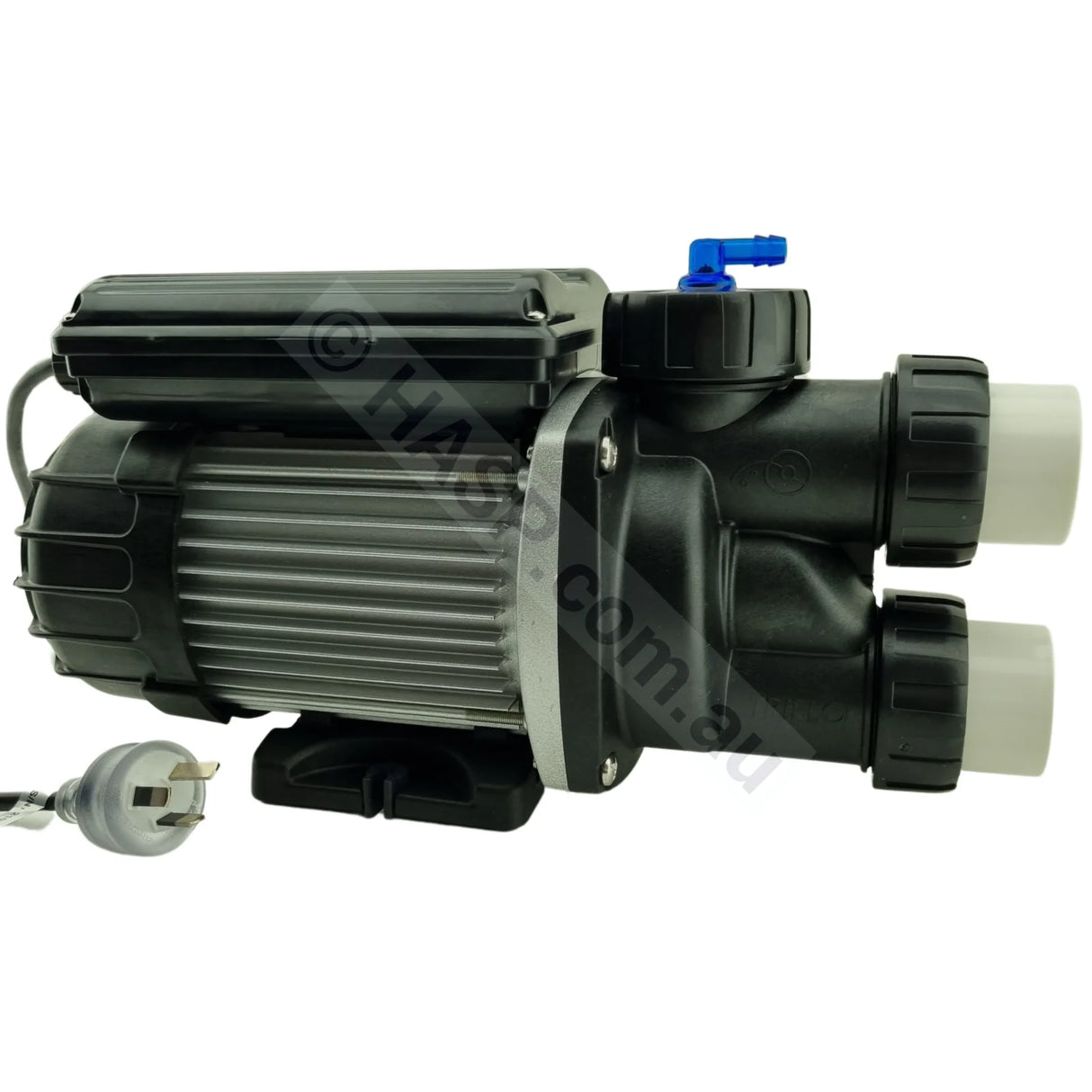

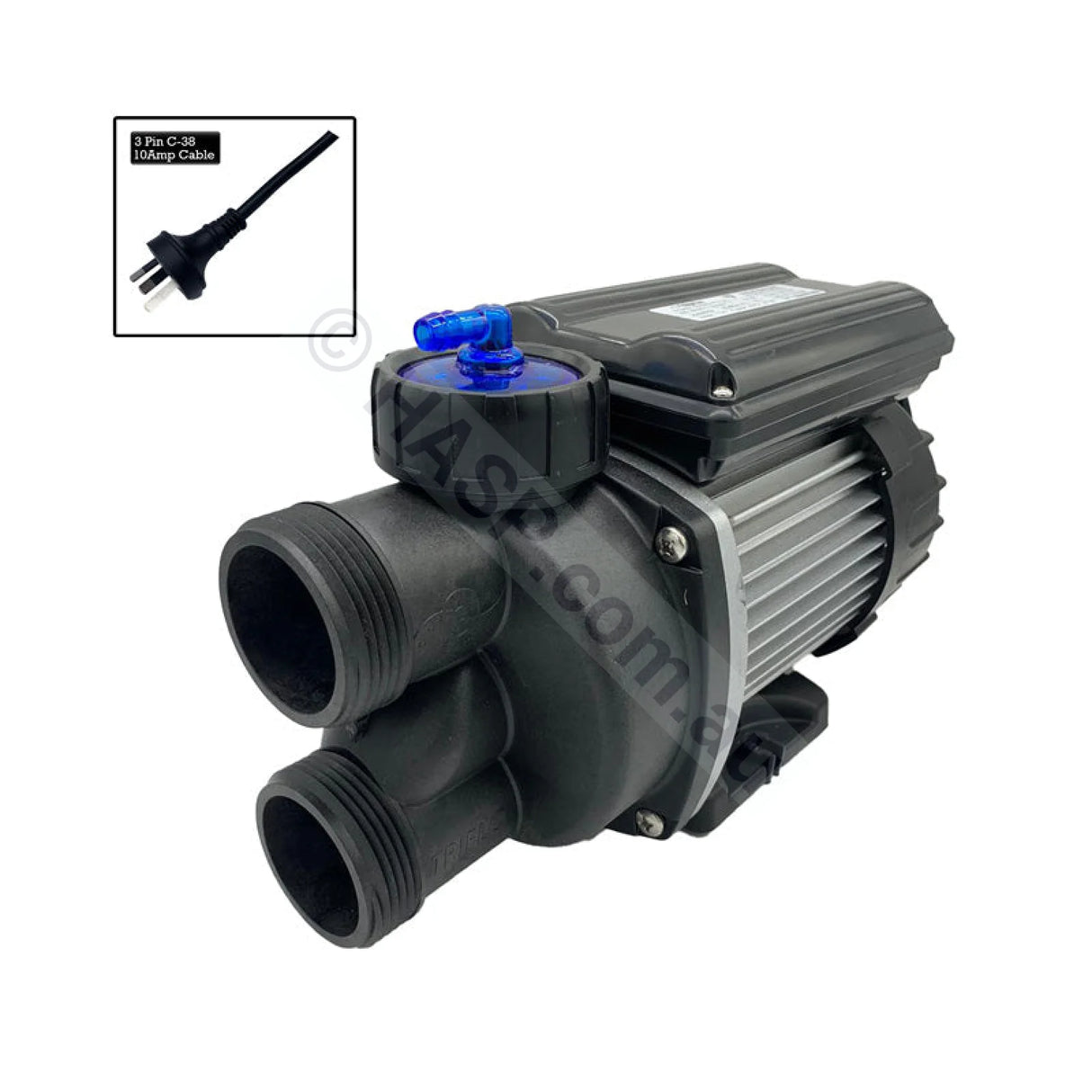

Universal Spa-Craft / Edgetec / Decina TriFlo 1.0HP Auto-Heat spa bath pumps. Air Switch operated. Motor heat is transferred to the water via the TriFlo's unique backing plate, helping spa bath water stay warmer for longer.
Used on many spa baths, and is a great retrofit for any non-heated spa bath pump. Used by Monarch, Decina, Lanark, Round Bath Company, Microjet SpaBath, and many others.
Replacing Other Brands (Davey, Onga, Balboa, Kohler, etc.):
- When replacing obsolete bath pumps from other brands, the old barrel unions( screw-on plumbing fittings) must be cut off and the supplied unions fitted. Some minor plumbing changes may also be required. Any plumber or capable handyman can generally handle this easily.
- This pump replaces several discontinued models, including the Davey XS200, XS250, Bath Pump 230, Onga 2381, 2388, 2391, 2398, 4381, Balboa 2381, 2388, and others.
As with all Davey pump replacements, new unions (included) must be installed to suit this pump.
Details / Models:
- Edgetec / Decina Auto-Heat 1.0hp
- E-6100 - TF075-AH-50 / TF075-AH-50-HF
- E-6200 - DC075-AH / DC075-AH-50-HF
-
Also replaces the following obsolete models:
- E-6106: TF060-AH-50 / TF060-AH-50-HF (0.8hp non-heated)
- E-6206: DC060-AH / DC060-AH-50-HF (0.8hp non-heated)

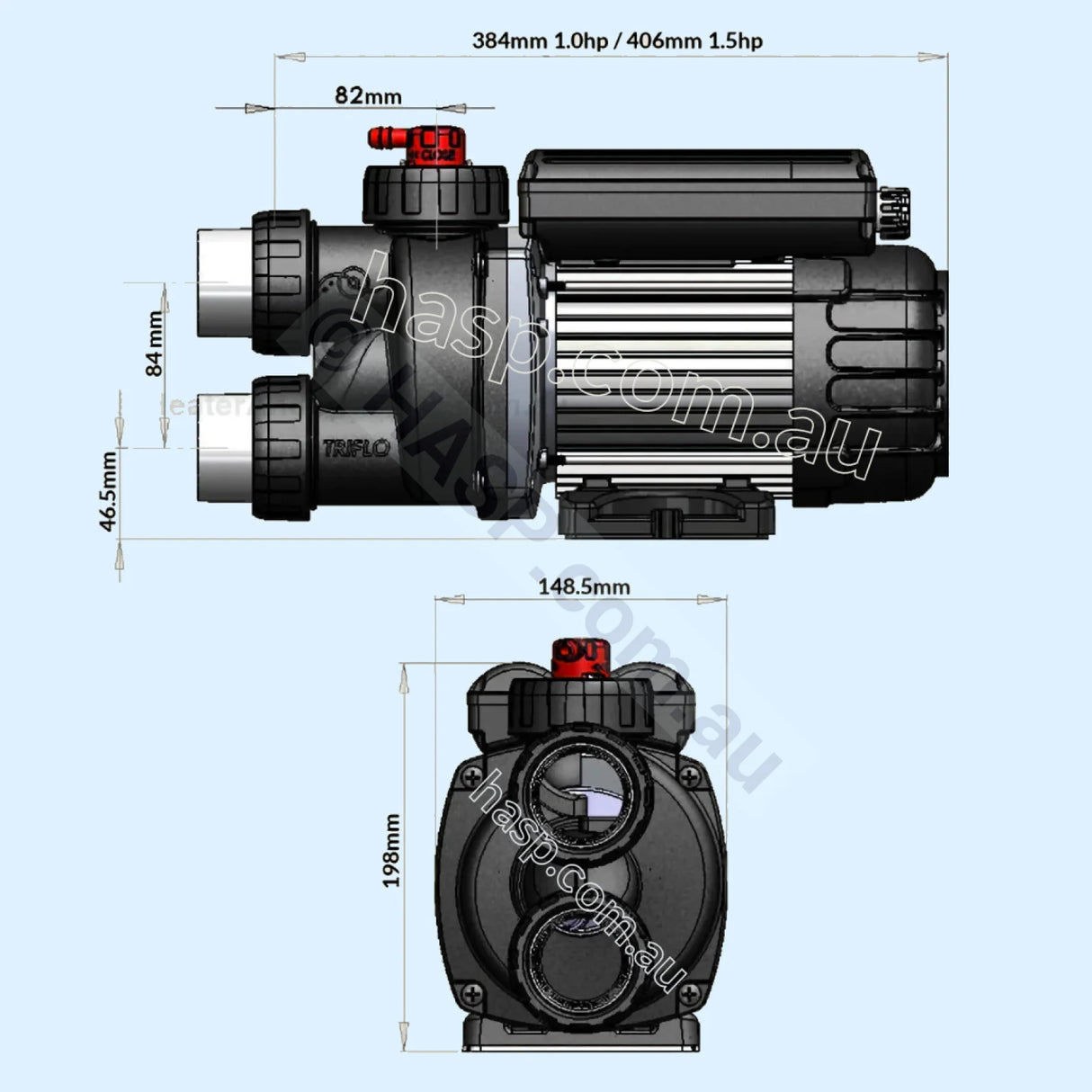

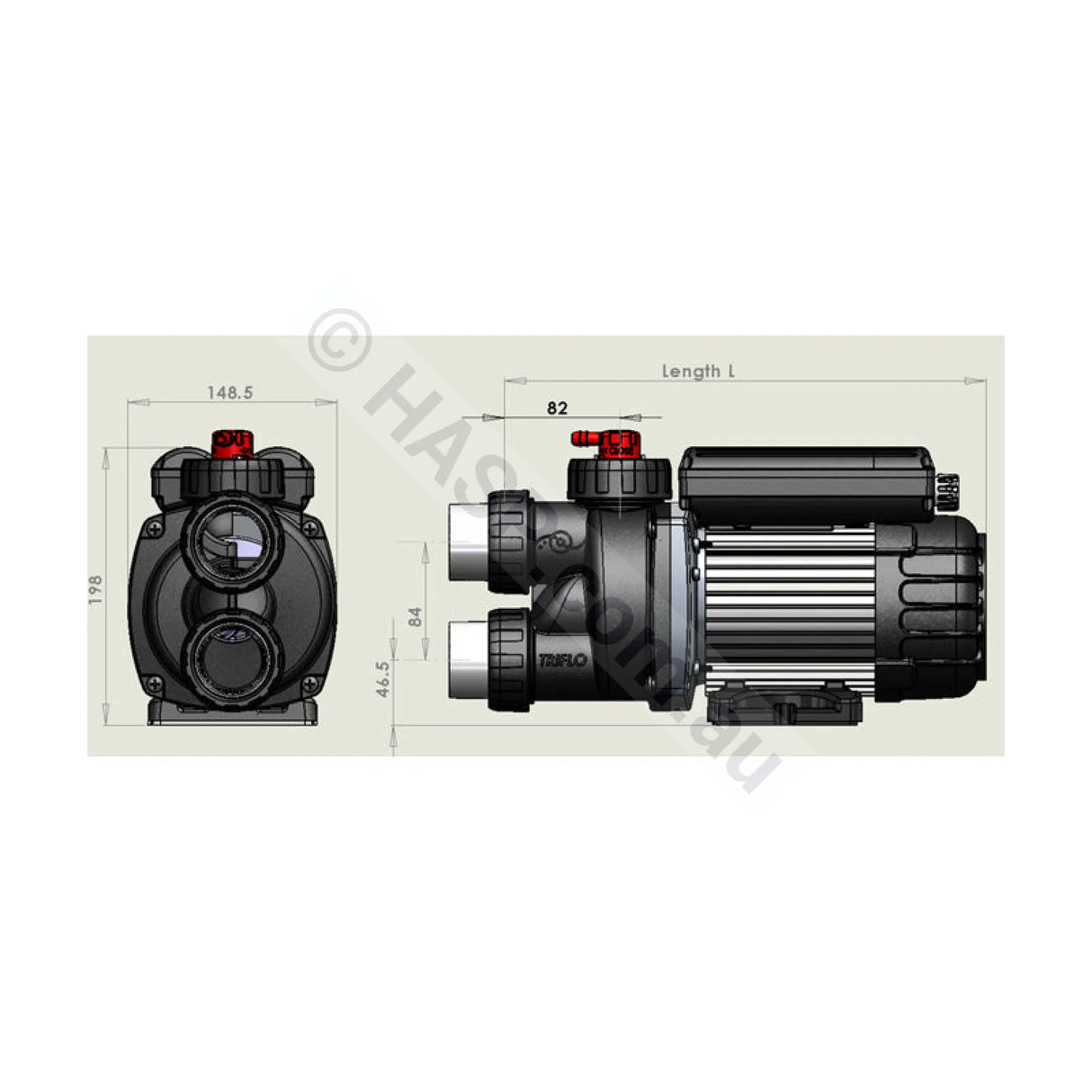

- Dimensions: L: 384mm | W: 148mm | H: 198mm | 10kg
- Warranty: 1 Year Domestic / 6 Month Commercial - Note: we often see these pumps last over 10+ years!
- For use in Spa Baths only - Warranty does not cover use in portable or in-ground spas.
-
Important Note: Includes new barrel unions for plumbing when replacing pumps from other brands (e.g., Davey, Onga, Balboa, Spaquip, Englefield), as each brand uses different unions.
Documentation:
MULTI PORTS: can be plumbed as a top or front discharge plump.
AIR BLEED: Air Bleed can be activated any time should air locking occur, the air bleed has an o'ring seal to ensure positive sealing once air has been expelled.
The TriFlo pump internal design allows the water to self drain so that there is no residue water left in the pump when the spa is emptied in accordance with Local Health Regulations.
The Triflo Auto-heat helps maintain warmth in a hot spa bath using recovered heat from the pump’s motor, and does not contain an electric element.
TriFlo spa bath pumps are designed for spa bath operation only and should not be used in chemically treated water or permanently filled spas or any other purpose.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
