Gecko Aeware in.k1001 Colour Touchscreen Touchpad - Compact
Gecko Aeware in.k1001 Colour Touchscreen Touchpad - Compact is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Gecko Aeware in.k1001 Colour Touchscreen Touchpad - Compact
Gecko Aeware in.k1001 Colour Touchscreen Touchpad - Compact is temporarily out of stock and will ship as soon as it's available.
Gecko Aeware in.k1001 Colour Touchscreen Touchpad - Compact
No longer sold due to warranty complications, and cannot offer an alternative at this stage. We recommend contacting your spa manufacturer or installer for support.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD

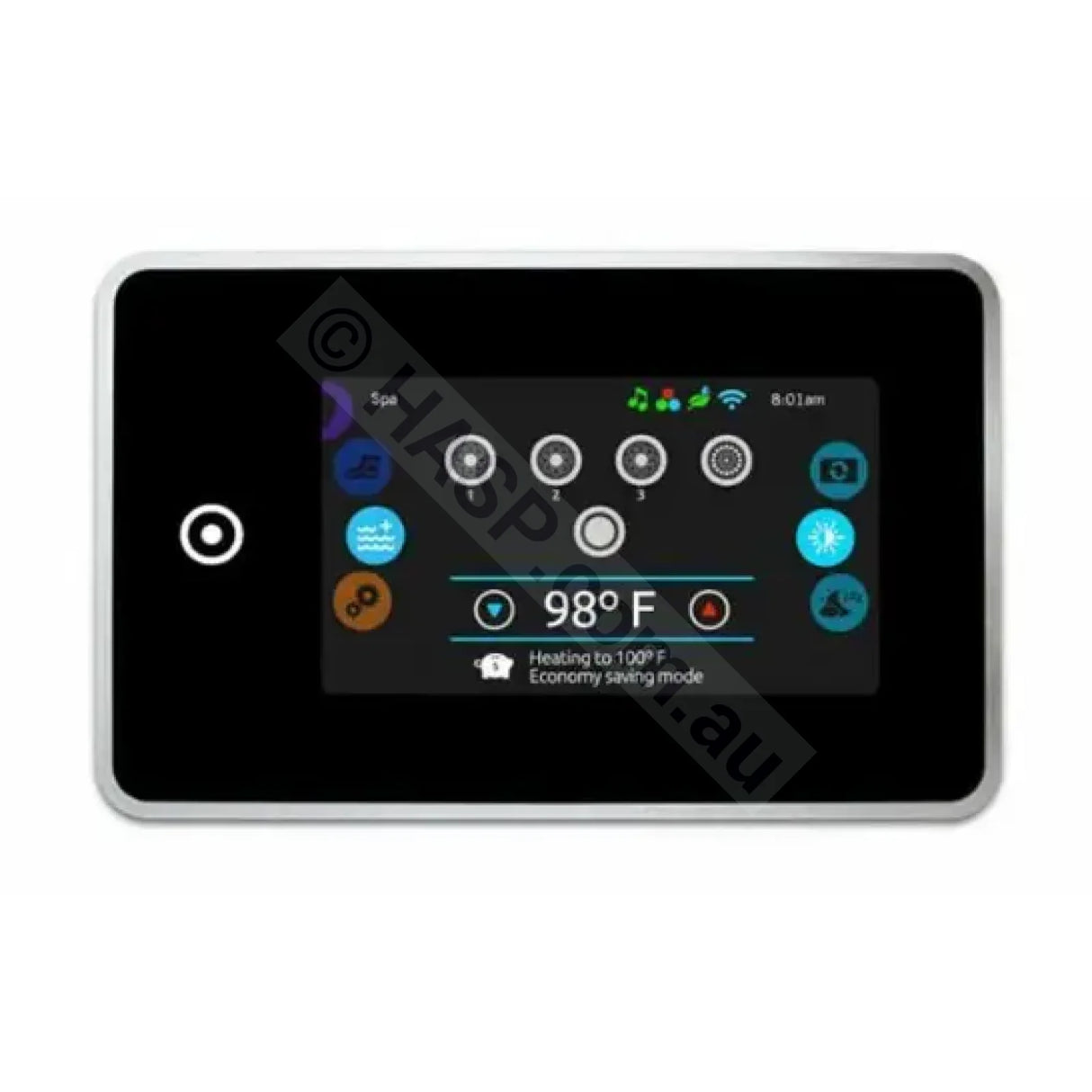

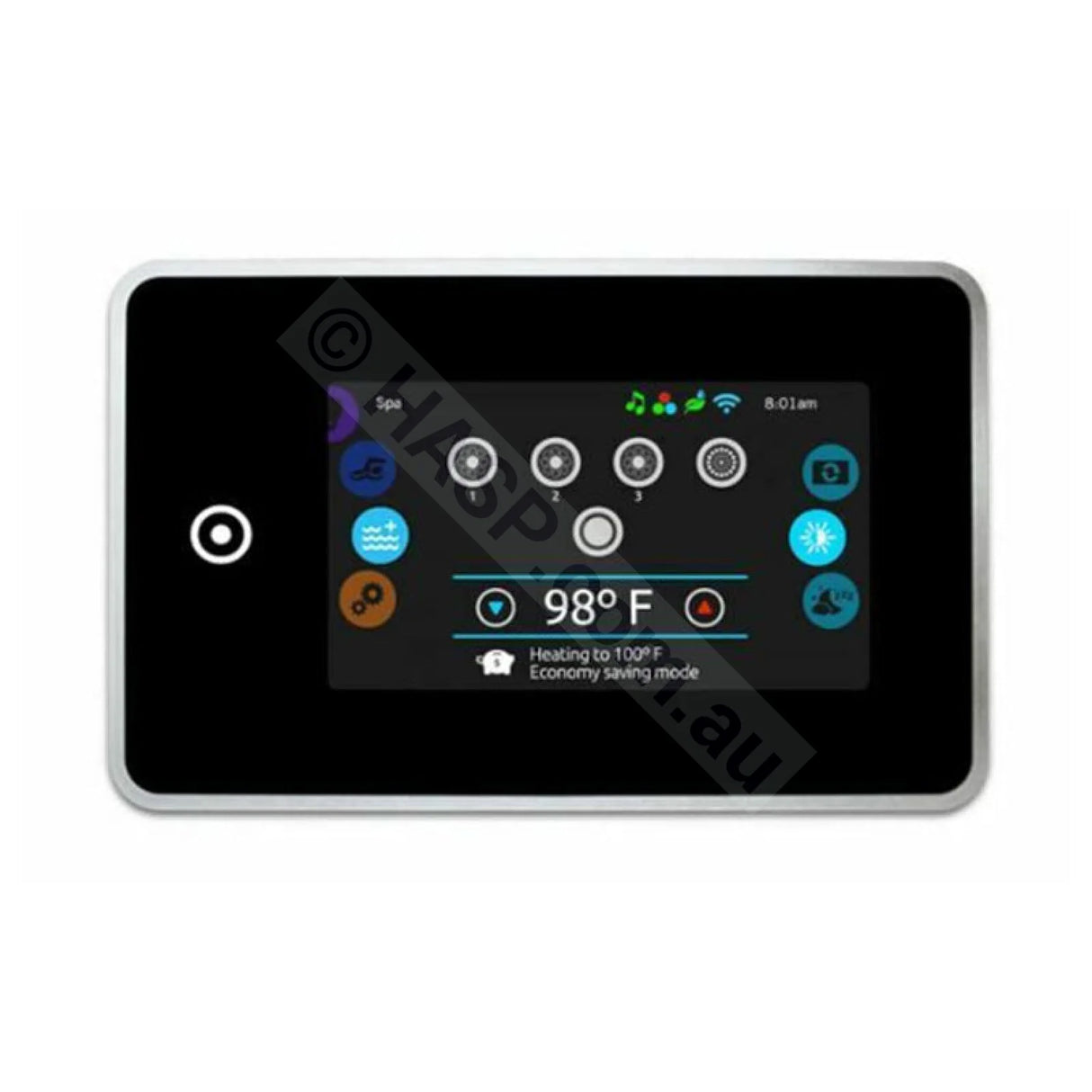

Gecko Aeware in.k1001 / in.k1001+ Colour Touchscreen Spa Touchpad to suit Gecko Aeware in.y series control systems (commonly in.ye and in.yt). A premium 4.3" capacitive colour touchscreen interface designed for fast, modern spa control and programming.
- Display: 4.3" colour capacitive touch screen (256K colours)
- Processor: 400MHz
- Lead length: 3m
What it does
- Controls spa functions, options and programming (depending on your spa pack configuration)
- Supports economy “water care” scheduling in half-hour blocks with weekly repeat
- Includes “weekender mode” style programming for users who only want heating on weekends
- Audio control note: stereo/audio functions only work if your spa has a separate in.stream2 audio system installed
Compatibility
- Designed for Gecko Aeware Y-series control systems (commonly in.ye and in.yt)
- Also used with some Gecko X-series systems (for example in.xe)
- Important: Please confirm your spa pack model and connector type before ordering
Dimensions (check before ordering)
| Face size | Length: 16cm (approx 157–160mm) Width: 10cm (approx 99–100mm) Depth: 4cm |
| Hole cut-out size | Length: 14cm (approx 138–140mm) Width: 8cm (approx 80mm) |
| Lead length | 3m |
Installation warning (read this)

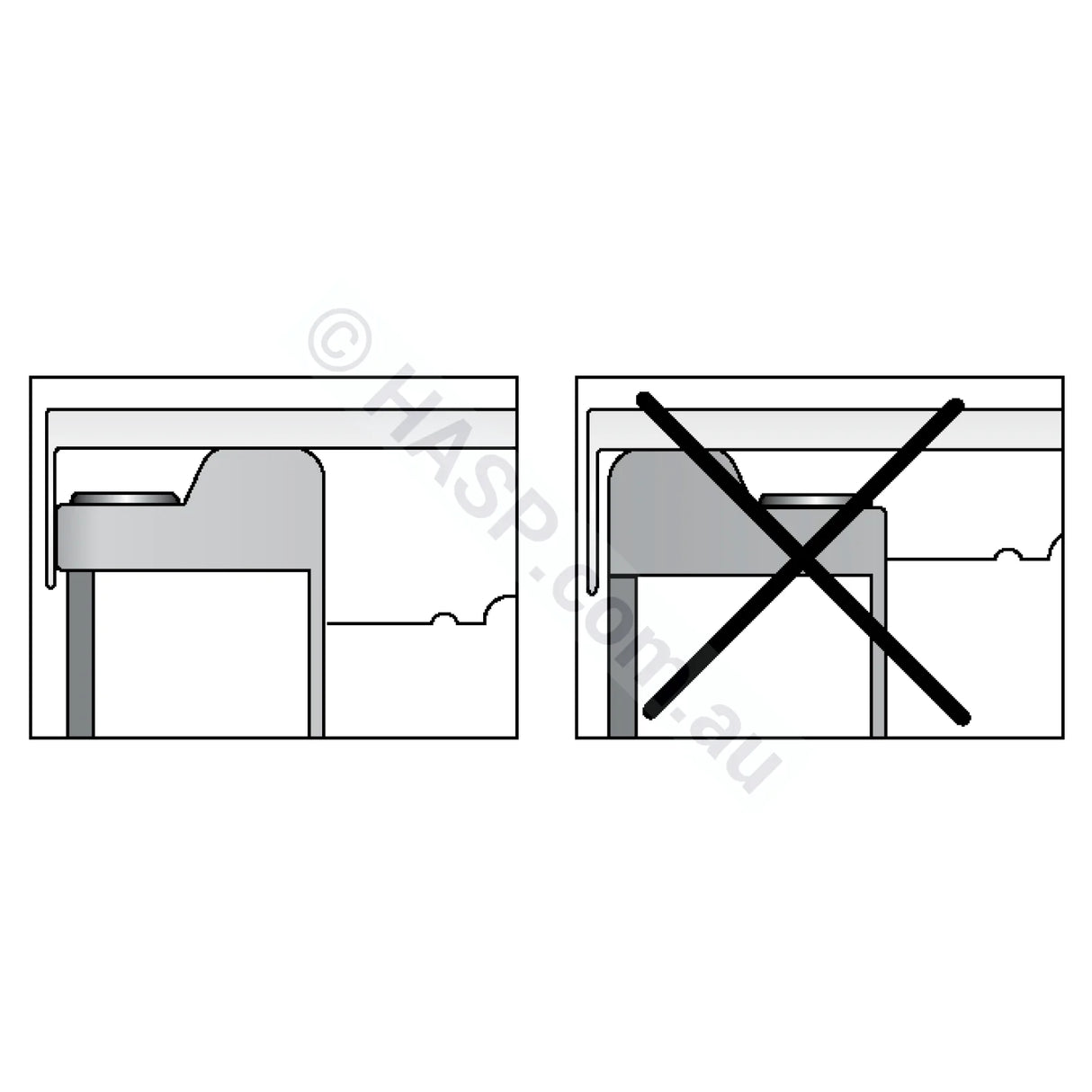

- MUST be installed on the outside edge of the spa. It must not be installed in the spa moisture zone under the cover.
- Do not enclose the rear of the unit in a way that lets water collect behind it.
- The rear gasket helps prevent water ingress. If the gasket is damaged, reseal appropriately to prevent water getting behind the mounting surface.
Part numbers
- 0607-008087
- G-0607-008087
- 0607-008087 (Gecko Aeware)
Warranty
- 2 Years (return to us)
Notes
- “in.k1001” and “in.k1001+” are commonly used naming variants in the market. If you’re replacing an existing keypad, match your current model/part number and cut-out size.
- If you’re unsure, send us a photo of your current touchpad and a photo of the spa pack label so we can confirm compatibility.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
