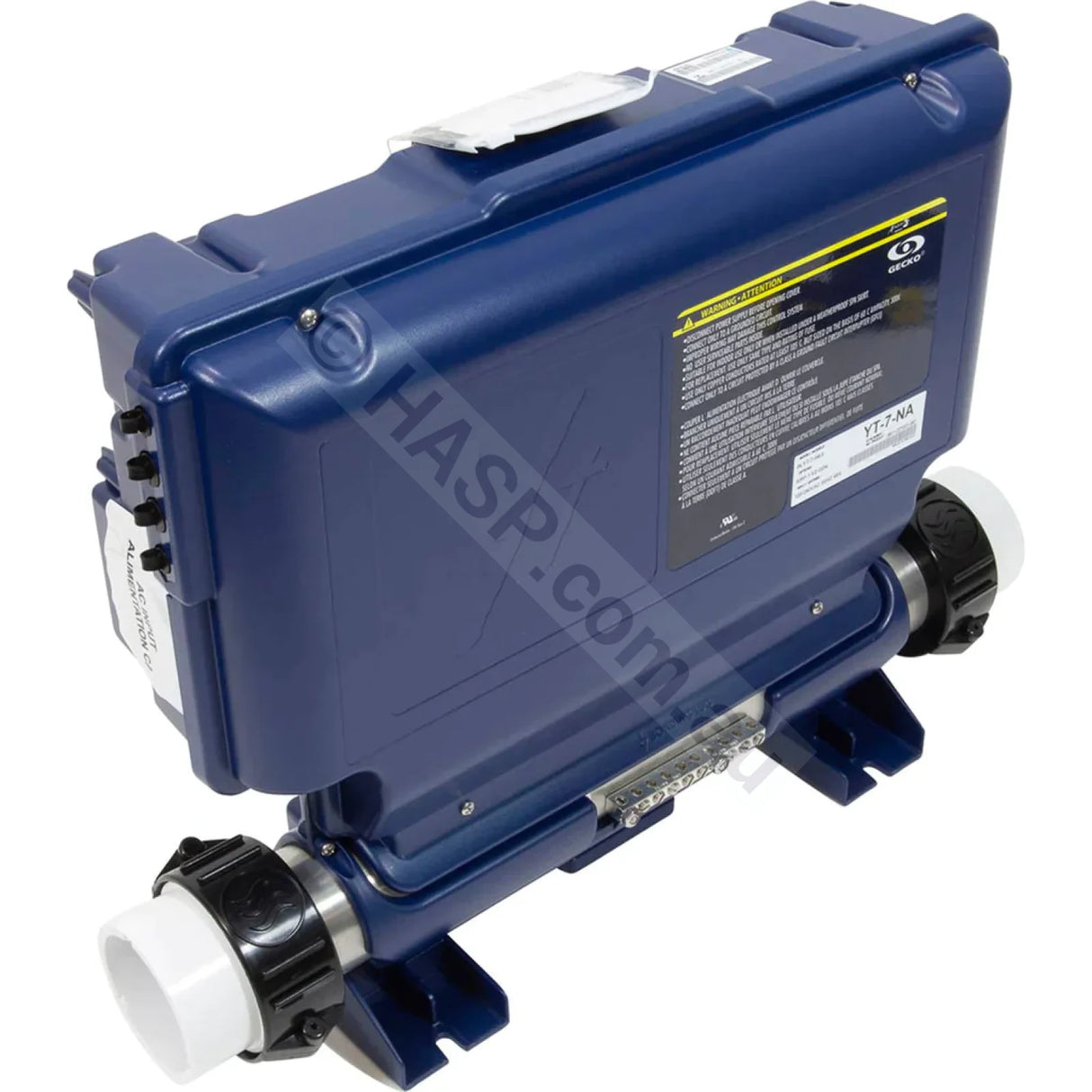

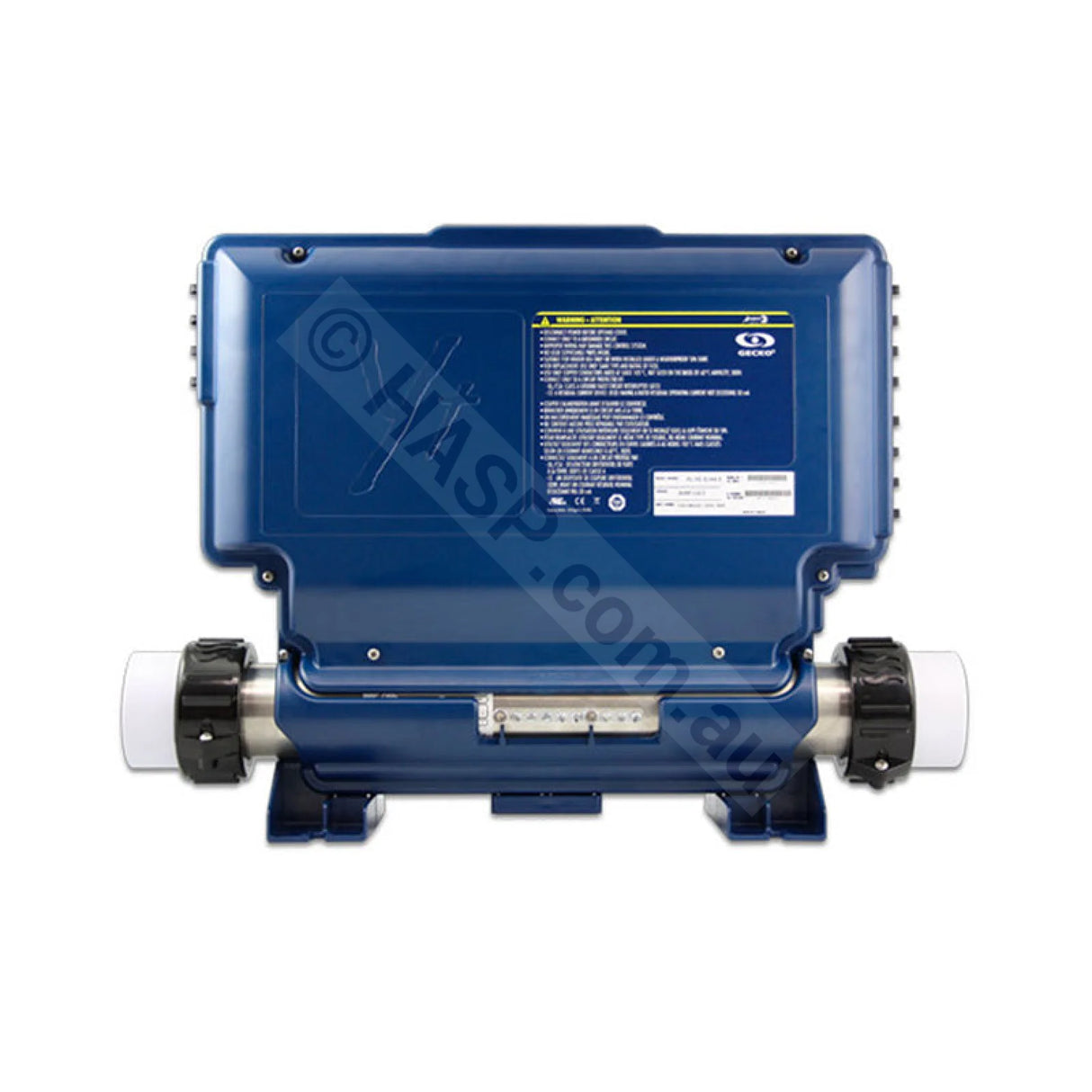

Gecko Aeware IN.YT-7 4.0kw Controller

Gecko Aeware IN.YT-7 4.0kw Controller Only. Touchpad sold separately.

If upgrading from an in.xe system, you will need to remove the old plugs and fit AMP standard plugs.

These control systems require programming using a Gecko Prgramming Stick for the Australian market. These are only available to authorised Gecko technicians. If you do not have this stick, we can program it for you.

We will need to know:

• Total Amps Available to Spa - ___A
• Circ Pump or 2-Speed Pump - Model: ______
• Pump 1 - Yes or No - Model: ______

• Pump 2 - Yes or No - Model: ______
• Pump 3 - Yes or No - Model: ______
• Pump 4 - Yes or No - Model: ______
• Pump 5 - Yes or No - Model: ______
• Blower - Yes or No - Model: ______
• Ozone - Yes or No - Model: ______

IN.YT-7 Low Voltage
1 x Touchpad Outlet
1 x Light
2 x Communication Links (AUX touchpad/In.Touch)

IN.YT-7 Features
*In heater temp sensor
*Max Temp 40 degrees
*Adjustable Filtration
*Heat Pump Interface
*Wifi Interface

Controller Specifications
Heater Wattage: 4000w
Max Current: 48amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm

Controller Dimensions
Length: 498mm
Height: 367mm
Width: 130mm
Weight: 3.5kg
