Astralpool Hurlcon Astralpool Gas Regulator Valve for HX 70, HX 120, JX 130, JX 160 and WX Gas Heaters
Astralpool Hurlcon Astralpool Gas Regulator Valve for HX 70, HX 120, JX 130, JX 160 and WX Gas Heaters - New Style - See notes is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Astralpool Hurlcon Astralpool Gas Regulator Valve for HX 70, HX 120...
Astralpool Hurlcon Astralpool Gas Regulator Valve for HX 70, HX 120, JX 130, JX 160 and WX Gas Heaters - New Style - See notes is temporarily out of stock and will ship as soon as it's available.
Astralpool Hurlcon Astralpool Gas Regulator Valve for HX 70, HX 120, JX 130, JX 160 and WX Gas Heaters
Gas Valve for Astralpool & Hurlcon and HX70, HX120, HX150, JX130, JX160, and WX (Wilton) gas spa heaters. May also suit Minimax 70, 120, 150, MM heaters, and Hurlcon Hendy H Boilers. Does not suit MX gas heaters.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD

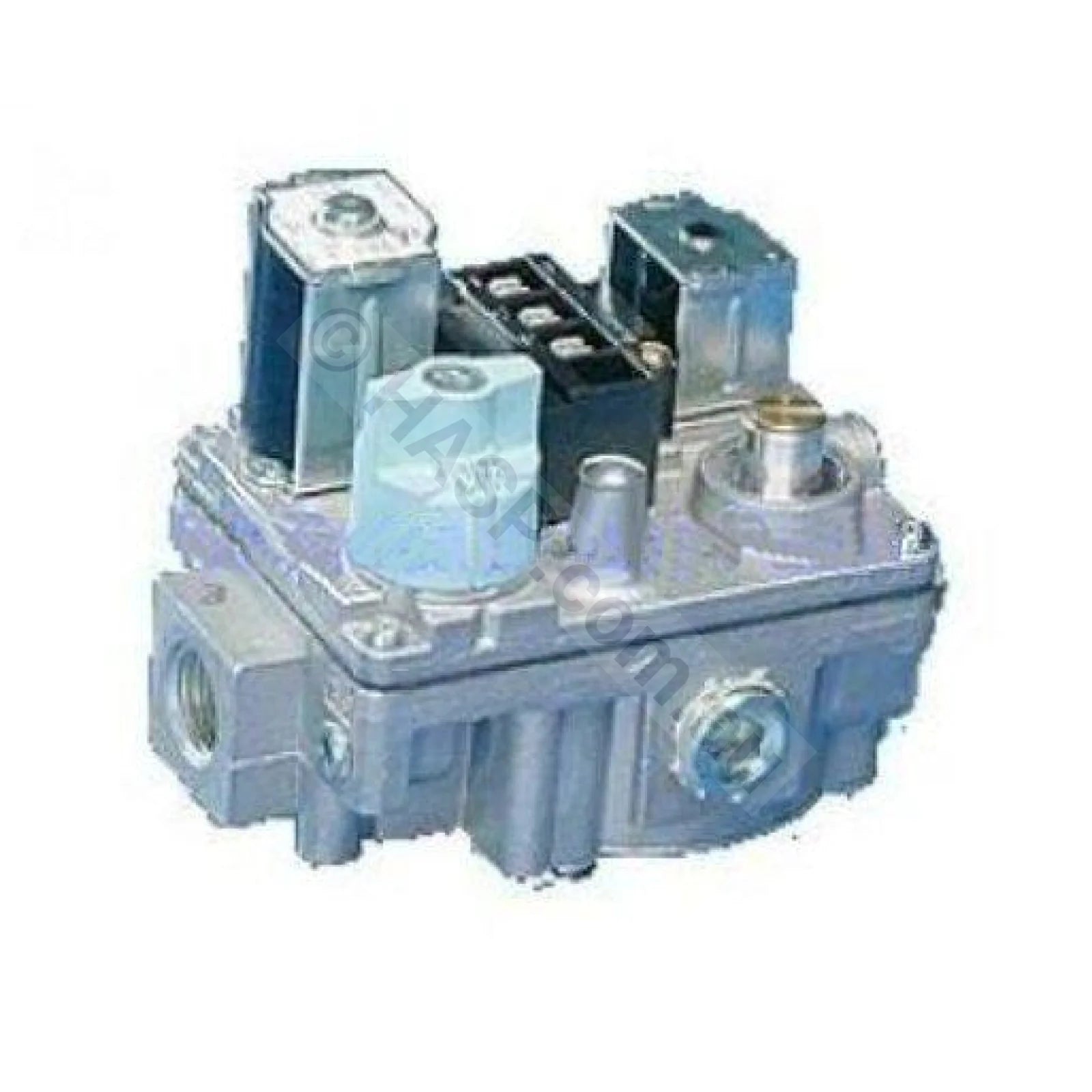

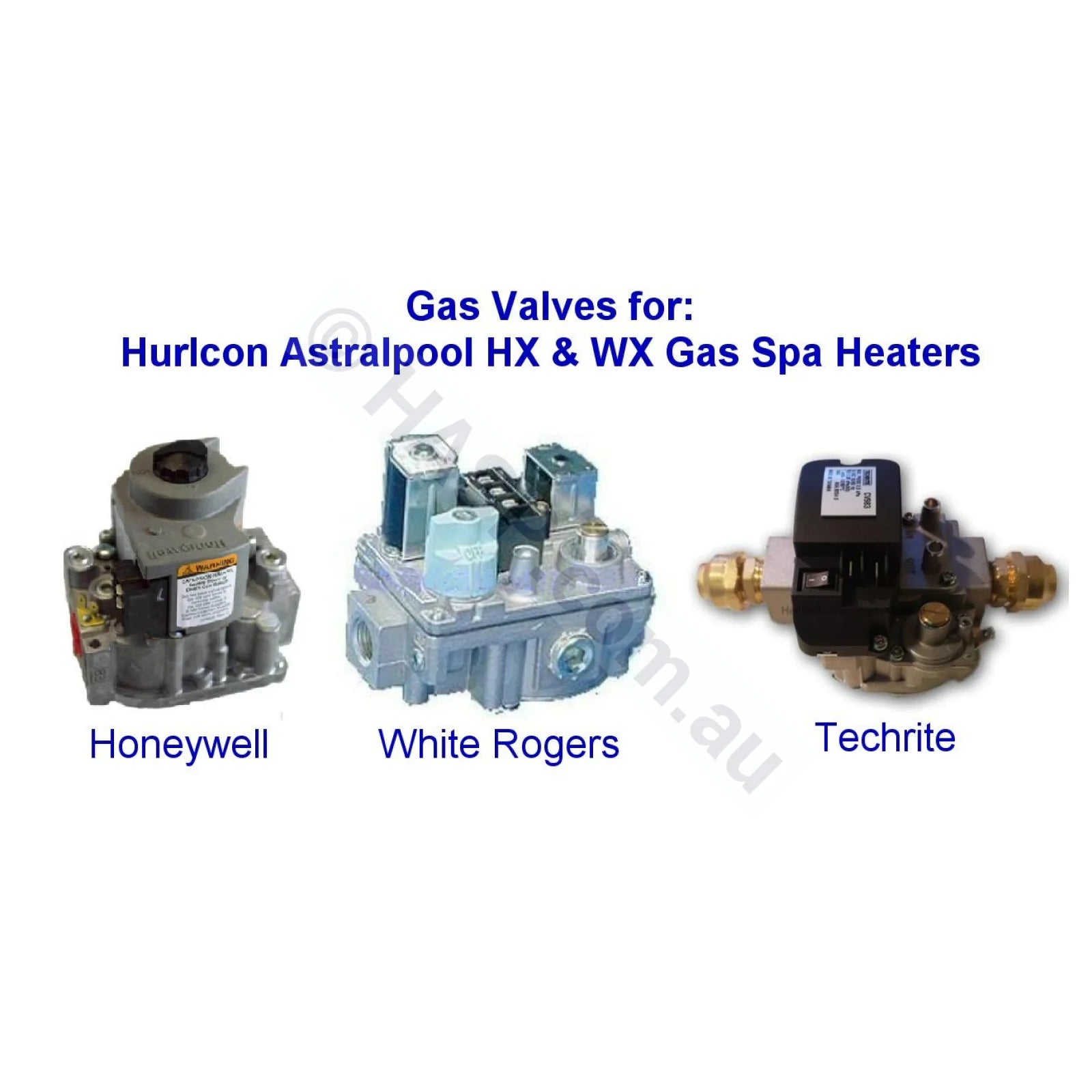

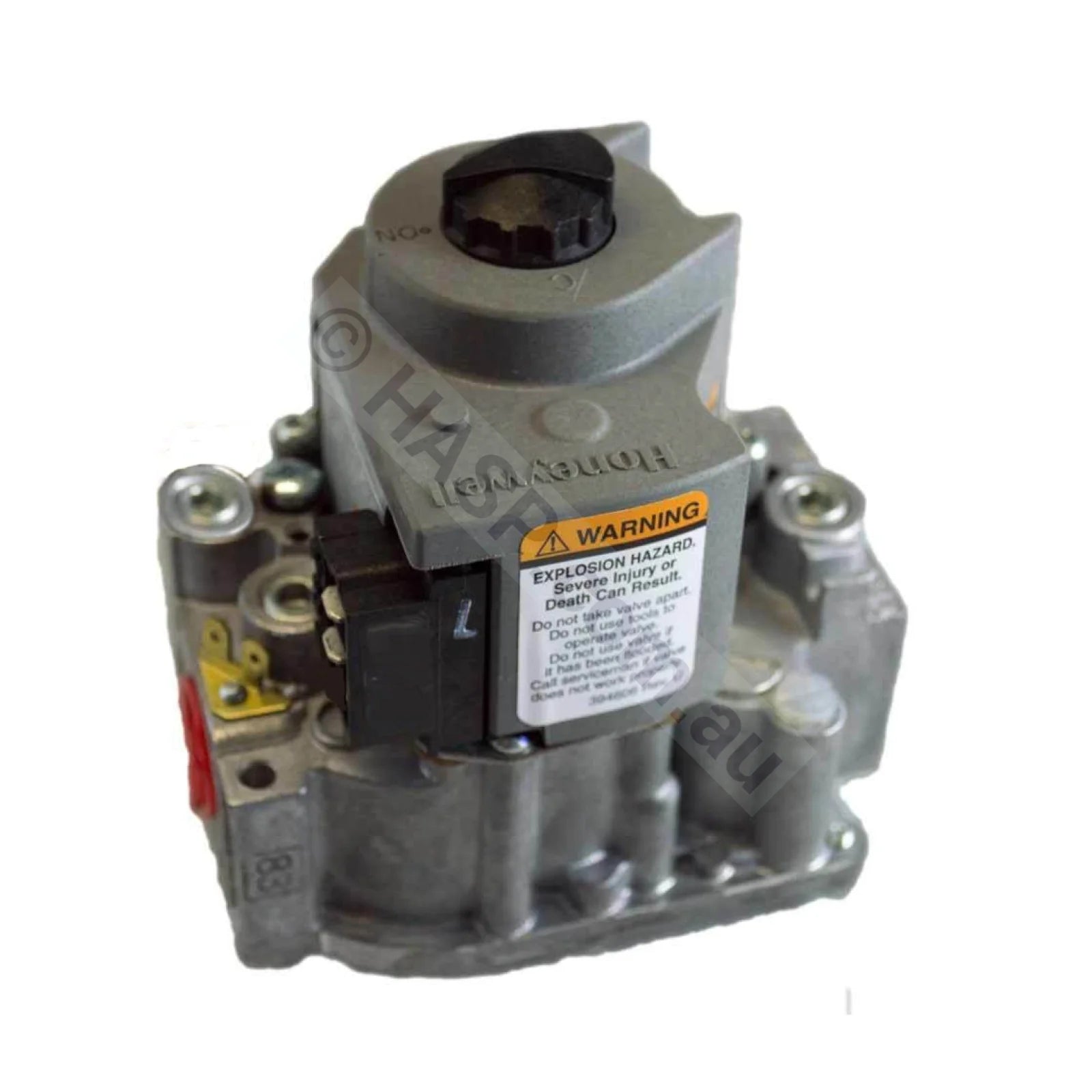

Images show the Honeywell, White Rogers and Techrite gas valves used in these heaters. The black Techrite version now supersedes all earlier Honeywell & White Rogers gas valves.

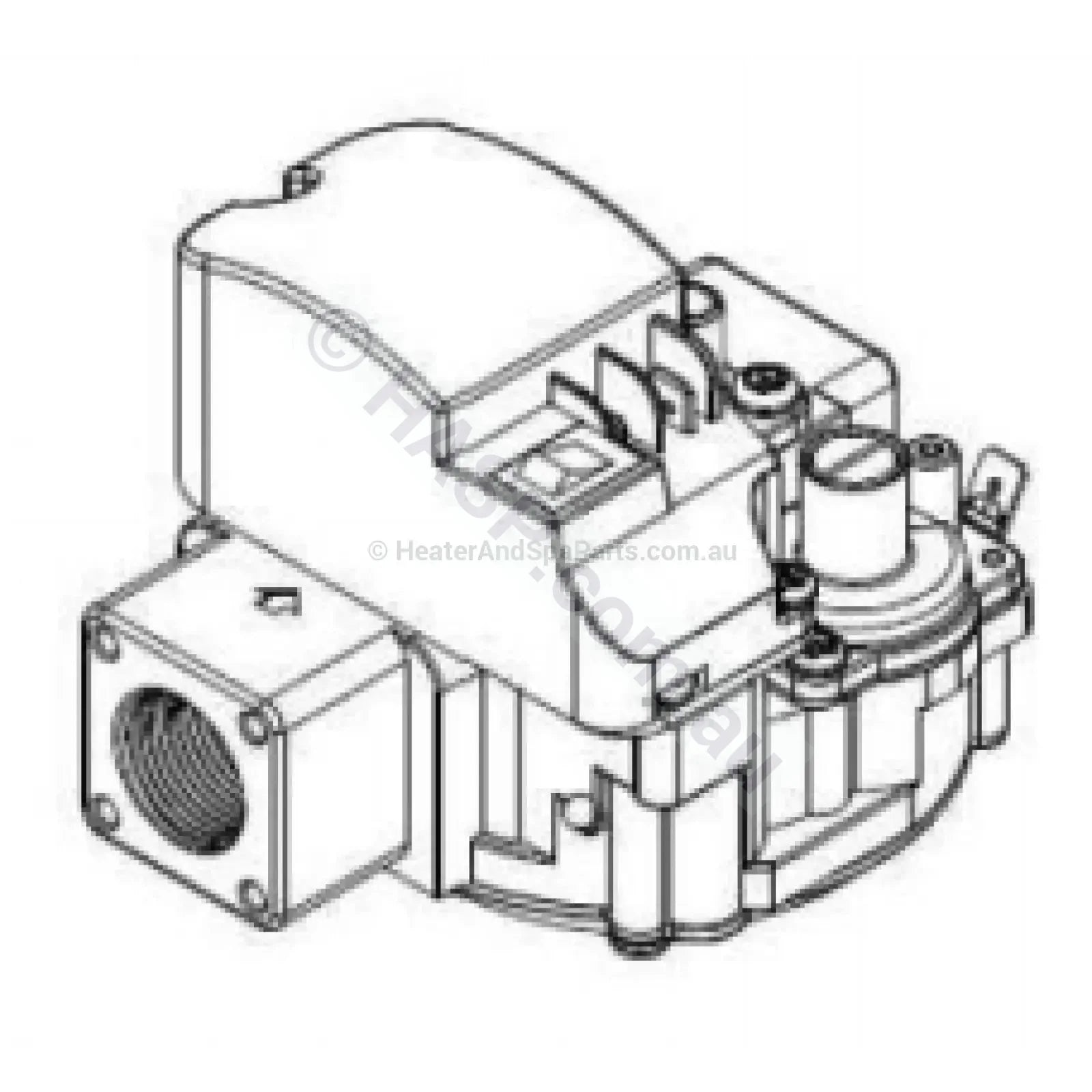

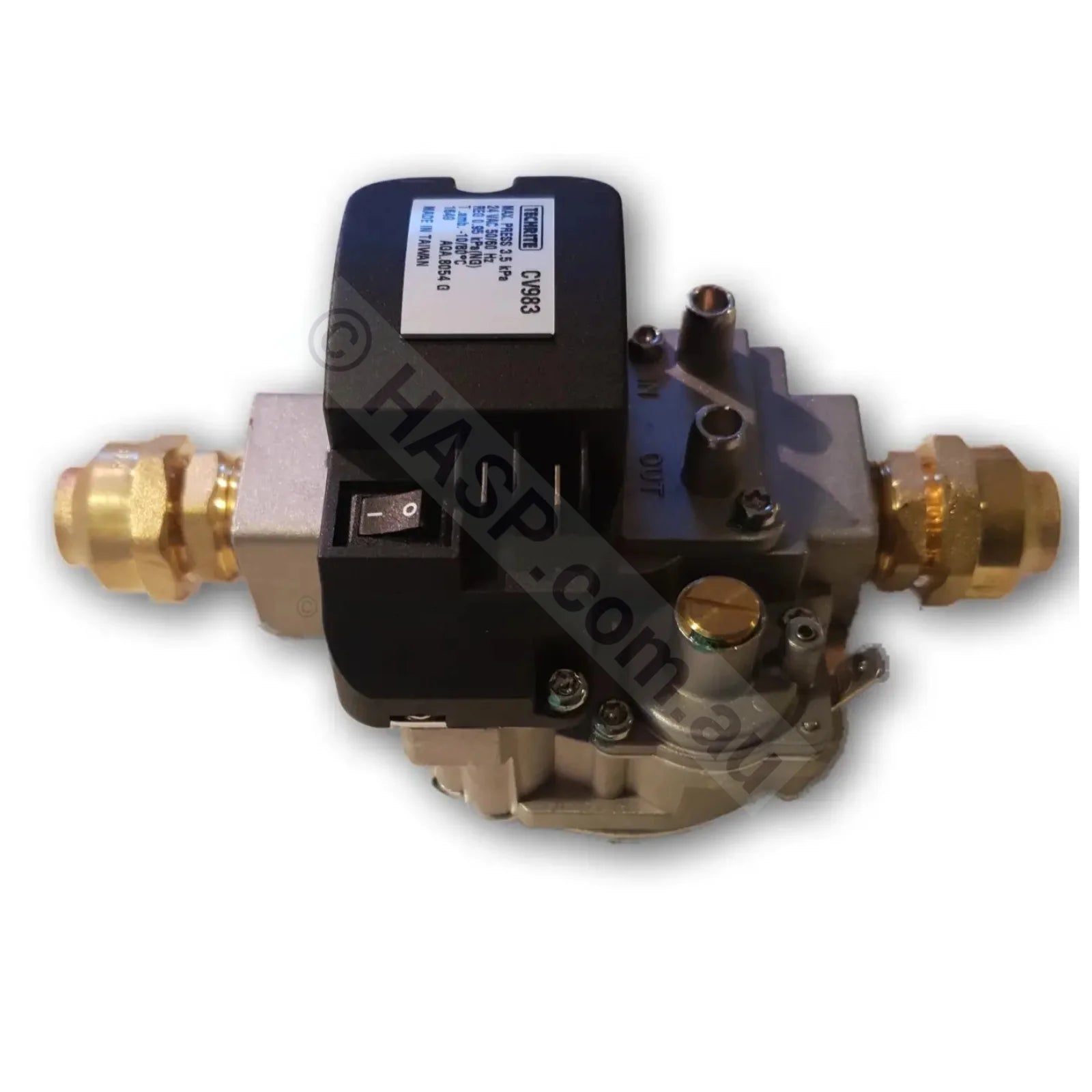

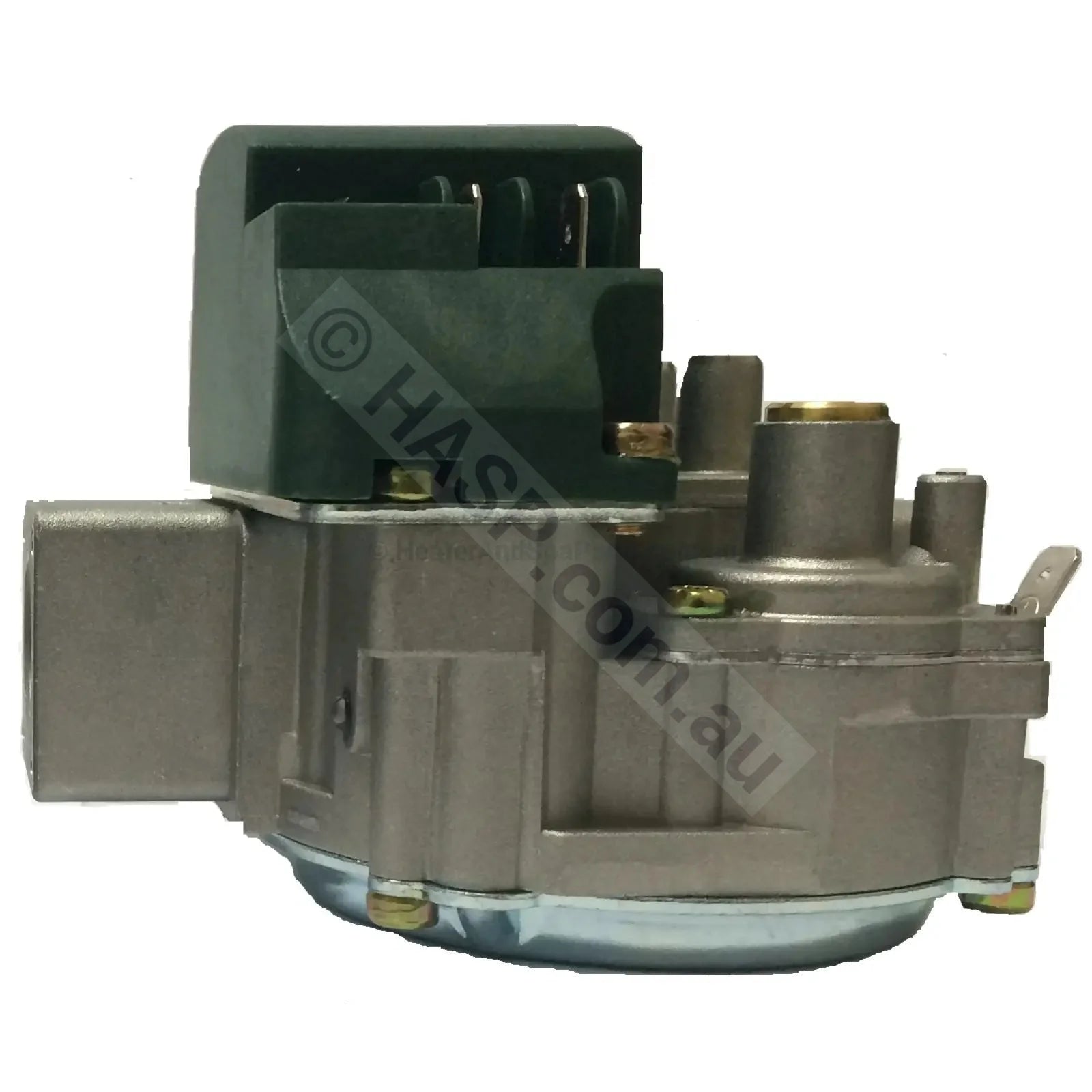

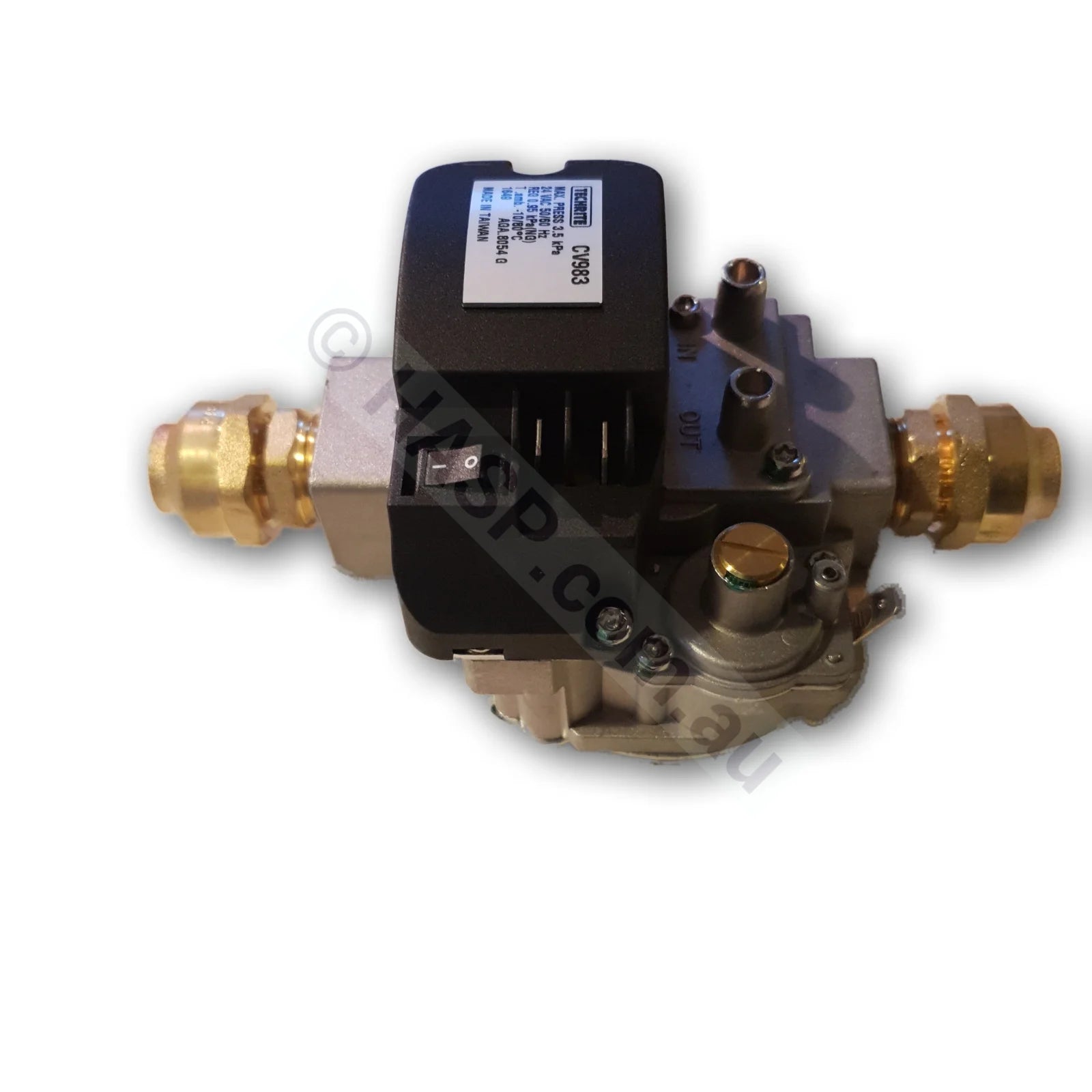

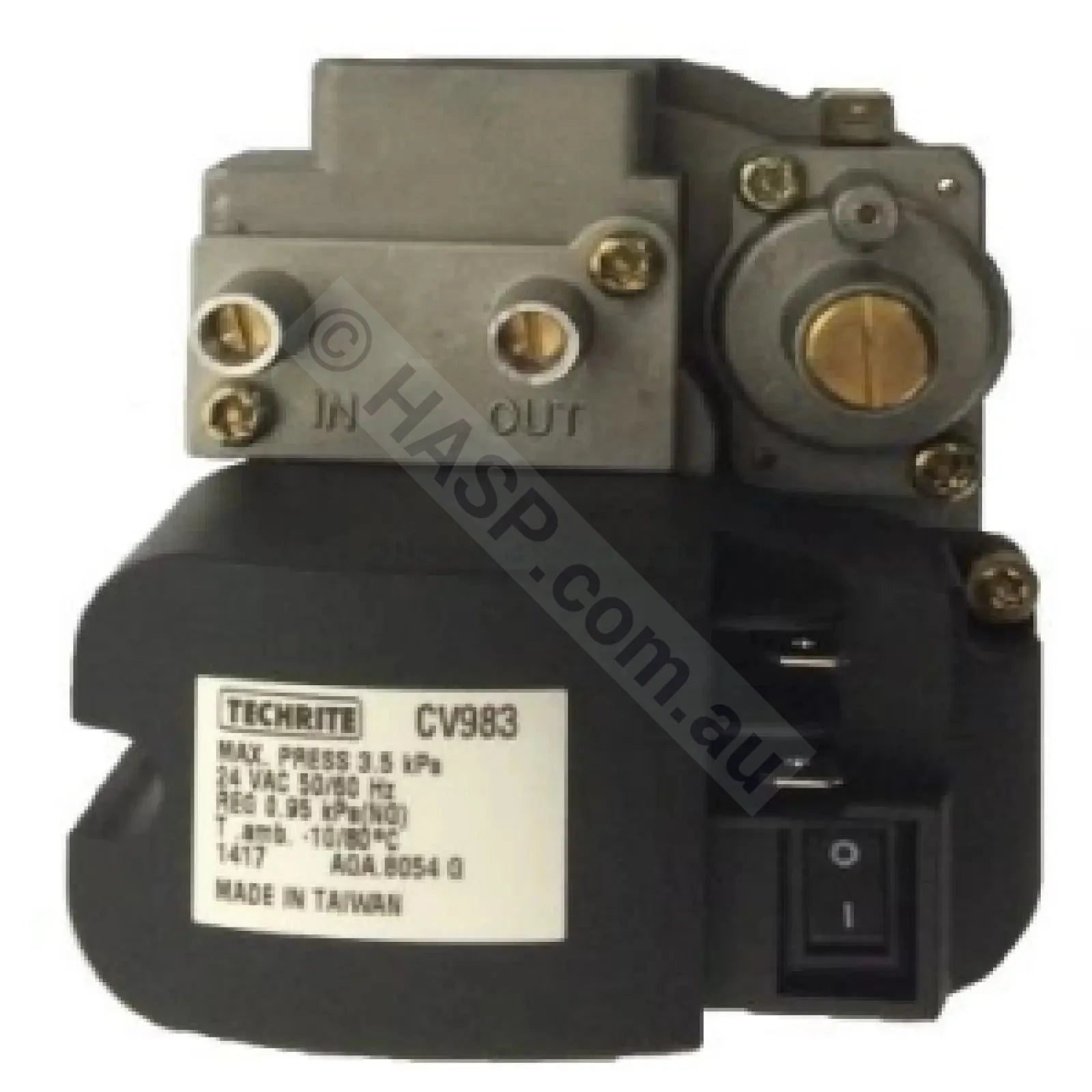

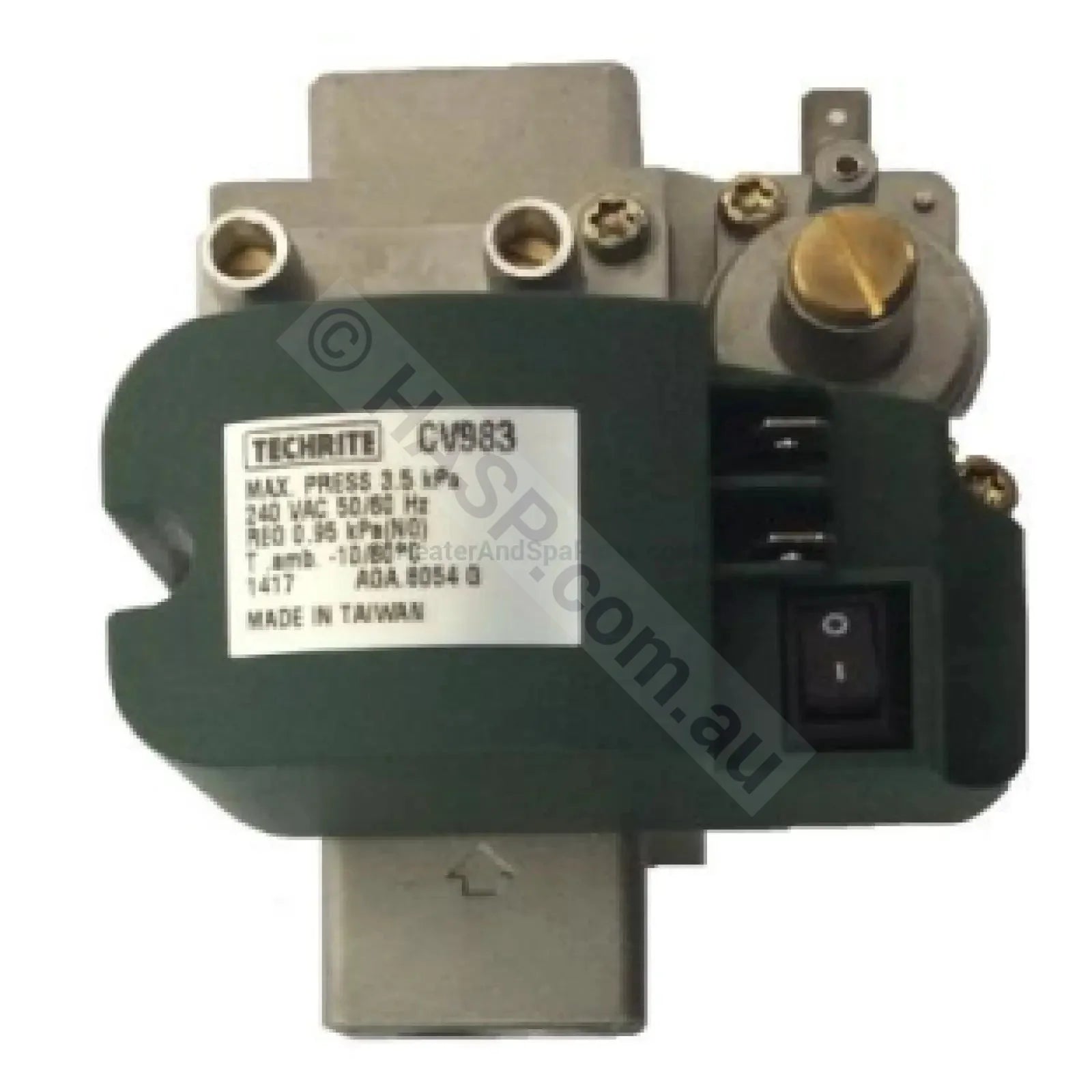

Techrite CV983 Gas Valve Regulator for Hurlcon and Astralpool HX70, HX120, JX130, JX160, and WX Wilton gas spa heaters. May also suit older Minimax MM heaters, and Hurlcon Hendy H Boilers. This is the Techrite version that supersedes all previous gas valves from Honeywell and White Rogers.
Important Notes:
- Installation of these valves must be performed by authorised persons and must be in compliance with gas installation codes and any local authority regulations.
- Note in older heaters with White Rogers and Honeywell gas valves, some internal copper bending or minor modification may be necessary when retrofitting this Techrite valve.
- Gas valve will require pressure adjustments once fitted.
- Comes as Natural Gas valve. For LPG use, purchase the conversion kit here seperately.
- If gas valve does not open after installation, swap the Active & Neutral wires around.
Hurlcon part number 477142 was Replaced by 477143, which is now 477143 Techrite. Supersedes earlier Honeywell & White Rogers gas valves.
Current Valves:
- ON/OFF operation
- Max Pressure: 3.5kPa
- 24VAC 50/60Hz
- Reg 0.95 kPa (NG)
- T.amb -10/80C
- 1649 AGA 8054 G 1739
- CV983
- Contronik CV983
- Kupo CV 983

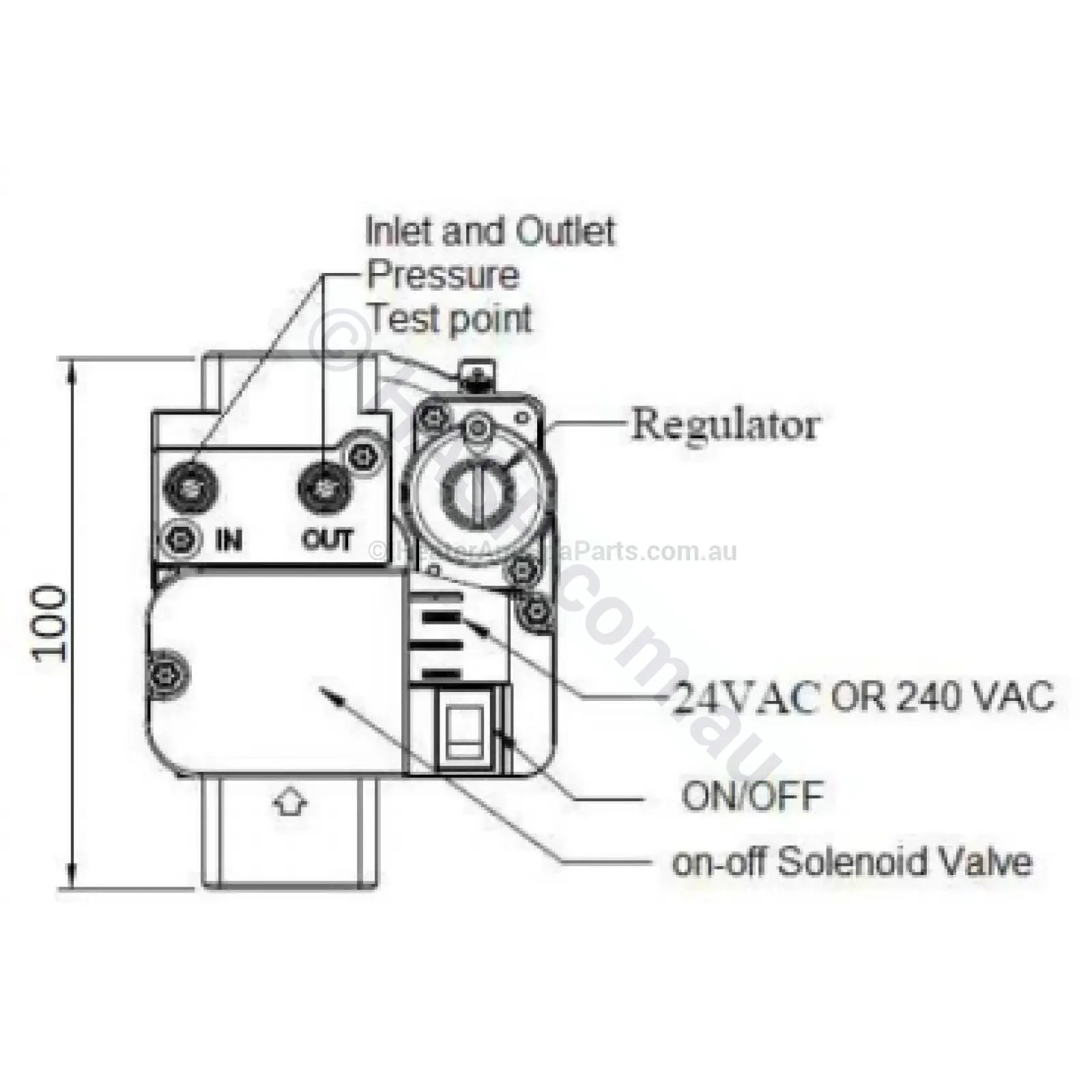

Details / Specifications:
- Model: CV 983
- Combination gas control include a ON-OFF switch for safety shut-off.
- Solenoid operated safety valve and burner valve by normal control for flame ignition.
- Two automatic solenoid shut-off valves with safety valve sequencing function for direct burner ignition operation.
- Main outlet pressure adjustment
- Outlet Pressure Adjustment Range: NG 2.5"~3.5" W.C. / LPG 8"~12" W.C.
- Maximum Inlet Pressure: 35 mbar
- Flow Capacity (1" W.C. Pressure Drop): NG: 150,000 BTU/hr / LPG: 243,000 BTU/hr
- Operating Temperature: -23°C~80°C
- Max Inlet pressure: 3.5 kPa
- Max Flow: 2.3 M3/h (Air)
- Regulator Range: 0.7-0.1 kPa (NG)
- 2.0-2.6kPA (Propane)
- Regulator Class: 3
- Regulator Grade: 20
- Valve Class: 2
- Temperature Limitations: -10 + 80 ºC
- Voltages: 24 and 240 VAC
- Mounting Limitations: Any position except coil facing down

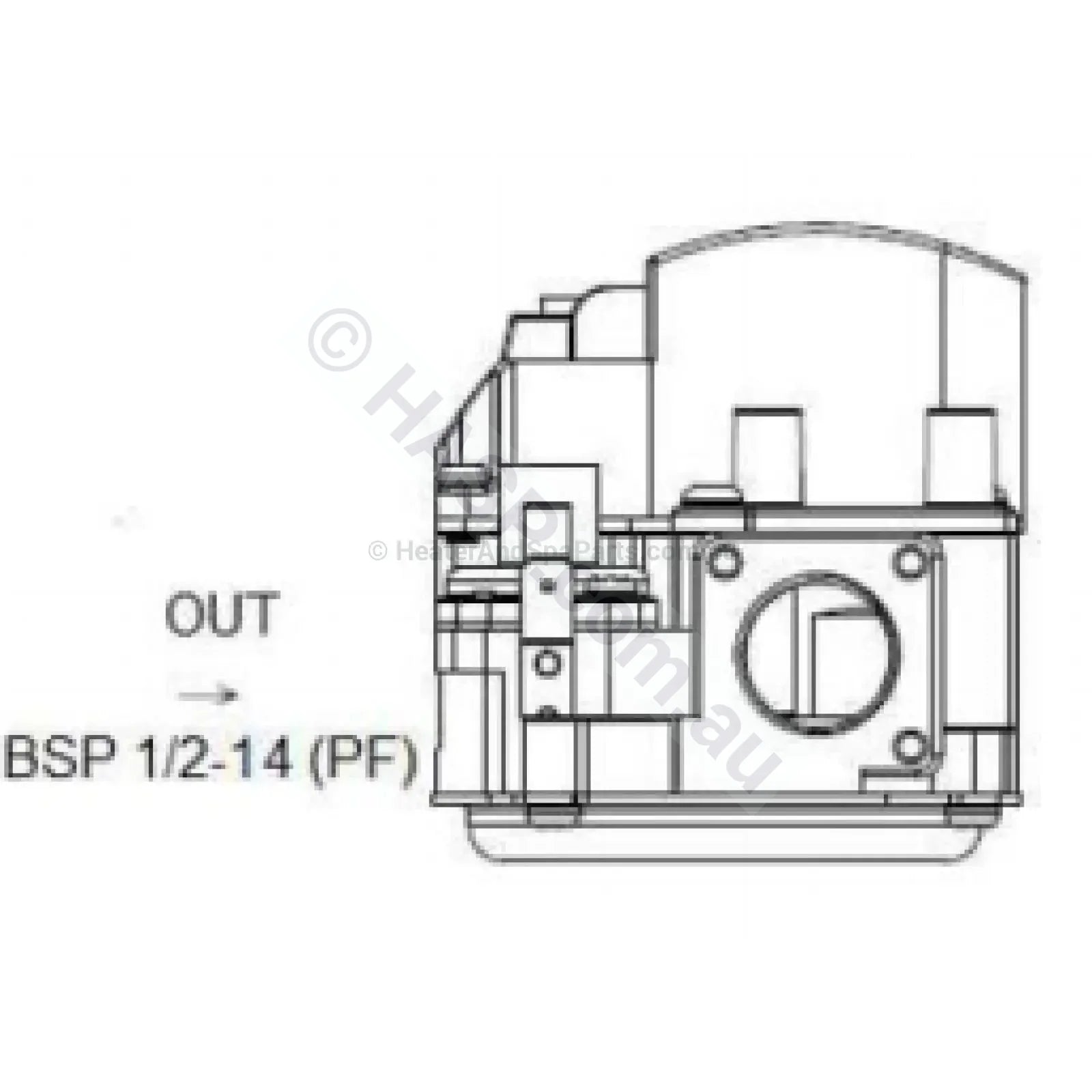

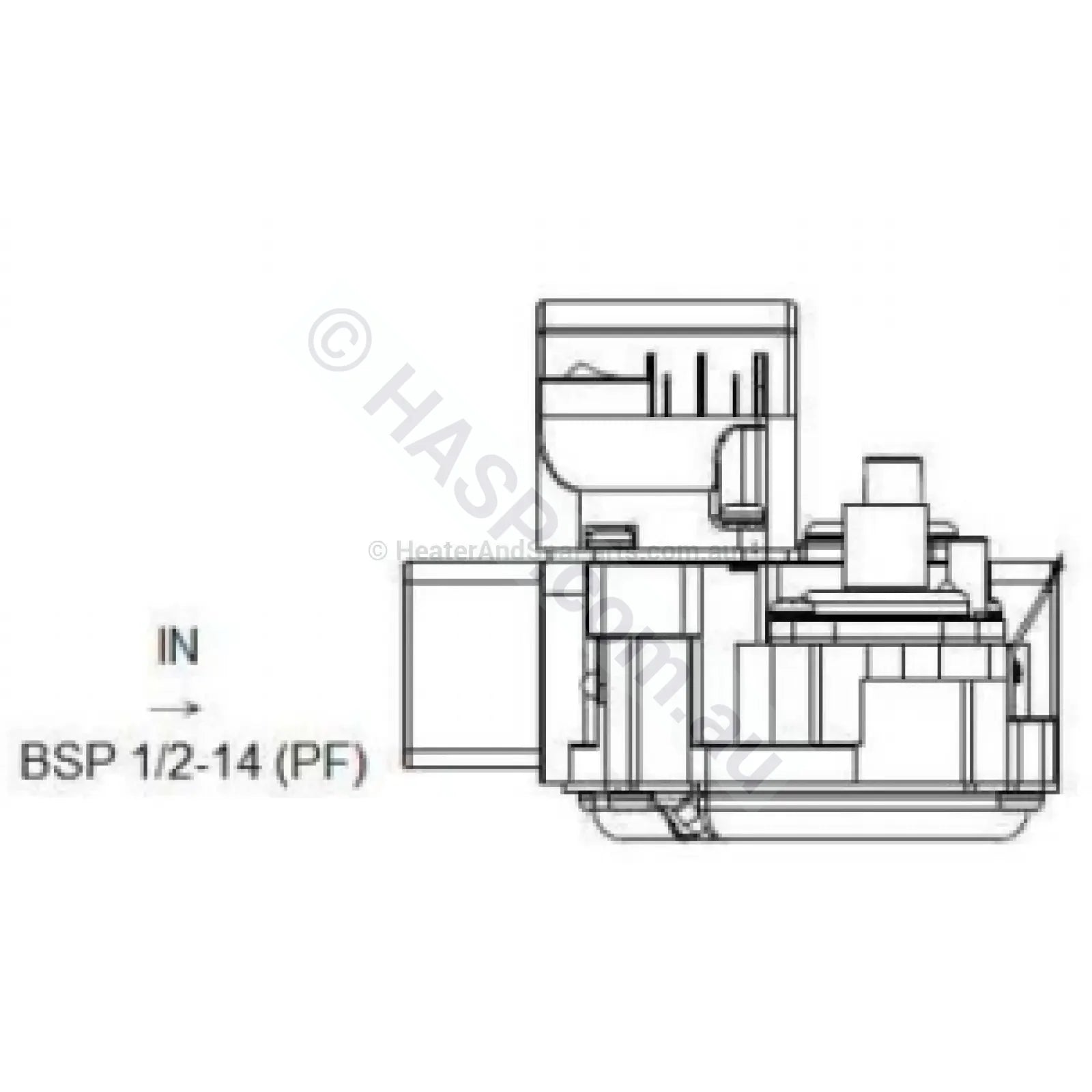

- Connections: 15mm (1/2") BSP(1SO7)
Current Valves:
- ON/OFF operation
- Max Pressure: 3.5kPa
- 24VAC 50/60Hz
- Reg 0.95 kPa (NG)
- T.amb -10/80C
- 1649 AGA 8054 G 1739
- CV983
Older Valves:
- ON/OFF operation
- Electronic control
- Redundant valve
- Capacities up to 140 MJ/h
- Outlet / Inlet 15 or 20 mm
- Pressure rating 5 kPa
- Optional slow opening
- Optional pilot tap
- Optional TRECI modulator - 0-10v DC, 0-24v DC
- 36E06-30*
HX 120 Gas Valve, HX 70 Gas Valve
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: Astralpool Catalogue 2026 | Zodiac Catalogue 2026
Interactive Parts Diagrams
Find this part on our interactive heater parts diagrams — each one opens the full exploded view and parts list:
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
