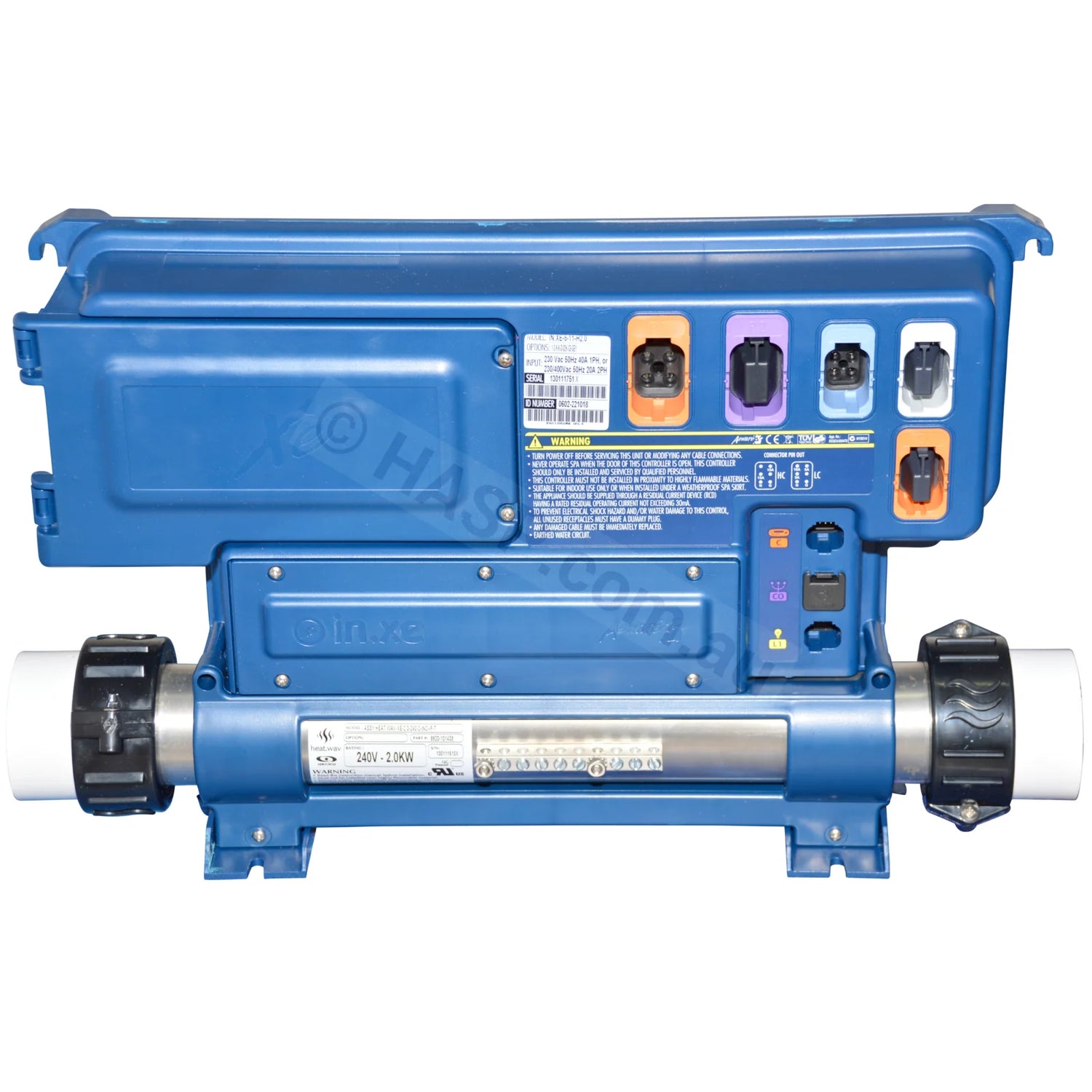

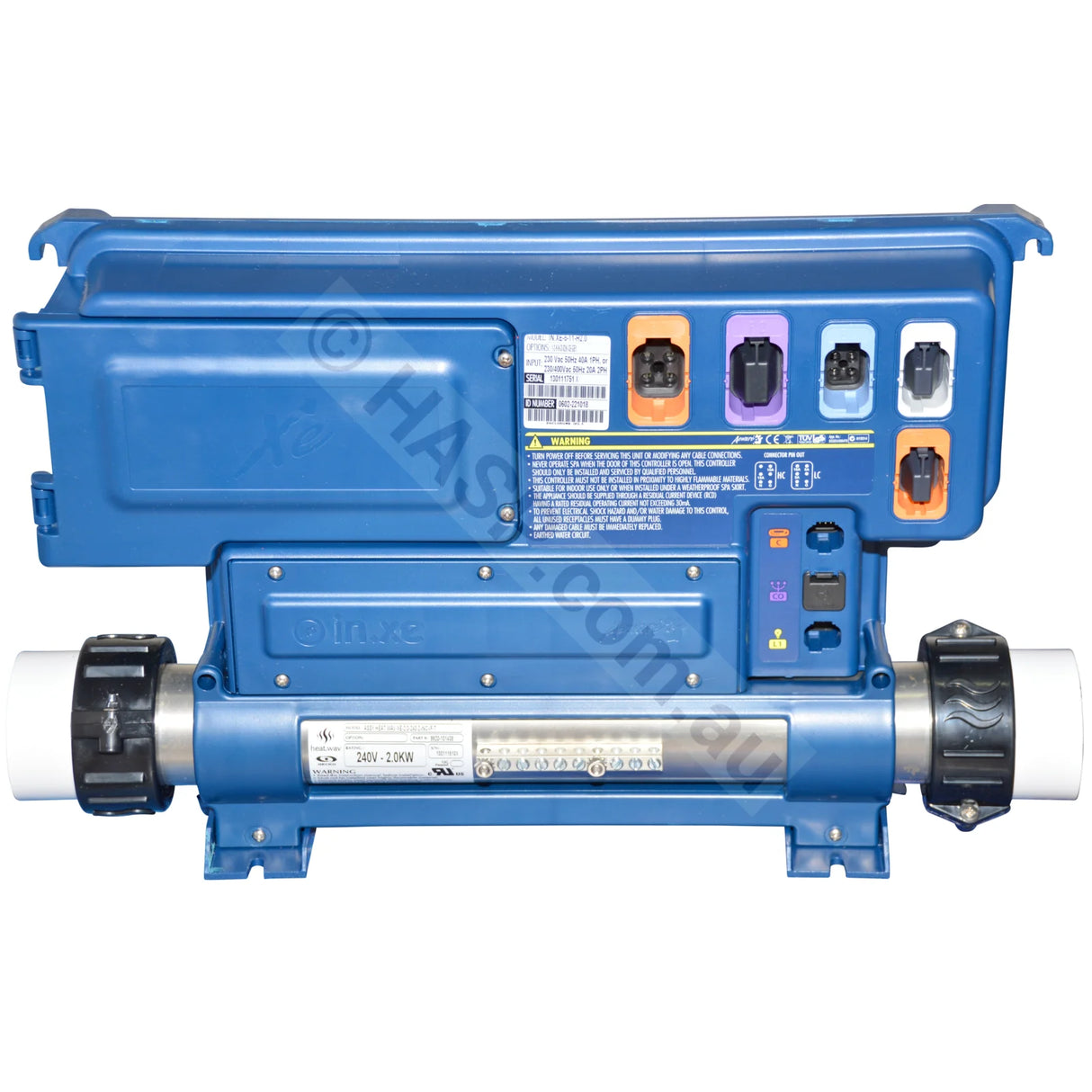

Aeware in.xe-5-11-H2.0 (or 4.0)-1-N-N-O-D-32K-CE-GE3 by Gecko Electronics. Can be fitted with in.k200, in.k300, k.450, k.500 and other touchpads.
5 outputs: 2 pumps, blower, circ pump, ozone, light, aux/audio, 2kw or 4kw heater
- Output 1 = Pump,
- Output 2 = Pump or Blower,
- Output 3 = Blower,
- Output 4 = Ozone / Circ Pump,
- Output 5 = 230v supply for Audio syste, etc.
- Utilises in.link cables to connect to equipment.
All inputs and outputs are plugged into the front panel.
Incoming power supply is from the left side only through a 32mm hole (32mm gland/conduit fitting and appropriate cable set up required to maintain box seal against entry of vermin, ants, etc.)
in.k200, in.k450 or in.k35 topside panels suit this controller depending on what is connected, available separately.
230v, 50Hz, 40A max single phase, or 415v, 50Hz, 20A max two phase.
460mm wide x 300mm high x 120mm deep.
2.0kw version can be configured for 15A plug in through to 40A hard wired.
4.0kw version can be configured fro 15A plug in through to 40A hard wired. (15A set-up only where single pump and blower system is used - heater can only function with low speed pump 1 or circ pump.
Programmed with software 043 or newer: compatible with in.touch module for remote / wifi access via the internet.
