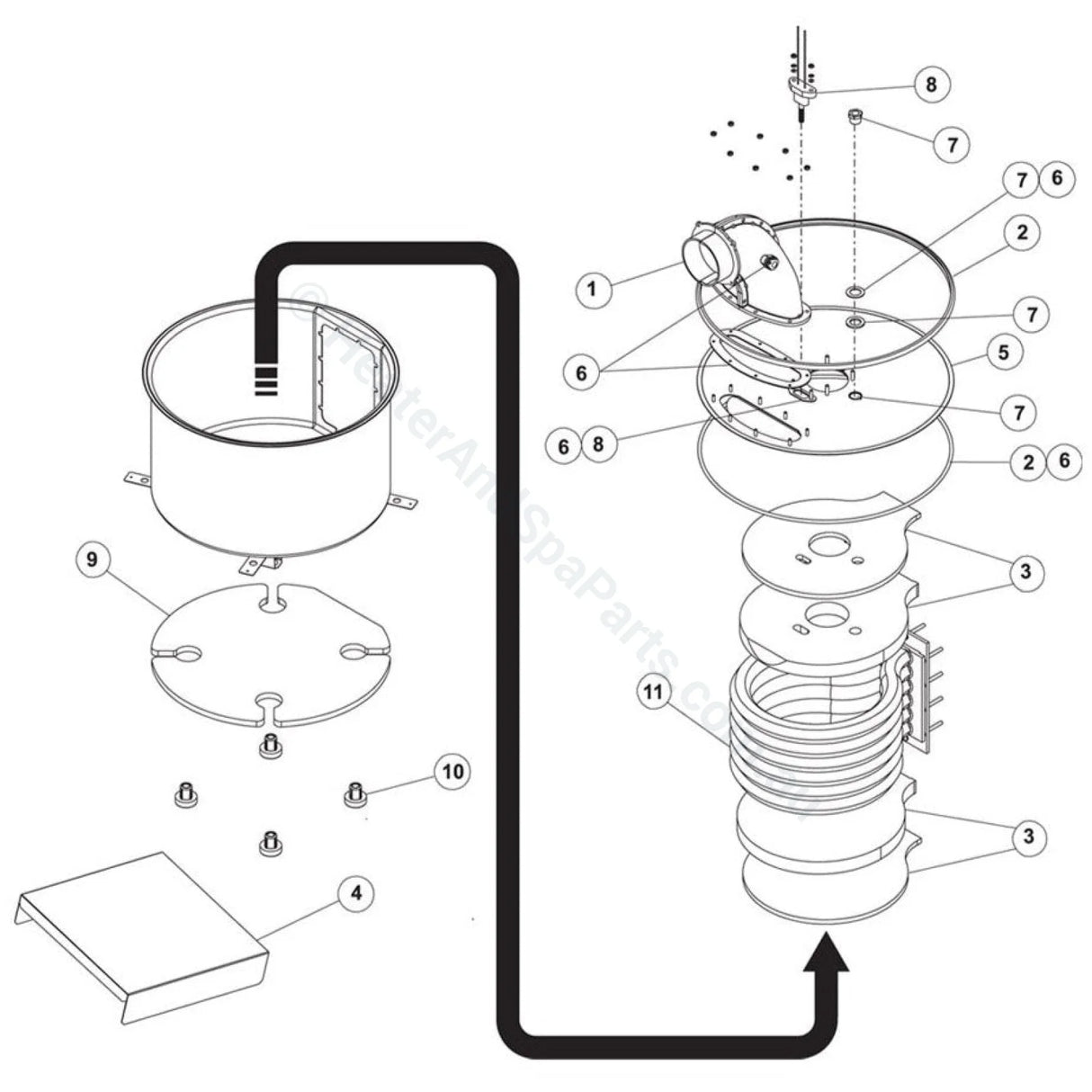

Zodiac JXi / Astralpool IXI Gas Heater Spare Parts - Combustion Chamber Parts.
For other JXi / IXI Parts, See Bottom of Listing.
- JXi / IXI Exhaust Elbow Assembly Kit
- JXi / IXI Band Clamp Kit
- JXi / IXI Refractory Kit - Internal
- JXi / IXI Combustion Chamber Shelf (set of 2)
- JXi / IXI Combustion Chamber Lid Kit
- JXi / IXI Gasket Kit
- JXi / IXI Sight Glass Kit
- JXi / IXI Ignitor Kit
- JXi / IXI Insulation Kit - External
- JXi / IXI Isolator Kit (Thermal)
- JXi / IXI 200 Heat Exchanger Assembly or JXI 370 Heat Exchanger Assembly
