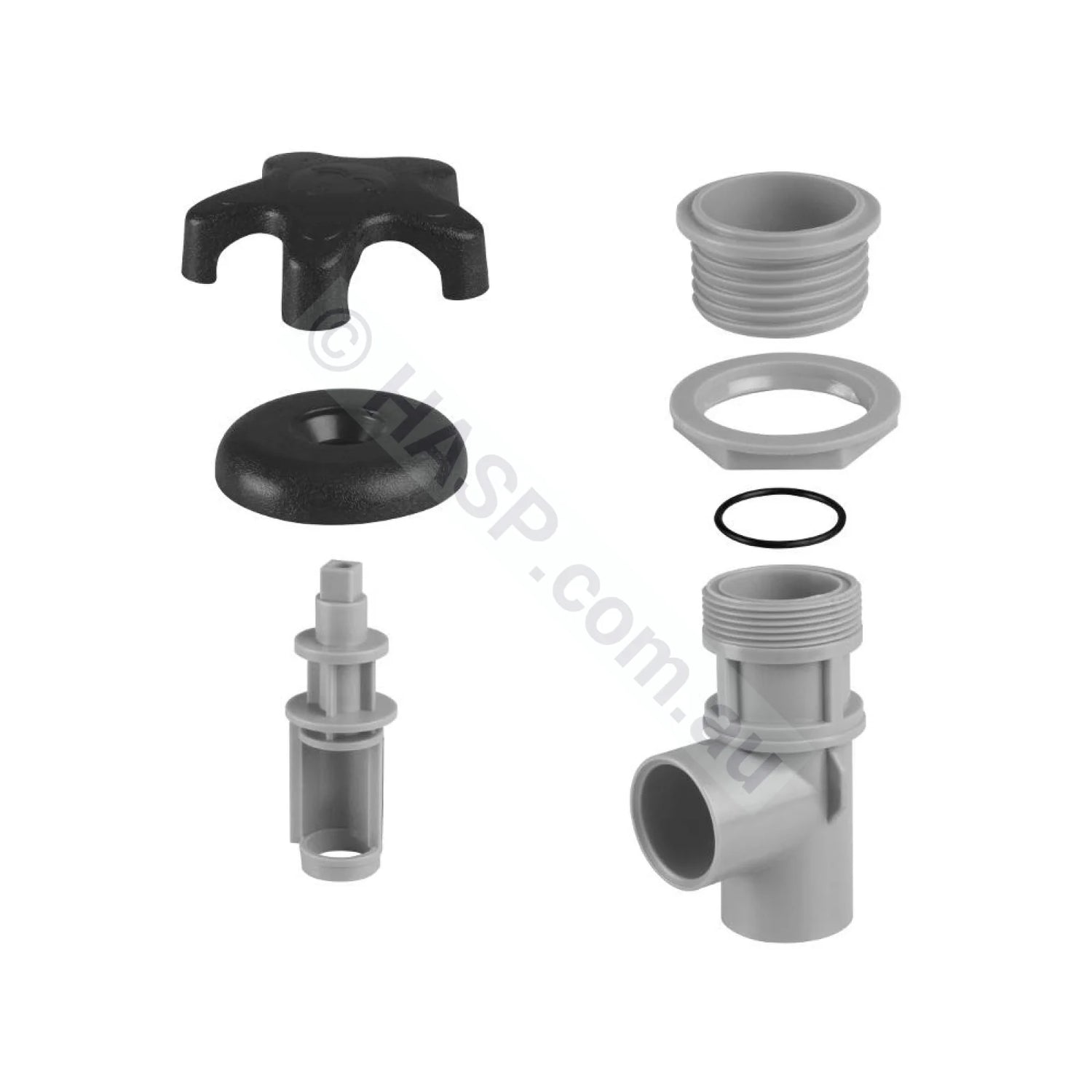

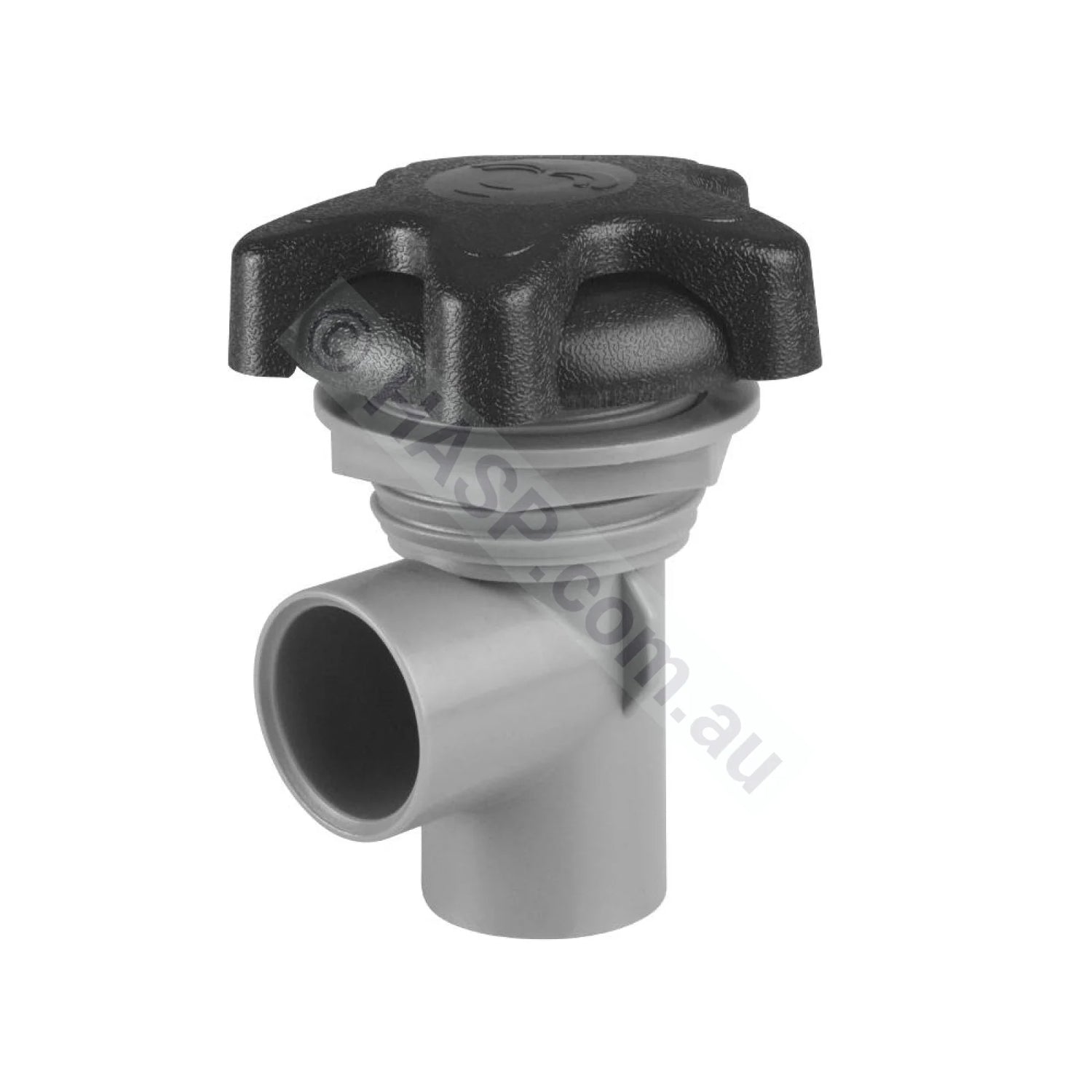

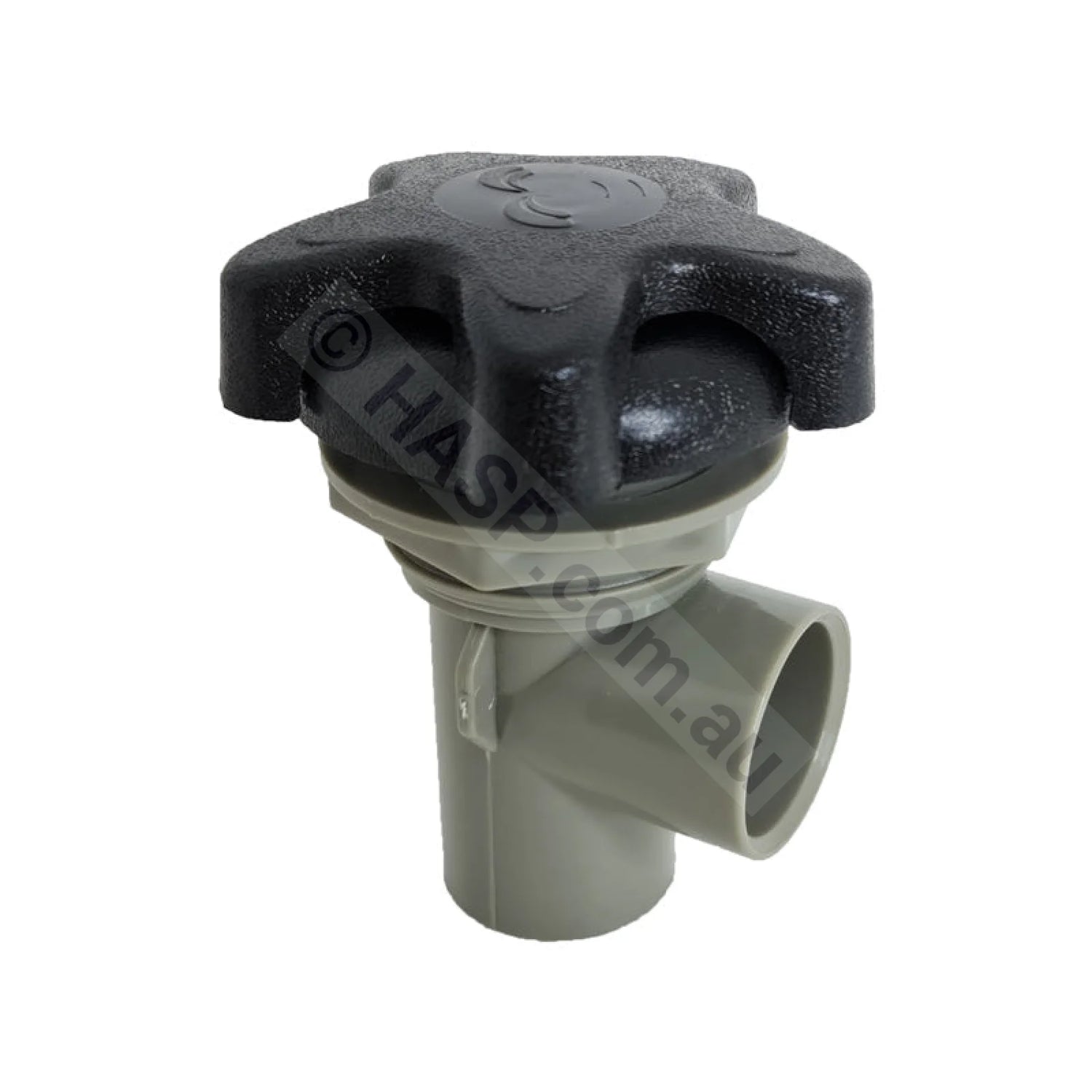

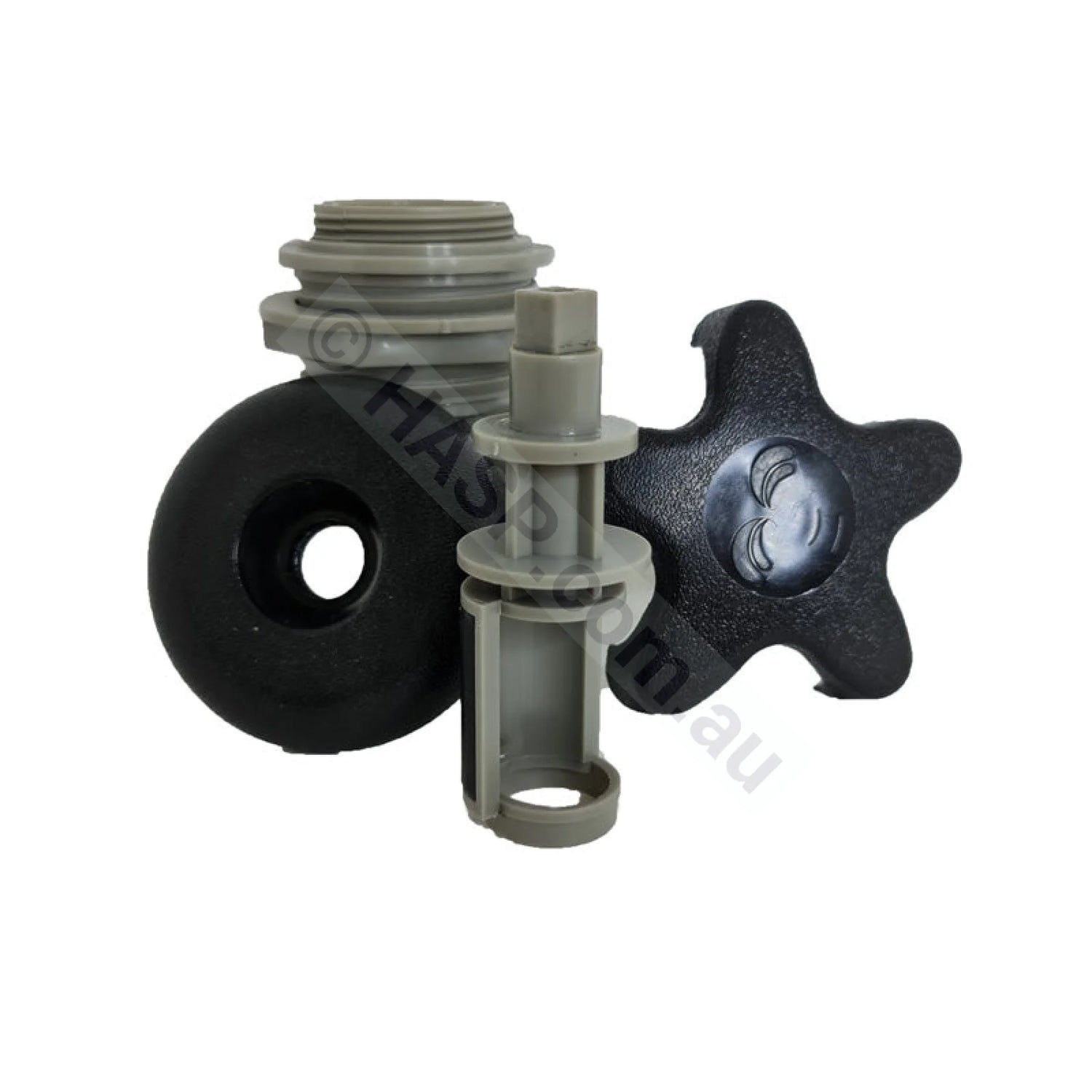

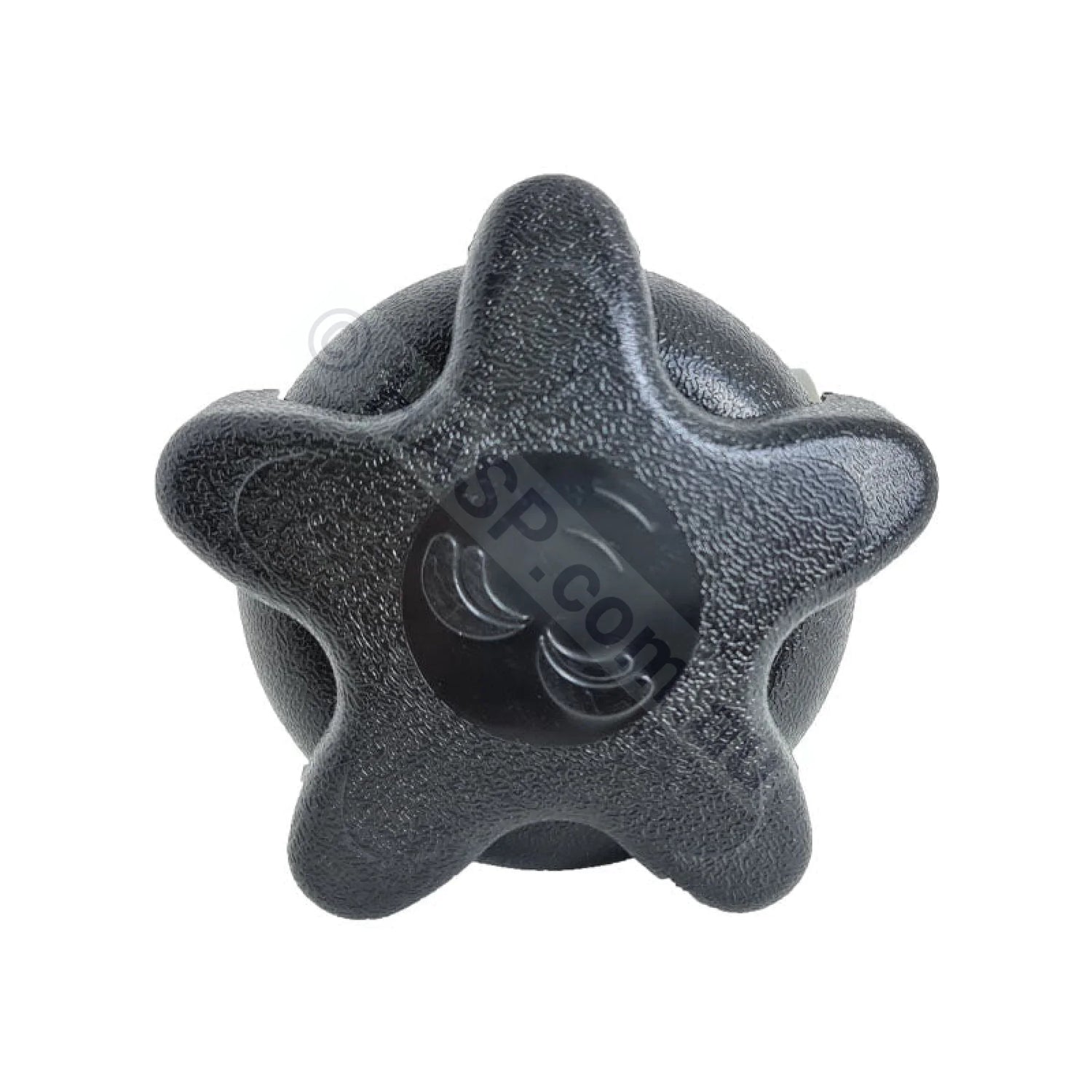

Jazzi Star Happy Face / Starfish On Off Valve 1" 25mm

This product is no longer available.

Scroll down for replacement options and more information.

Description

No longer sold due to Warranty issues with poor quality product. We recommend replumbing a better valve with spare parts availability, such as the Waterway 1" On/Off valve

Jazzi Star Happy Face / Smiley Face / Starfish On Off Valve 1" 25mm. This Jazzi on/off water valve has 1"/25mm inflow and outflow sockets and is used to control the flow of water through jets. It is frequently used for spa waterfalls or neck jets.

Dimensions
Handle Diameter: ~90mm
Screw pitch diameter: 53 mm
Total length: 118 mm
Face diameter: 80 mm (without handle)

Part numbers
Jazzi: 150520

Important Information
Brand Information

We are an authorised dealer, retailer, and/or service & warranty agent for many leading brands, including: Fluidra (AstralPool, Zodiac, Hurlcon), Aeware, Air Supply of the Future, Aqua-Flo, Balboa, Celsior, CG Air, CMP, Custom Moulded Products (CMP), Darlly, Davey, Del Ozone, Dontek, Edgetec, Emaux, Filtrite, Gecko, Goulds, Harwil, Henden, Herga, Honeywell, HydroAir, HydroQuip, ITT, Jandy, Joyonway, Laing, Len Gordon, Lo-Chlor, LX, LX Whirlpool, Madimack, Magic Plastics, Magnum, Monarch, Onga, Pentair, PoolSystems, Presair, Raypak, Reemay, Rheem, Rising Dragon, S&P, Sensaheat, Spa-Craft, Spa-King, SpaNet, Spa-Quip, SpaTex, SpaZazz, Tecmark, Therm Products, Thermcore, Waterco, Waterway, Weld-On, Whirlpool, Xylem, and others.

We also sell parts for many spa and swim spa brands, including parts to suit Alpine Spas, Artesian Spas, AquaPulse Spas, Balboa spas, Bullfrog Spas, Caldera Spas, Canadian Spa Company, Cedar Spas, Chinese import spas, Coast Spas, Costco spas, Cyclone Spas, Davey spas, Decina, Designer Spas, Dimension One Spas, eBay spas, Endless® Spas, Fastlane Pools, Fisher Spas, Gecko spas, Halo Spas, H2O Spas, H20 Spas, Heritage Spas, HotSpring Spas, HydroQuip spas, Impact Spas, Jacuzzi, Just Spas, Just Swim Spas, LA Spas, Lanark Spas, Leisurite Spas, Maax Spas, Monarch Spas, MySpa, O2 Spas, Oasis, Sapphire Spas, Sapphire Swim Spas, SCS Spas, Signature Spas, Silver Spas, Spa Industries, Spa-Quip spas, SpaNet spas, Spas Direct, Sundance Spas, Sunrans, SwimEx, Trueform Spas, Tuff Spas, Urban Pool, Vortex®, Vortex® Swim Spas, and many others.

Important Information Links

Shipping Policy & Info | Terms of Service | Returns Policy | Warranty Info | Zero Abuse Policy

Contact Us

  • Handy PVC Plumbing Size Info

    Plumbing sizes can be confusing. Pressure PVC pipe use nominal sizes - the size is simple a name, not the measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.

    • 50mm / 2" = ~60-61mm OD
    • 40mm / 1.5" = ~48mm OD
    • 25mm / 1" = ~33-34mm OD

  • Plug Types & Styles

    Common plug types found on spa equipment are AMP, Mini JJ, C38 (Aus 3-pin), Gecko in.link, etc. For more information please click here.

    • AMP plugs are the most common type used for over 20 years.
    • Many Mini J&J plugs are no longer available and must be modified.
    • C38 is the common Australian 3-pin plug found in normal household outlets.
    • Gecko (Aeware) in.link style plugs are no longer available and must be modified.
