LX / Davey QB / SpaNet Jetmaster / LP WP Whirlpool Wet End - Complete
LX / Davey QB / SpaNet Jetmaster / LP WP Whirlpool Wet End - Complete - is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

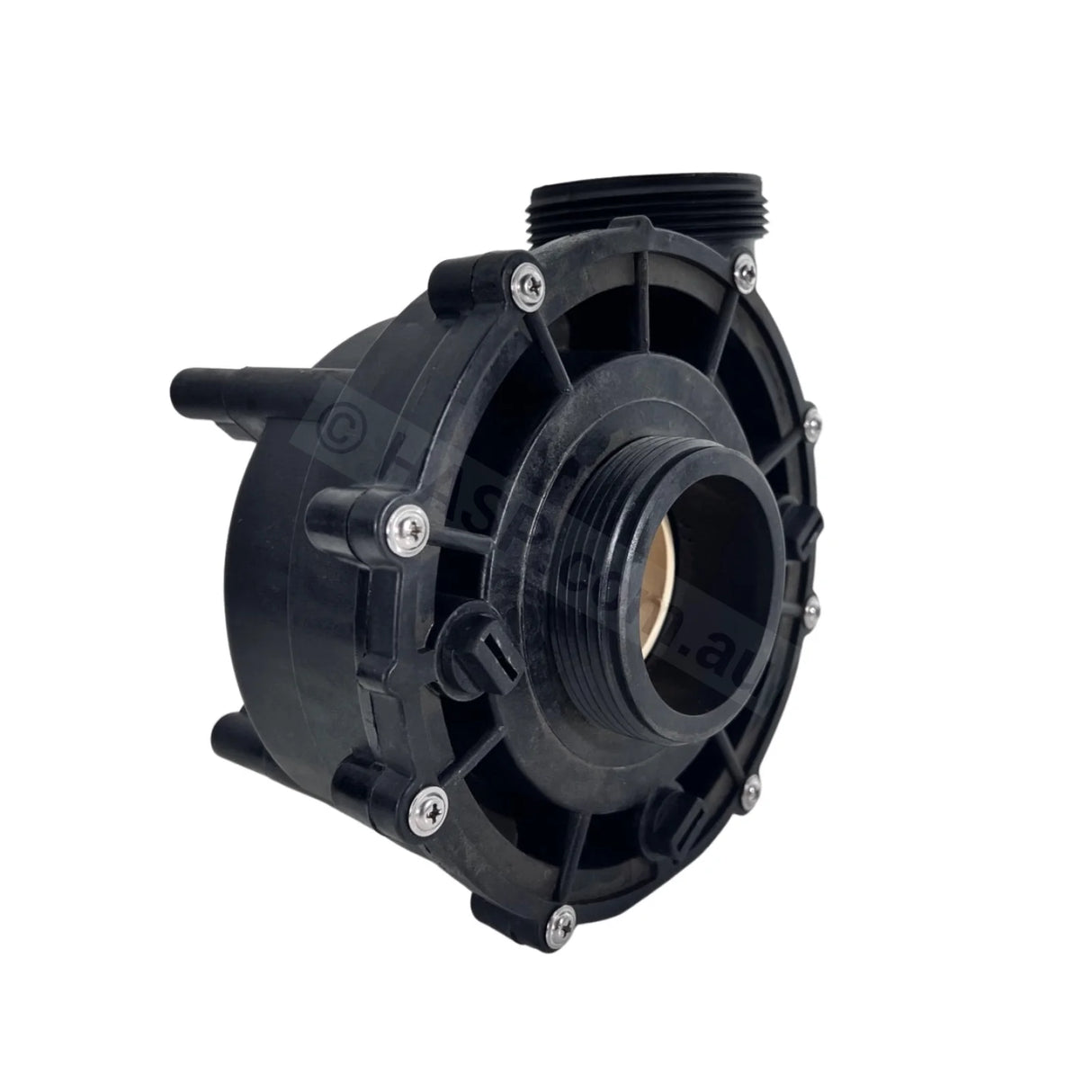

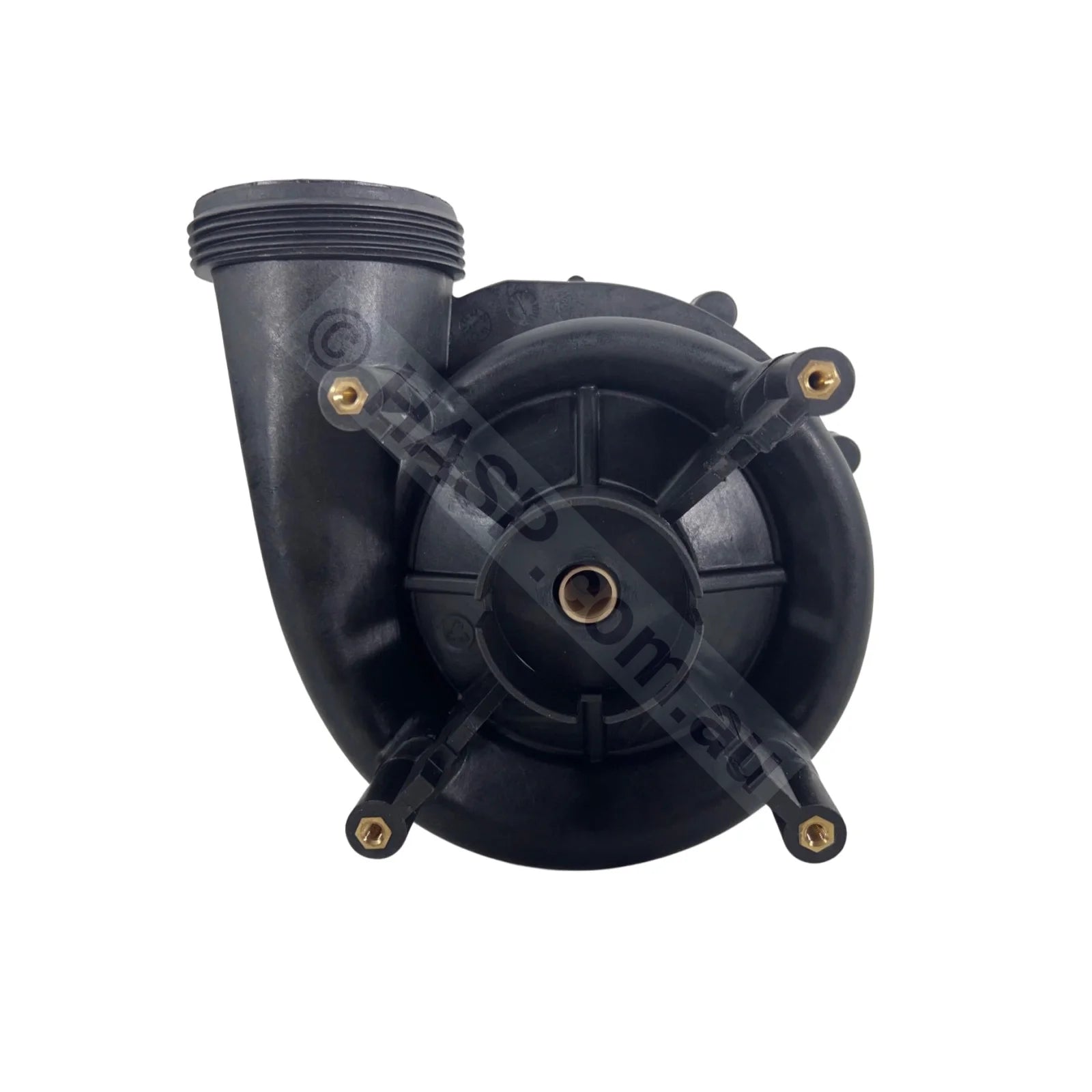

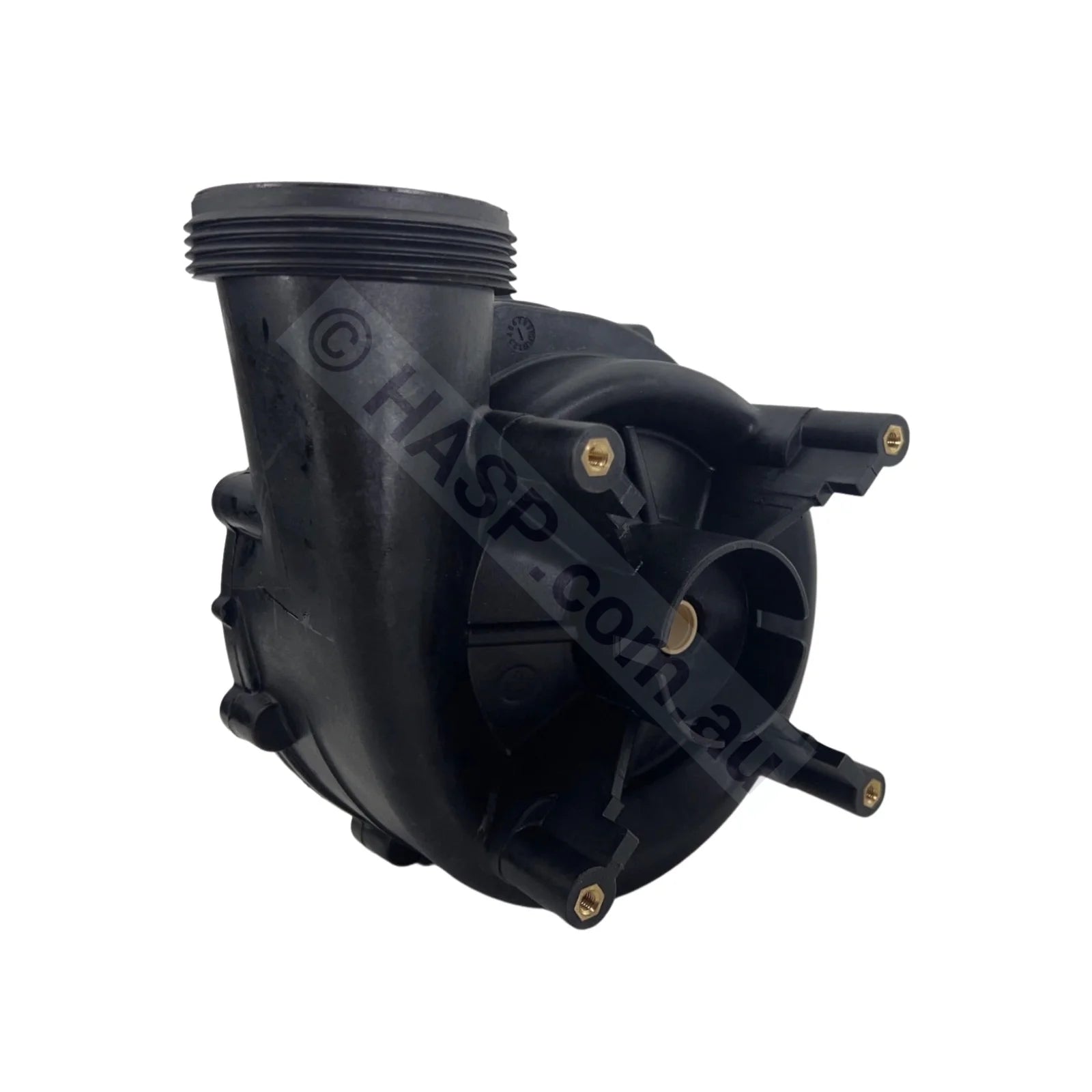

Complete wet ends including body, impeller, mechanical seal, o-ring, and screws for Davey QB, Spanet Jetmaster and LX Whirlpool LP & WP Pumps. Also suits many Watkins / Jacuzzi / Hotspring pumps built by LX. Comes with fine thread. If you have an older coarse-threaded wet end, choose the Adaptors in the Add-Ons.
See Important Notes below
Now comes with PPO chemical resistant impeller. Note that some versions with air bleed nipple can no longer be used. (Plug or removed air bleed if necessary).
- 2.0hp - Davey QB2001, QB2002. LX LP200, WP 200-II. Spanet Jetmaster XS-20-2S*
- 2.5hp - Davey QB2501, QB2502. LX LP250, WP 250-II. Spanet Jetmaster XS-30*
- 3.0hp - Davey QB3001, QB3002. LX LP300, WP 300-II. Spanet Jetmaster XS-30-2S, XS-30S*
- Fits various Jacuzzi, Sundance, Watkins pumps and others. See notes below.*
- 2"/50mm FBT Thread - measures ~78-79mm OD on pump
Important Notes:

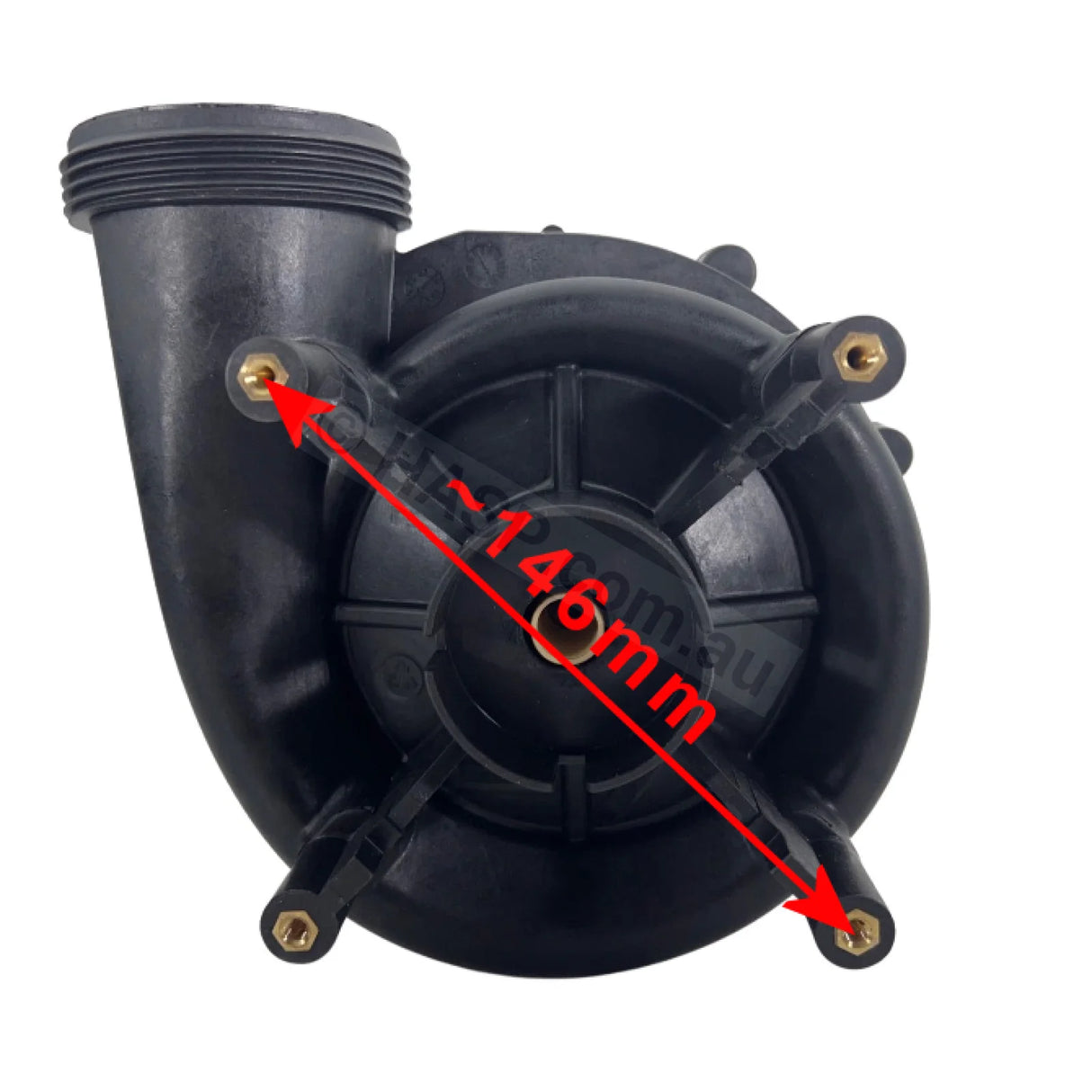

- Motor-mounting bolts measure approx 146mm diagonally.
- If you have an early Davey QB or LX LP/WP with coarse thread you will need the Coarse-to-Fine thread adaptors. (Coarse version no longer sold.)
- May not suit some pre-2007 pumps. They have had several variations that were never tracked or logged. There is no way to tell until trying these out.
- May not suit, or may need to be modified, on some Jacuzzi / Sundance / Watkins LP or WP series pumps. May need Coarse-to-Fine thread adaptors. There is no way to tell until trying these out.
- If adapting from coarse to fine threaded nuts, the inside lip of the wet end may need minor reaming with a sharp tool or reamer.
- If unsure or not willing to take a risk on the above pumps, we recommend replacing the pump itself.
Alternate Spellings:
- 2.0hp - Davey QB 2001, QB 2002. LX LP 200, WP200-II. Spanet Jetmaster XS-20-2S* wet end.
- 2.5hp - Davey QB 2501, QB 2502. LX LP 250, WP250-II. Spanet Jetmaster XS-30* wet end.
- 3.0hp - Davey QB 3001, QB 3002. LX LP 300, WP300-II. Spanet Jetmaster XS-30-2S, XS-30S* wet end.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
