LX Whirlpool DH1.0 Spa Pump - 1.0hp .7kW - NLS

This product is no longer available.

Scroll down for replacement options and more information.

Description

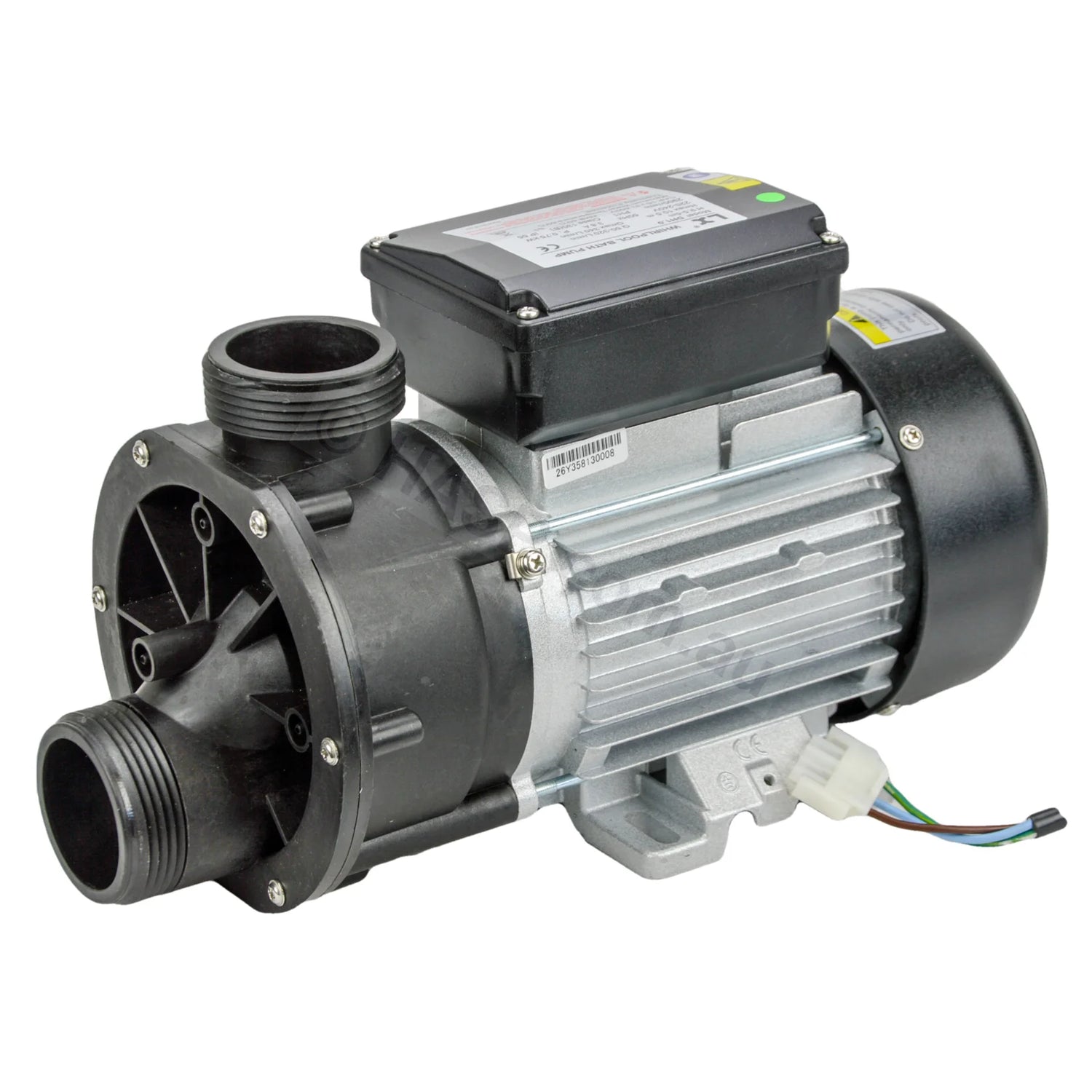

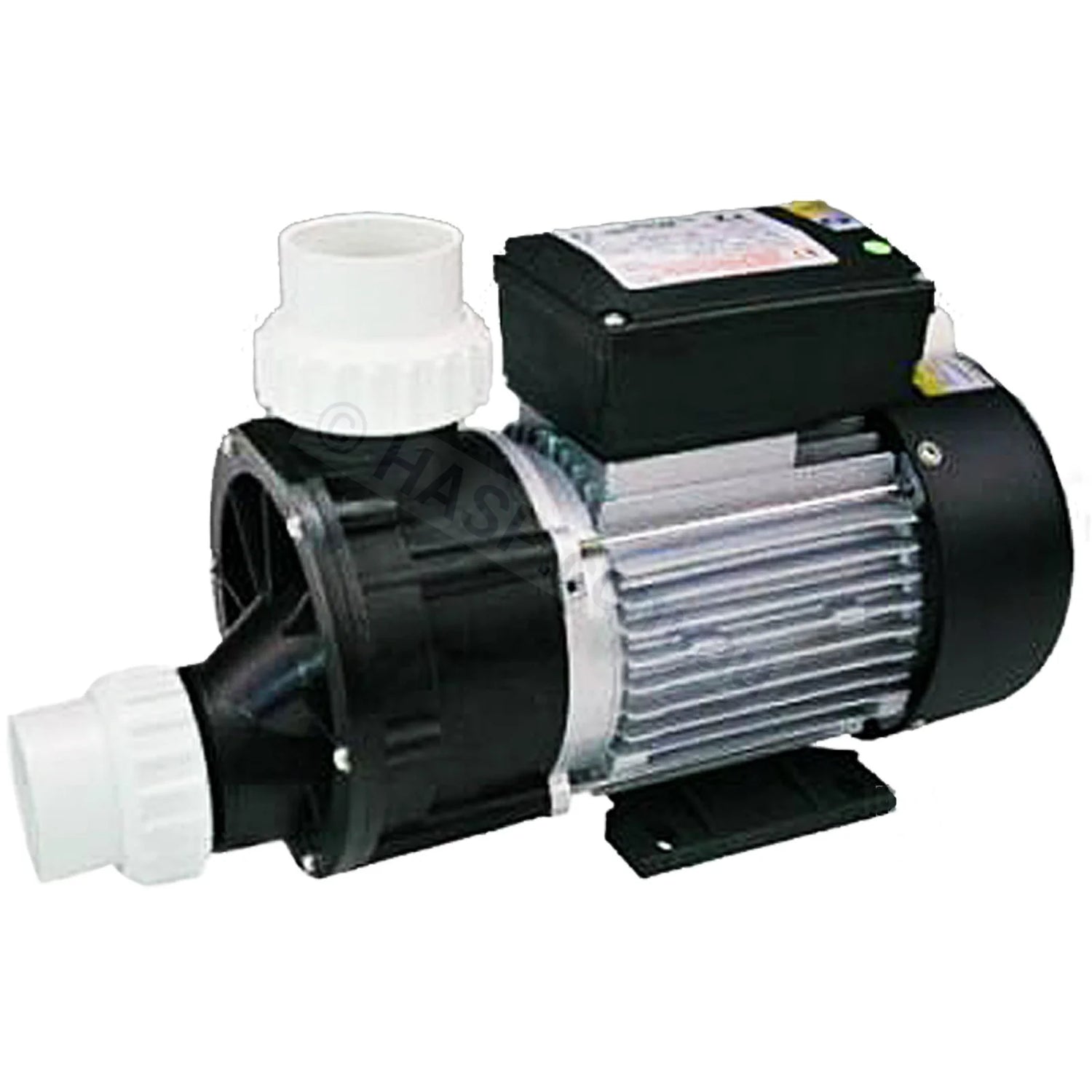

LX Whirlpool DH1.0 Spa Pump - 1.0hp.7kW - NLS

No longer available - OBSOLETE - Replace with JA100 here. LX Whirlpool Bath Pump DH 1.0 spa jet pump with top centre discharge. Perfect replacement for numerous 1.0hp spa pumps that have become obsolete over the years.

This pump can be used to replace the following 1.0hp spa pumps:

  • Onga 200 series (2377 etc)
  • Onga 400 series (4381 etc)
  • Spa-quip (SpaQuip) Scorpio
  • Spa-quip Magnum
  • Spa-quip Monster
  • plus numerous others

1.0 hp pumps are suited to spas fitted with 4-6 water jets requiring a total flow rate max. of 200 lpm

Also used on numerous Chinese manufactured / imported spas Pre-fitted with AMP cord to suit Aeware in.ye and Balboa, supplied with 40mm / 1.5" unions.
This is a self draining pump so is also suitable for use as a spa 'bath' pump
230v, 50Hz, 1.0hp, 750w

Spec Sheet

    Important Information
    Brand Information

    We are an authorised dealer, retailer, and/or service & warranty agent for many leading brands, including: Fluidra (AstralPool, Zodiac, Hurlcon), Aeware, Air Supply of the Future, Aqua-Flo, Balboa, Celsior, CG Air, CMP, Custom Moulded Products (CMP), Darlly, Davey, Del Ozone, Dontek, Edgetec, Emaux, Filtrite, Gecko, Goulds, Harwil, Henden, Herga, Honeywell, HydroAir, HydroQuip, ITT, Jandy, Joyonway, Laing, Len Gordon, Lo-Chlor, LX, LX Whirlpool, Madimack, Magic Plastics, Magnum, Monarch, Onga, Pentair, PoolSystems, Presair, Raypak, Reemay, Rheem, Rising Dragon, S&P, Sensaheat, Spa-Craft, Spa-King, SpaNet, Spa-Quip, SpaTex, SpaZazz, Tecmark, Therm Products, Thermcore, Waterco, Waterway, Weld-On, Whirlpool, Xylem, and others.

    We also sell parts for many spa and swim spa brands, including parts to suit Alpine Spas, Artesian Spas, AquaPulse Spas, Balboa spas, Bullfrog Spas, Caldera Spas, Canadian Spa Company, Cedar Spas, Chinese import spas, Coast Spas, Costco spas, Cyclone Spas, Davey spas, Decina, Designer Spas, Dimension One Spas, eBay spas, Endless® Spas, Fastlane Pools, Fisher Spas, Gecko spas, Halo Spas, H2O Spas, H20 Spas, Heritage Spas, HotSpring Spas, HydroQuip spas, Impact Spas, Jacuzzi, Just Spas, Just Swim Spas, LA Spas, Lanark Spas, Leisurite Spas, Maax Spas, Monarch Spas, MySpa, O2 Spas, Oasis, Sapphire Spas, Sapphire Swim Spas, SCS Spas, Signature Spas, Silver Spas, Spa Industries, Spa-Quip spas, SpaNet spas, Spas Direct, Sundance Spas, Sunrans, SwimEx, Trueform Spas, Tuff Spas, Urban Pool, Vortex®, Vortex® Swim Spas, and many others.

    Important Information Links

    Shipping Policy & Info | Terms of Service | Returns Policy | Warranty Info | Zero Abuse Policy

    Contact Us

    • Handy PVC Plumbing Size Info

      Plumbing sizes can be confusing. Pressure PVC pipe use nominal sizes - the size is simple a name, not the measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.

      • 50mm / 2" = ~60-61mm OD
      • 40mm / 1.5" = ~48mm OD
      • 25mm / 1" = ~33-34mm OD

    • Plug Types & Styles

      Common plug types found on spa equipment are AMP, Mini JJ, C38 (Aus 3-pin), Gecko in.link, etc. For more information please click here.

      • AMP plugs are the most common type used for over 20 years.
      • Many Mini J&J plugs are no longer available and must be modified.
      • C38 is the common Australian 3-pin plug found in normal household outlets.
      • Gecko (Aeware) in.link style plugs are no longer available and must be modified.
