Impeller For - LX Whirlpool LP & WP Spa Jet Booster Pumps

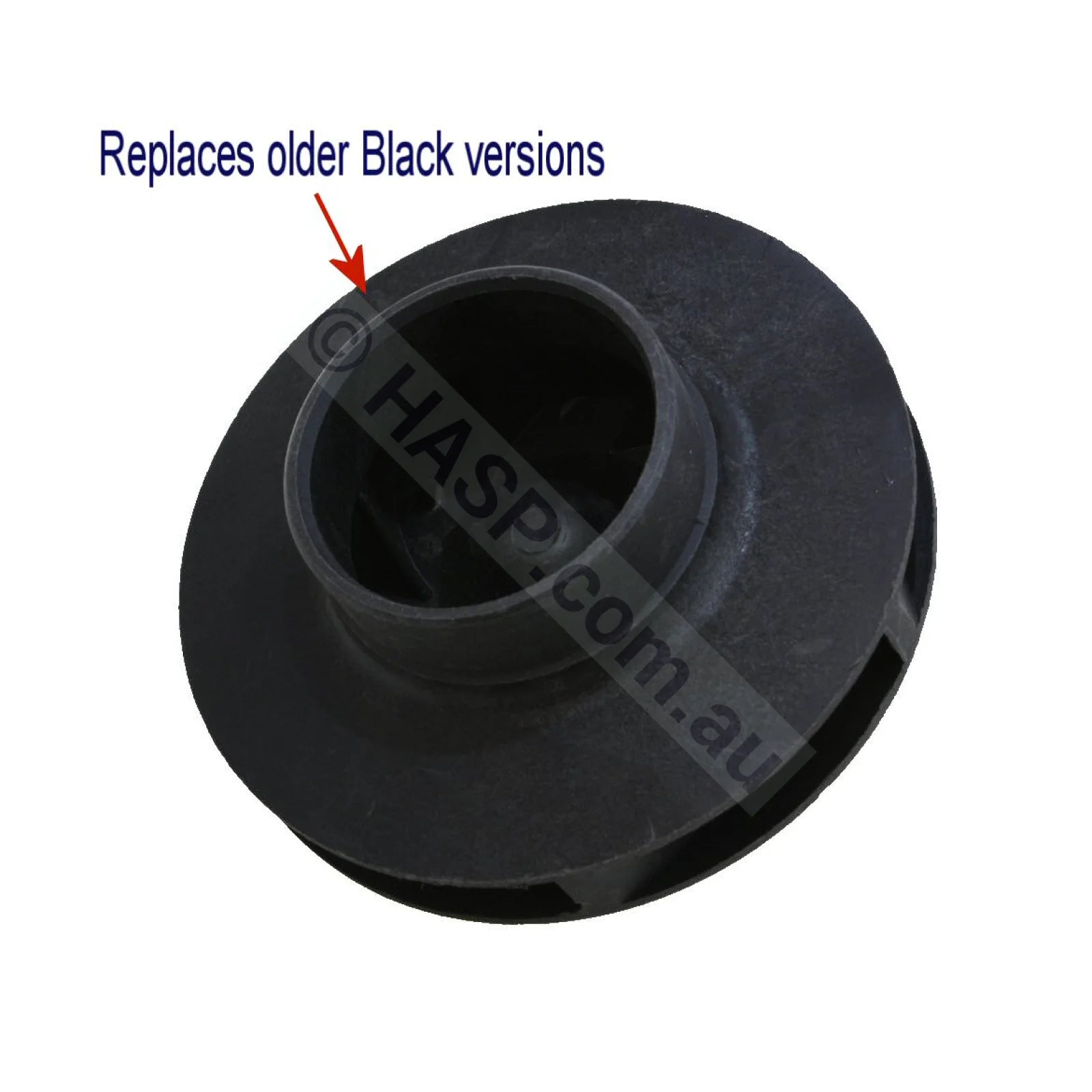

Impeller For Davey QB1501, QB2001, QB2002, QB2501, QB2502, QB3001, QB3002 Spa Jet Pumps. Originally were black plastic. These have been replaced by a much higher-quality beige glass-filled nylon material. We only sell the highest-grade impellers. This impeller is manufactured from premium PPO material for better wear / longer life.

Please Choose your Model Below. Uses these mechanical seals.

Important Notes:

• May not suit some obscure early "Chinese" variants of LX pumps.
• May not suit pre-2007 LX LP & WP pumps.
• If it does not use these mechanical seals, these impellers will not suit.

Impeller Sizes:

1.5HP:
LX Whirlpool LP150 / WP150-II
Davey QB1501
Outside diameter 98mm, 13mm internal vane width, 7 vanes.

2.0HP:
LX Whirlpool LP200 / WP200-II
Davey QB2001 / QB2002
Outside diameter 107mm, 11.5mm internal vane width, 7 vanes.

2.5HP:
LX Whirlpool LP250 / WP250-II
Davey QB2501 / QB2502
SpaNET XS30 Jetmaster <-- double-check impeller size. May also be 3HP.
Outside diameter 112mm, 13mm internal vane width, 6 vanes.

3.0HP:
LX Whirlpool LP300 / WP300-II
Davey QB3001 QB3002
118mm diameter, 11mm vane width x 7 vanes
60.5mm throat OD
Marked B351-21

Previous version
Outside diameter 118mm, 12.5mm internal vane width, 6 vanes.
62mm throat OD
Often marked B358-02 (but so are other sizes)

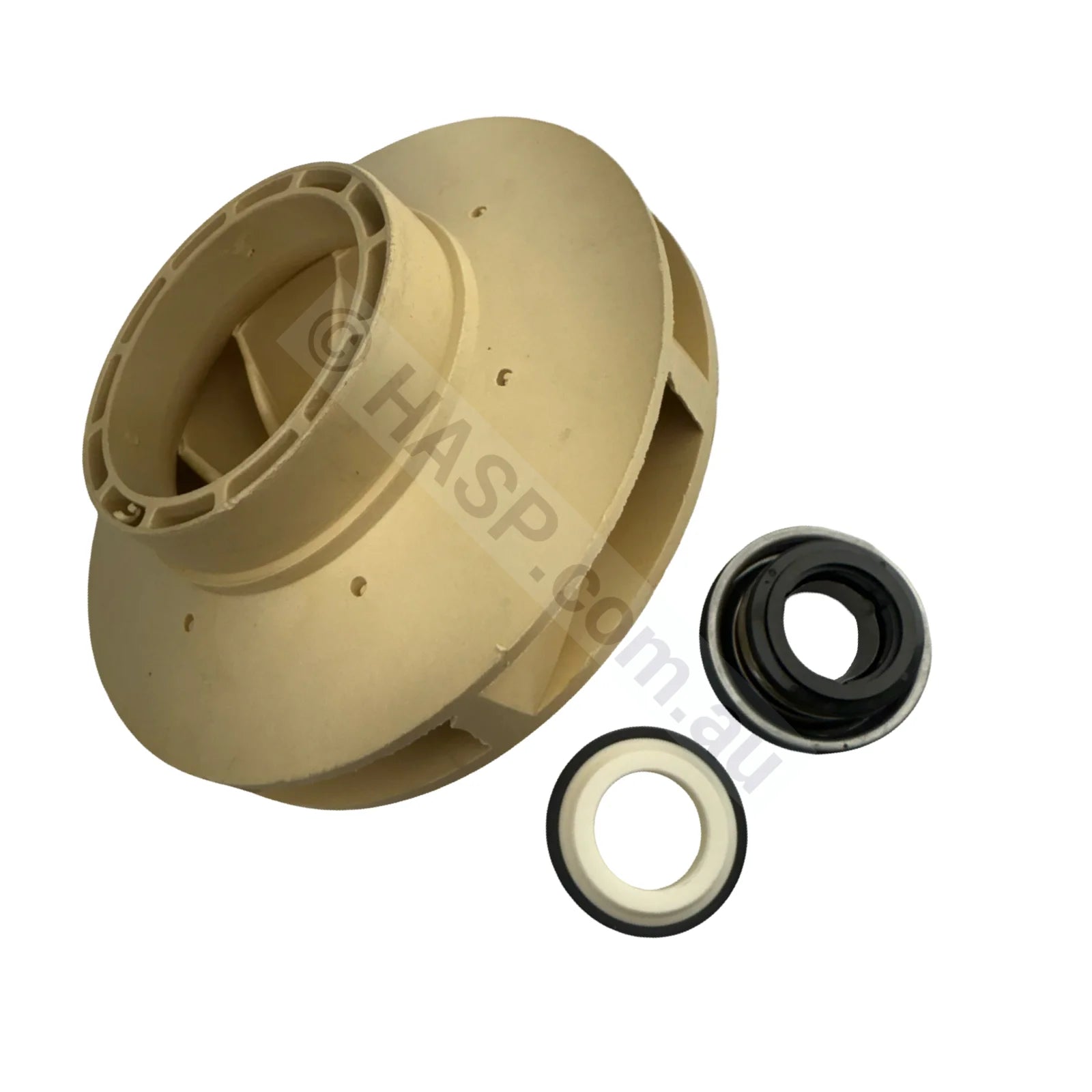

Also listed is a mechanical seal to suit. Upgraded seals also available.
