Astralpool / Zodiac O Ring - Lid - Zx Filter - Mk2
Astralpool / Zodiac O Ring - Lid - Zx Filter - Mk2 is backordered and will ship as soon as it is back in stock.
Astralpool
Genuine AstralPool / Hurlcon ZX Cartridge Filter Lid O-Ring – replacement lid seal (tank O-ring) for the AstralPool ZX-series cartridge filters, Astral Leisure Pools SMART 350 / 450 / 550, Filtrite CF50, CF75, CF100, CF150, CF200 filters.

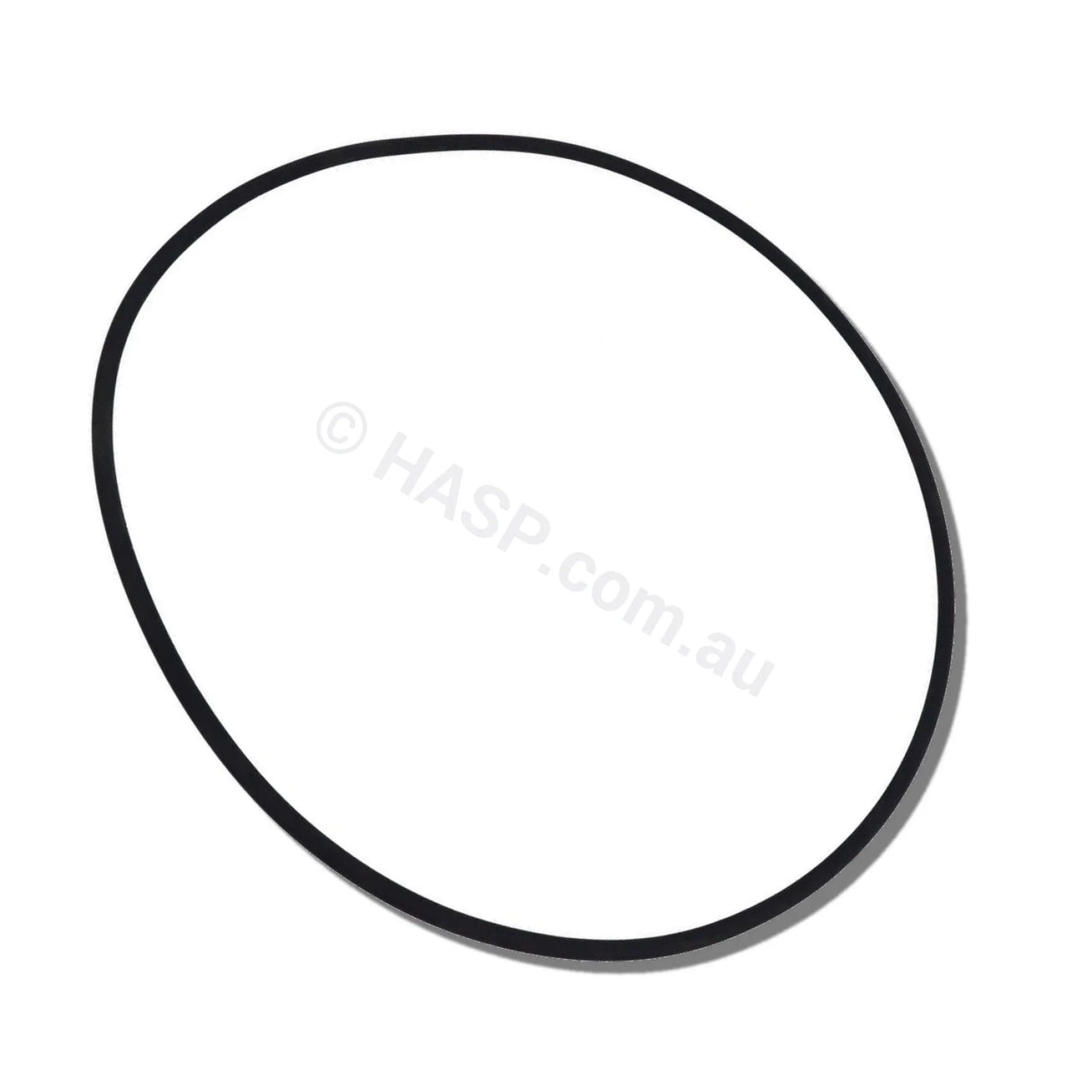

This is the main filter lid O-ring that seals the lid to the tank body. If your lid is weeping, drawing air, hard to tighten, or the existing seal is flattened/cracked, this is the correct genuine replacement.
- Approx size: ~280mm diameter
- Cross section: ~5mm
- Genuine AstralPool / Fluidra part

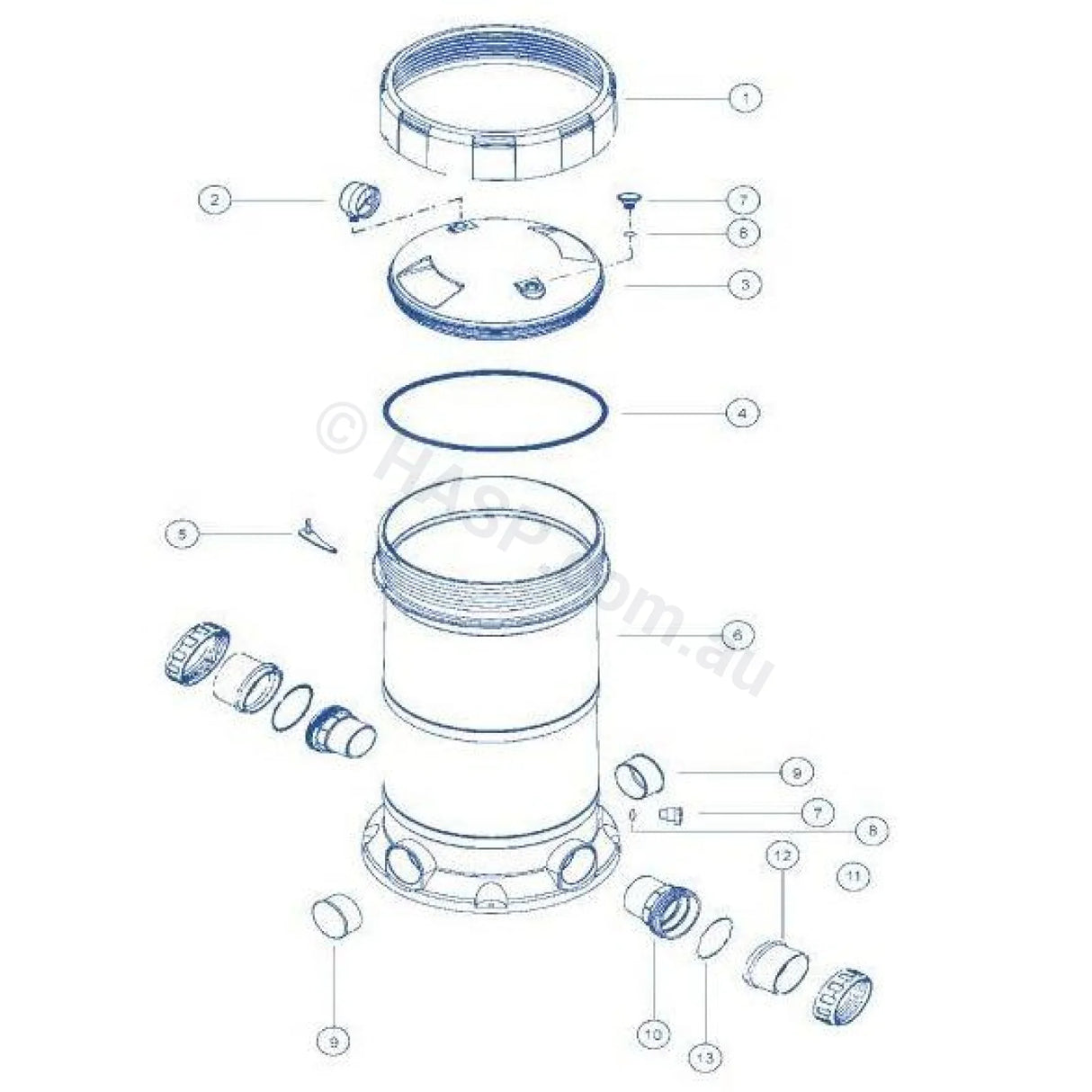

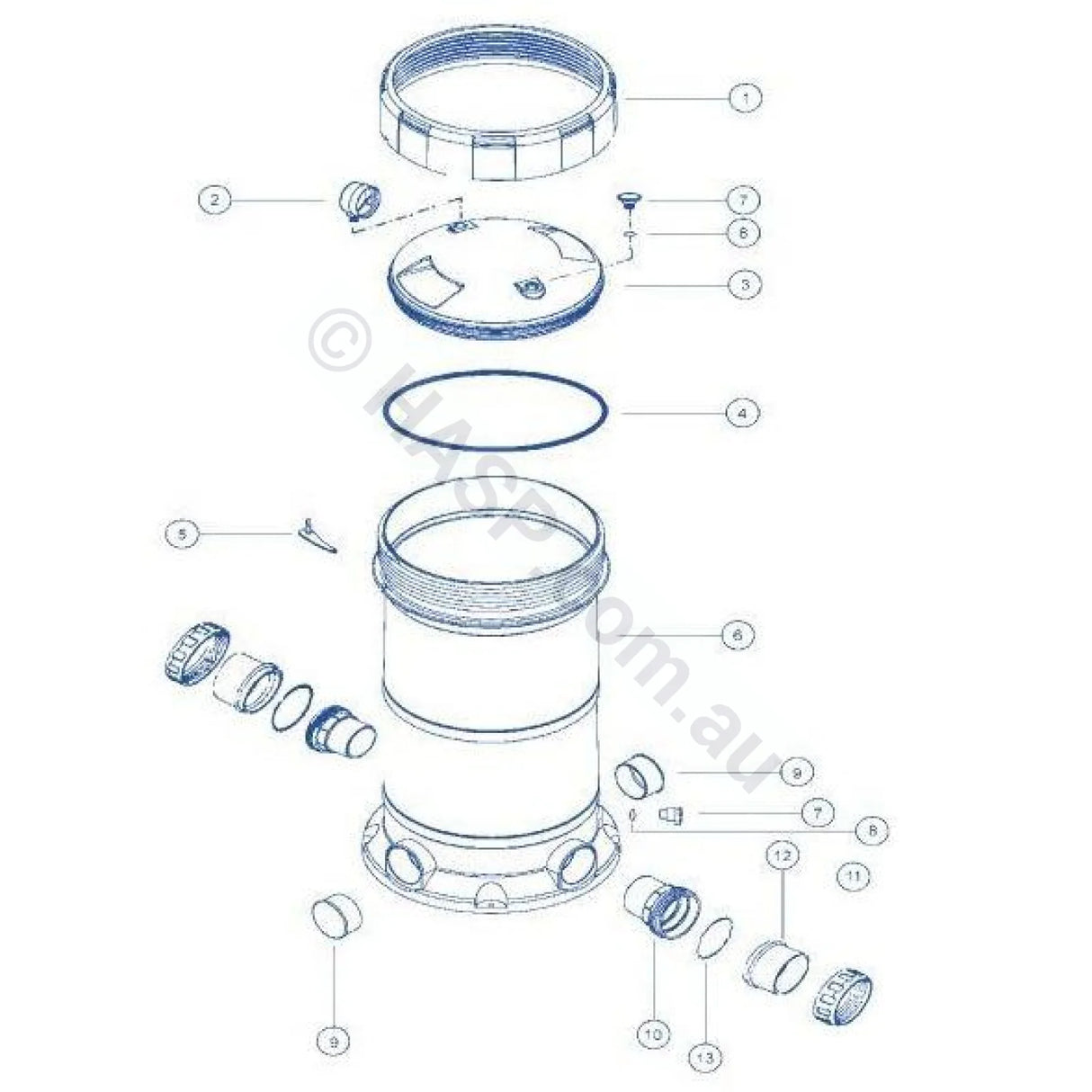

- Diagram reference: commonly shown as Item 4 (some diagrams list as Item 7 depending on revision)
Compatible Models (O-ring suits):
- ZX50 (ZX 50)
- ZX75 (ZX 75)
- ZX100 (ZX 100)
- ZX150 (ZX 150)
- ZX200 (ZX 200)
- ZX250 (ZX 250)
- ZX310 (ZX 310)
- SMART 350
- SMART 450
- SMART 550
- Filtrite CF50, CF75, CF100, CF150, CF200
Part Numbers: 78110 (originally was 78105)
Helpful install note: Clean the groove in the lid/tank before fitting. A light smear of silicone-based O-ring lubricant (not petroleum grease) helps the lid seat smoothly and reduces twisting/pinching.
Need the lid assembly instead? Filter lid listed here.
If you’re unsure, measure your existing O-ring diameter and cross-section, or send us a photo of your filter label and lid seal and we’ll confirm.
O-ring( around 300mm)suit Leisure pool Smart 350 filter
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: AstralPool Catalogue 2026 | Zodiac Catalogue 2026
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
