Onga Balboa 2381 1HP w/ 1.35kw Heater - Heated Spa Bath Pump - B-23810100
Onga Balboa 2381 1HP w/ 1.35kw Heater - Heated Spa Bath Pump - B-23810100 is backordered and will ship as soon as it is back in stock.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!
Onga Balboa 2381 1HP w/ 1.35kw Heater - Heated Spa Bath Pump - B-23810100 is backordered and will ship as soon as it is back in stock.

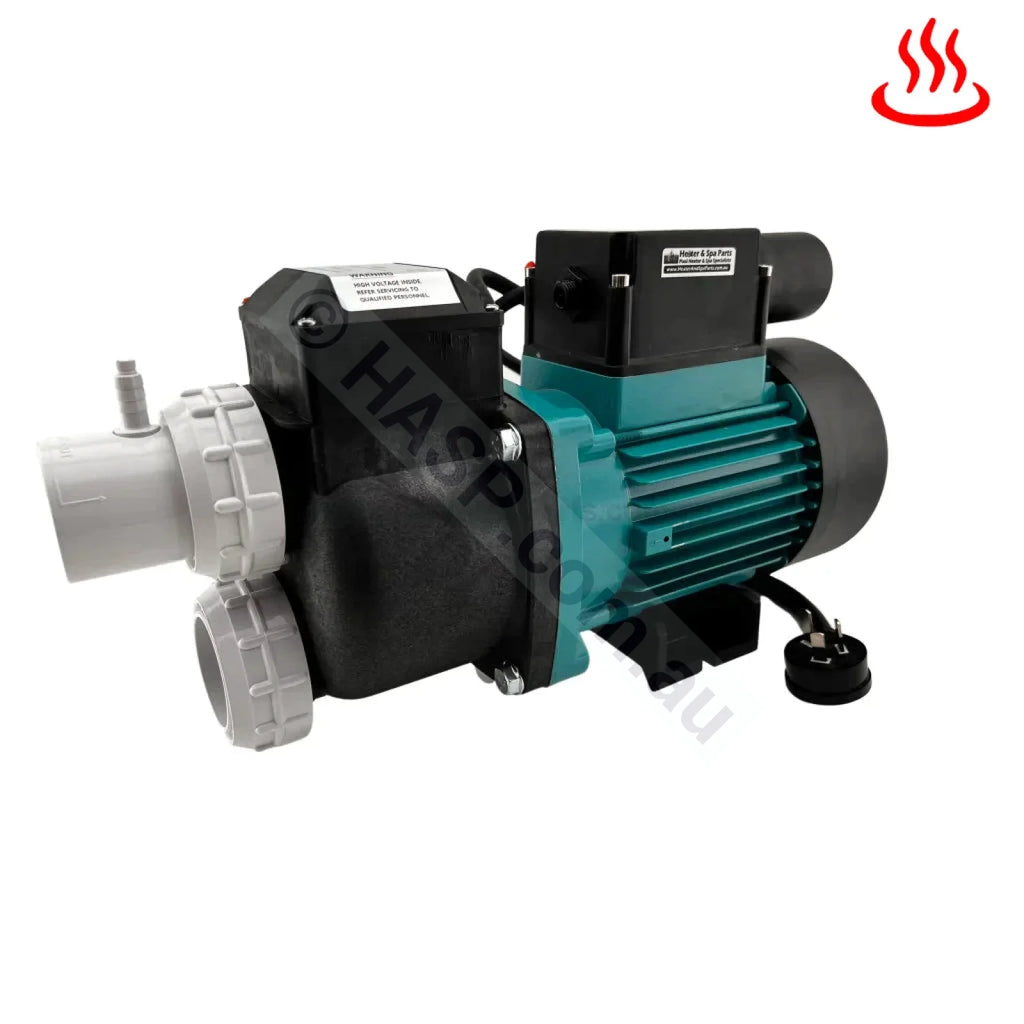

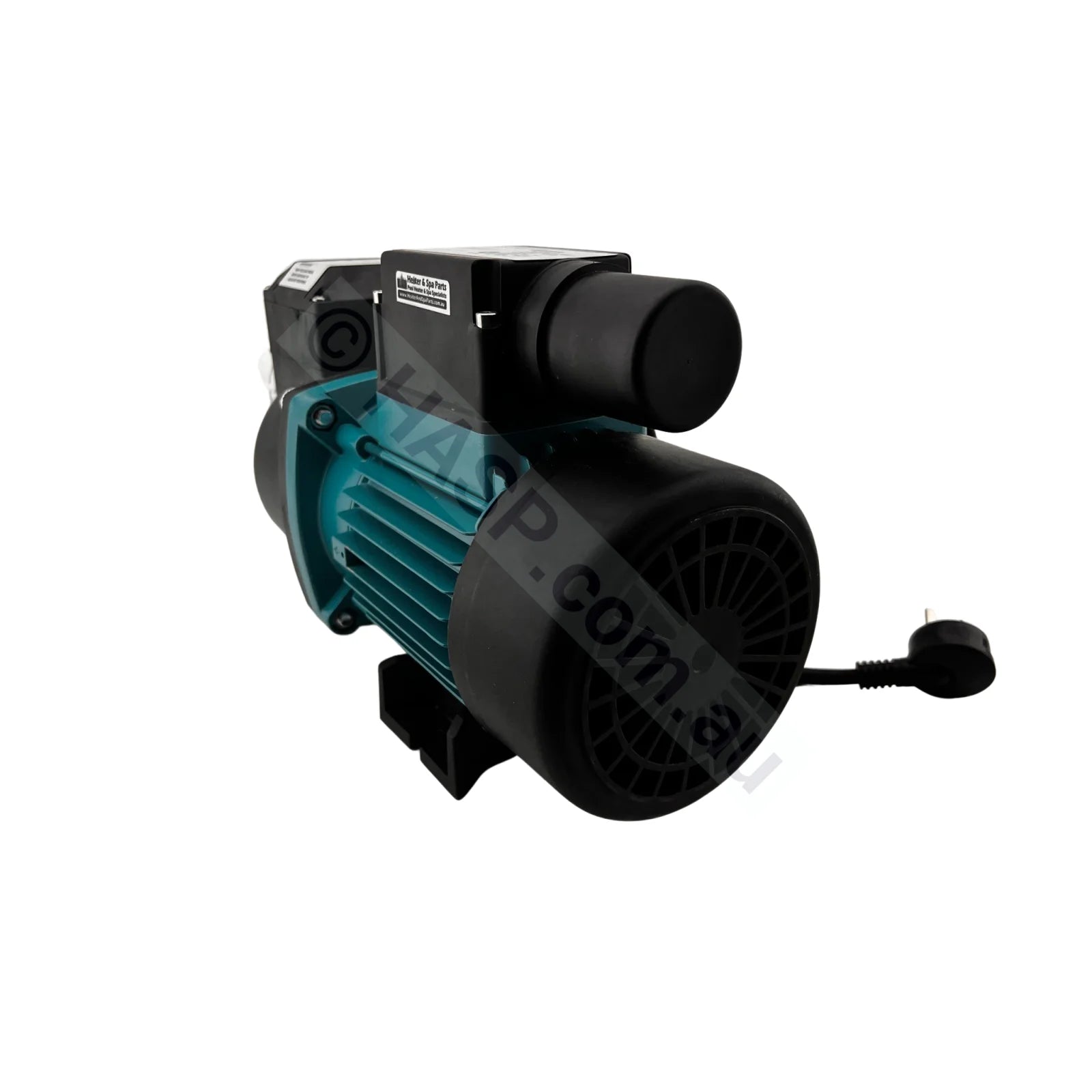

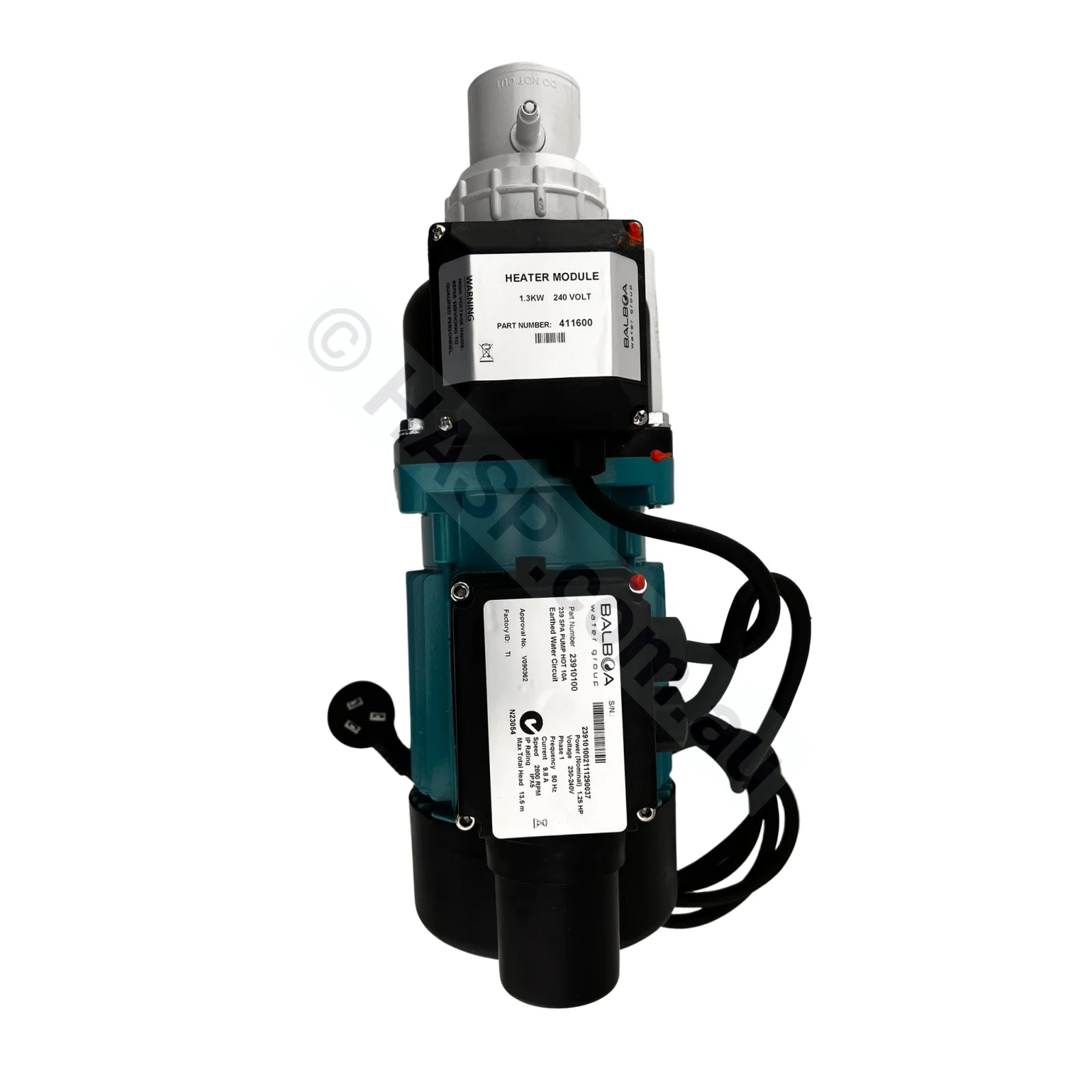

Onga Balboa 23810100 - 2381 Heated w/ Air Switch. Hot Spa Pump 1hp with 1.3kW (1300W) heater element. Made in the USA. Comes complete with unions and an in-built air switch. This pump will run approximately 4-6 jets. Originally were under the Onga brand, but now are Balboa. The pumps are the same.
Pro-Tip: With Balboa supply becoming inconsistent, and the long-term future of these pumps looking uncertain, the Edgetec by Spa-Craft pump here is often the better option.

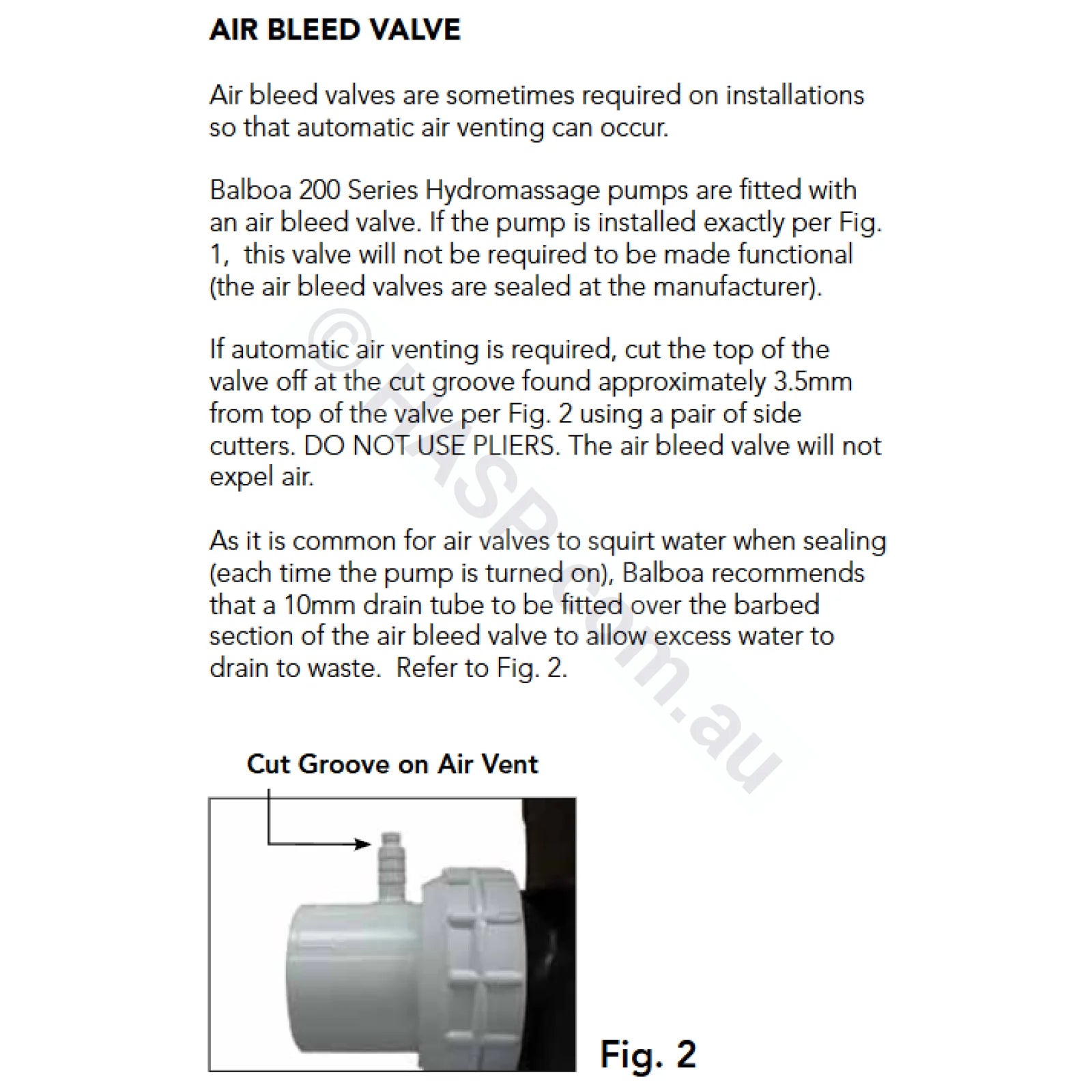

- It comes with new unions, which do require fitting, but the plumbing change is very minor. It also avoids the fragile air-bleed fitting used on many Onga / Balboa pumps, which is a common failure point.
: With Balboa supply becoming inconsistent, and the long-term future of these pumps looking uncertain, the Edgetec by Spa-Craft pump here is often the better option.
- It comes with new unions, which do require fitting, but the plumbing change is very minor. It also avoids the fragile air-bleed fitting used on many Onga / Balboa pumps, which is a common failure point.
Balboa spa bath pumps are one of the quietest in the industry. They offer maximum energy efficiency for lower operating costs, as well as no water retention for perfect hygiene, water resistant enclosures, and multiple levels of safety for your peace of mind.
The Balboa Pumps provide excellent hydraulic performance in a compact and extremely quiet design. Designed to circulate hot water in (whirlpool) spa baths, not spas, these pumps incorporate a special internal design to ensure the pump self drains eliminating the build up of unhygienic/stale water.
IMPORTANT: We are aware of some unscrupulous places selling bath pumps as standalone spa pumps. This is incorrect, and will lead to disappointment.
- These bath pumps are intended to help maintain temperature in a bath to roughly 36-38° and not to heat a bath from cold.
- Spa bath pumps are designed for spa bathtub operation only and should not be used in chemically-treated water or permanently-filled spas.
- For standalone permanently-filled spas, click here for retrofit kits.
Hydromassage Hot spa pump with unions and Air Switch.
Specifications:
- Primary Heating Temperature cut-out 40°C
- Secondary "Safety" Heater cut-out 45°C
- Max Head: 12.0m
- IP Rating: IP55
- Inlet and outlet: 40mm PVC Pressure Barrel Union
- Maximum Ambient Temperature: 55°C
- Maximum Water Temperature: 70°C
- Balboa Bath Pump Instruction Manual
Features:
- 220-240V
- Compact Design
- Highly efficient motor
- Self draining Volute
- TEFC IPX5 Design
- AU / NZ Certification
- Quiet Operation

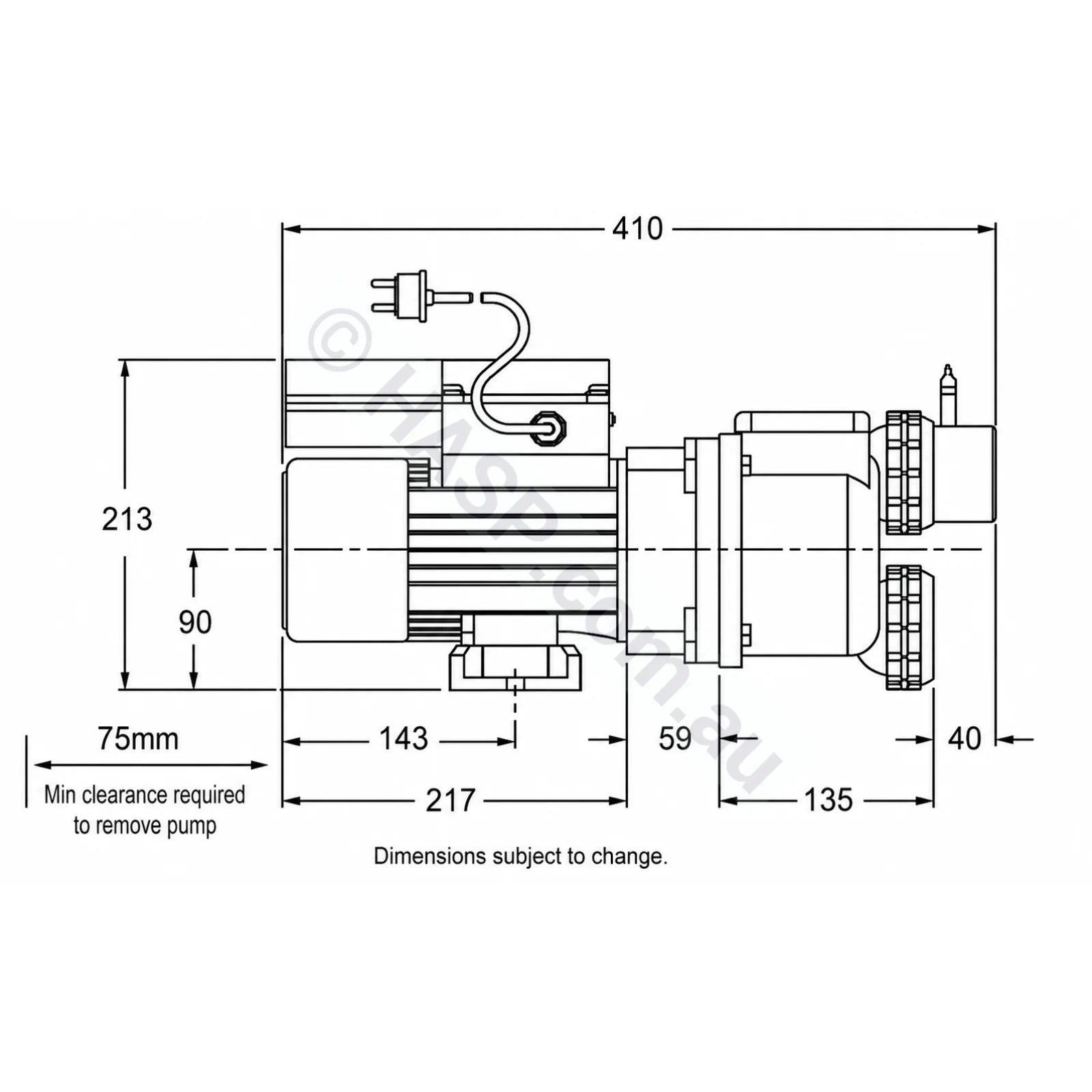

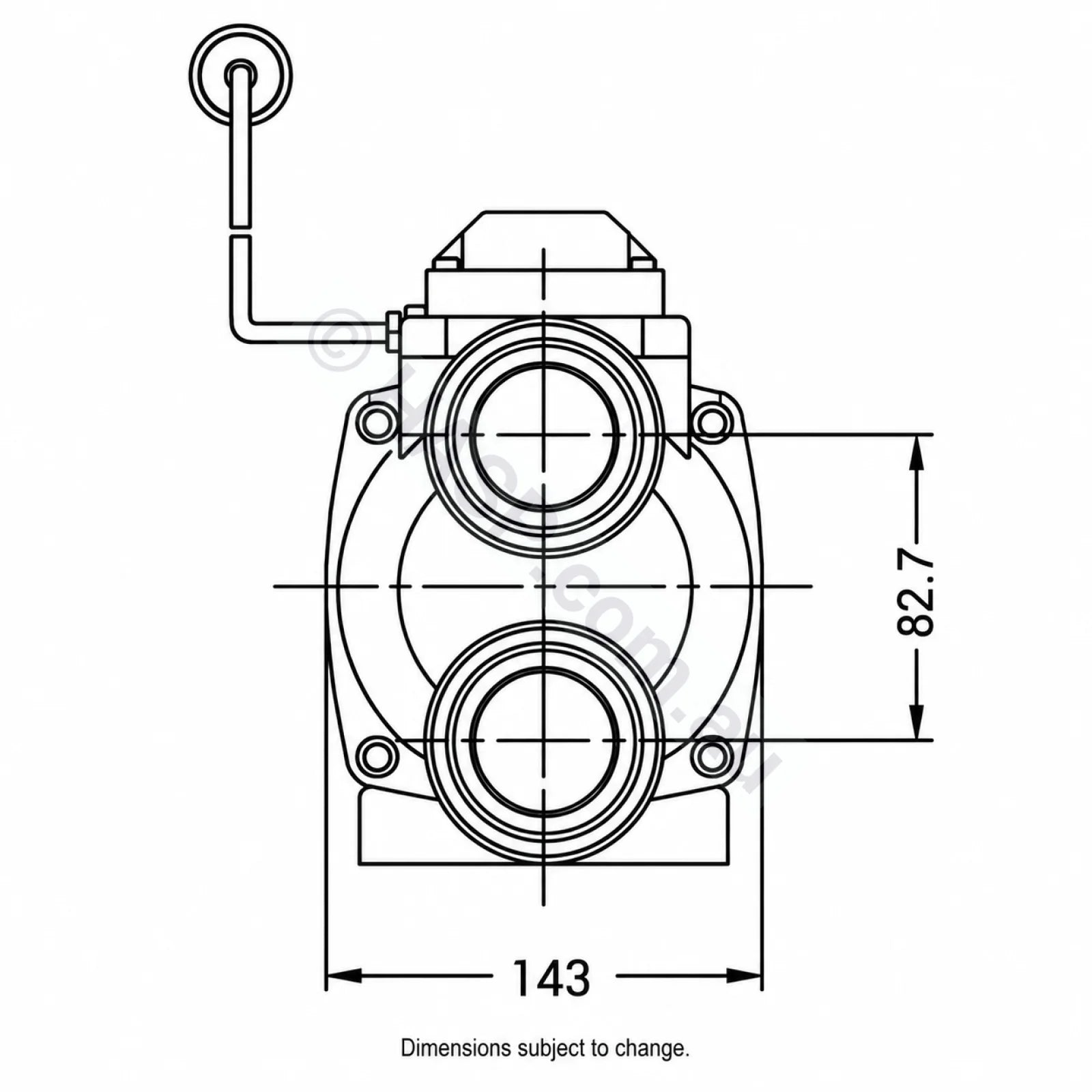

Pump size: (not including unions)
H:23 x L: 36 x W: 17cm
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) |
|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm |
| 3/4" | 20 mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 32 mm | ~42.1–42.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 65 mm | ~75.2–75.5 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
