Pool Valve Actuator Plug Loom - New Style

This plug loom allows Jandy, Hayward and other Valve Actuators to be directly plugged into moder control systems such as the Aqualink, Connect 10, Halo Connect and others.

Simply cut off the old plug and connect new loom onto existing cable.

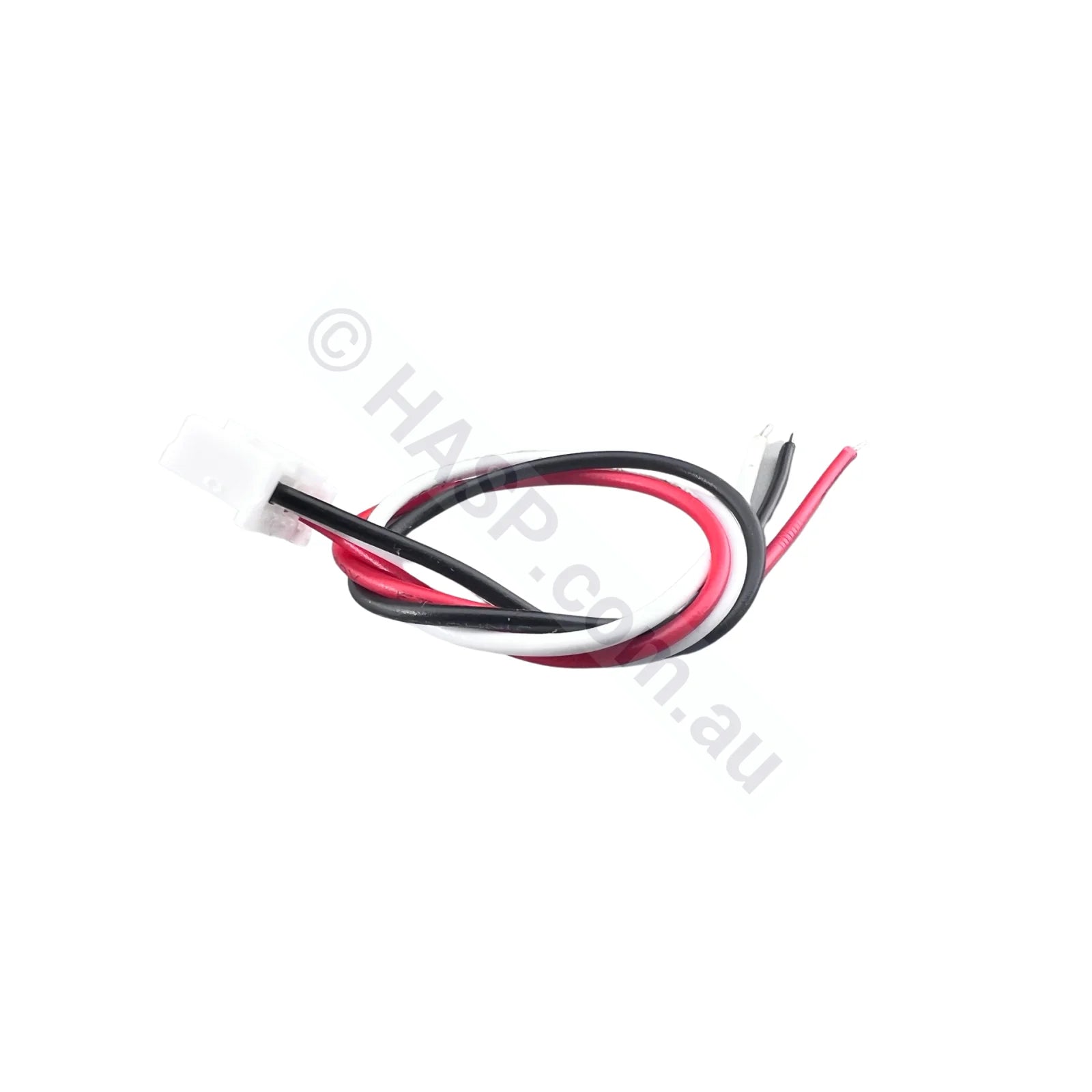

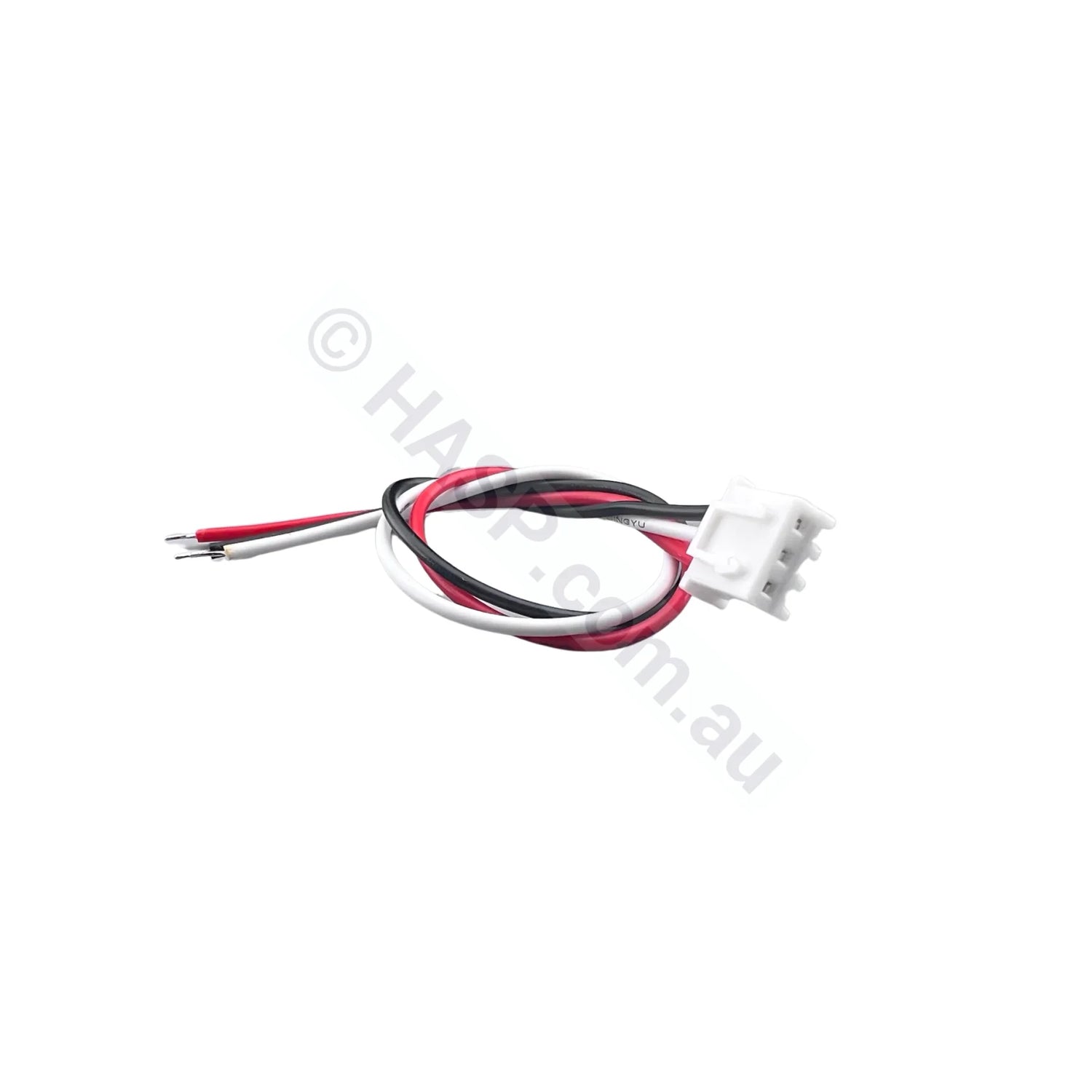

Male plug end: 9mm x 5mm. Images show two different plug styles but are interchangeable in most female plugs of that type.

IMPORTANT: Please note that colours of the wires may not suit old actuators. Eg, Do not assume Red goes to Red, Black to Black is correct. We cannot advise how to work this out, as each system is different.

We have found the following is the most common:

• Plug's Red wire goes to Actuator's Black wire.

• Plug's White wire goes to Actuator's Red wire.
• Plug's Black wire goes to Actuator's White wire.

 Jandy Pro Series 3 pin connector 2440 & 2444
