OBSOLETE - Raypak Ram H4M7-01 Spartan 131 Ignition Module



This product is obsolete or no longer available. Scroll down for more information about replacements, etc.

Description

OBSOLETE - Ram Ignition Modules no longer available. Raypak Spartan 131 modules can be replaced with the kit listed here (Nat Gas Only).

Archived Information:

Ignition Control Module found in Raypak Spartan 131, Premium 127, Premium 167, gas spa heaters, and early Hurlcon Hendy Hydronic Boilers 120 and 150. Also used amongst many other gas appliances.

Often need to be replaced after water damage, or when there are 3 flashes on the diagnostic LED. (Flame Sense Failure). In some Raypak heaters, they melted, and needed to be retrofitted with spacers.

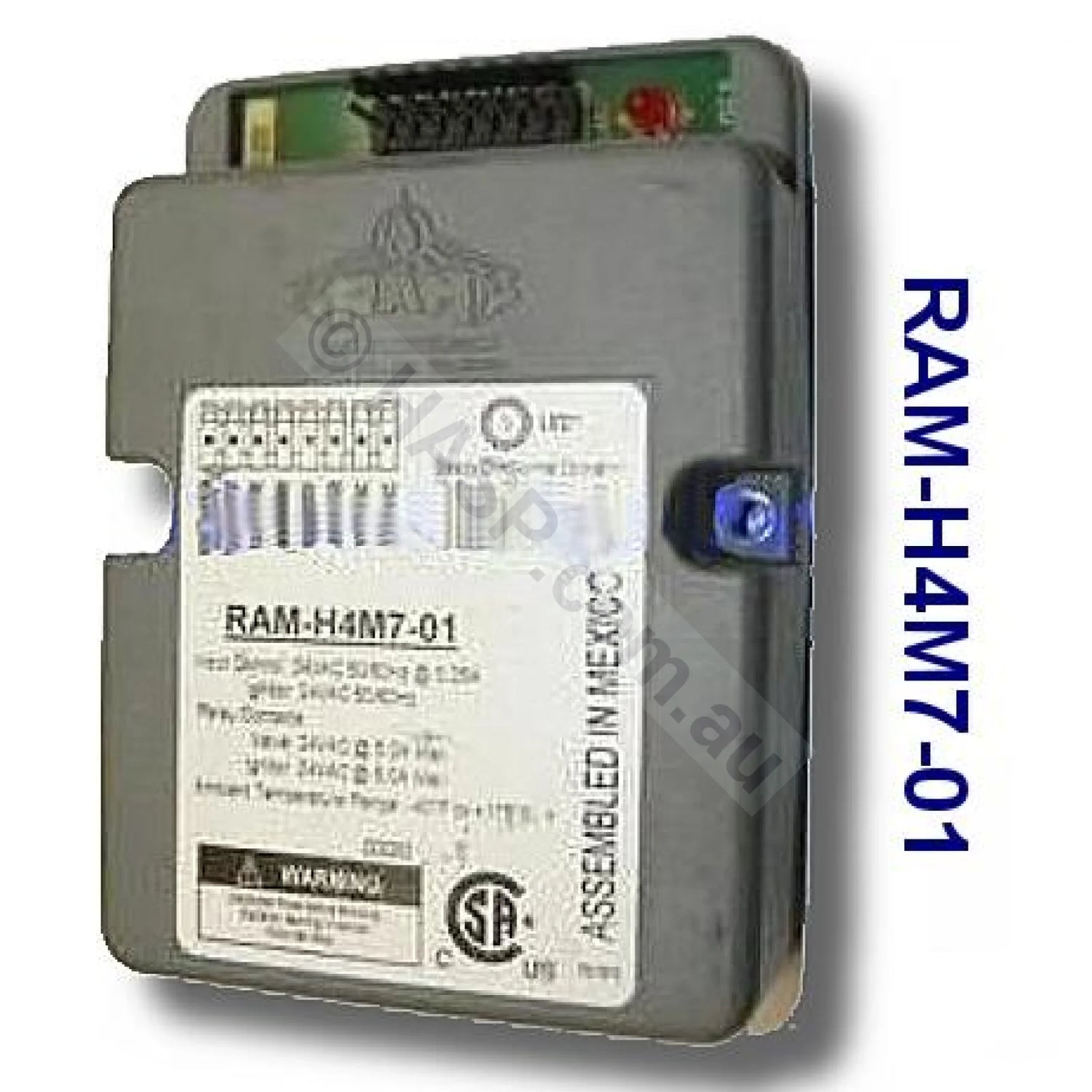

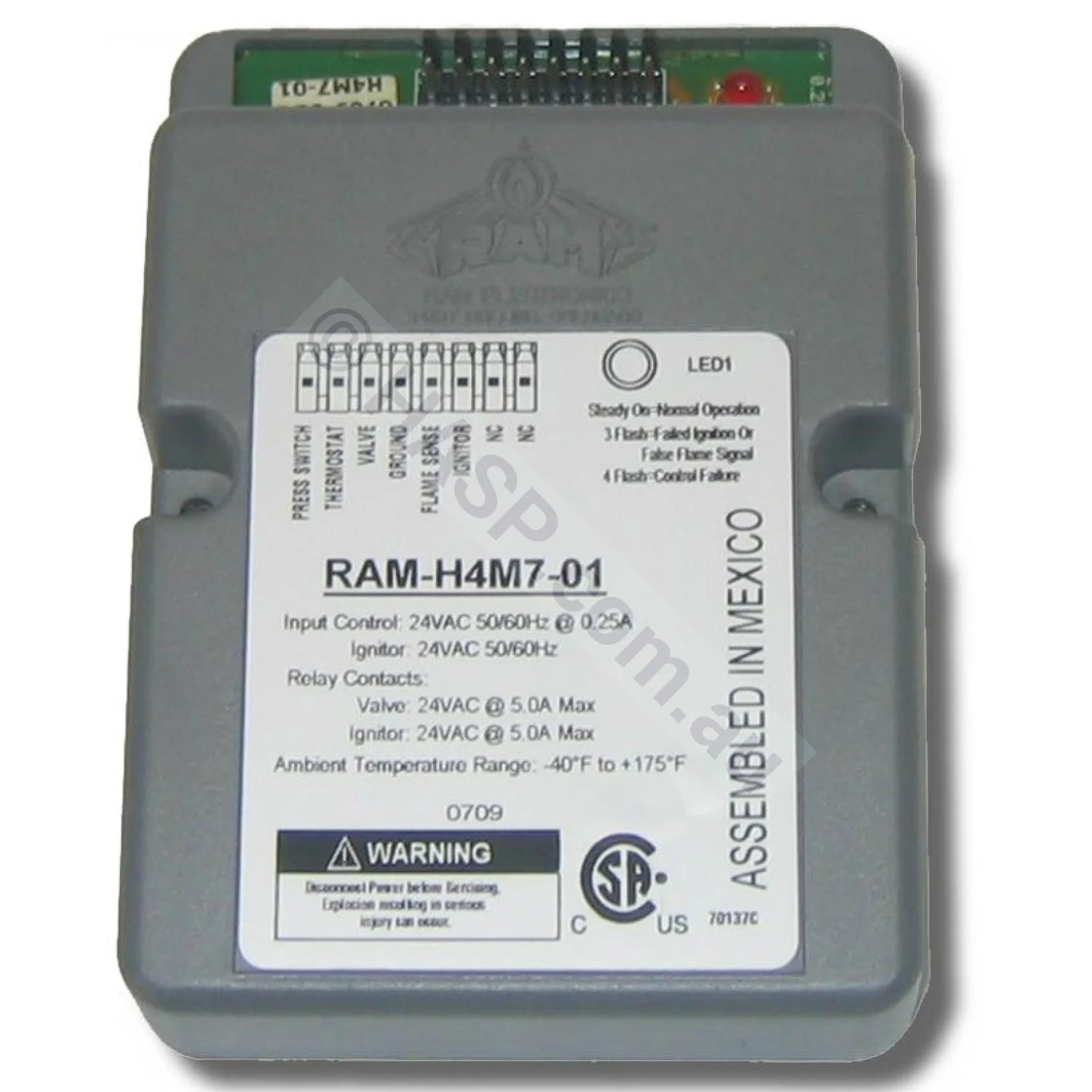

Raypak Ram H4M7-01 Spartan 131 Ignition Module / Burner Controller 24 Volt / 50Hz. H4M7-0124V 00 05 1 2 Y 5 AG5522. RAM0210. 083RAM0210


H4M7-01 H.S.I CONTROL - RAM

  • Plug in Electrical Connectors
  • Re-Start Attempt
  • Single Gas Valve
  • Volatile Lock - Out
  • Flame Sensor
  • Hot Surface Ignitor
  • Flame Failure Safety Time - 5 sec
  • LED Diagnostics
  • 24 volt AC
  • AGA Approved Number 5522 Class 2Cb

Related HSI Ignitor / Flame Sensor:
