Raypak RP2100 Circuit Board PCB Thermostat Control Circuit Board - 56609184 - RP 2100
Raypak RP2100 Circuit Board PCB Thermostat Control Circuit Board - 56609184 - RP 2100 is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Raypak RP2100 Circuit Board PCB Thermostat Control Circuit Board - ...
Raypak RP2100 Circuit Board PCB Thermostat Control Circuit Board - 56609184 - RP 2100 is temporarily out of stock and will ship as soon as it's available.
Raypak RP2100 Circuit Board PCB Thermostat Control Circuit Board - 56609184 - RP 2100

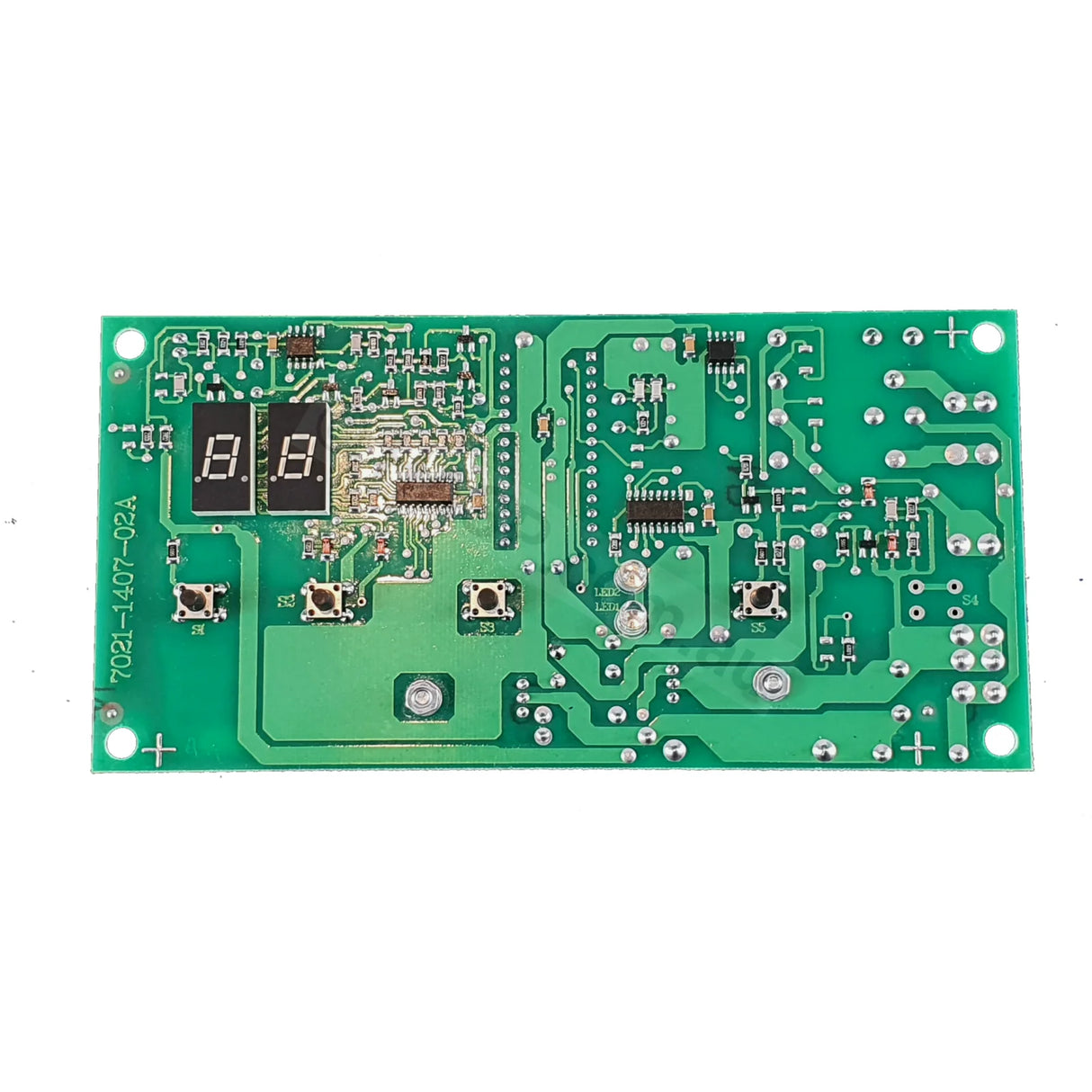

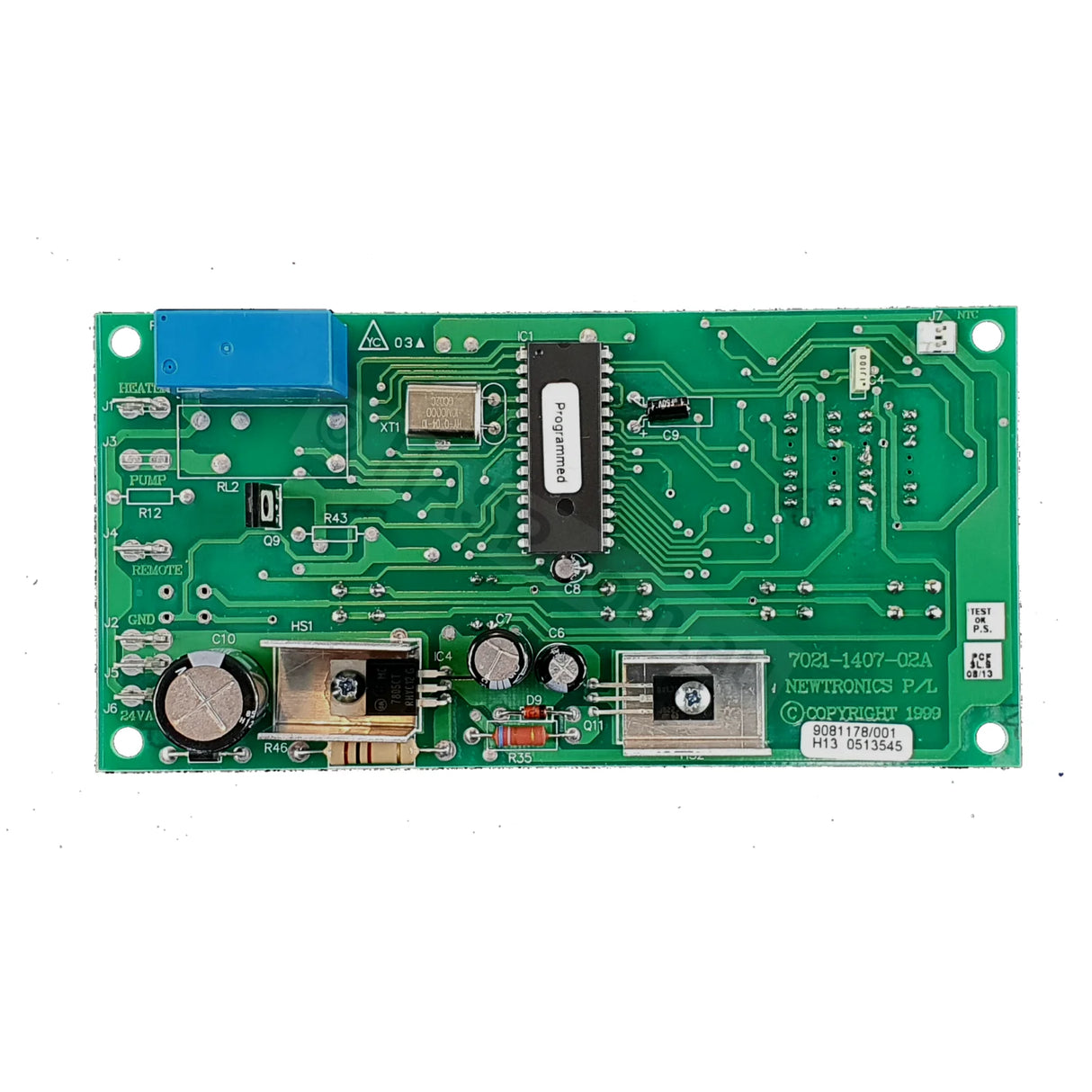

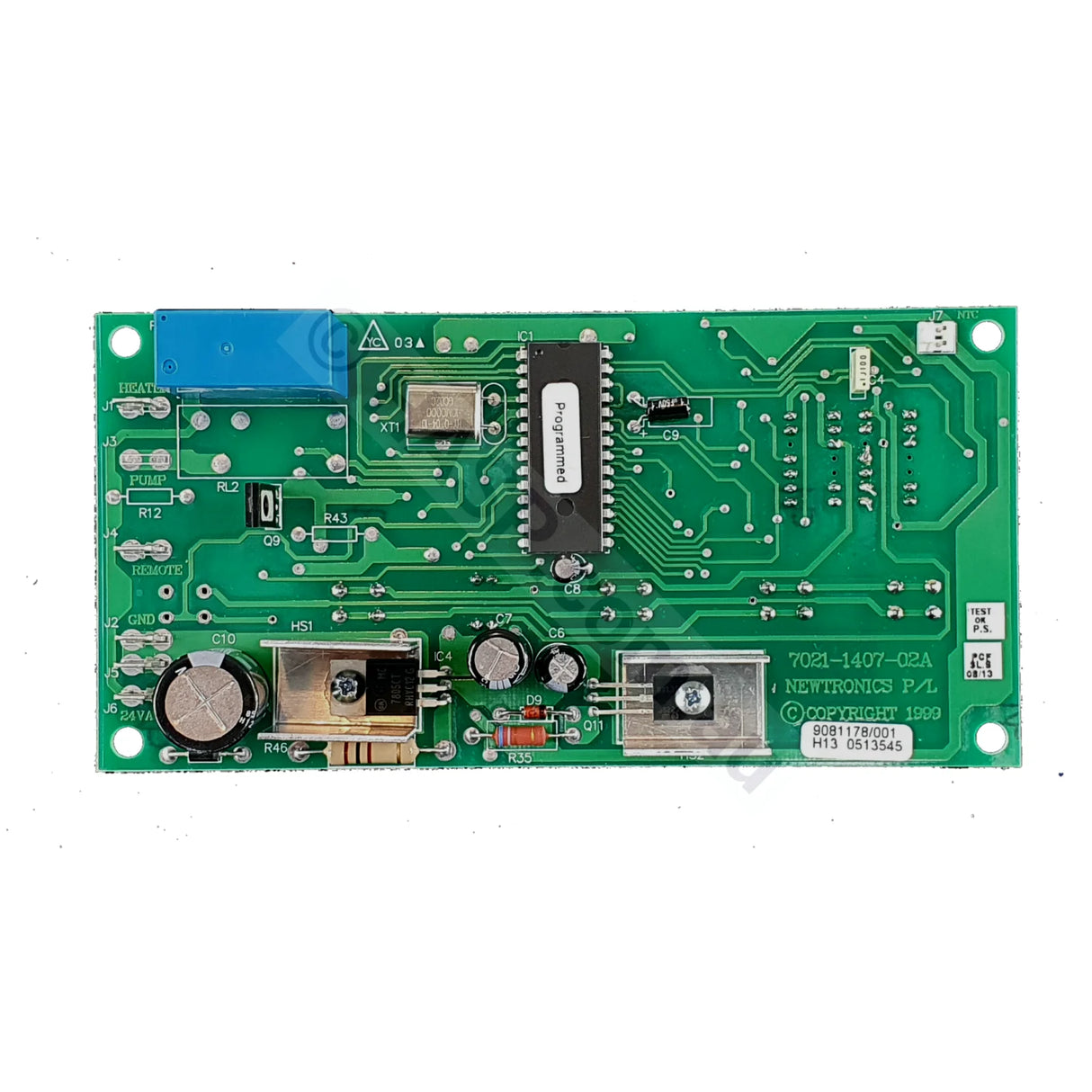

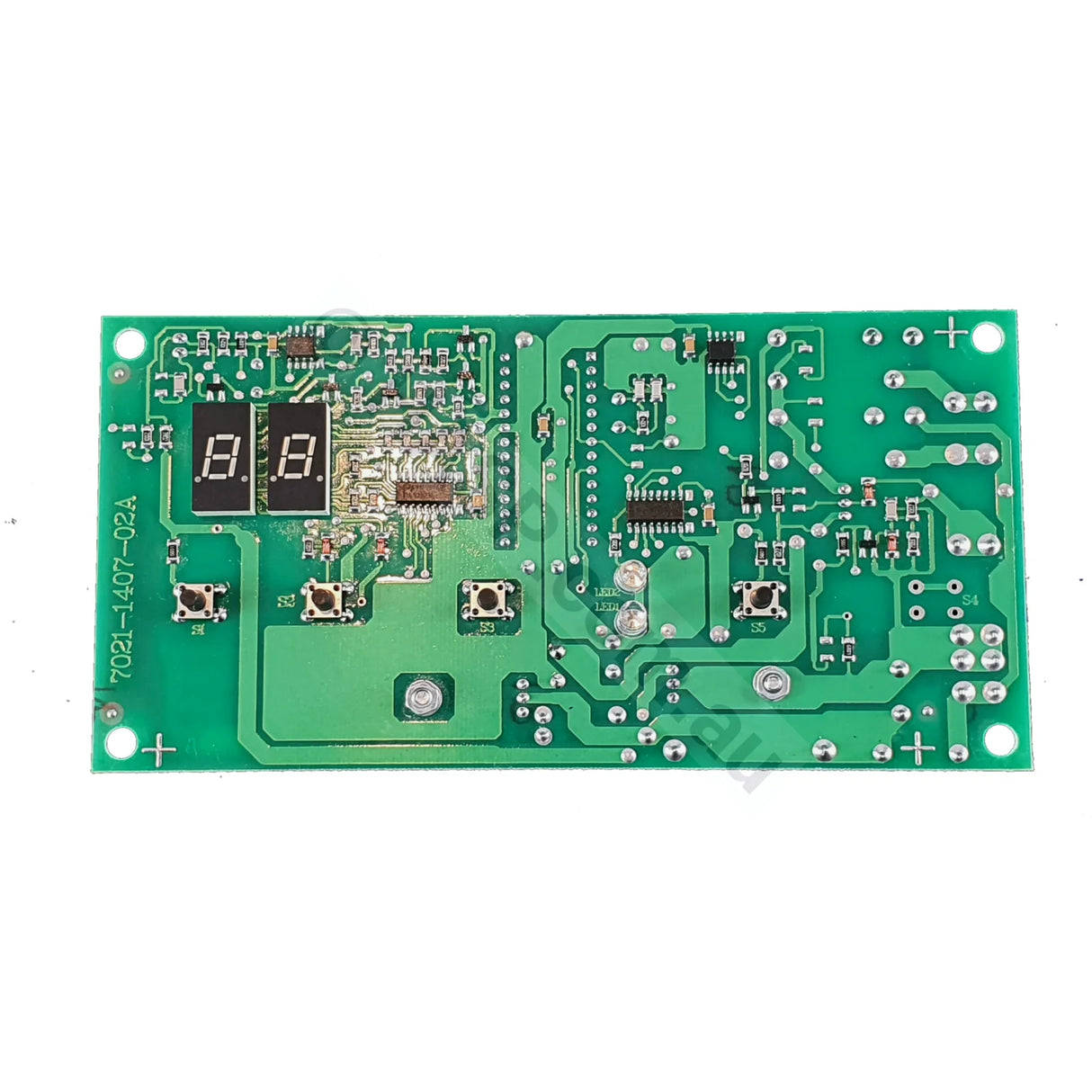

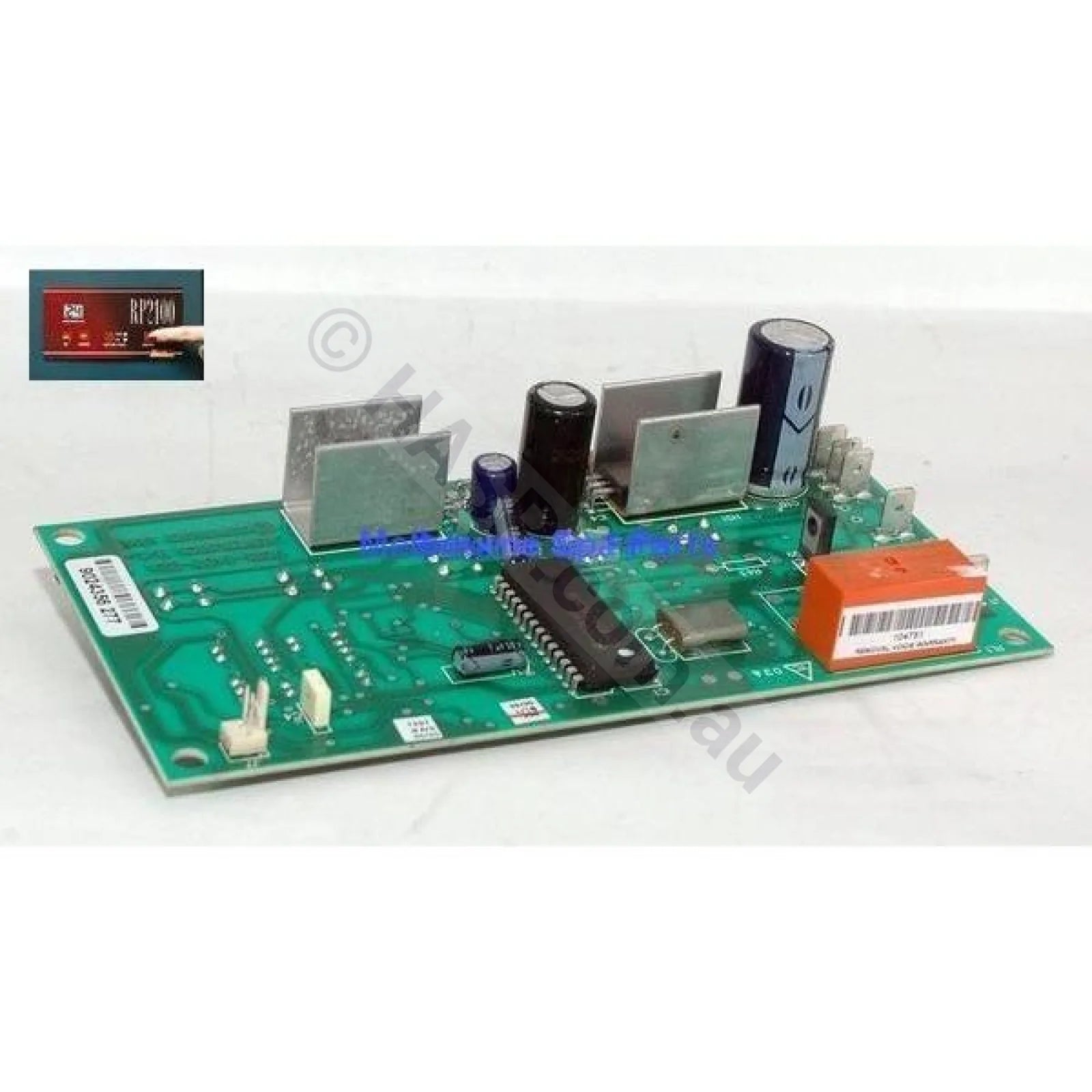

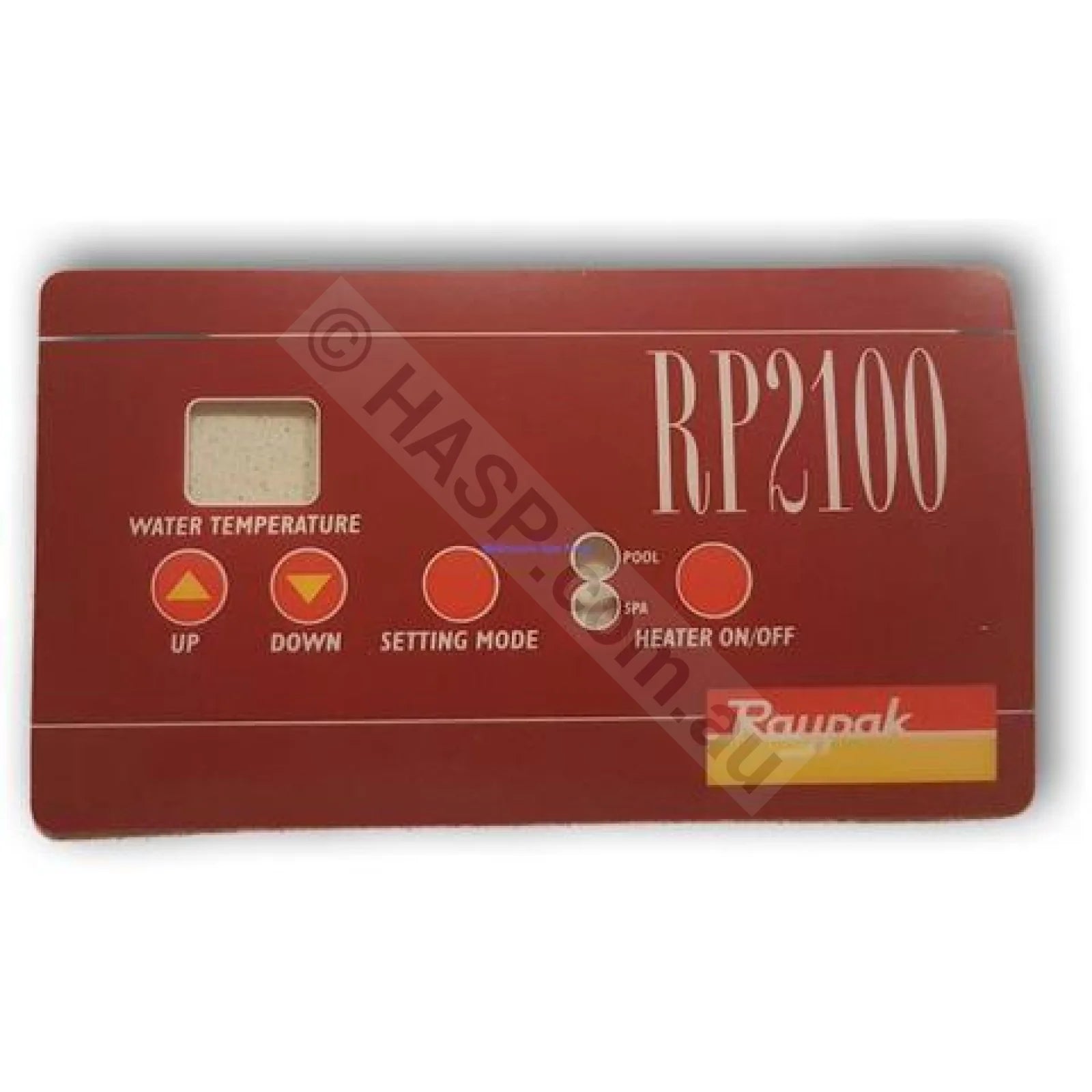

Circuit Board Thermostat PCB to suit all Raypak RP2100 red-labeled gas pool & spa heaters. Also suits some early Spartan 131 Davey & Onga heaters. This controls the temperature, power, and LL features of the heater. Cannot be replaced with any other circuit board. AKA Digital Control Panel. Commonly fail where the protective overlay decal has broken down from weathering.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD

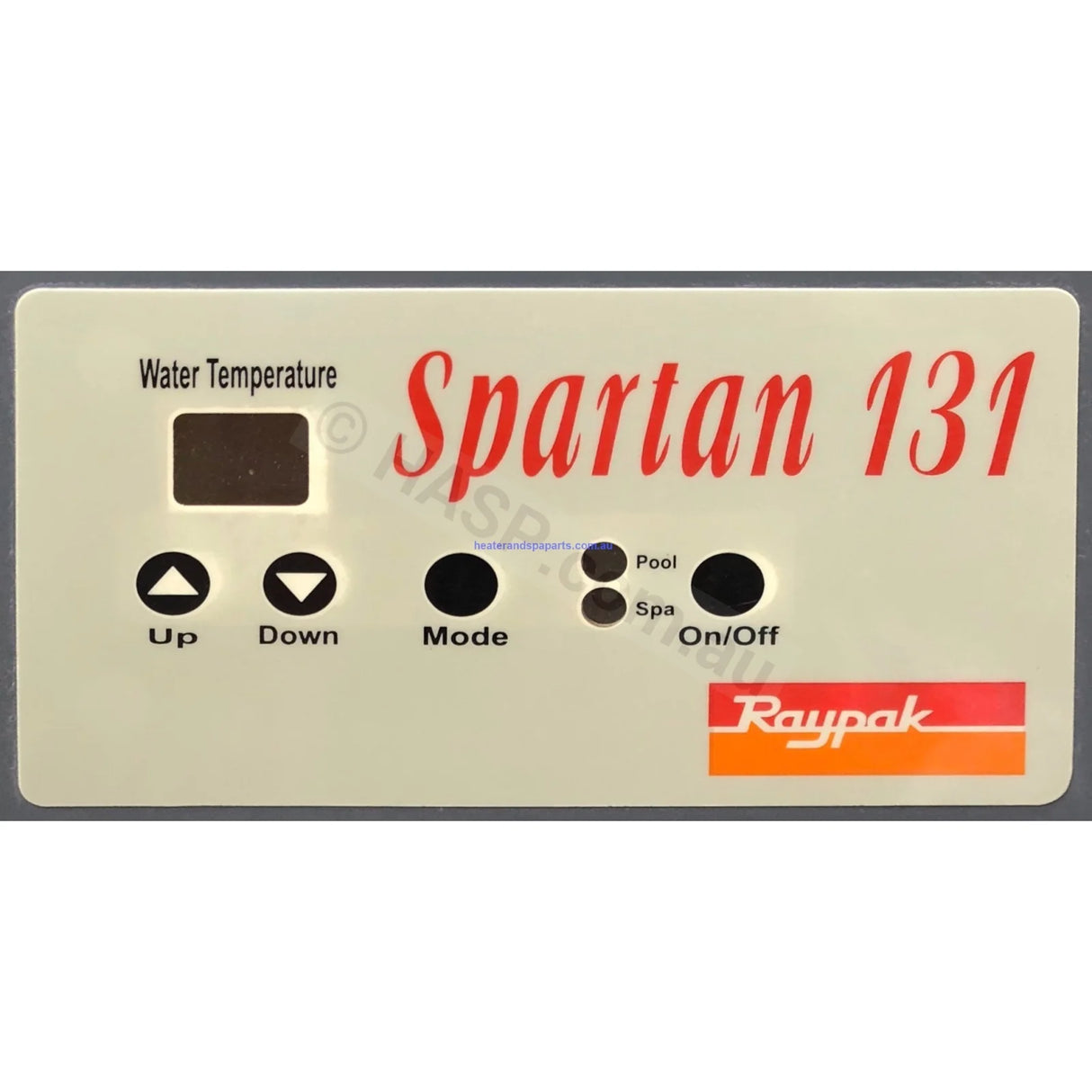

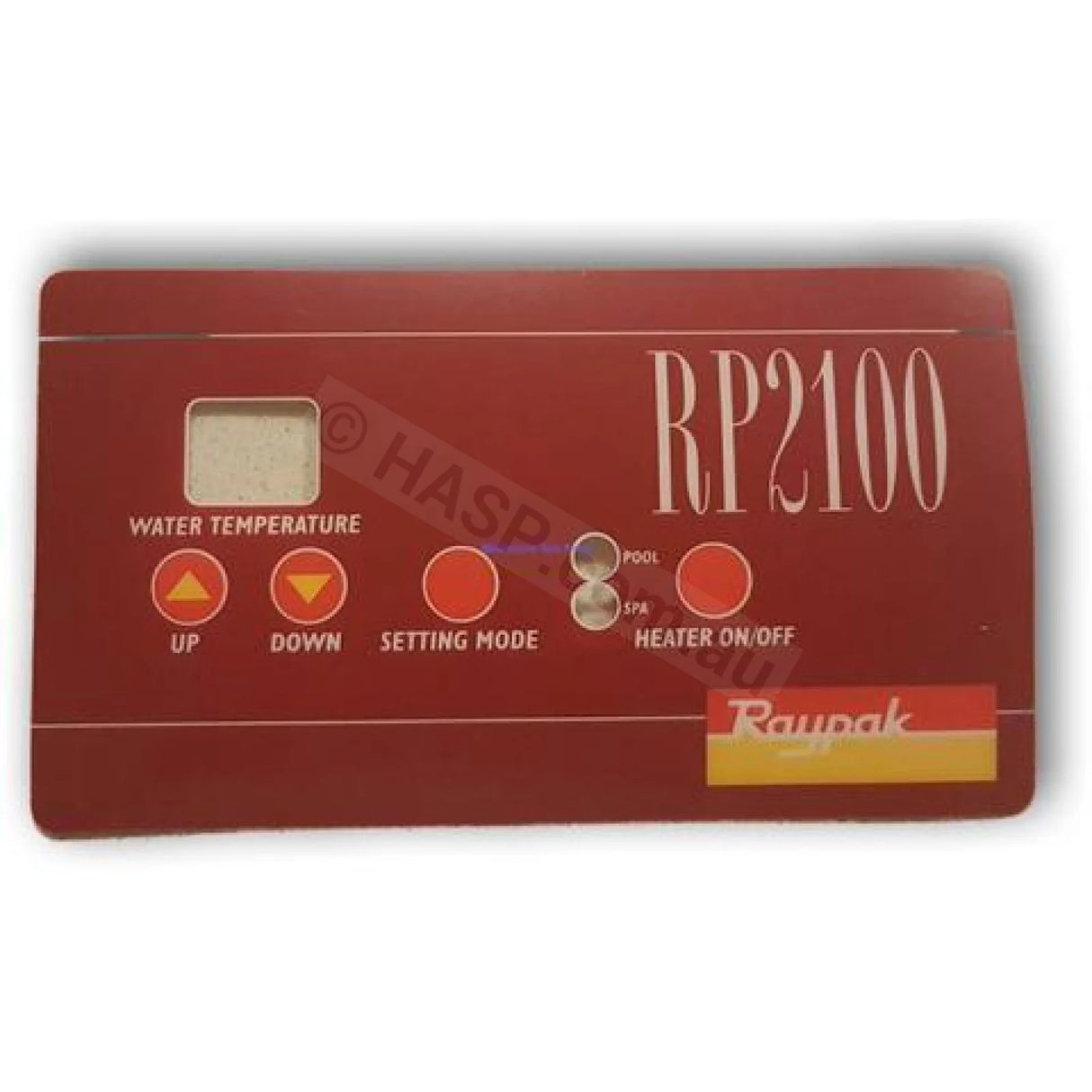

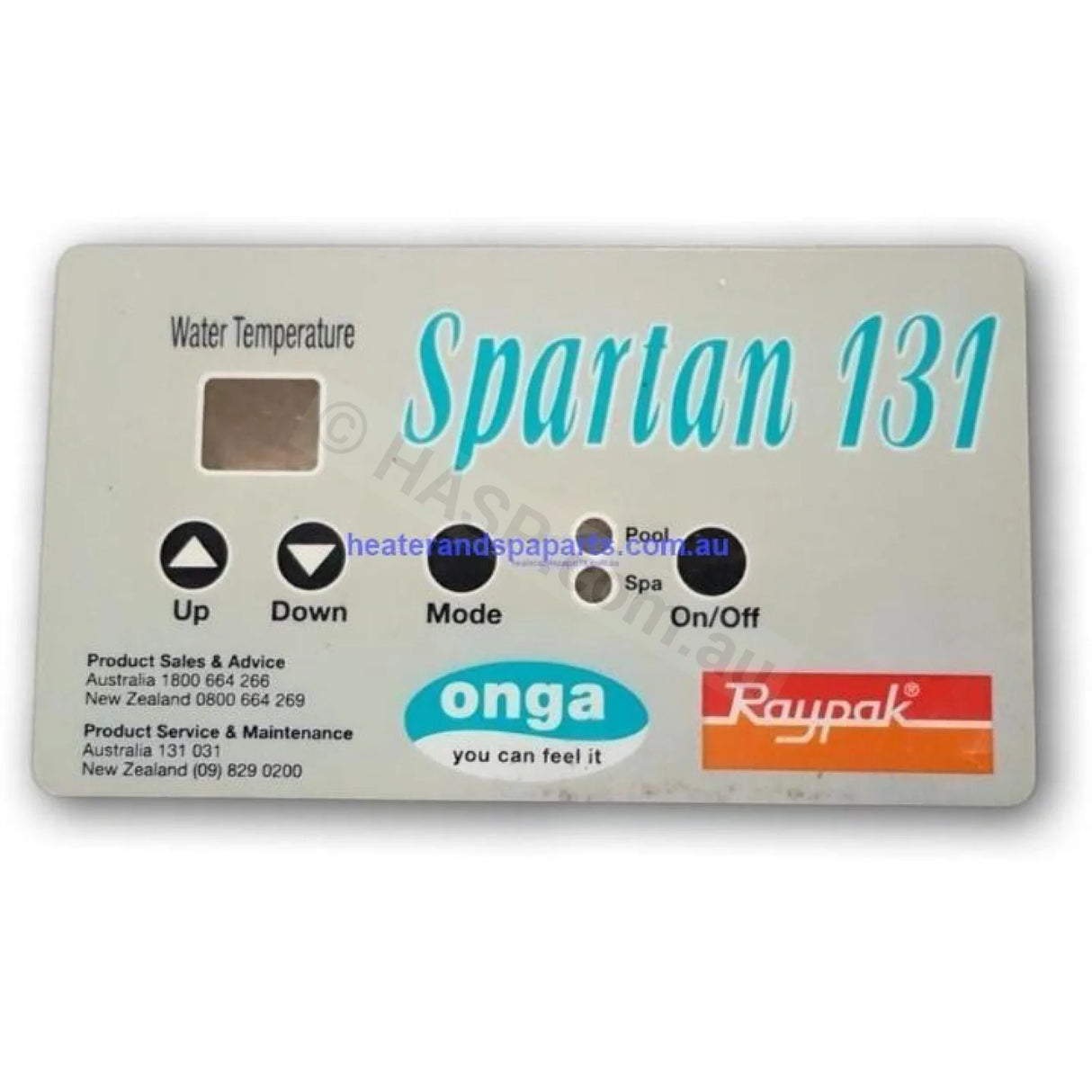

Decal / Protective Stickers:
If you need a new Decal / Sticker: They are listed here.
Also known as:

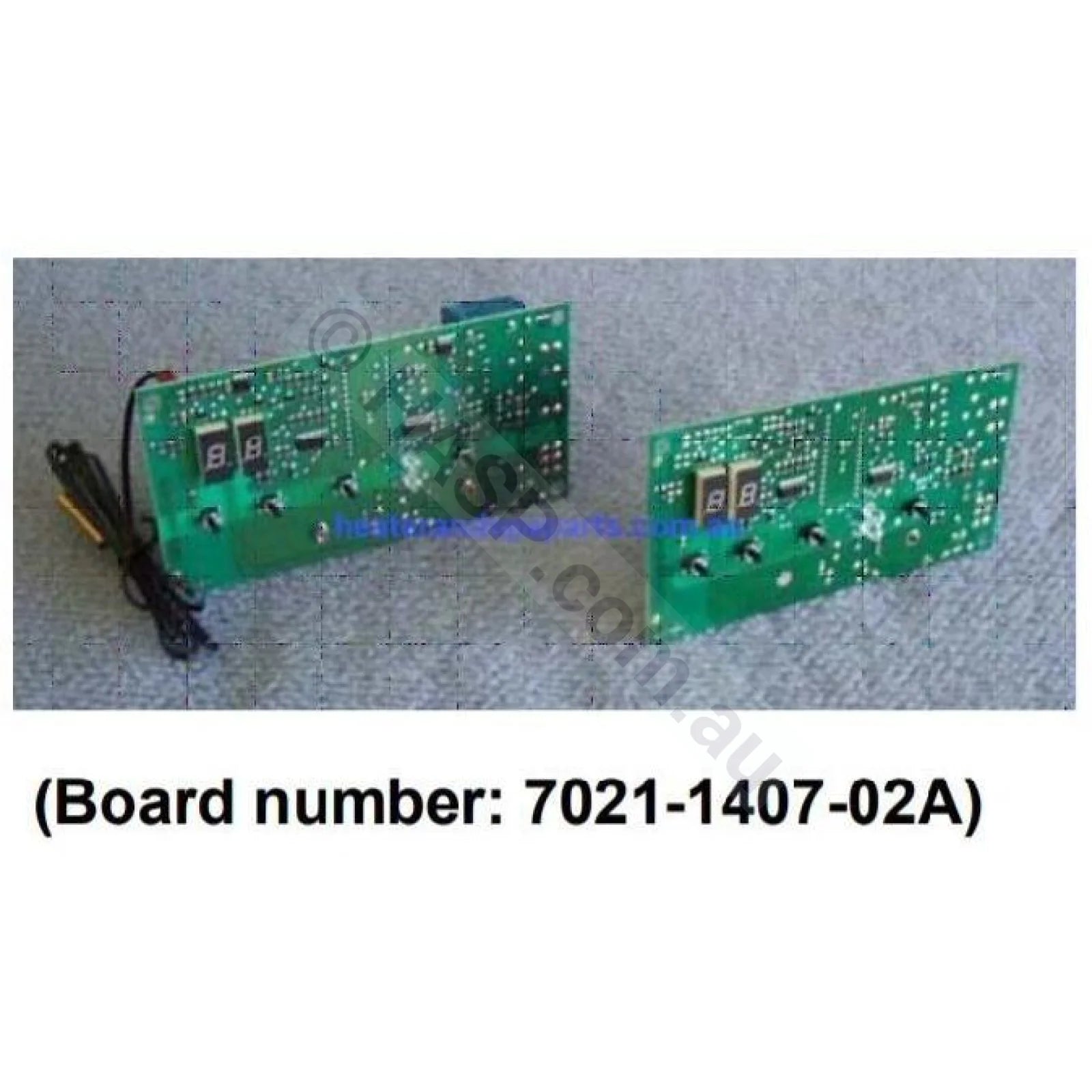

- NEWTRONICS 7021-1407-02A / 7021-1407-01C
- 56609184
- RP2100 circuit board PCB Thermostat
- 7021140701C

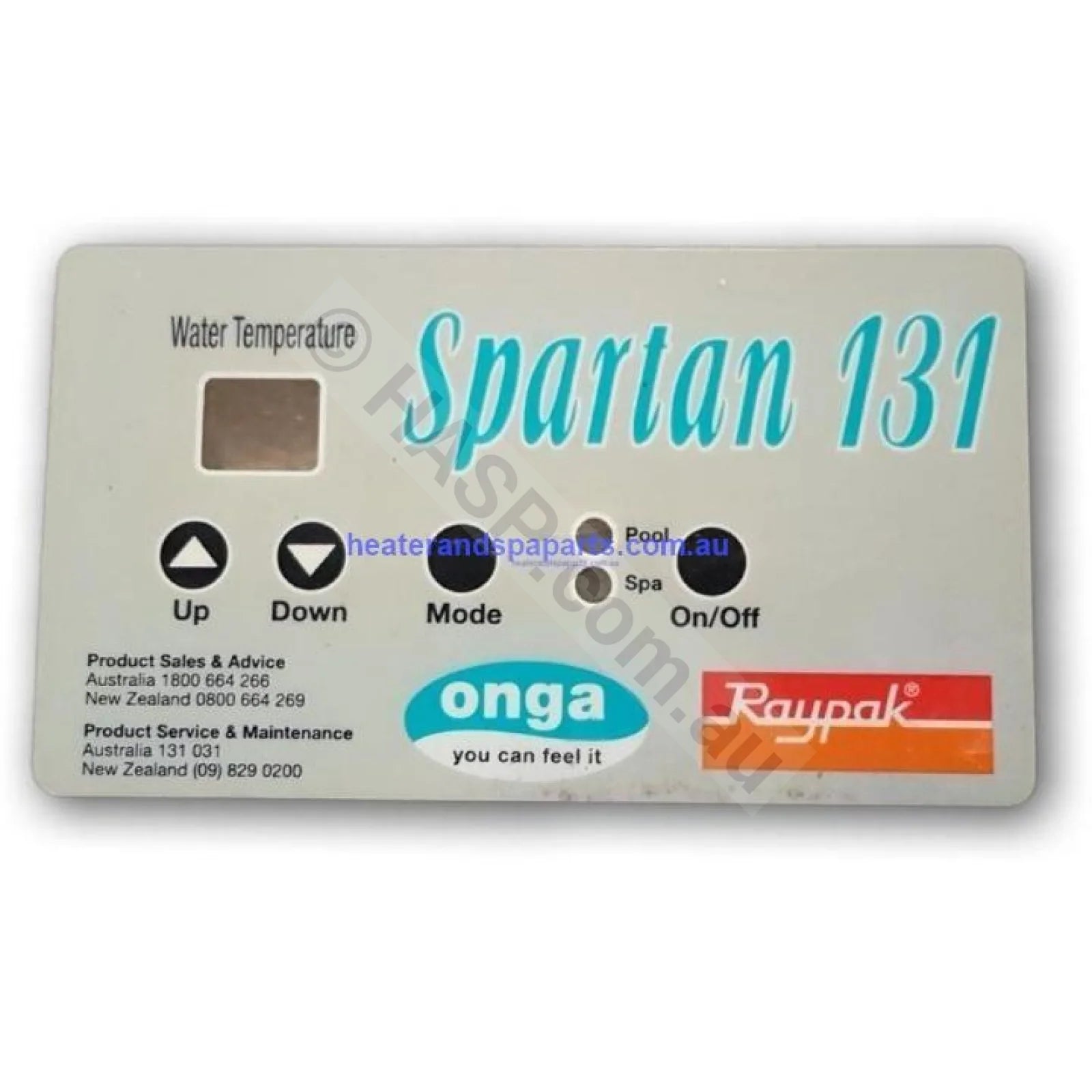

- Onga & Davey branded Raypak RP2100 Heaters
- Some early Gemini & Spartan 131 gas heaters
- Remote PCB is 56609185
