New-Style Raypak Secondary PCB Circuit Board - Pool Spa Mode and Valve Controller

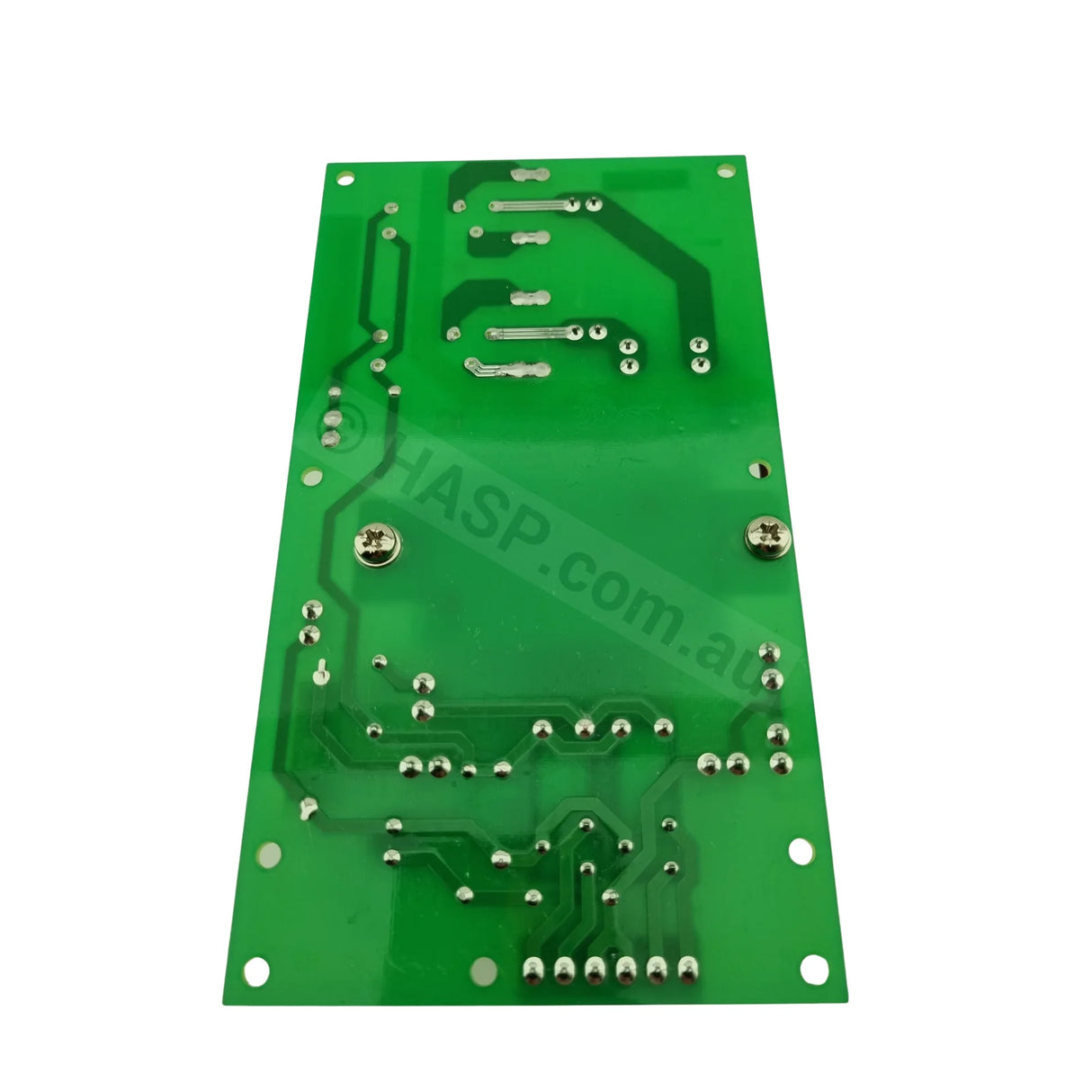

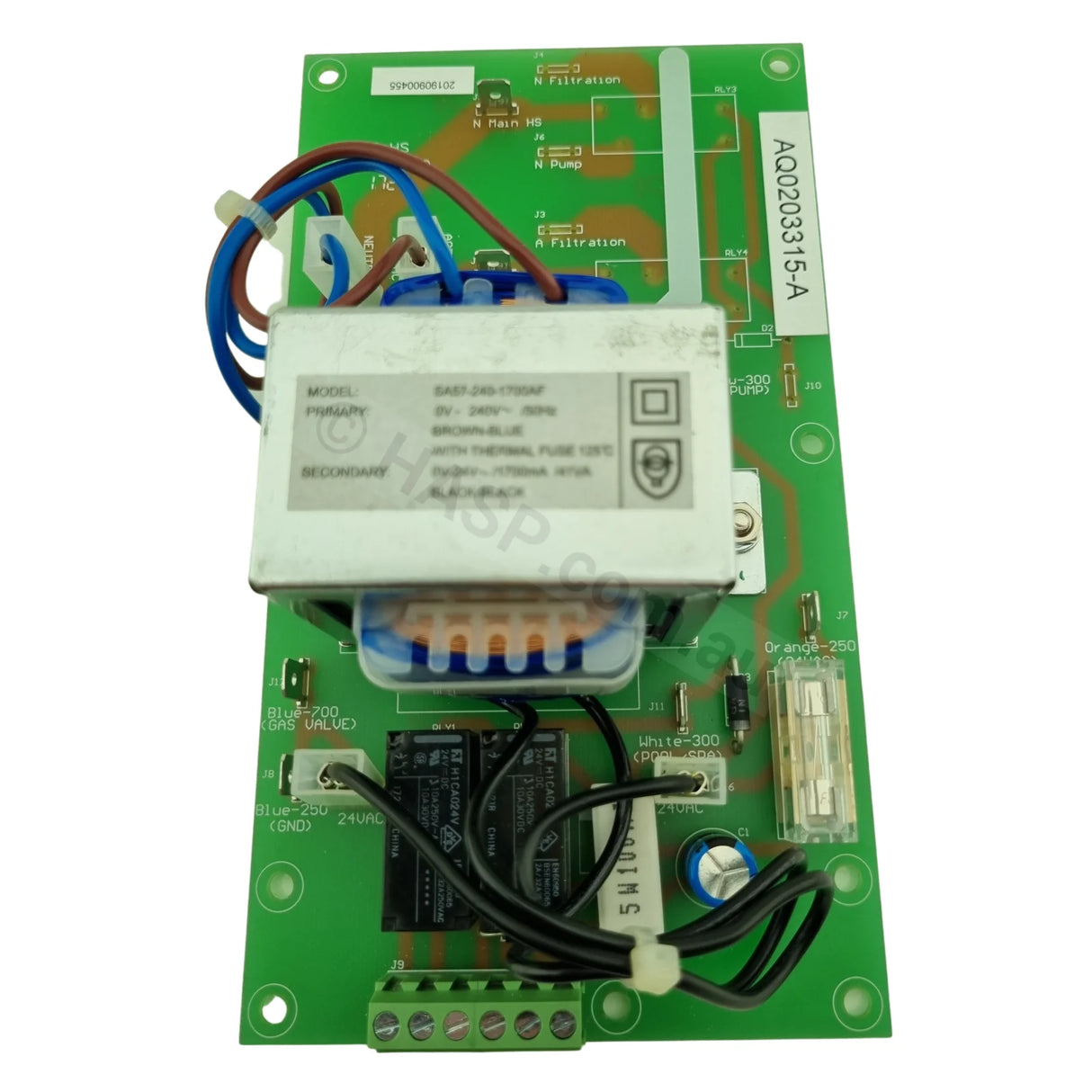

Secondary PCB found on Raypak 200, 280, 350, 430 gas heaters. Original circuit board used to control valve actuators. No longer controls pump & timer.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Comes with PCB, PCB Standoffs, Cable Ties, Instructions, Diagrams.
Replaces 56PE5003 & 96PE5002.
AS2415013
