Rising Dragon Telescoping Weir Top Mount Filter Vane Weir - Graphite Grey
Rising Dragon Telescoping Weir Top Mount Filter Vane Weir - Graphite Grey is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Rising Dragon Telescoping Weir Top Mount Filter Vane Weir - Graphit...
Rising Dragon Telescoping Weir Top Mount Filter Vane Weir - Graphite Grey is temporarily out of stock and will ship as soon as it's available.

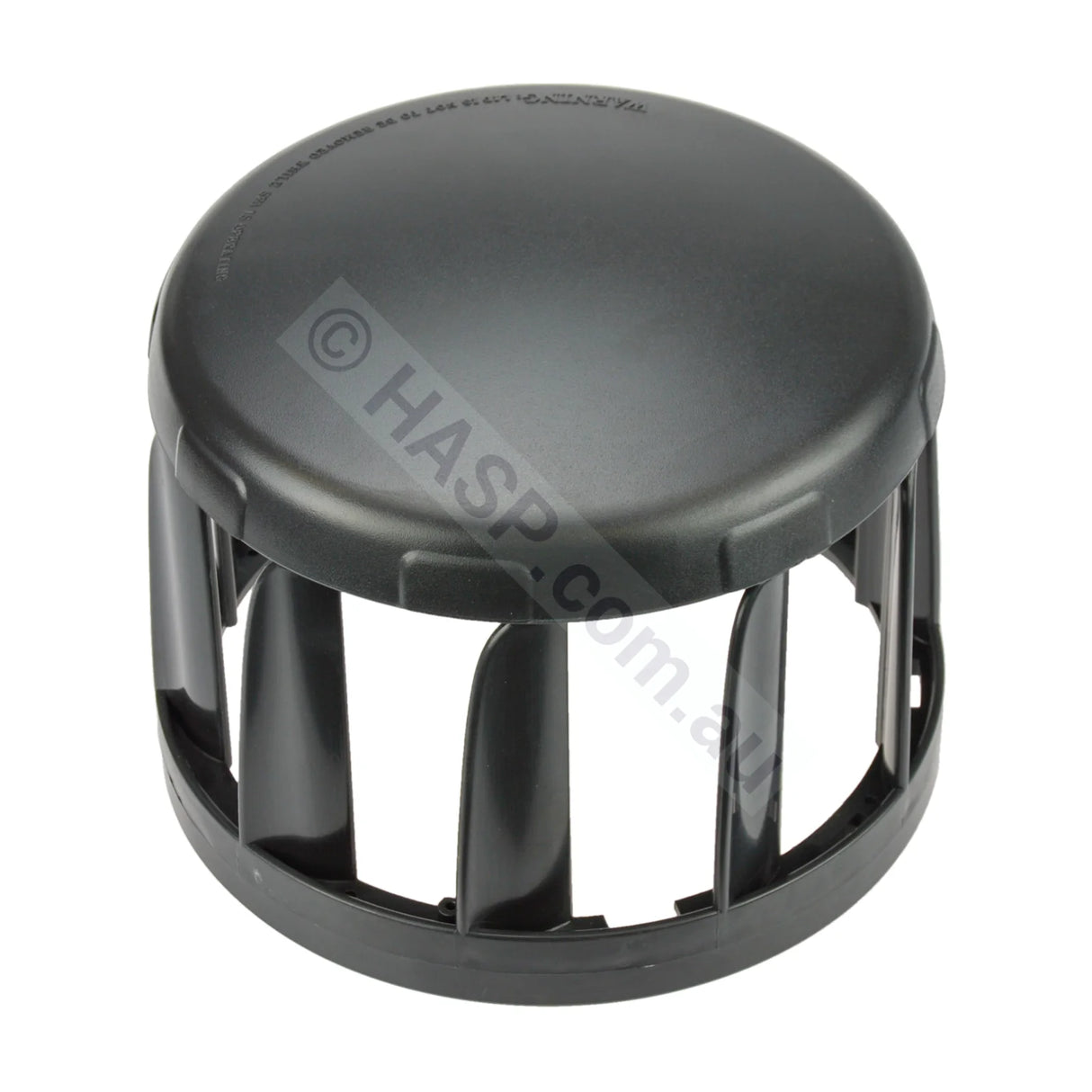

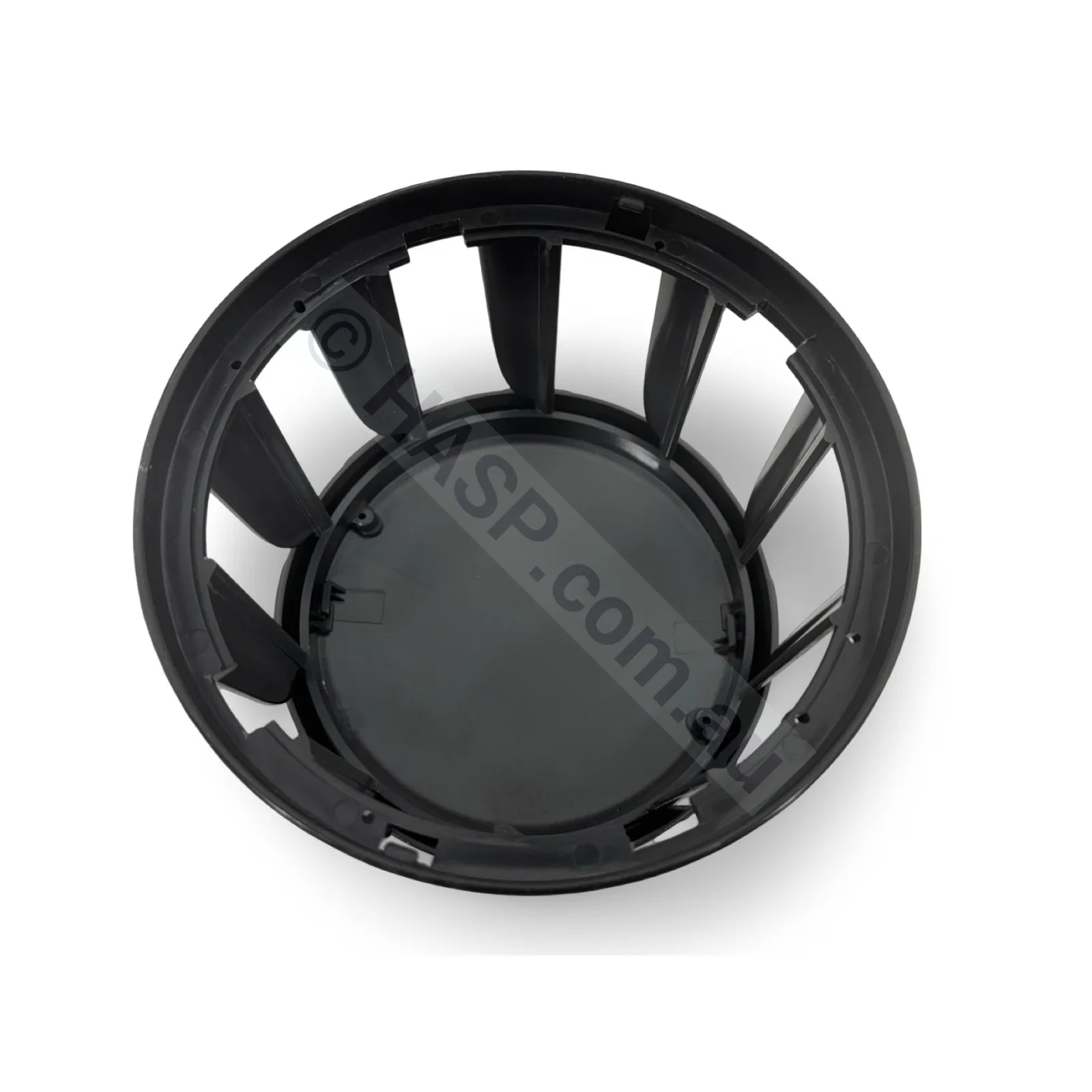

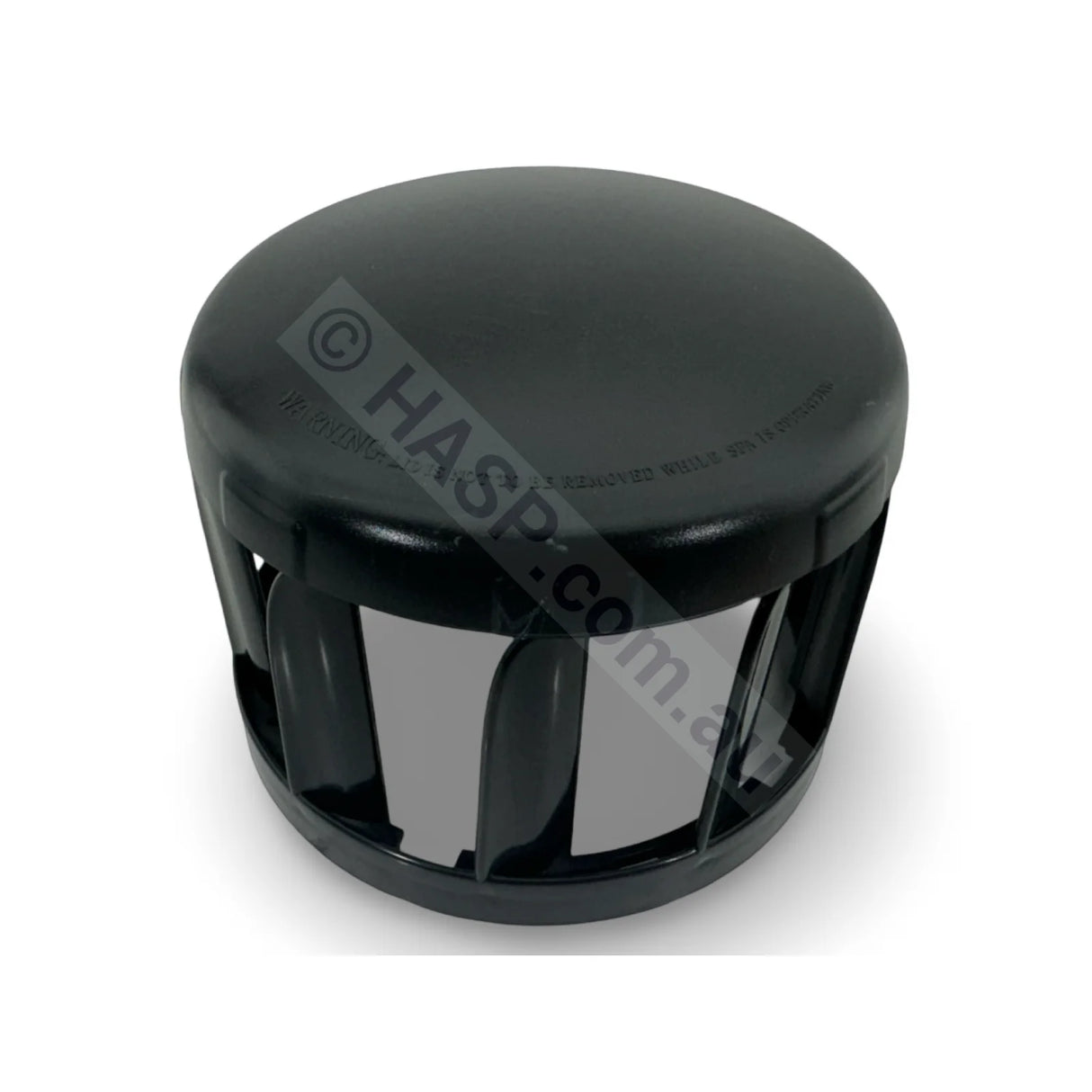

Rising Dragon telescoping weir top mount filter VANE WEIR cage - required to make standard telescoping filters legal and safe for use in Australia. Used in numerous spas that have used Rising Dragon filters. Used in most Chinese manufactured spas.
- Almost identical to CMP weir
- Lid unclips
- 188mm diameter cap
- 196mm outer diameter vane base secured with 2 x swing out tabs.
- 140mm high overall
Once the Vane frame assy is secured to the filter housing, cartridge access for cleaning / replacement is gained by unclipping the cap to expose the cartridge.
