PCB Fuse-Term- AH XH
PCB Fuse-Term- AH XH is temporarily out of stock and will ship as soon as it's available.

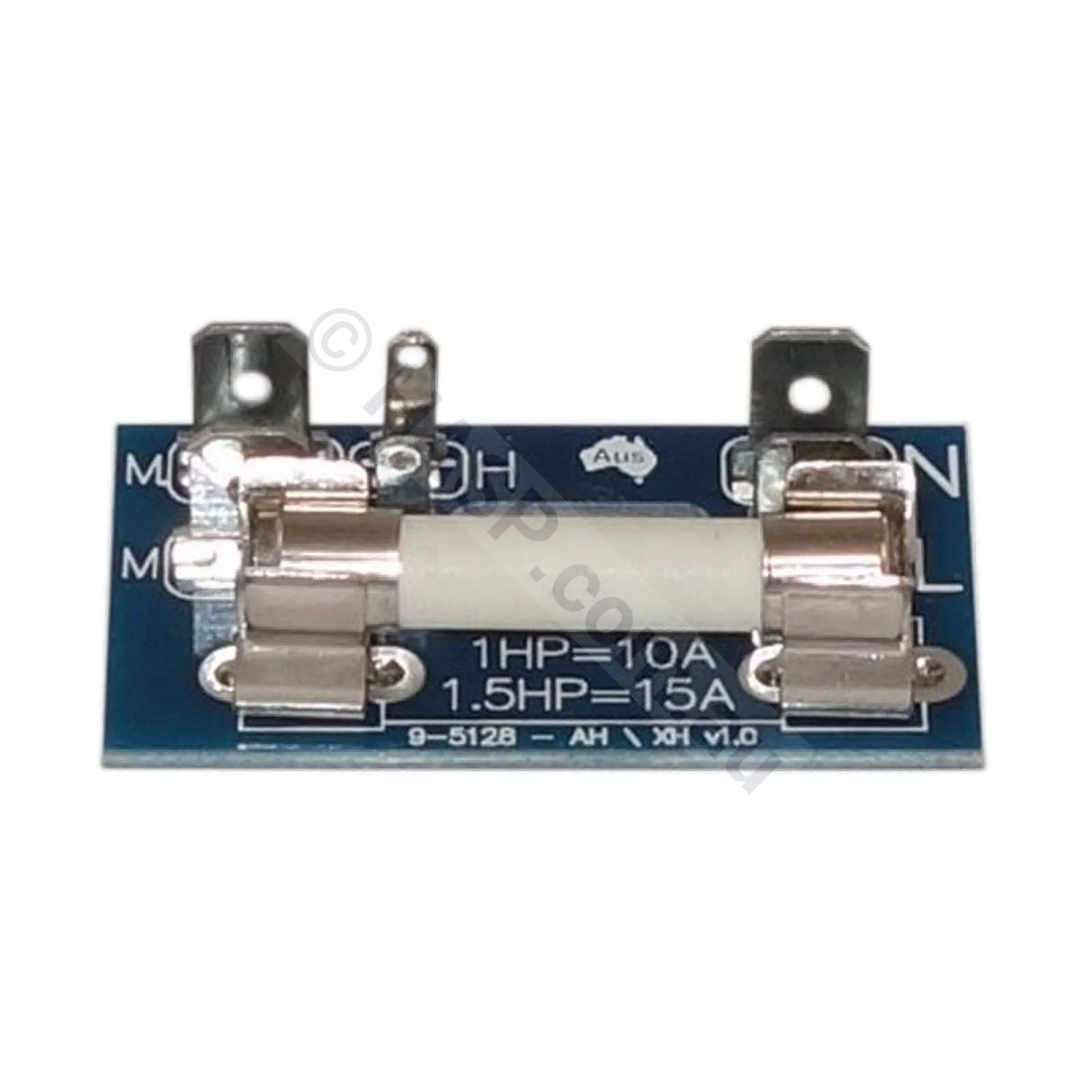

Edgetec PCB Fuse-Term- AH XH is a spa control electronics component for compatible spa control systems, touchpads, controllers or related electrical assemblies. Match the part number, size and existing equipment details before ordering.
HASP carries more parts in physical stock than anyone. Shipping from Vic, NSW, Qld, and WA.
Product details
- Product: Edgetec PCB Fuse-Term- AH XH
- Part number: E-9-5128
- Type: spa control electronics
Check before ordering
- Control box, touchpad or PCB model number
- Voltage, heater size and pump configuration where relevant
- Photos of the existing installation if you are unsure
Common search terms: edgetec pcb fuse term ah xh, e-9-5128.
