Description
The IntelliHeat Heat Pump Controller is a controller to use with most brands of Pool & Spa Heat Pumps such as SensaHeat, Davey, Domain and many others. This is designed to operate a pool Pump when either a Chlorinator or a Heat Pump needs the pump to run.
It allows your pool pump to be overridden by the Sensaheat's internal "Heat Demand" system. Suitable for low-voltage switching only (eg: flow switch circuit).

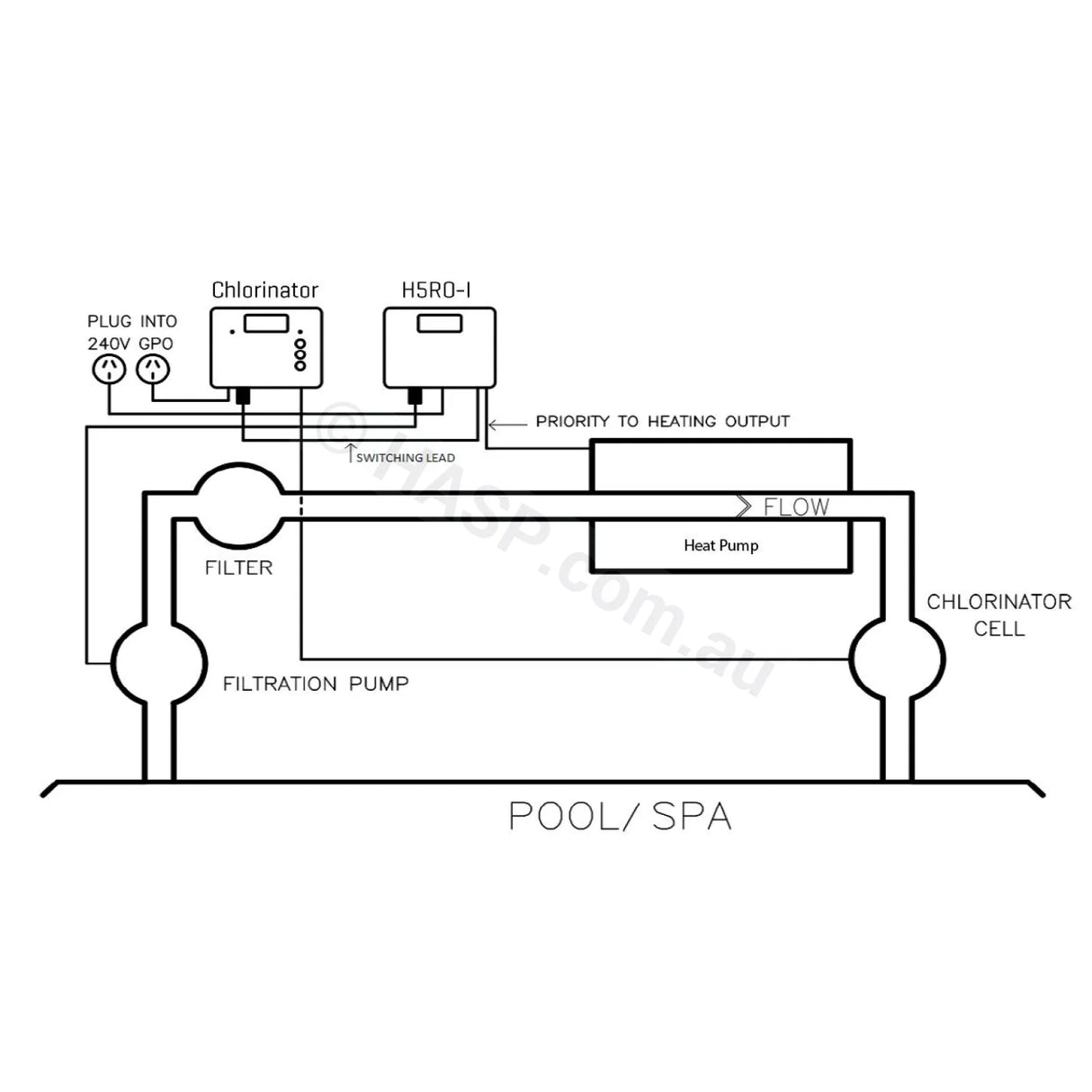

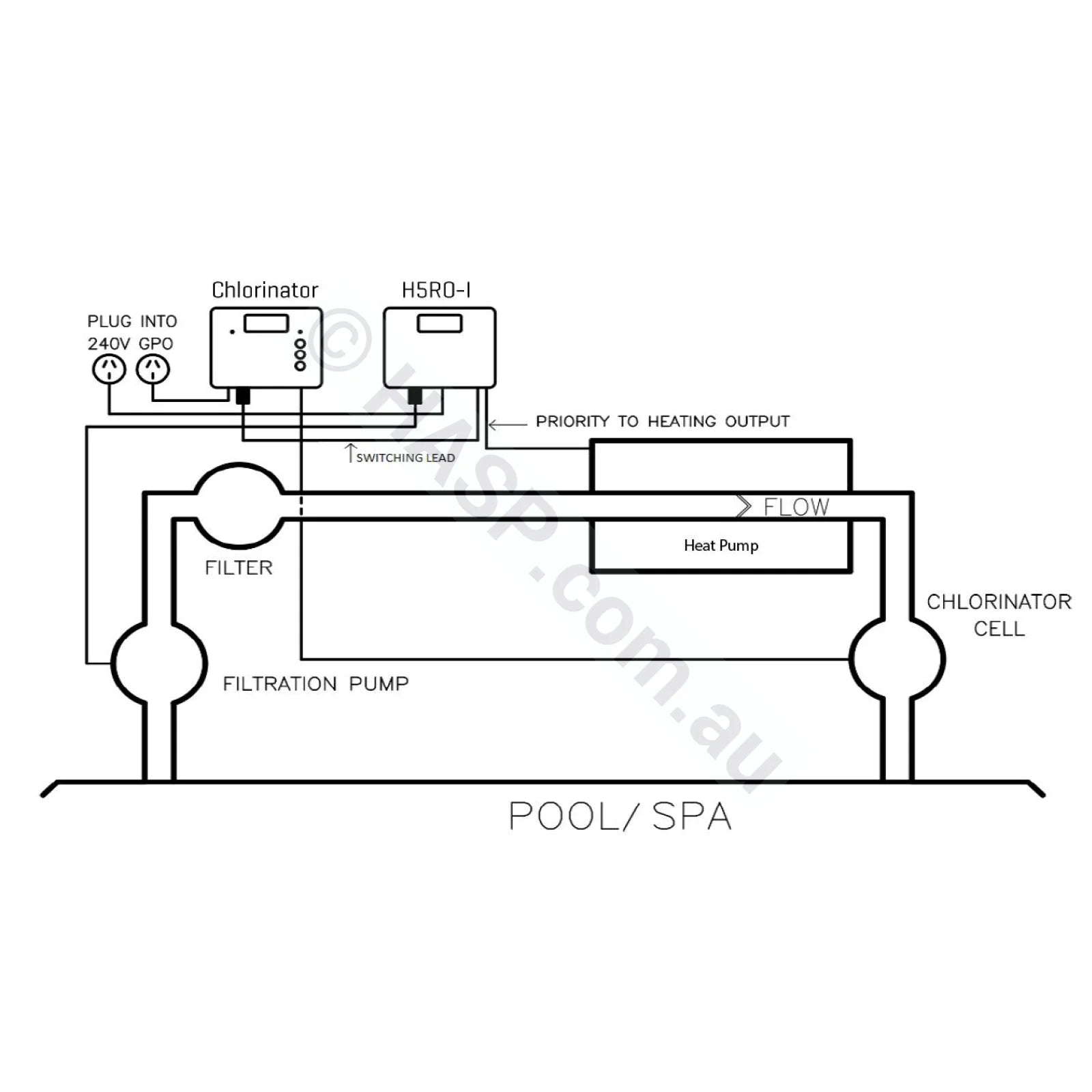

For SensaHeat Heat Pumps:
- Remove top panel of heat pump
- Small twin cable connects to P1 & P2 in the heat pump (SensaHeat ES uses DIN2 black wire loop)
- 3-pin Plugs plug into Power Point
- Circulation Pump plugs into Heat Pump Controller
- Standard Intelliheat: Chlorinator plugs into Intelliheat
- Follow User Manual for Operation
- Electrical work must be performed by a Qualified Person
