Sensapool SR230 1.0hp - Astralpool E230 Retrofit
Sensapool SR230 1.0hp - Astralpool E230 Retrofit is backordered and will ship as soon as it is back in stock.

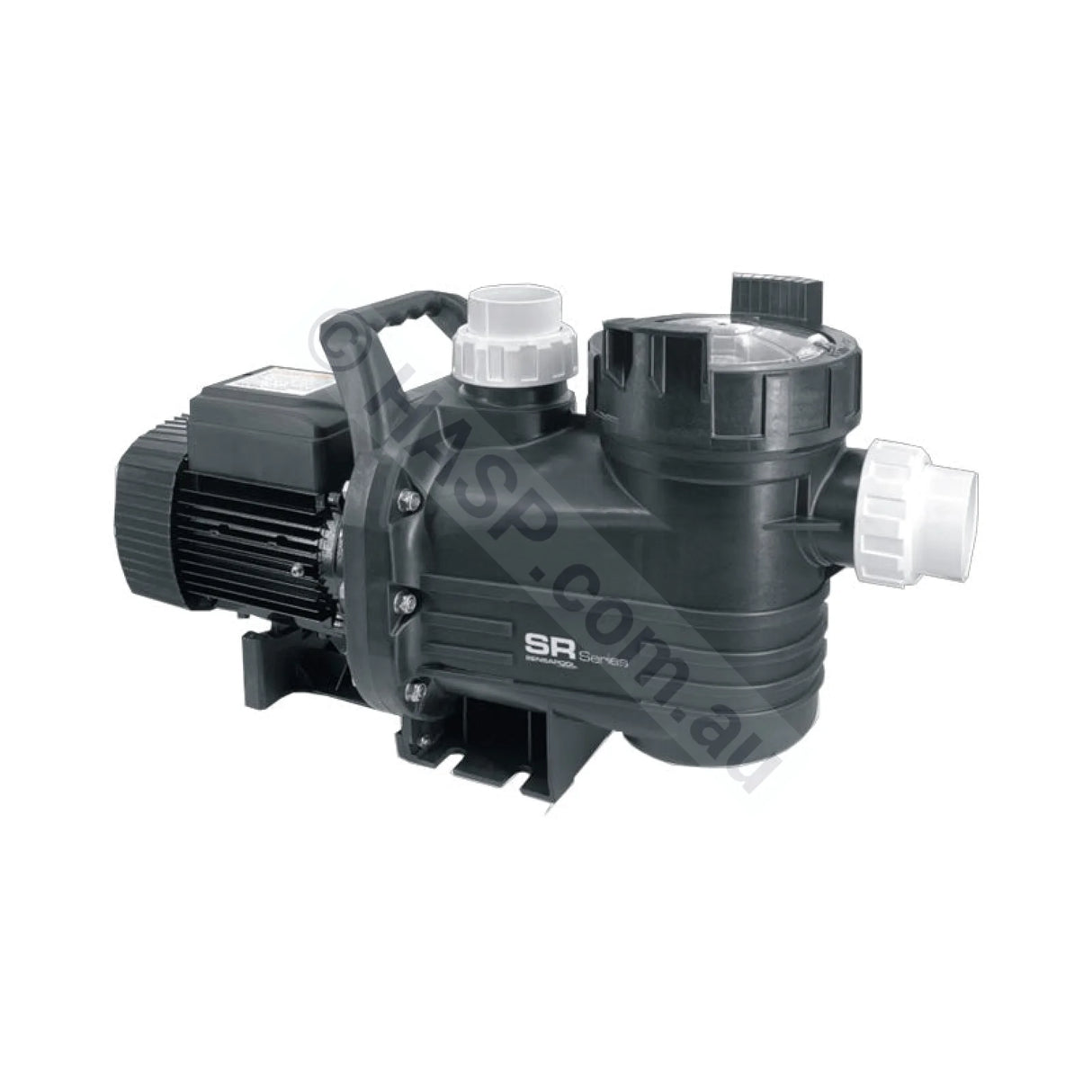

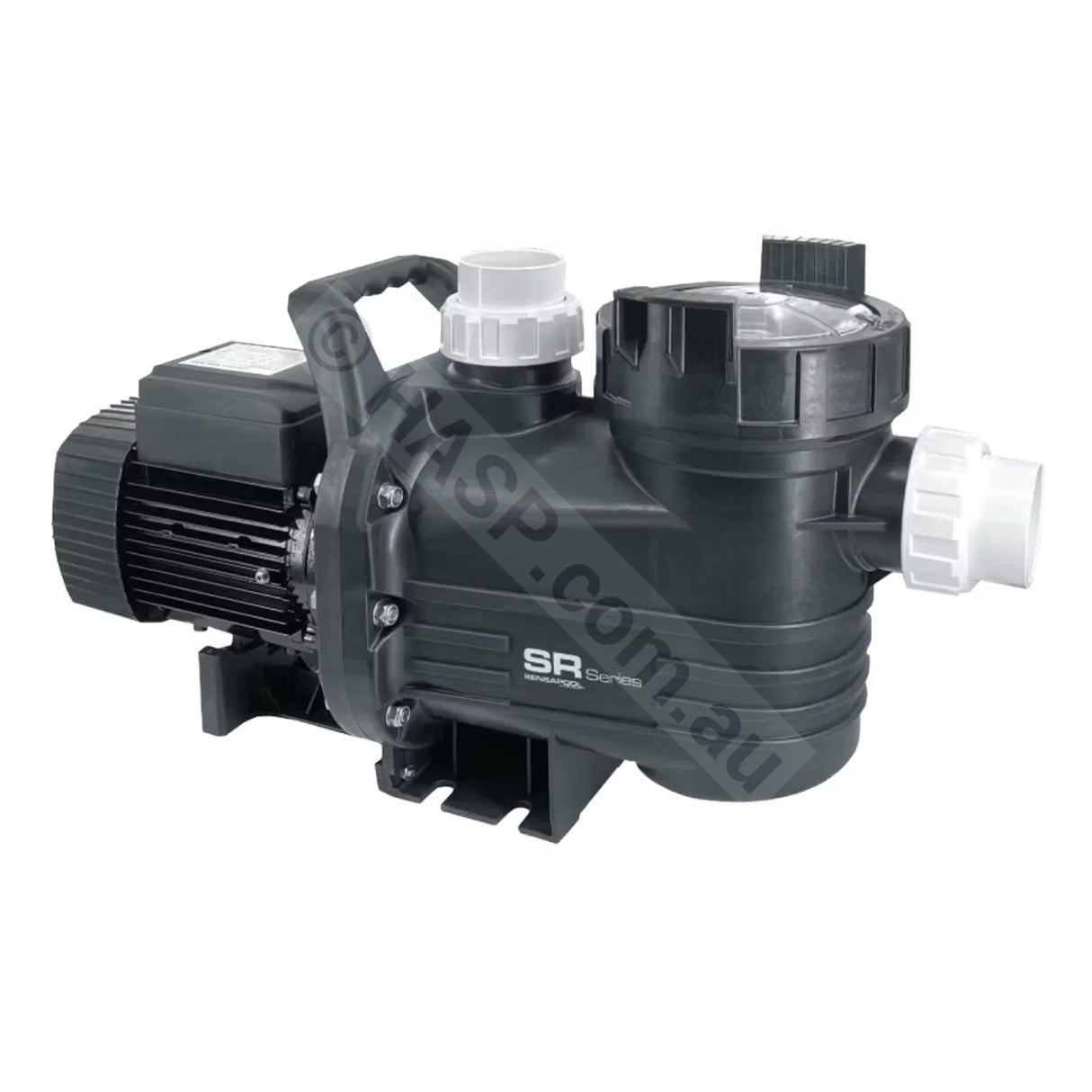

Sensapool SR230 1.0hp Pump – Retrofit for Astralpool E230
The Sensapool SR230 1.0hp – Astralpool E230 Retrofit pump is supplied by Spa-Craft, the largest spa parts distributor in the Southern Hemisphere. It is specifically engineered as a replacement for the Astralpool E230 pool pump.
This new Sensapool Astralpool retrofit series pump is designed to line up with the existing Astralpool E230 pipework in most installations, so in many cases you can swap the old E230 out and fit the SR230 without cutting or re-running plumbing*.
*Important Note: In some cases barrel unions may need to be cut and replaced due to variances of older Hurlcon & Astralpool pumps changing threads slightly.
Sensapool SR230 / Astralpool E230 Retrofit Brochure & User Guide (PDF)
Sensapool comes from Spa-Craft - Australia & Southern Hemisphere's largest spa parts distributor and owner of the famous and proven Edgetec bath pump brand. You can be assured they know what they're doing.
Direct Astralpool E230 replacement
- Purpose built as a retrofit for Astralpool E230 pumps
- Hydraulic performance matched at approximately 230 L/min at 8 m head
- Helps restore correct flow and filtration where an Astralpool E230 has failed
Built for durability and quiet performance
- 316 stainless steel shaft for excellent corrosion resistance in harsh pool environments
- High performance motor for strong, efficient circulation with low noise
- Reliable design suitable for most inground and above ground pools
Easy installation and plumbing compatibility
- Direct plumbing retrofit for Astralpool E230 in most setups
- Supplied with 40 mm and 50 mm barrel unions to suit common pipe sizes
- Ideal for replacing a failing or noisy Astralpool E230 with minimal installation time
Warranty
3 year parts
1 year mechanical seal
1 year onsite labour
*Refer to manufacturer’s terms and conditions.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
