Gas Spa Heater Control Module - Smart Energy Hybrid System
Gas Spa Heater Control Module - Smart Energy Hybrid System is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

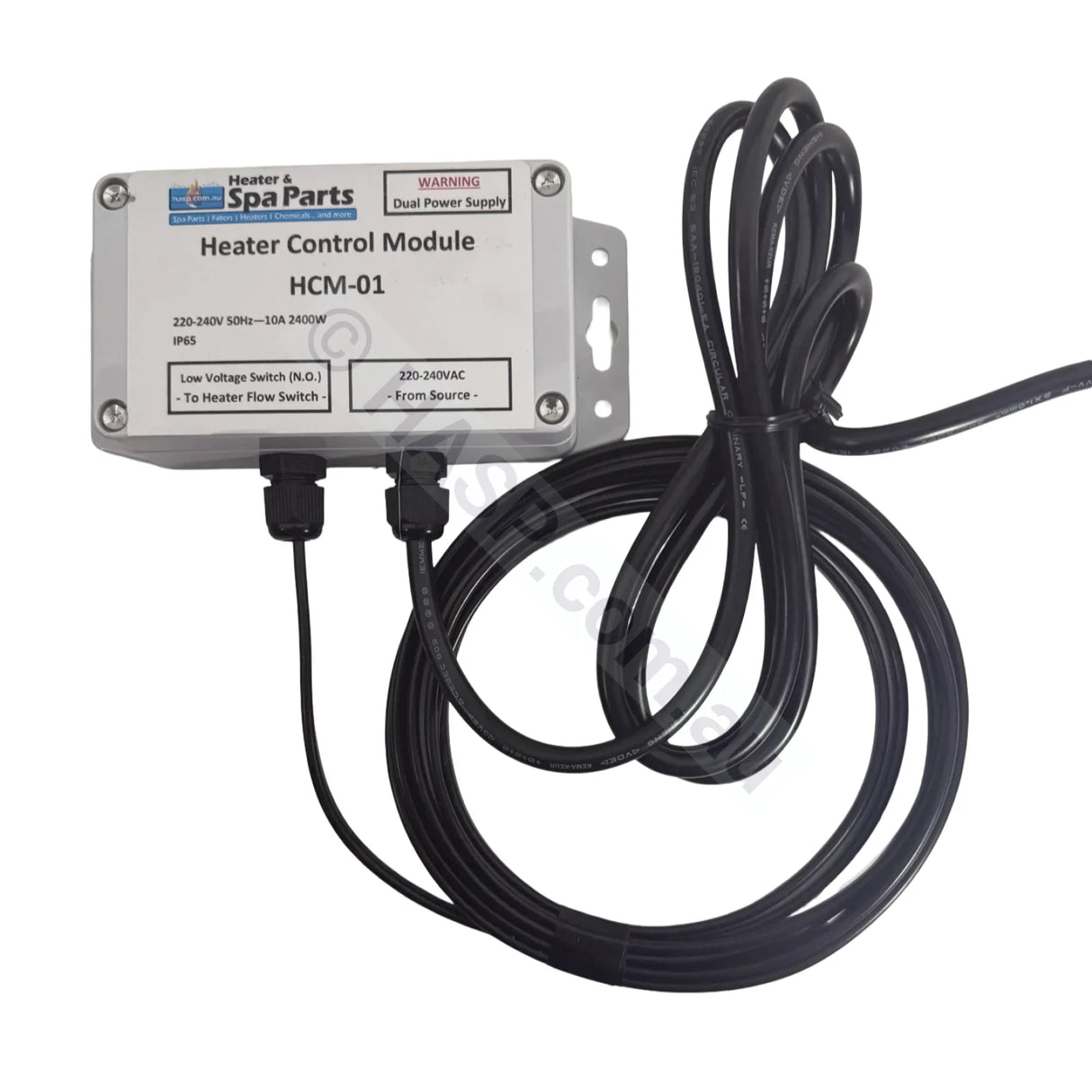

Universal Pool & Spa Heater Control Module. Allows almost any Gas Heater (Astralpool, Raypak, Hurlcon, Zodiac, Pentair, etc) or Heat Pump (EvoHeat, Raypak) to be used with almost any Spa Control System (Balboa, Gecko, AeWare, SpaNET, SpaQuip, Davey) .
Allows Existing Spa Touchpad to Control Gas Heater or Heat Pump.
External heat source integration module for portable spas. This converts almost any electric heater spa or pool controller to allow use of a gas heater or heat pump, and still be controlled by your existing spa's touchpad.
Also known as a "Hybrid Heating Module" and is similar (but better) to the system that Signature, Spa Industries, Just Spas, Designer Spas, Leisurite, etc use.
Suits almost ALL brands/models of spa control systems from Gecko, Balboa, Davey Spa-quip, Hydroquip, etc.

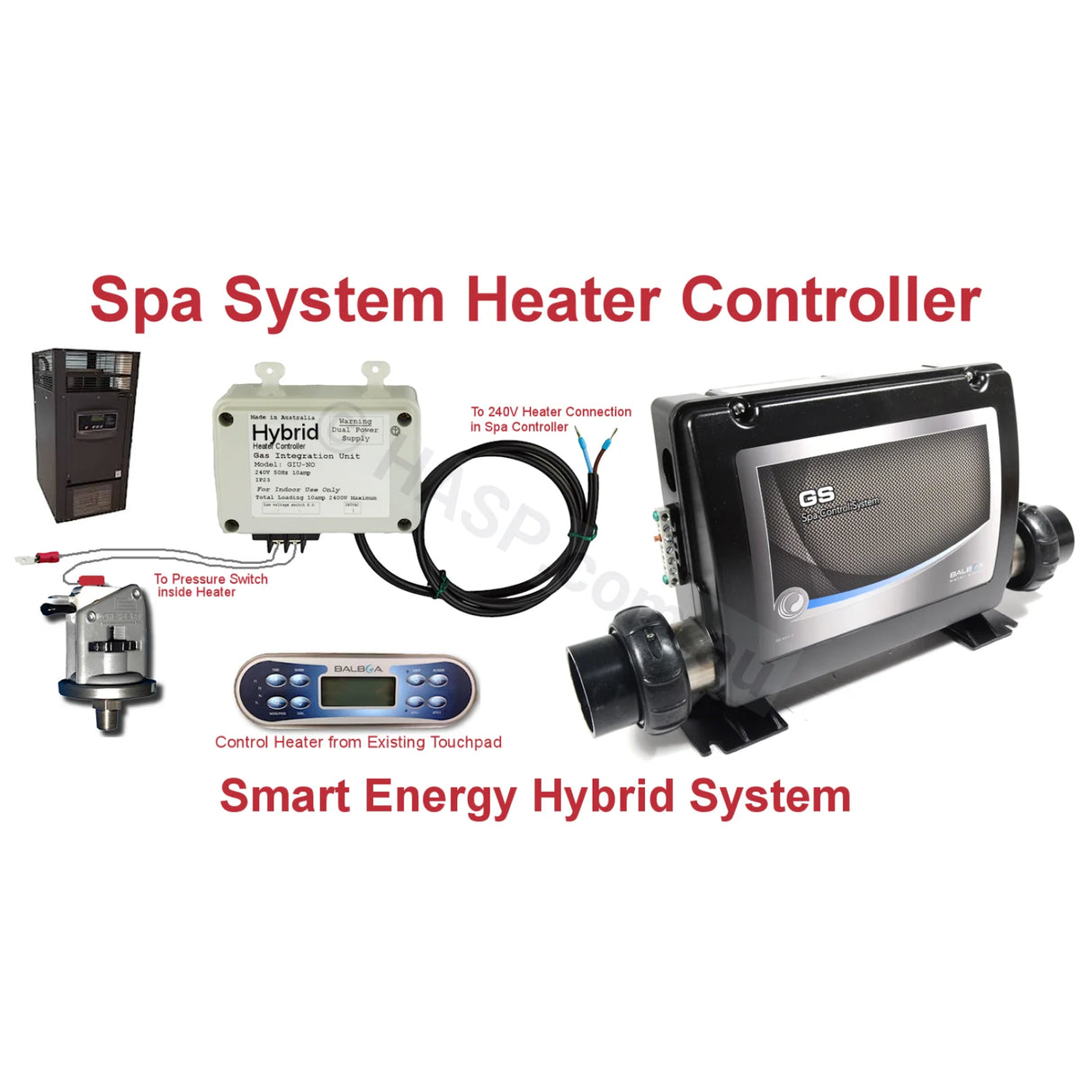

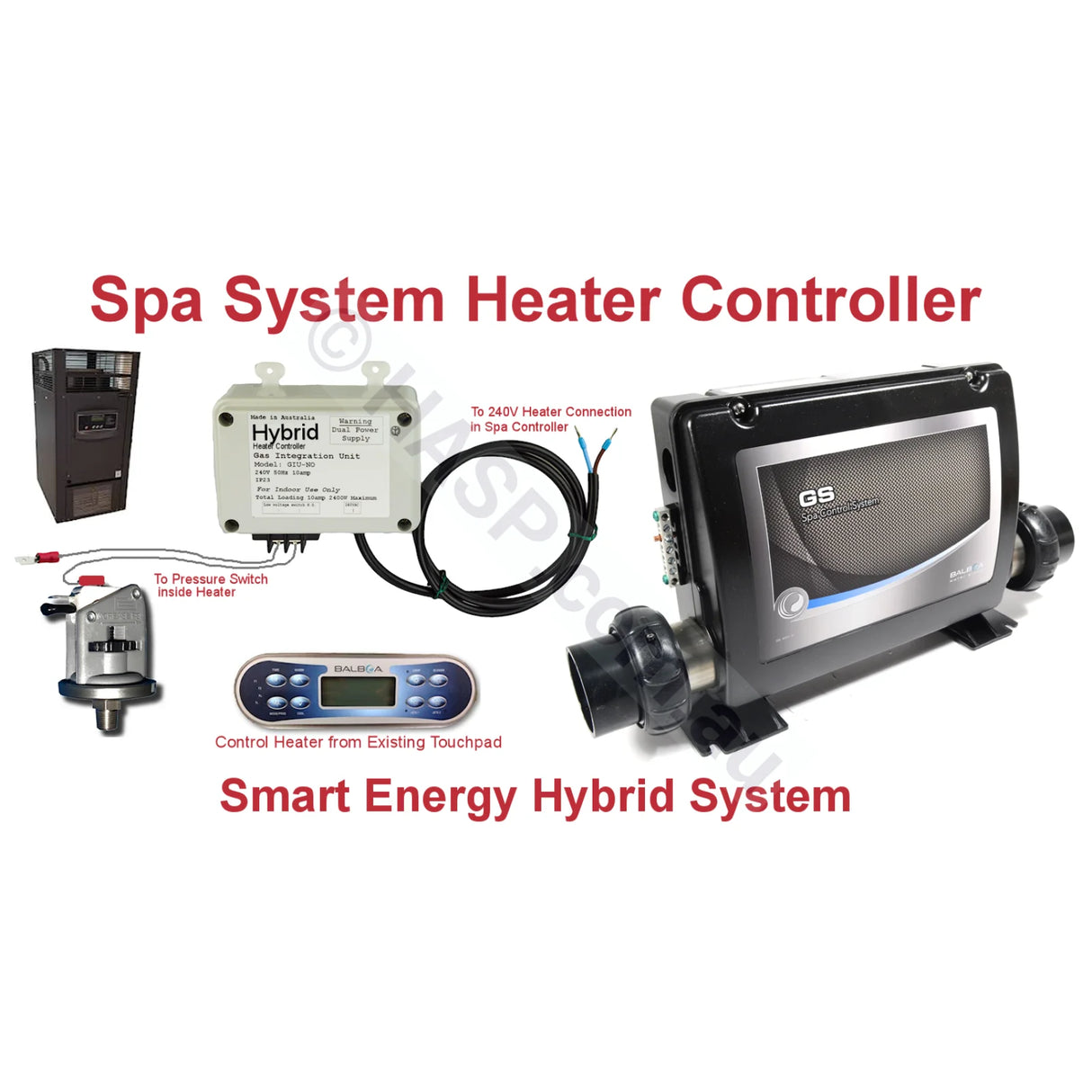

Connects to the Pool/Spa Controller 240V heater output & then to the external heat source control circuit.
When the spa control system calls for heat, the circulation pump is activated & power is applied to the integration module, which in turn completes the extra low-voltage control circuit in the external heat source.
Basic Installation (for most heaters): Must be installed by a qualified person.
- Disconnect electric heater element from Spa Control System internally.
- Connect main 240V cable from Hybrid module (Black Cable) to PCB heater connection within existing spa control system.
- Connect Figure-8 or other appropriate twin cable wire to spring connections on Hybrid module, and run to the heater (polarity not relevant).
- Depending on heater, the most common method is to fit one 6.3mm Male spade on one figure-8 wire, and one Female 6.3mm Female spade connector on the other figure-8 wire
- In heater, disconnect one plug off of the pressure switch/flow switch, and plug Female spade connector to the pressure switch, while connecting the male terminal from the Hybrid module wire to the wire that was previously connected to the pressure switch.
- Set Heater to Max (40°C) and to "On" and ensure everything is connected properly
- Now control temperature from existing spa touchpad.
Notes:
- Some controllers like the AeWare systems may need a small 'dummy load' connected to the 240V electric heater line, such as a transformer, etc.
- Some systems may have somewhat different requirements.
- When purchasing, contact us with your make & model of existing control system, and make & model of heater you need connected.
- Hybrid Module must be mounted appropriately.
- Warranty: 1-Year
Specifications:
- Spa Controller heater output connection: 240V
- Heat source control circuit connection 5-24v AC/DC, up to 10A (2400W)
- Connection requirement in the external heat source varies between type, make and model. Heater temperature setting must be set to maximum temperature so that it will function correctly.
Contents:

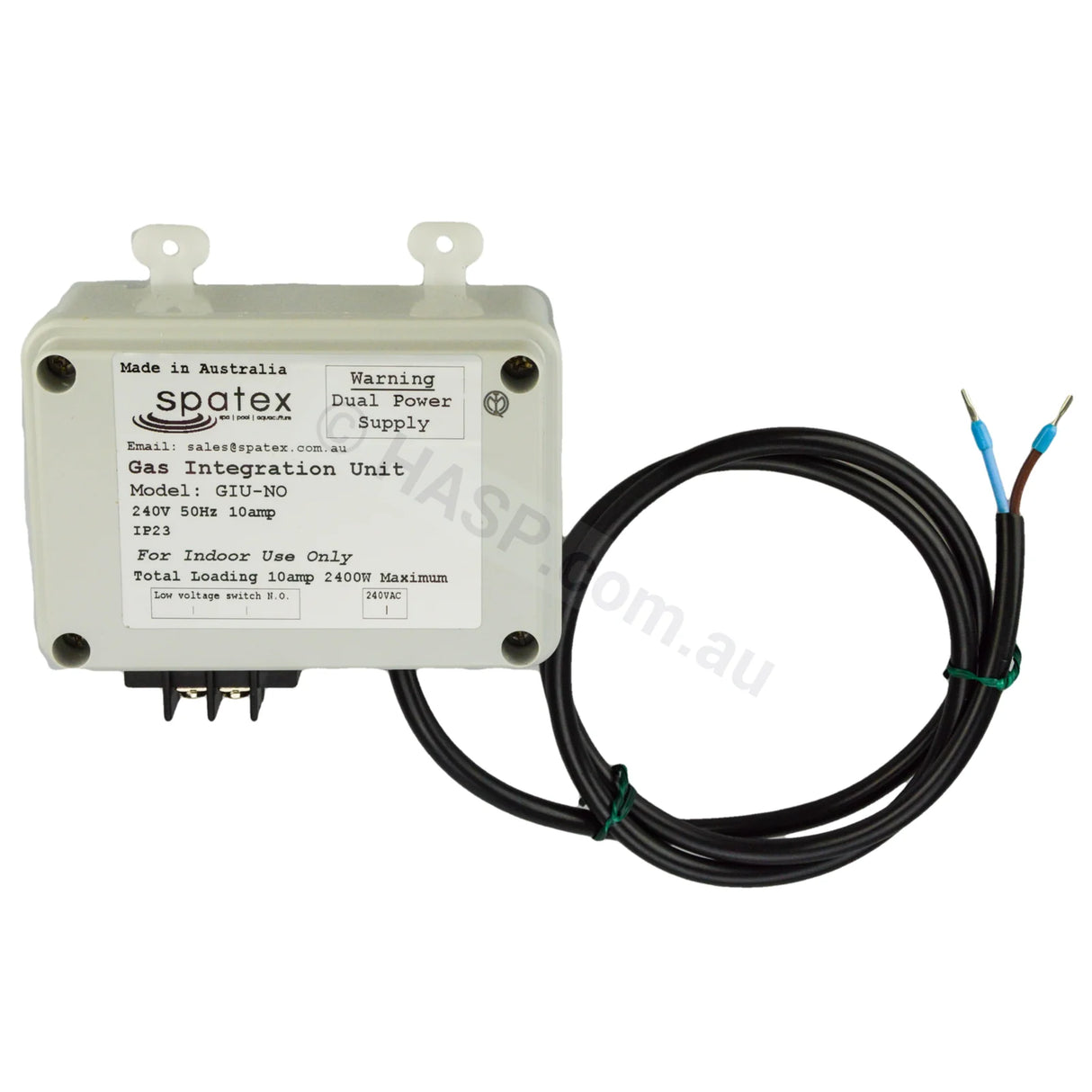

- Hybrid Heater Integration Module w/ 240V Cable ~1m
For Connect 10 version, go here.
Image as indication only.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
