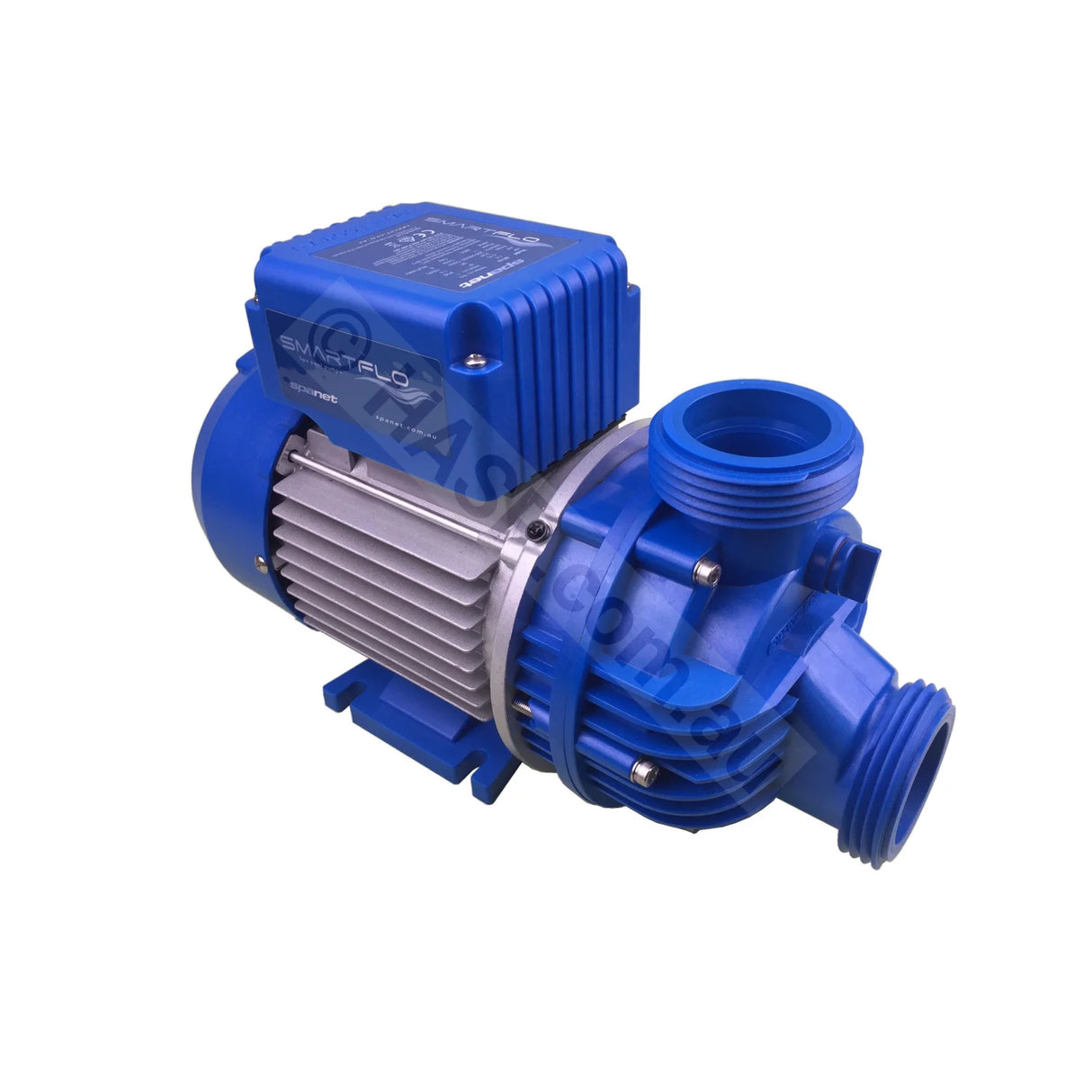

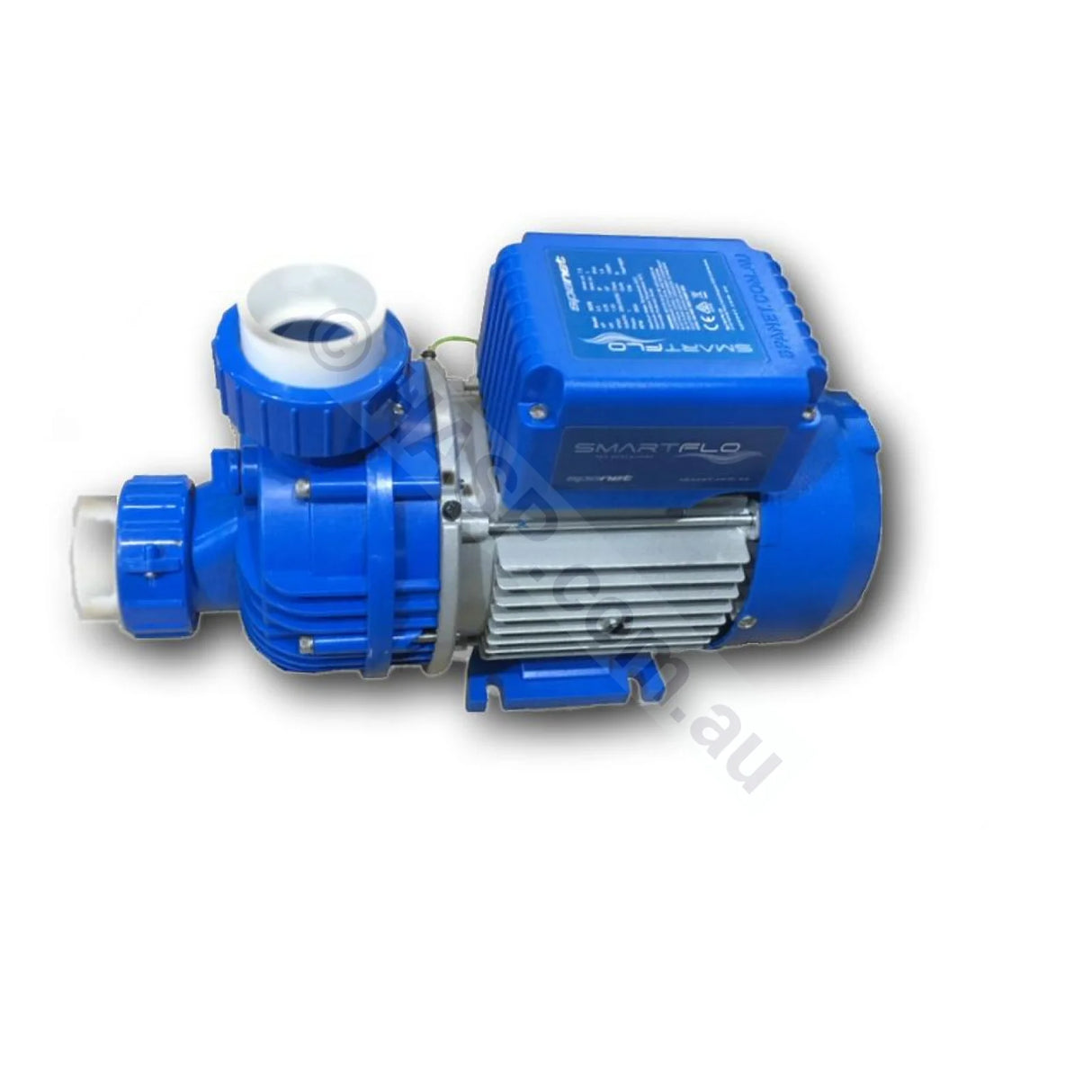

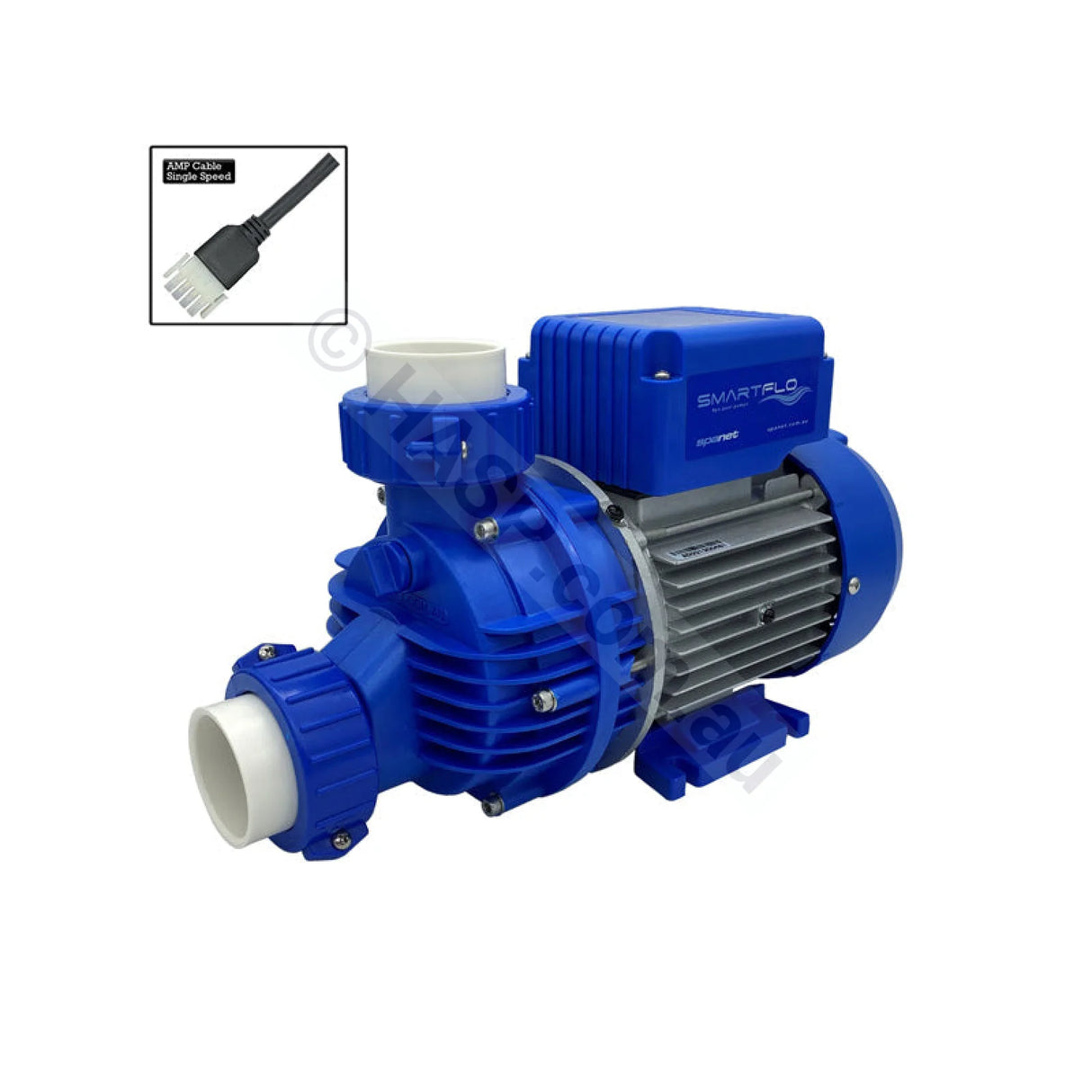

SpaNET SmartFlo SC05 Spa Circulation Pump
Spa Pool Circulation Pump used on Vortex spas after 2018
- Comes with the SpaNet over-moulded AMP plug.
- Suits Vortex Spas manufactured from October 2018 <-- Make sure it's this pump.
- May also suit some Banff, LifeStyle and Arcadia Spas manufactured from October 2018 <-- Make sure it's this pump.
- Do not confuse with the previous SpaNet Spa pump model XS-3C.
SmartFlo Plumbing Notes: The thread on a SmartFlo pump is easy to tighten by hand due to the split lock nut design.
To replace an XS series SpaNet pump with a SmartFlo pump you simply slide the old coupling lock ring up out of the way, or remove it entirely, and then use the SmartFlo split lock nut instead.
The SmartFlo pump will work with any coupling tailpiece (LX, Aqua-flo, Waterway, Davey). Simply use the SmartFlo lock ring with the existing tailpiece. This avoids any need to modify the plumbing.
All SmartFlo pumps are provided with couplings (2 x split lock rings and 2 x tailpieces with o-rings) so if you to replumb, due to the old pump having different discharge locations, the fittings are already in the pump box. However, due to the split lock nut design re-plumbing will be minimal.
- KW: 0.35kw
- HP: 0.5
- Amps: 1.5
- Volts: 220-240
- Hertz: 50
- RPM: 2850
Our Review of the new SpaNET SmartFlo SC05 Circulation Pump:
We're not really big fans of these pumps. With it's own style of thread, you are limited in replacing with other brand pumps in the future. Any other brand will need complete replumbing.
