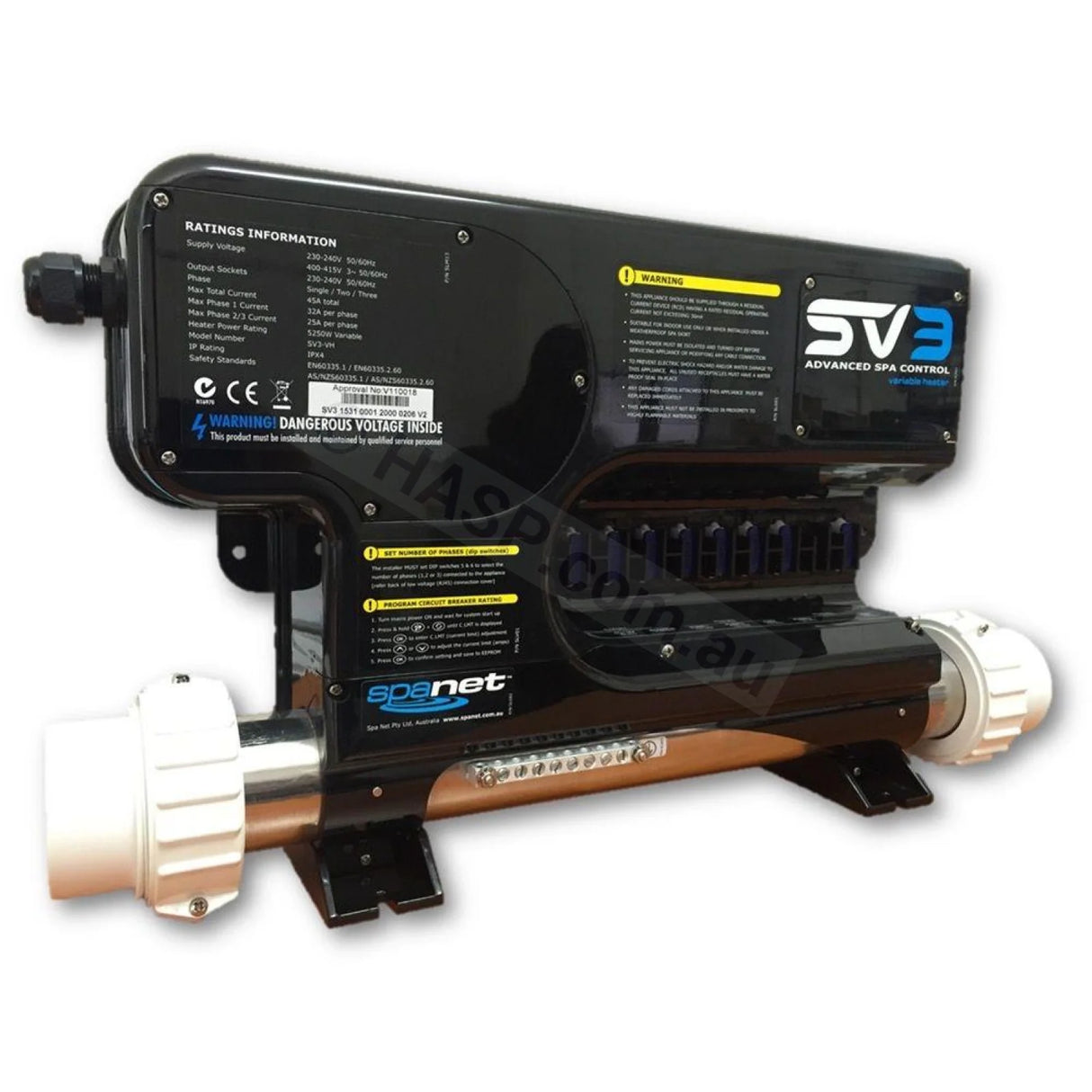

Spanet SV3 Control Box w/ Heater - also VSX3

Spanet SV3 Control Box w/ Heater - no Touchpad. For replacing faulty SV3 & VSX3 control systems.

he new SV3-VH spa control featuring a 6kW Smart Variable Heater. Make optimum use of lower current power supplies. All SV Series controllers come with the following featurers: Multi Phase Capable, Heat Pump interface, Power Save Technology.

SPECIFICATIONS

Power:

• 1 phase 230-240v AC
• 3 phase 400-415v AC

• 50/60Hz

• MAX total current 45amp or 25amp per phase


Controller:

• 544x309x90mm 5kg

Outputs:

• Heater: 6kw Variable
• Light x 2 (needs to be a Spanet LED light)

• Touch Pad socket: x2

• Circulation Pump: x1 (Adj 1-24 hour)

• Ozone : x 1

• Air Blower: x1 (Vari Spd)

• Pump: 1 x 1 or 2speed pump

• Pump 2: 1 x 1spd (If outlet Pump 1 has a 2speed pump fitted Pump 2 outlet can not be used)
• Pump 3: 1 x 1spd pump
