Spatex Commercial Side Channel Air Blower 1.3kW Kit - 1300W Brushless

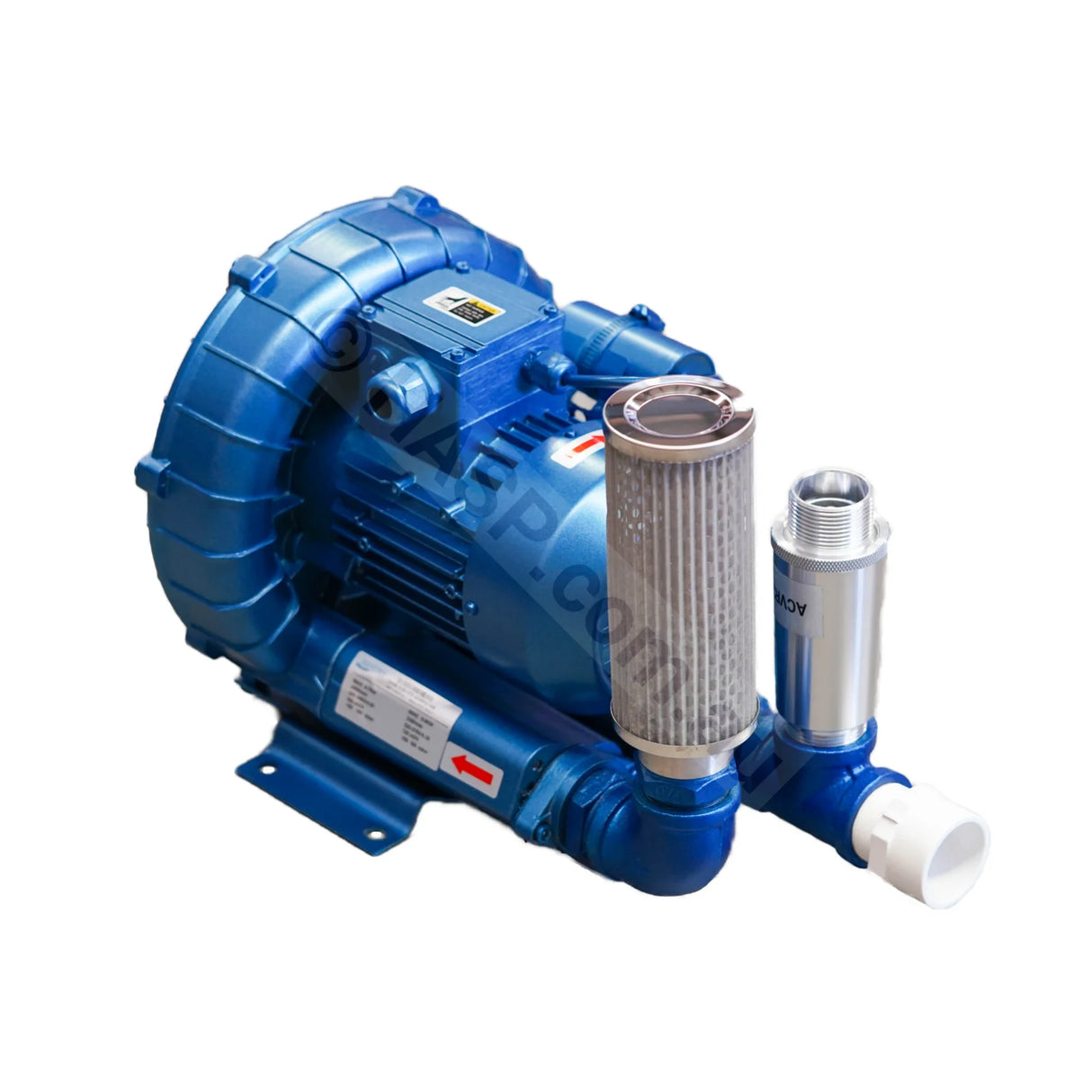

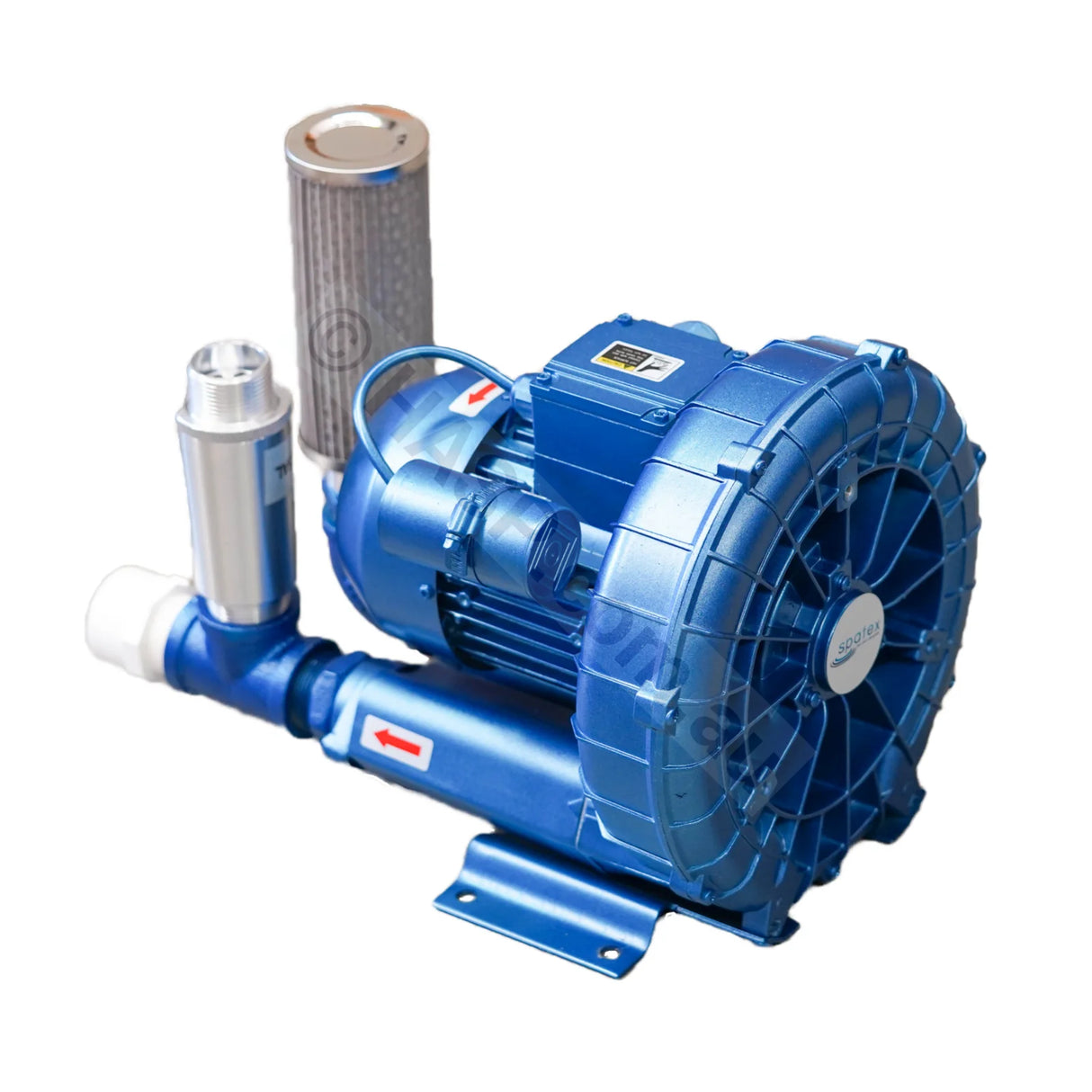

Spatex Commercial / Industrial Brushless Single-Stage Side Channel Air Blower 1.3kW Kit - SXHB-410A-1D1 - Single Phase.
Industrial-grade replacement blower engineered for demanding pool, spa, aquatics, and commercial air applications.
Designed to replace blowers from Onga, Davey (5604, 5605, 5606, 5607), Dega, Astralpool, Pentair, Waterco, Spa-King and other 1100–1400W units — with significantly higher reliability and performance.
Unlike typical domestic blowers that use vacuum-cleaner-style brush motors, this unit features commercial side channel (regenerative) technology, delivering continuous-duty operation, quieter performance, and extended service life.
If you need a serious long-term replacement — not another short-life domestic blower — this is it.
Also known as a:
- Side Channel Blower
- Ring Blower
- Regenerative Blower
The key difference: Australian electrical approvals
Commercial-grade performance with verified Australian compliance.
This is the only commercial-grade single-phase ring blower we’re aware of with Australian Electrical Approvals for its intended use. Most other “commercial” blowers sold online do not meet these requirements.
- Australian electrical test report for commercial & industrial applications
- Australian electrical certification for residential spa & swimming pool use
- Approved for private homes, apartments, hotels, gyms, and public spas/pools
Supplied as a complete kit (others don’t include this)
Supplied ready to install with:
- Pre-set pressure relief (bypass) valve (must not be adjusted)
- Inlet air filter
- Galvanised plumbing fittings
Note: Images of included components may show alternate blower models.
Specifications
- SXHB-410A-1D1-K - HB 410A
- 1.3kW, 220–240V, 50Hz, 7.3A, single phase
- Maximum air flow: 145 m³/hr
- 112 m³/hr at 0.6m head / 60mBar
- Max operating pressure: 190 mbar / 150 mbar vacuum

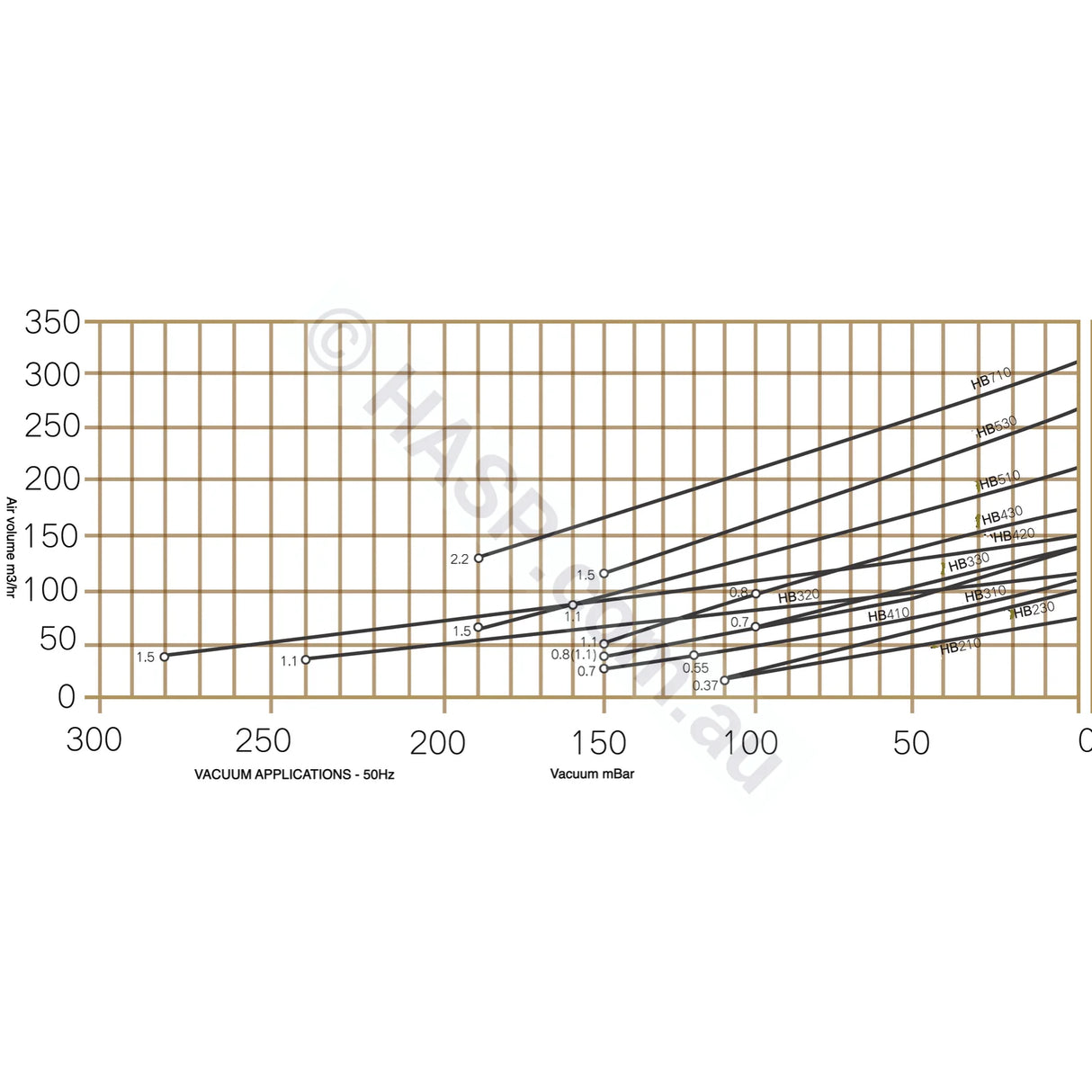

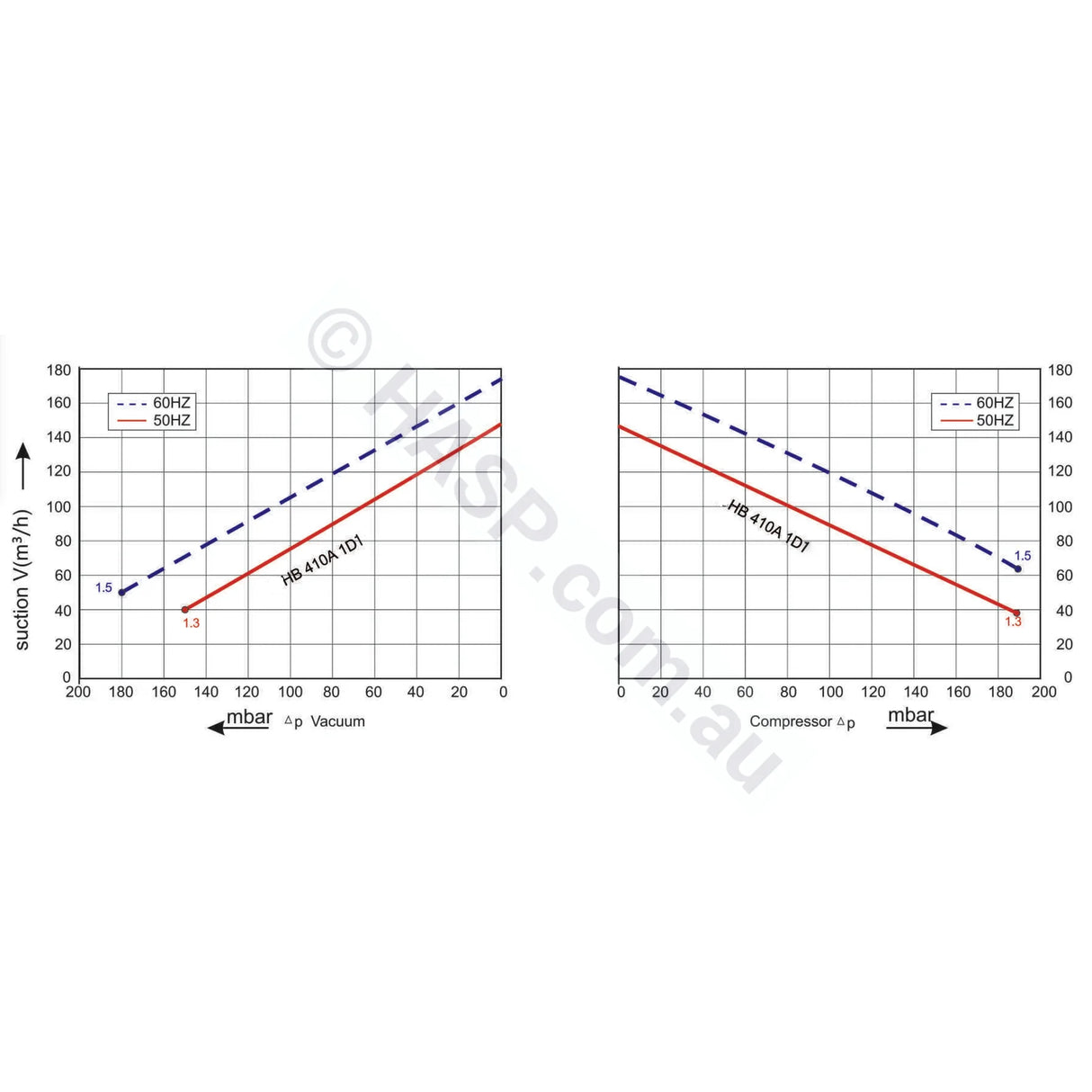

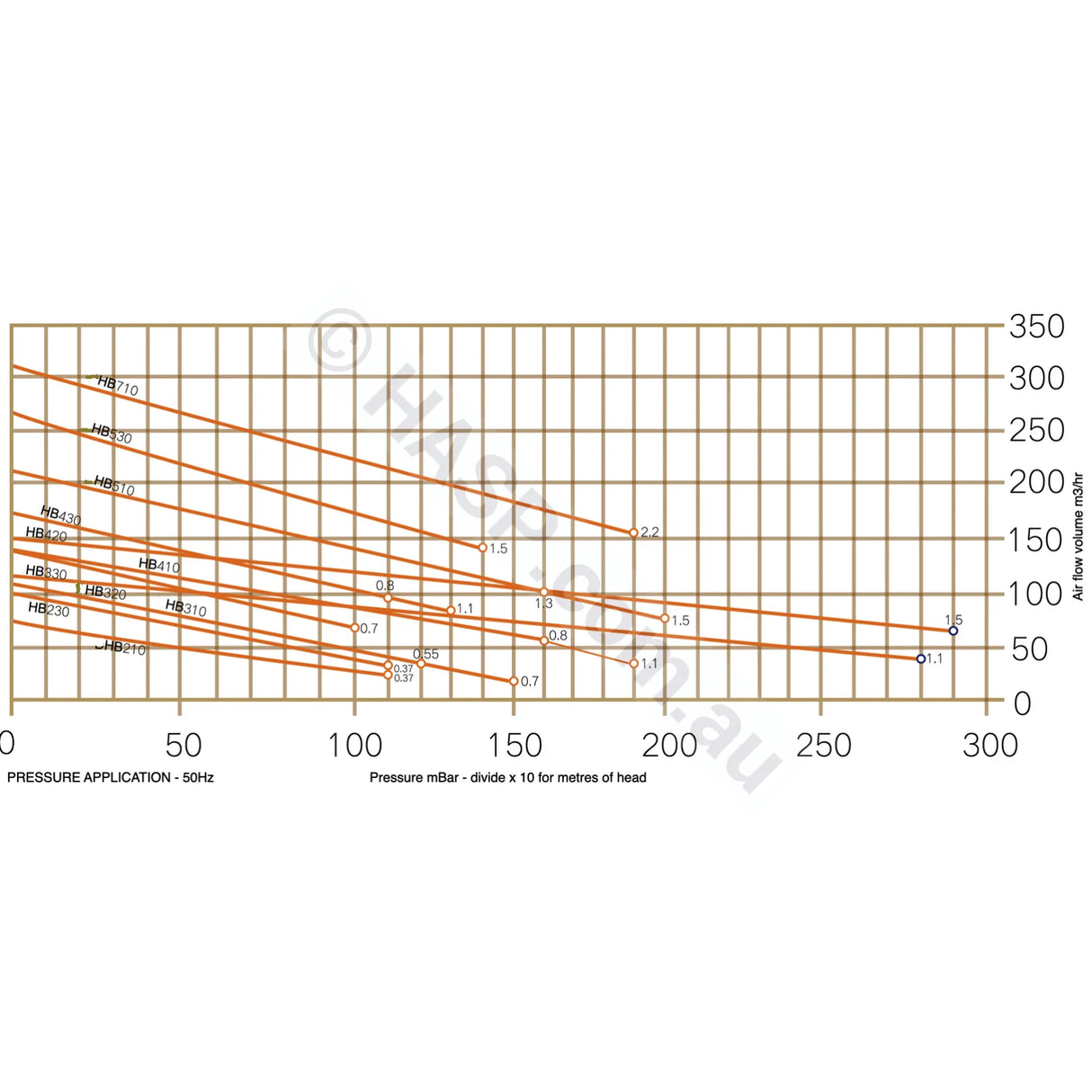

- See performance curves for detailed ratings
- Must be installed in a protected environment
Warranty
- 3 year residential warranty
- 2 year commercial warranty
Installation notes (important)
- Install in a ventilated, weather/splash/moisture-protected location
- Plumbing must prevent water/moisture ingress
- Pipework must allow drainage during operation
- Protect from weather and chemical vapours
Best-practice plumbing options:
- Preferred: Install a loop 700mm above water level within 1–2m of the spa/pool
-
Alternative: Install above water level with a spring-loaded 1/4 lb check valve
- Pipe must run level or uphill toward the blower
- Avoid dips or downhill runs (can cause water buildup and performance loss)
Pressure relief (bypass) valve notice
Factory pre-set for blower protection — must not be adjusted. Adjustment may cause failure and void warranty.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
