SpaTouch 2T SQ by Balboa - Colour Touchscreen Control Panel - 147mm x 107mm - Obsolete (No Longer Available)
SpaTouch 2T SQ by Balboa - Colour Touchscreen Control Panel - 147mm x 107mm - Obsolete (No Longer Available) is backordered and will ship as soon as it is back in stock.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
SpaTouch 2T SQ by Balboa - Colour Touchscreen Control Panel - 147mm x 107mm - Obsolete (No Longer Available) is backordered and will ship as soon as it is back in stock.
Limited to stock on hand. Once sold out, replaced with Spatouch 2 here.

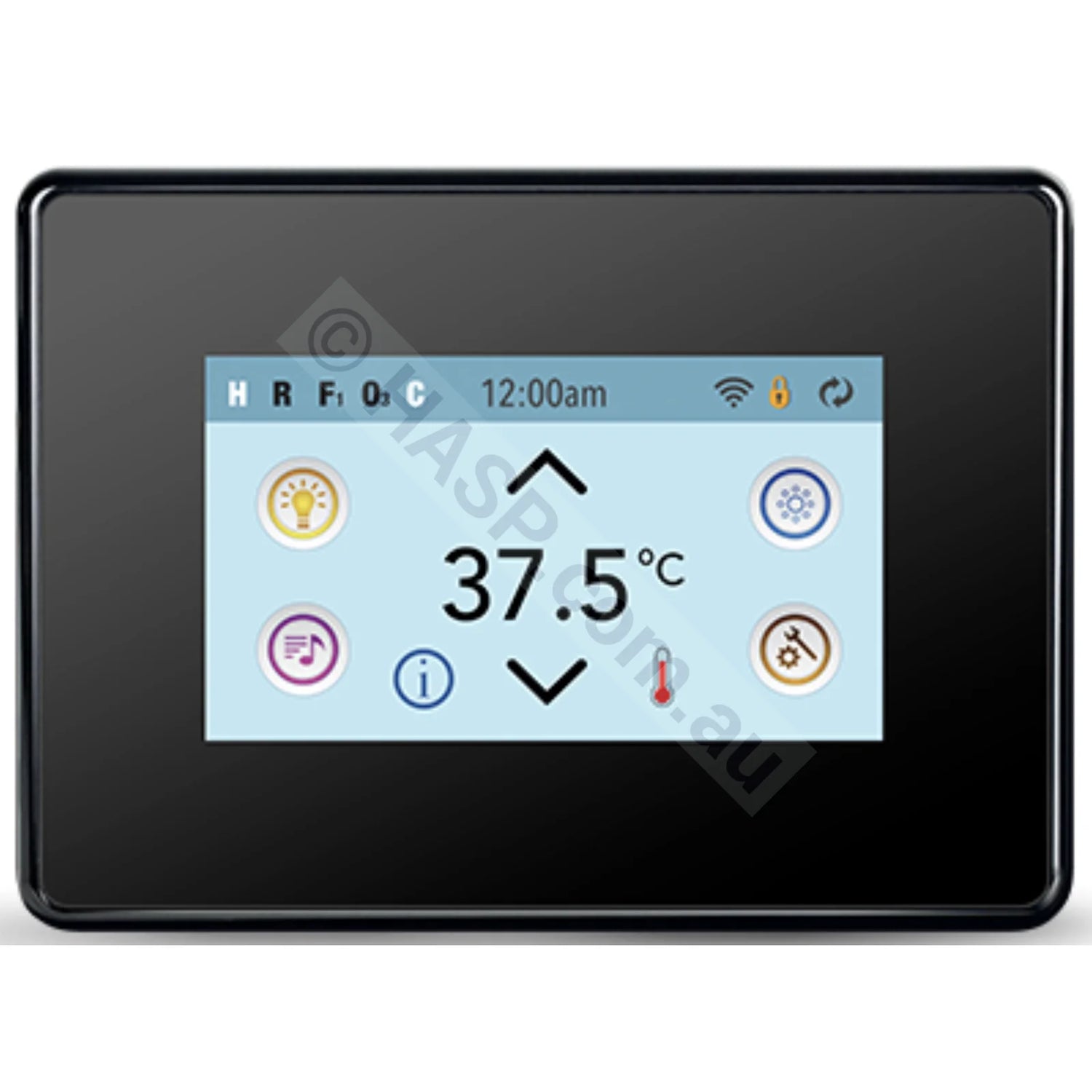

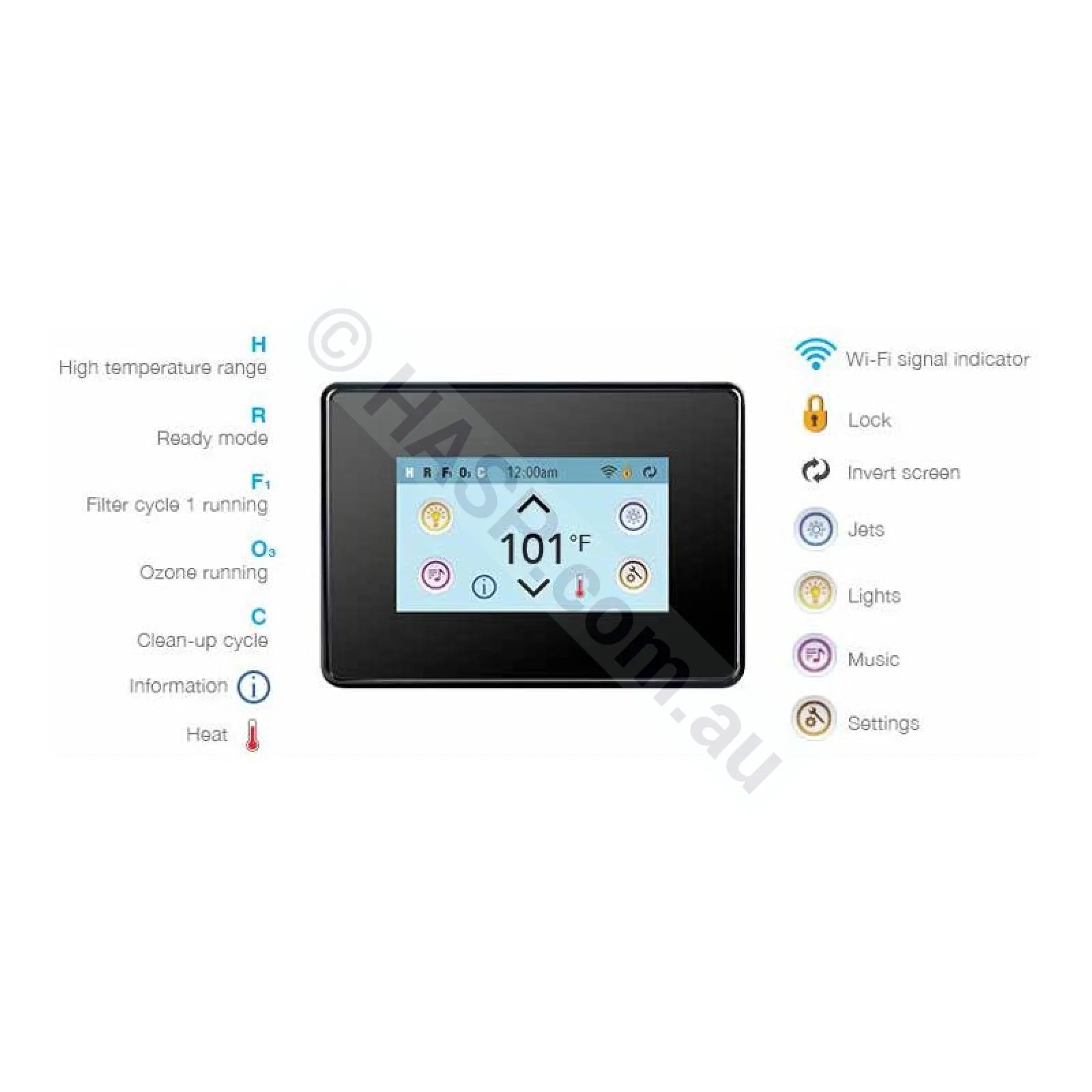

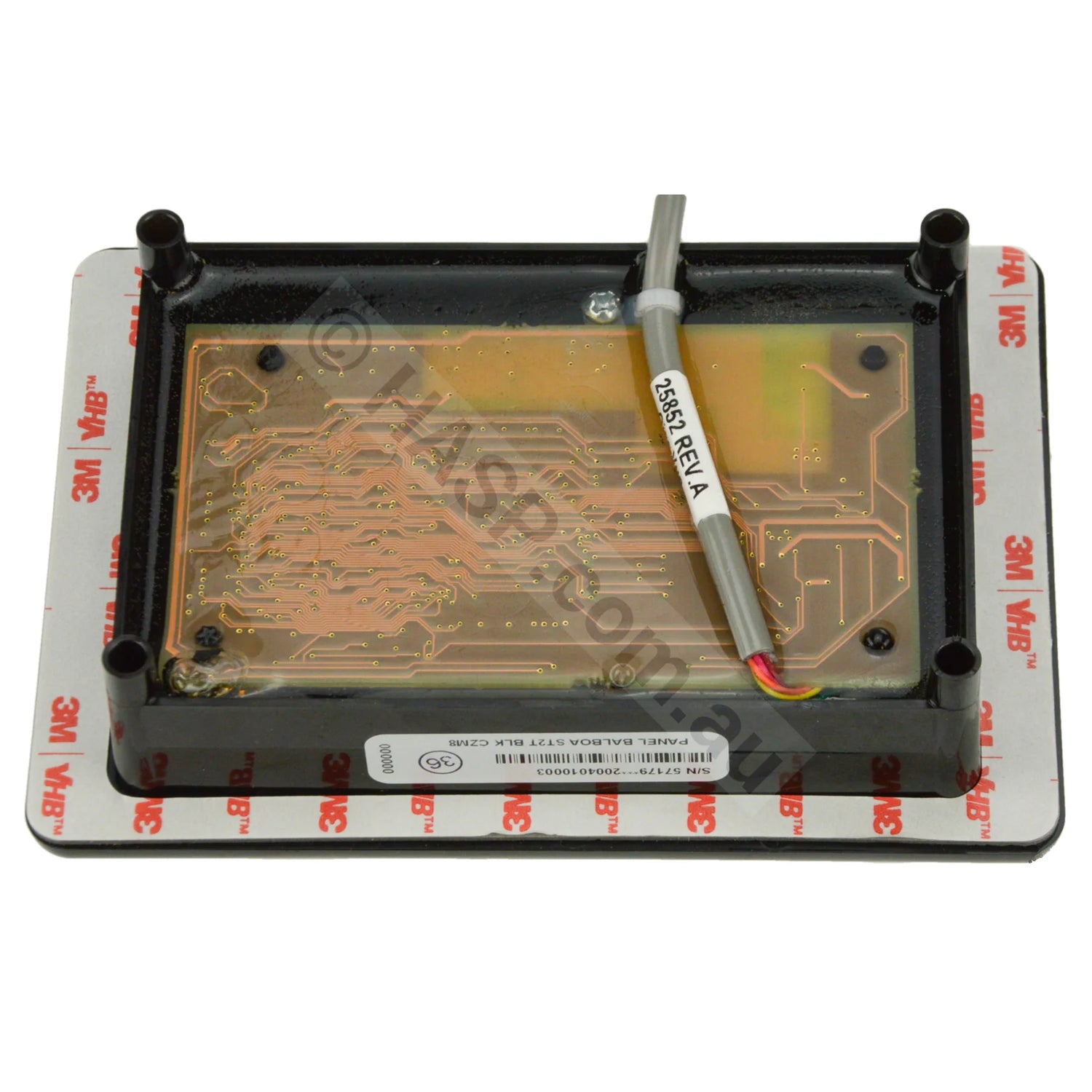

Balboa SpaTouch 2T SQ Black Touchscreen Touchpad. Used with Balboa BP series spa controllers. Comes with 4-pin adaptor. Old touchpads may be plugged into a 4-to-6 pin adaptor. Touchpad can be plugged directly into a 4-pin socket on PCB without the 6-pin adaptor found in some BP controllers.
Compatible with:
- BP200 G1, G2 and G3
- BP600
- BP601
- BP6013 G1, G2 and G3
- BP2100 G1, G2 and G3
- Note: Older Balboa BBA Audio systems are no longer compatible with new touchpads. As a result, you will lose audio functions with any new touchpad.
Dimensions:
- Touchpad : 146mm x 116mm
- Hole cutout: 123mm x 82mm
- Glass: 5mm
Important Information:
- Do not fit this touchpad where the spa cover can press on the touch screen.
- Do not leave touchpad exposed to sun for long periods.

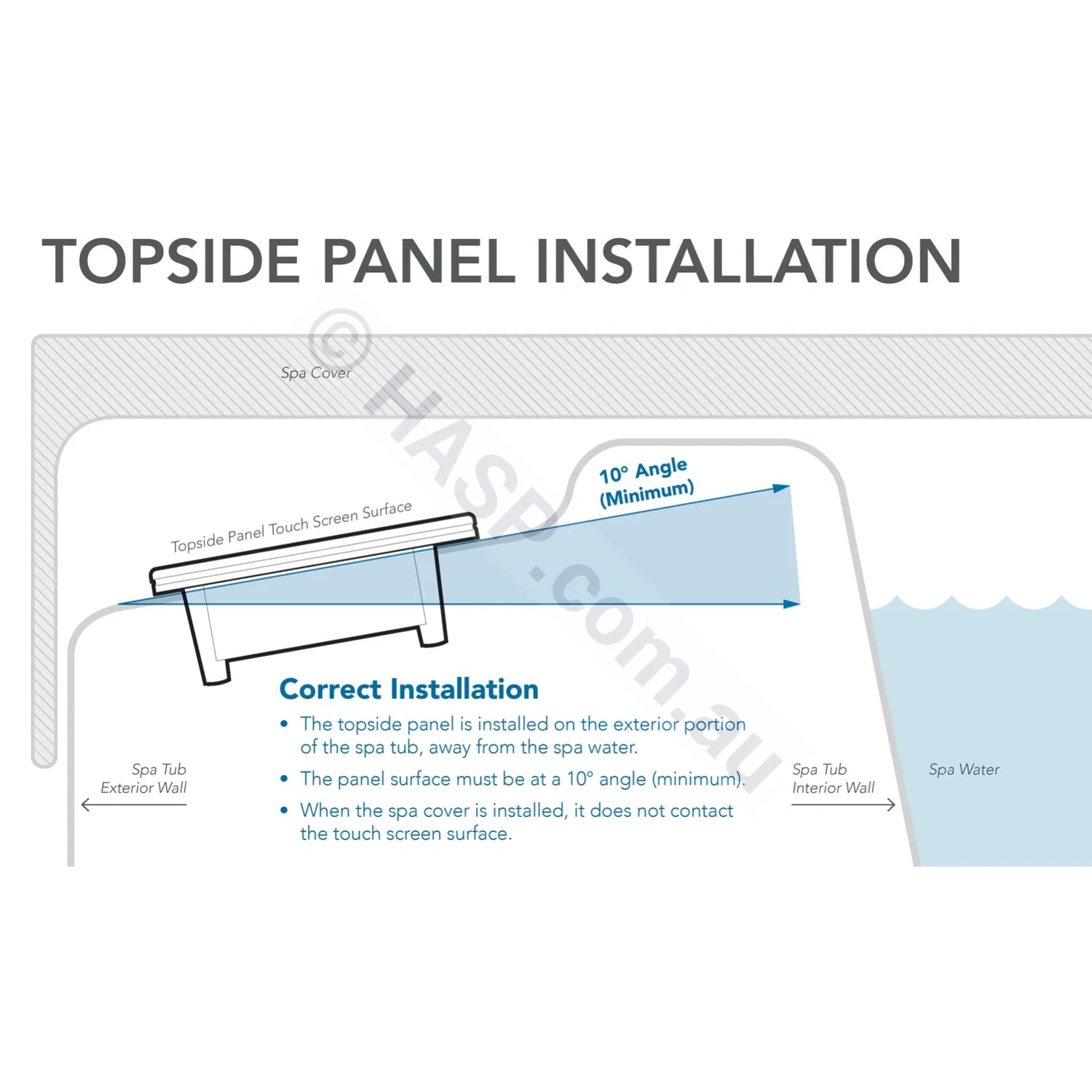

- Balboa recommends installation on the outside/exterior portion of the spa shell, angled away from the water.
- If fitted on the interior portion of the spa shell, the panel surface should be on an angle away from the spa water.

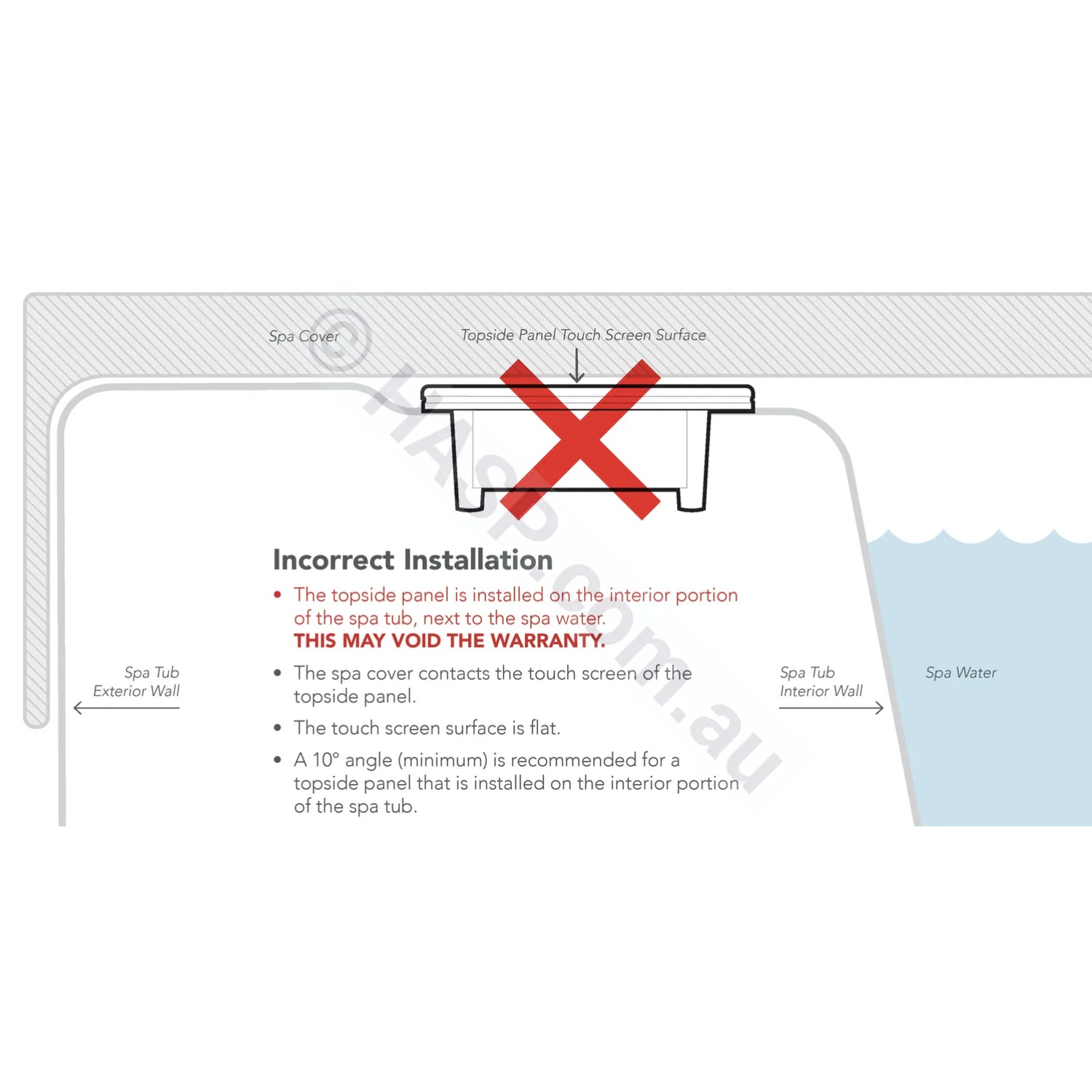

- Flat, or angled in the direction of the spa water, installation in this position is not to specification.
- Some Chinese spa manufacturers fitted these touchpads against Balboa’s guidelines. See listing images.
- Warranty may not apply where installed outside Balboa’s specifications.
- The spa cut-out hole may need modification when replacing older obsolete touchpads.
- User/Installation Manual
B-57179, B-57329 SpaTouch2 / SpaTouch 2 / Spa Touch 2 / Spa Touch 2T
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
Payment & Security
We accept: Visa, Mastercard, Amex, Apple Pay, Google Pay, ShopPay, Paypal, Zip, Afterpay
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
B-57329 replaces B-57179
