SX200 - 2HP - 1-Speed Jet Pump - Universal Spa Booster Pump - Spatex
SX200 - 2HP - 1-Speed Jet Pump - Universal Spa Booster Pump - Spatex - is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

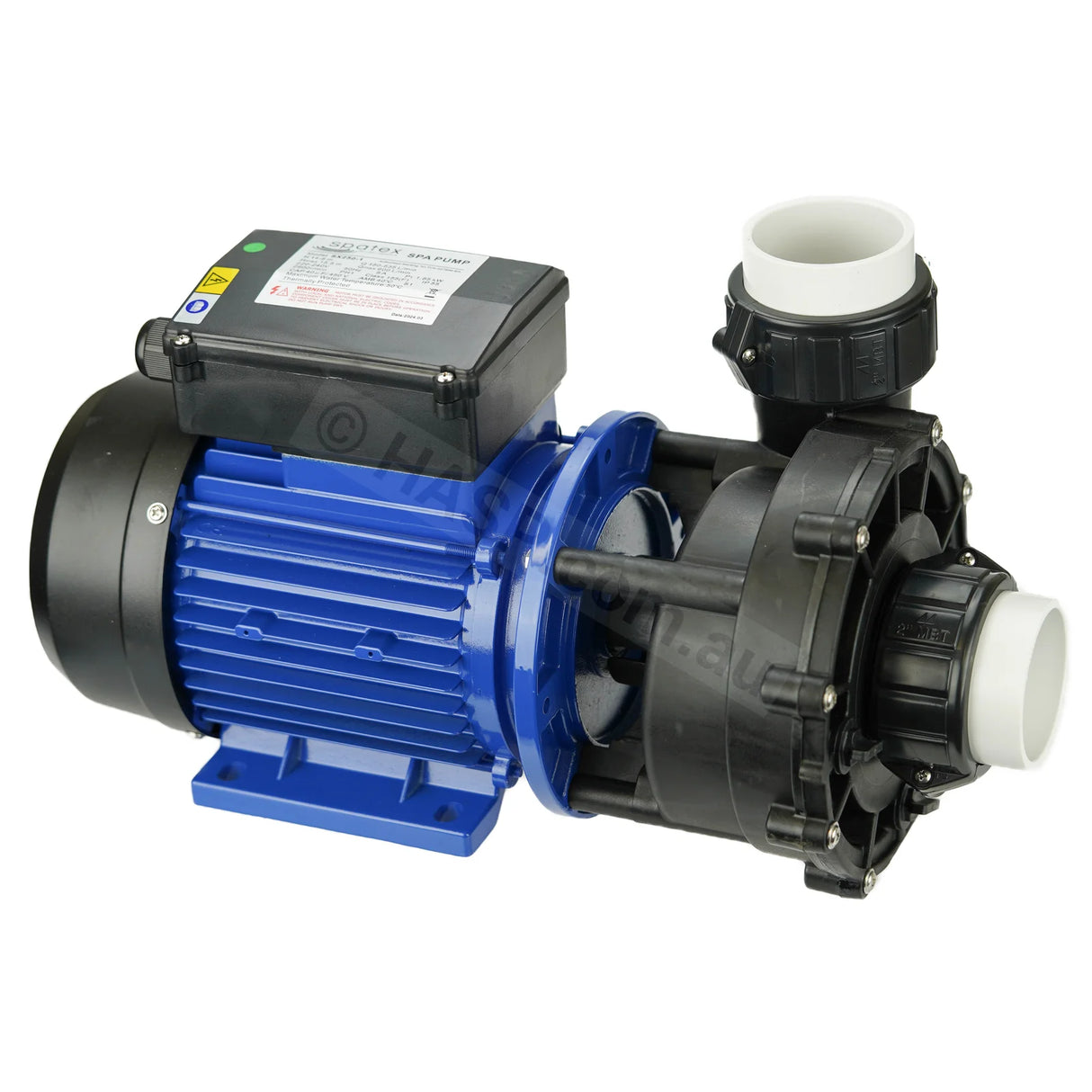

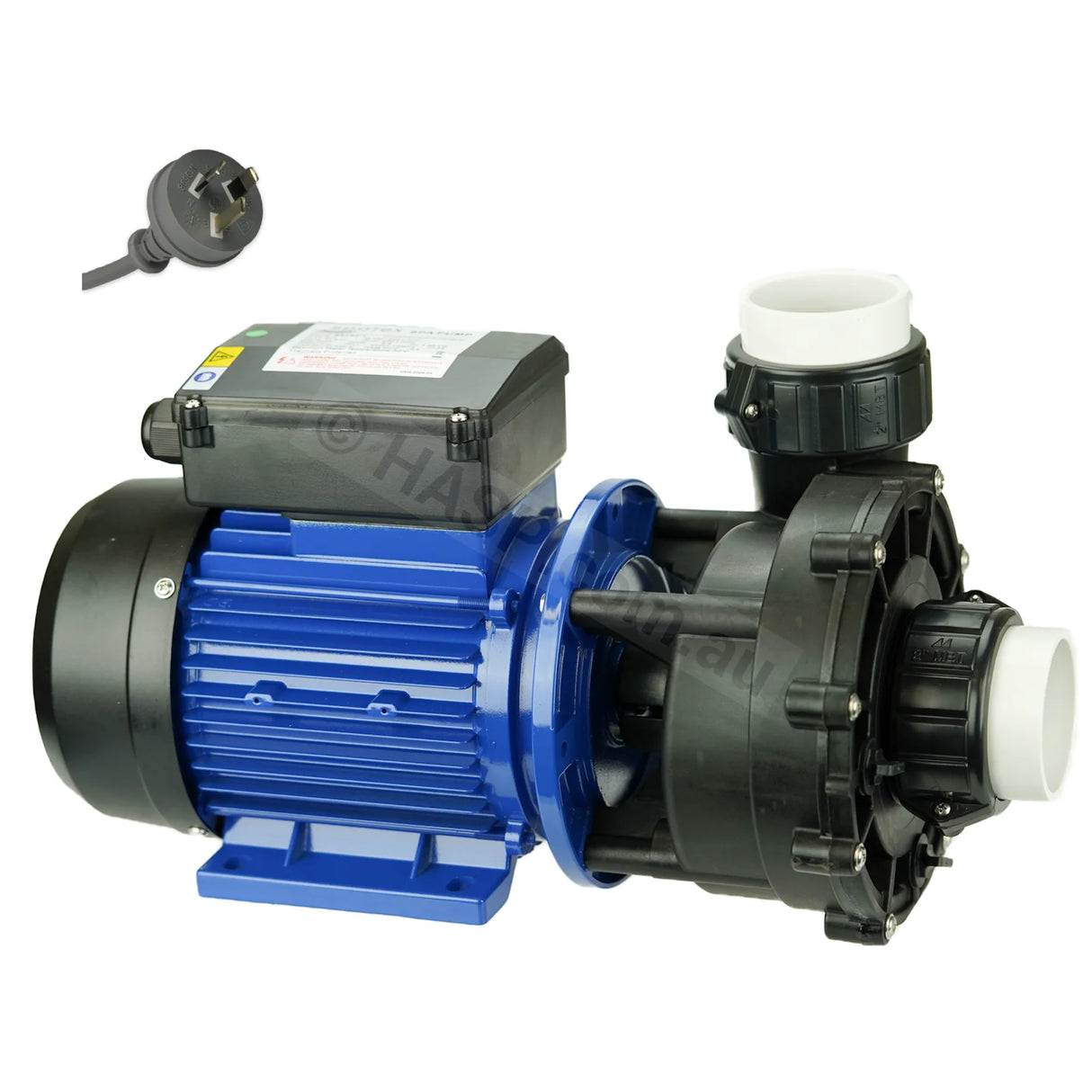

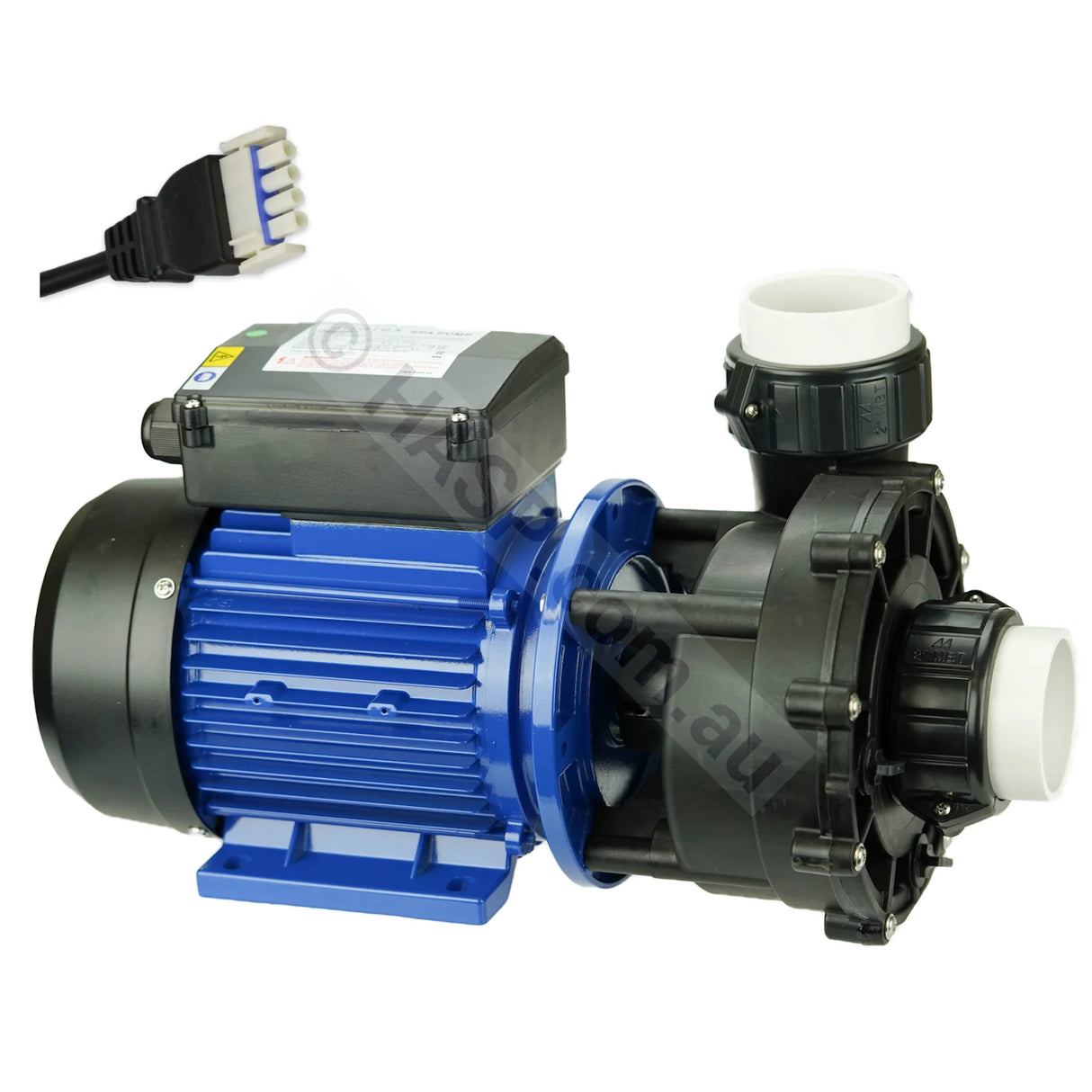

SX200 One-Speed 2.0HP Universal Spa Jet Booster Pump - Perfect for replacing the Aquaflo XP2 2.0/4.8BHP, Balboa, Davey QB2001, LX Whirlpool LP200, Waterway, and many other spa jet booster pumps.
- Perfect for replacing the Aquaflo XP2 2.0 & 4.8BHP 1-speed pumps - Uses exactly the same plumbing.
- Supplied with 50mm / 2" unions and included split nuts. Split nuts make retrofitting of other pump brands with different threads, such as SpaQuip Maxiflow, Spa Systems Piranha and others.
- Retrofits Aquaflo XP2, Davey QB, LX LP/WP Whirlpool, Waterway and many other pumps without the need to plumbing changes.
-
230v, 50Hz, 2.0hp, 1.5kw, 7A

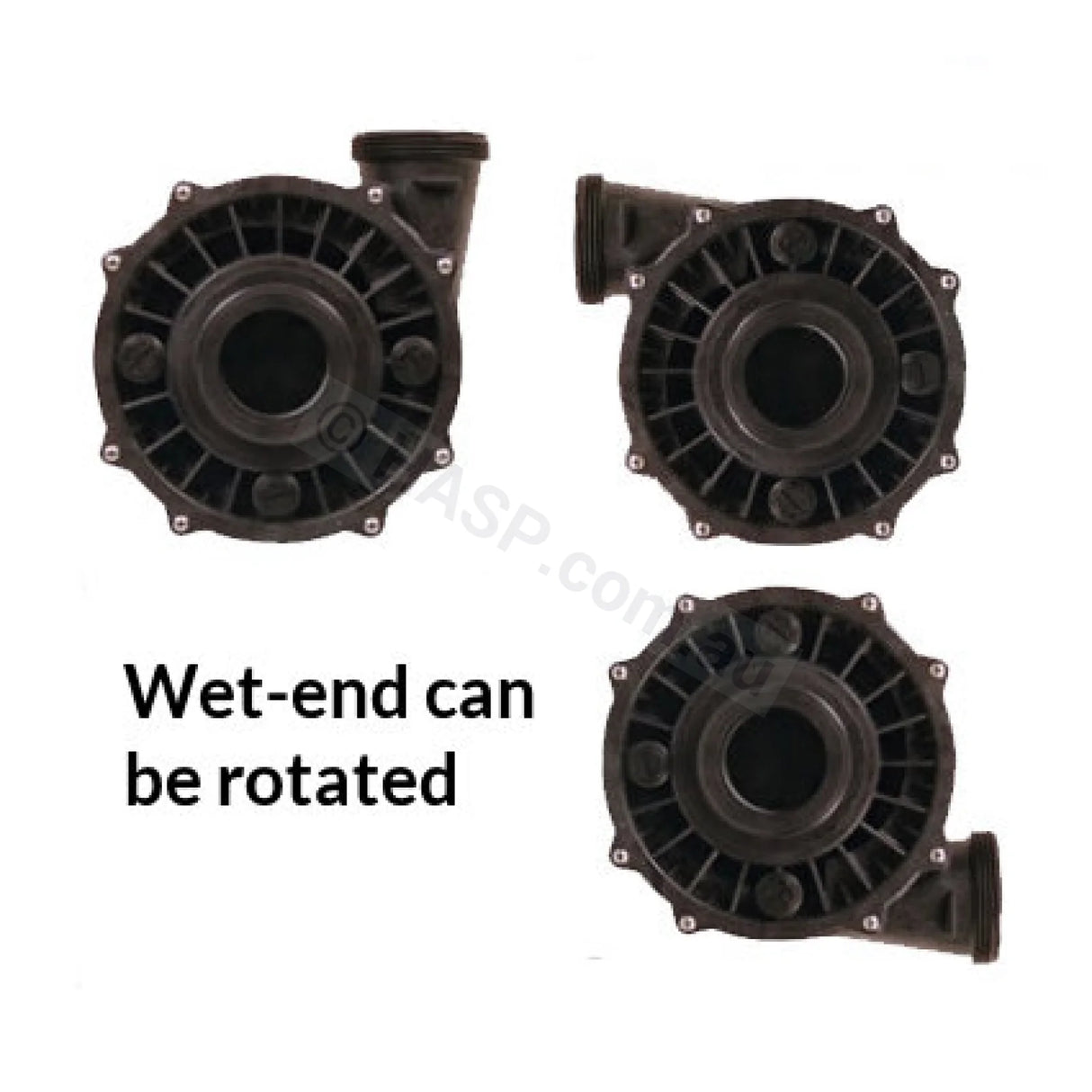

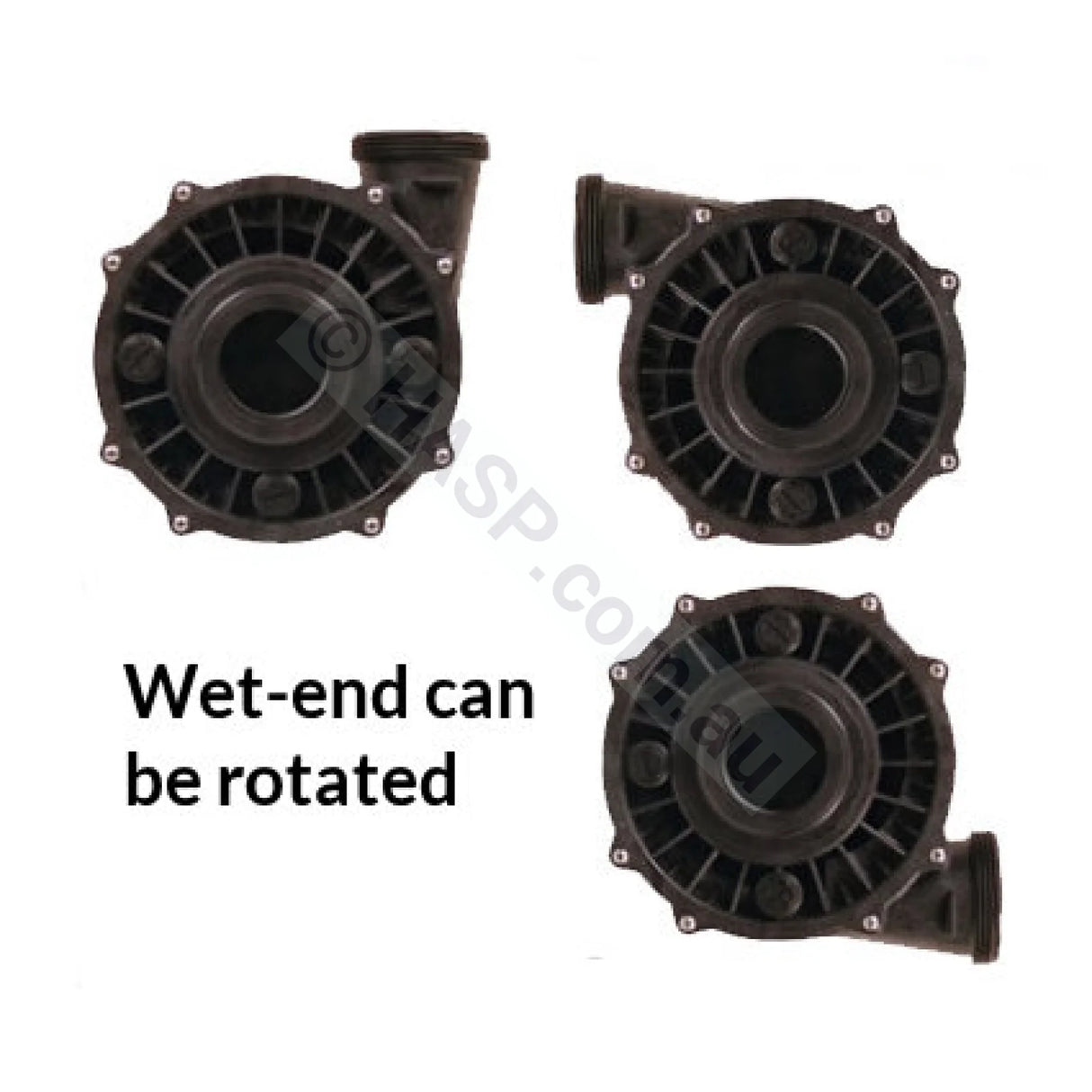

- Wet-end can be rotated.
-

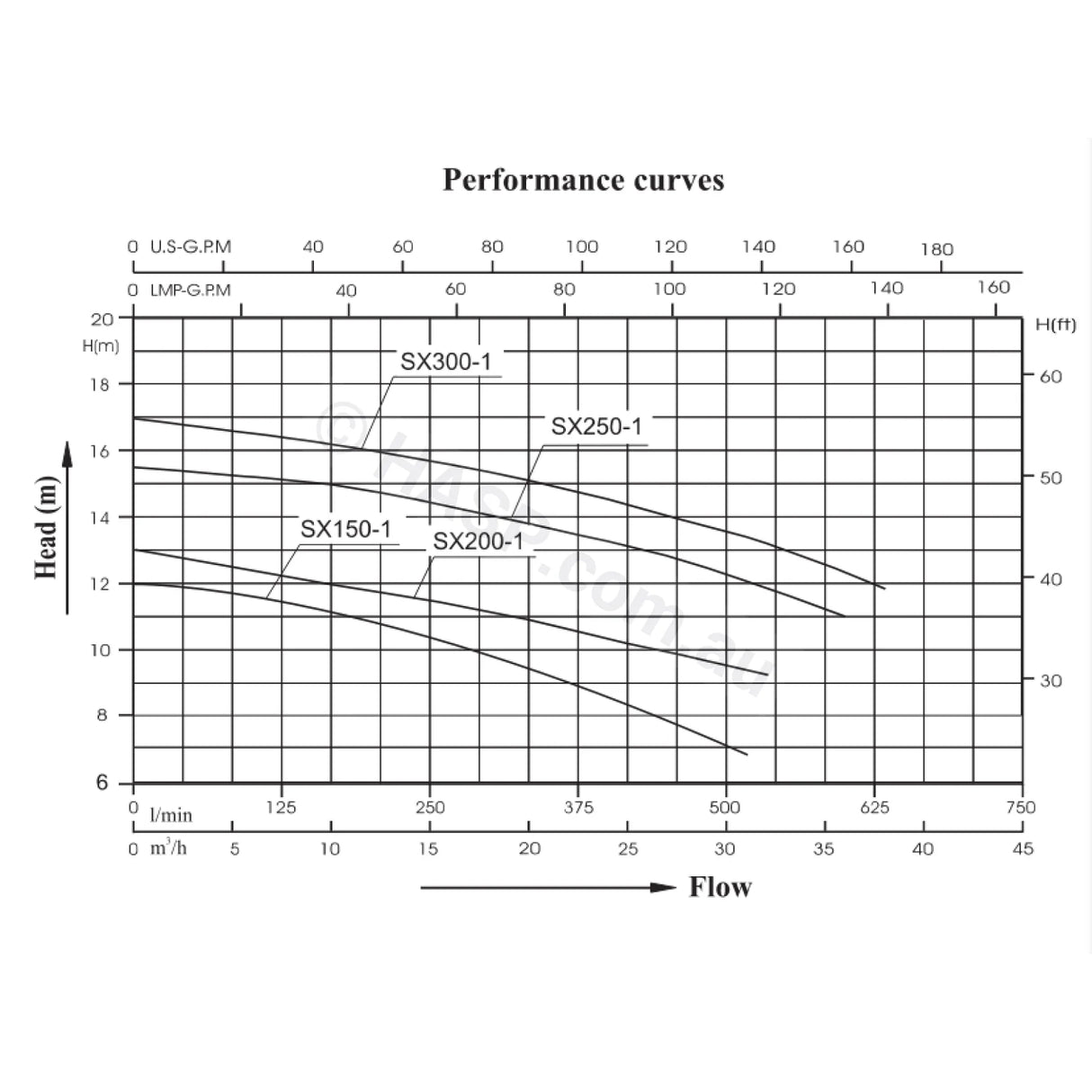

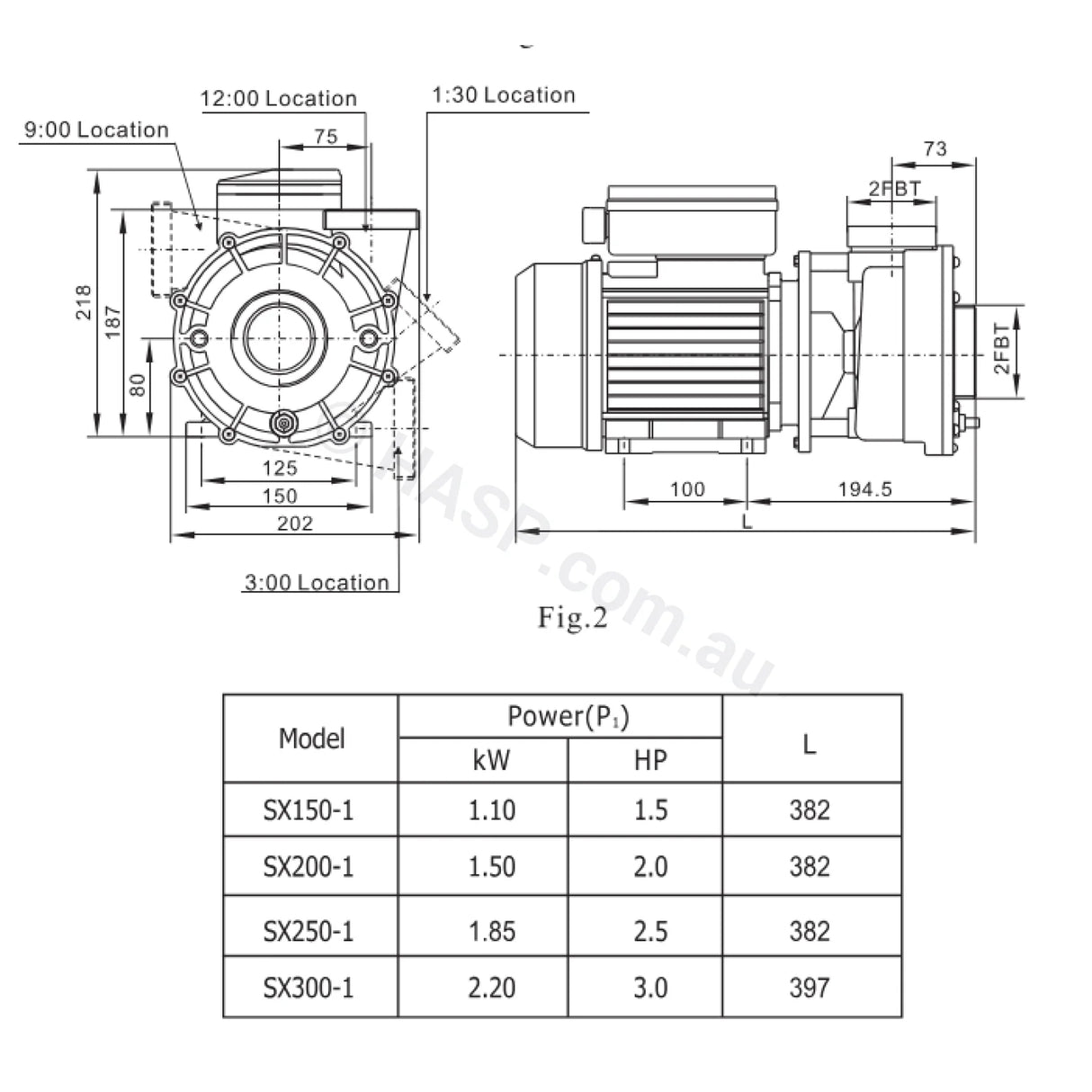

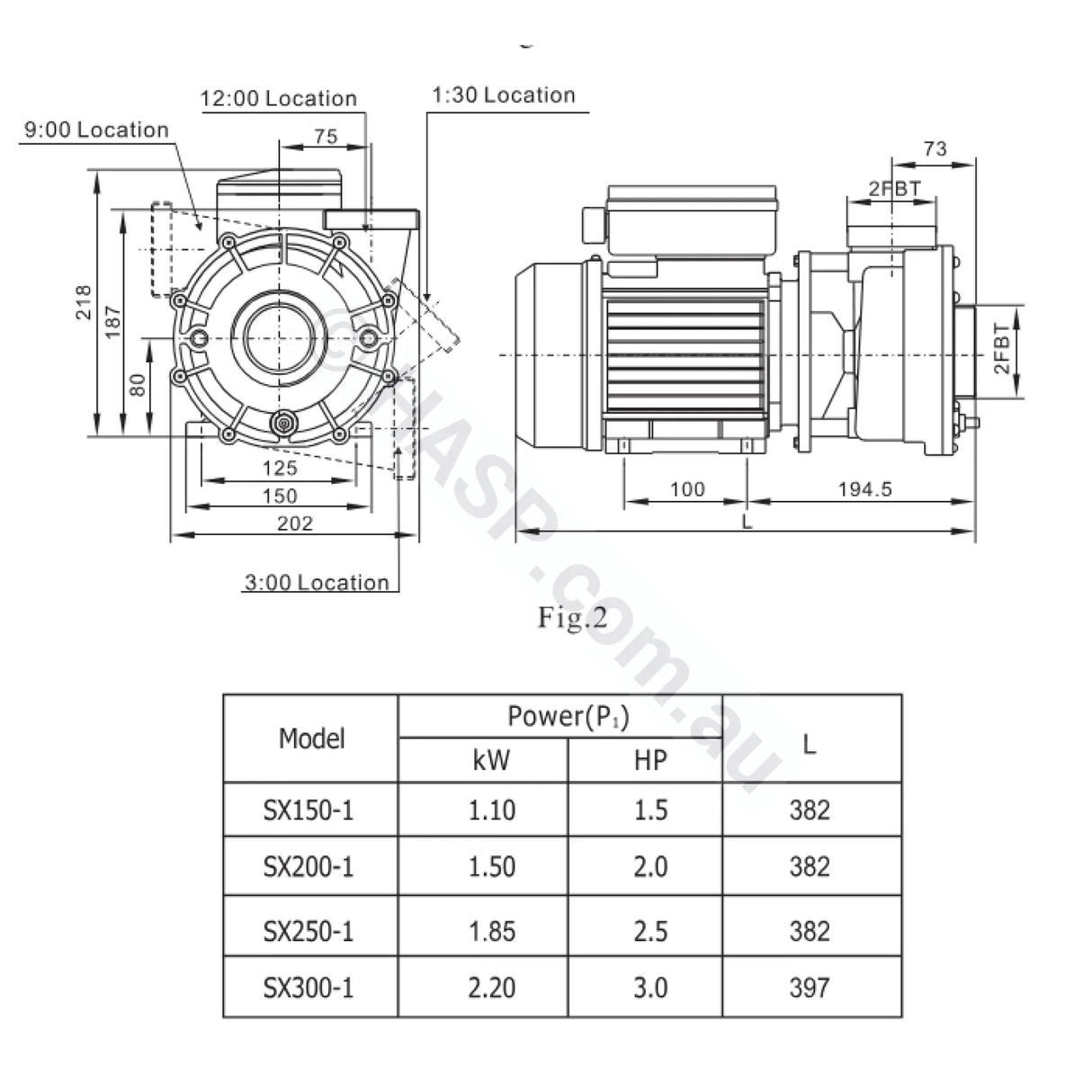

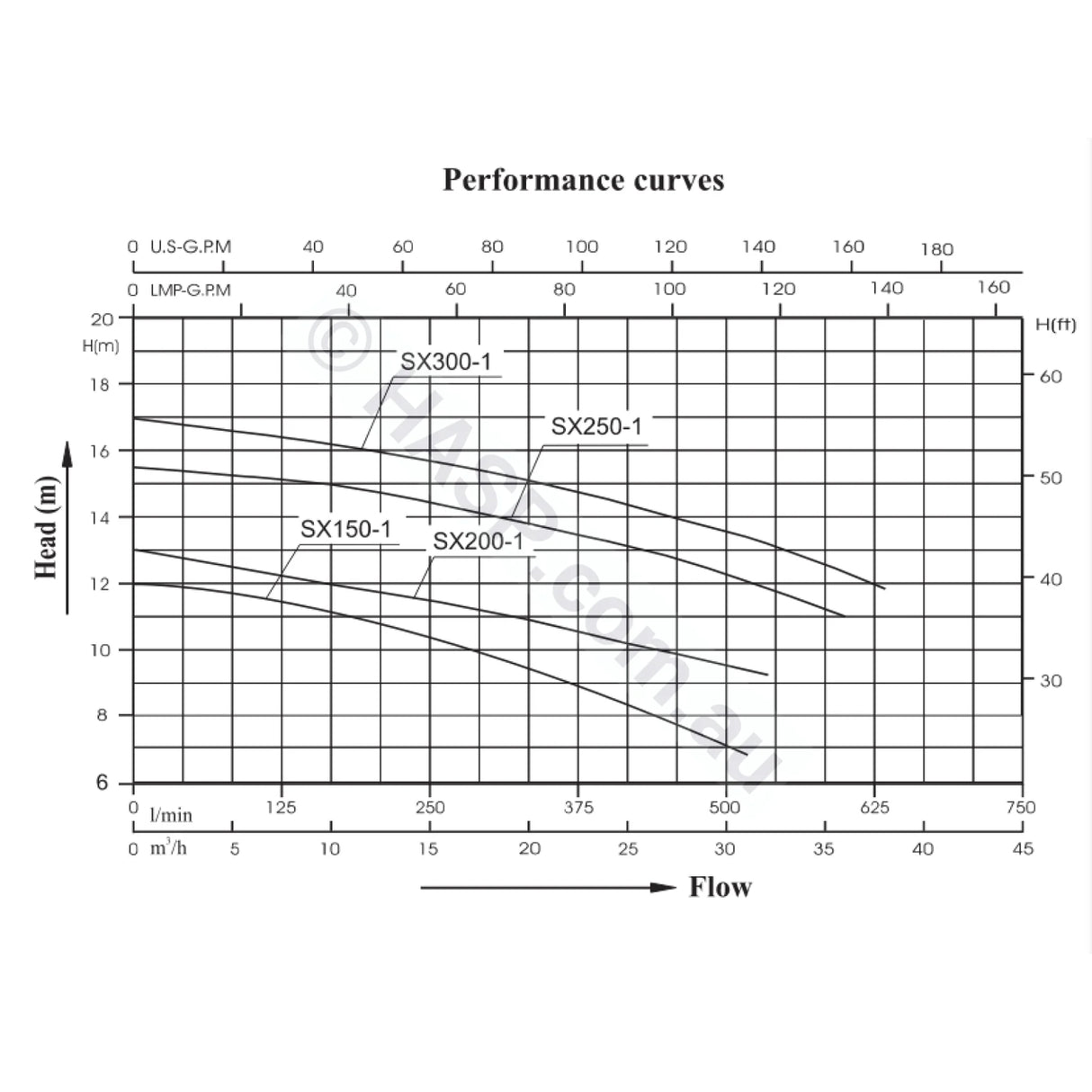

See images for dimensions of pump performance curves.
- 2 year warranty*
- User & Installation Manual
Uses the same Wet-end (Plumbing) as many brands and models of pumps such as:
- Aquaflo XP2 Flo-Master 1-Speed 2hp aka 4.8hp or SGS 4.8 BHPG or SCS Industries 4.8 BHP XP2. Note that the "4.8 BHP" is just a misleading way to rate the horsepower used by some spa manufacturers. 4.8 BHP = 2.0HP. Replaces all XP2 Pumps with the Century LASAR Pool/Spa Motor with AO Smith motors, eg: 06015742-2, 06120000-1040, 06120000-1340, 06120007-2040, 06120007-2340, 06120080-1040, 06120181-1040, 06120181-1340, 06120181-1341, 06120190-1300, 06120191-1300, 06120193-2000, 06120193-2200, 06120195-1200, 06120298-1040, 06120301-2040, 06120328-2340, 06120427-2000, 06120427-2300, 06120453-2000, 06120453-2340, 06120459-2040, 06120485-2040, 06120489-2340, 06120500-2000, 06120500-2040, 06120500-2300, 06120511-2340, 06120608-1040, 06120608-1340, 06120608-2300, 06120626-2340, 06120717-1300, 06120731-1300, 06120731-1340, 06120732-1300, 06120799-2040, 06120826-1340, 06120854-1300, 06120854-1340, 06124717-1300, 06124854-1300, 07030003-6040., 552012, 552022, 6015742, 632522, 93496103, 93496105, 93526106, 93526114, 93526600, Caldera 009014, Watkins 0982701, Watkins 1019801, Watkins 39581, Watkins 39581-01
- Davey QB2001 AUS (all) - use split nut adaptors (included) to convert coarse to new fine thread.
- LX Whirlpool LP200 (all)
- Waterway Executive Euro 2.0HP & 3.5HP BR (EMG Elettromeccanica)
- Piranha - Spa Systems LP200 - use split nut adaptors (included) to convert coarse to new fine thread.
-
Theramax Sundance Spas Model 06020841-6 05179 6500-239
These pumps can replace most major brands of spa pumps directly, without the need to replumbing. Their unique split-union adaptors allow them to be used as retrofit pumps where the older pump may have different threads.
About the Spatex brand:
Spatex has over 30 years in the Australian spa industry. They've built these pumps with high-end bearings, mechanical seals, and quality materials. They exceed OEM specifications for all major brands of pumps. These pumps have been welcomed by the spa industry and are used by the best spa technicians around.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
