Spatex SXC35 Spa Circulation Pump - 1/3HP - Offset Wet-end - WTC50 Replacement
Spatex SXC35 Spa Circulation Pump - 1/3HP - Offset Wet-end - WTC50 Replacement - is backordered and will ship as soon as it is back in stock.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Spatex SXC35 Spa Circulation Pump - 1/3HP - Offset Wet-end - WTC50 ...
Spatex SXC35 Spa Circulation Pump - 1/3HP - Offset Wet-end - WTC50 Replacement - is backordered and will ship as soon as it is back in stock.

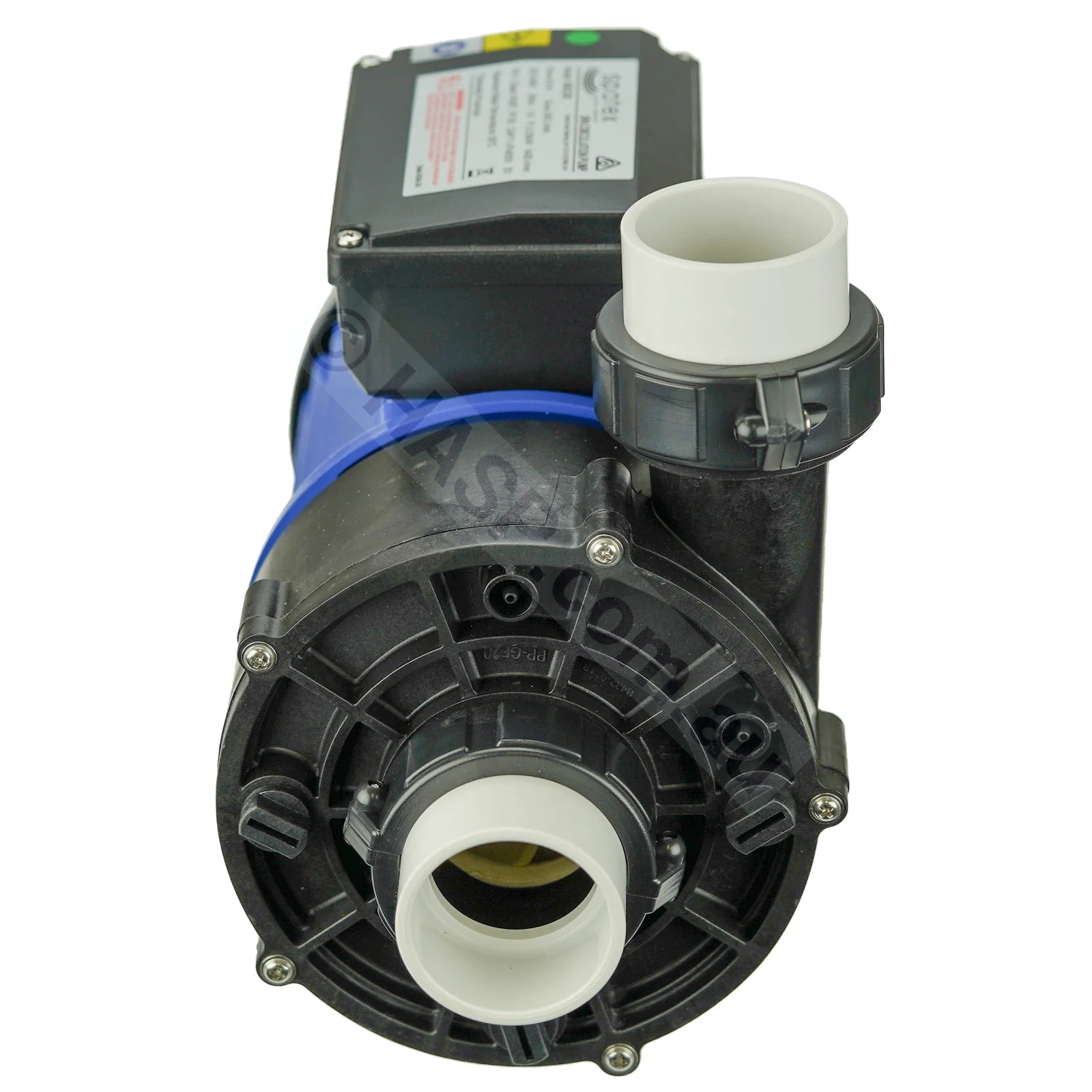

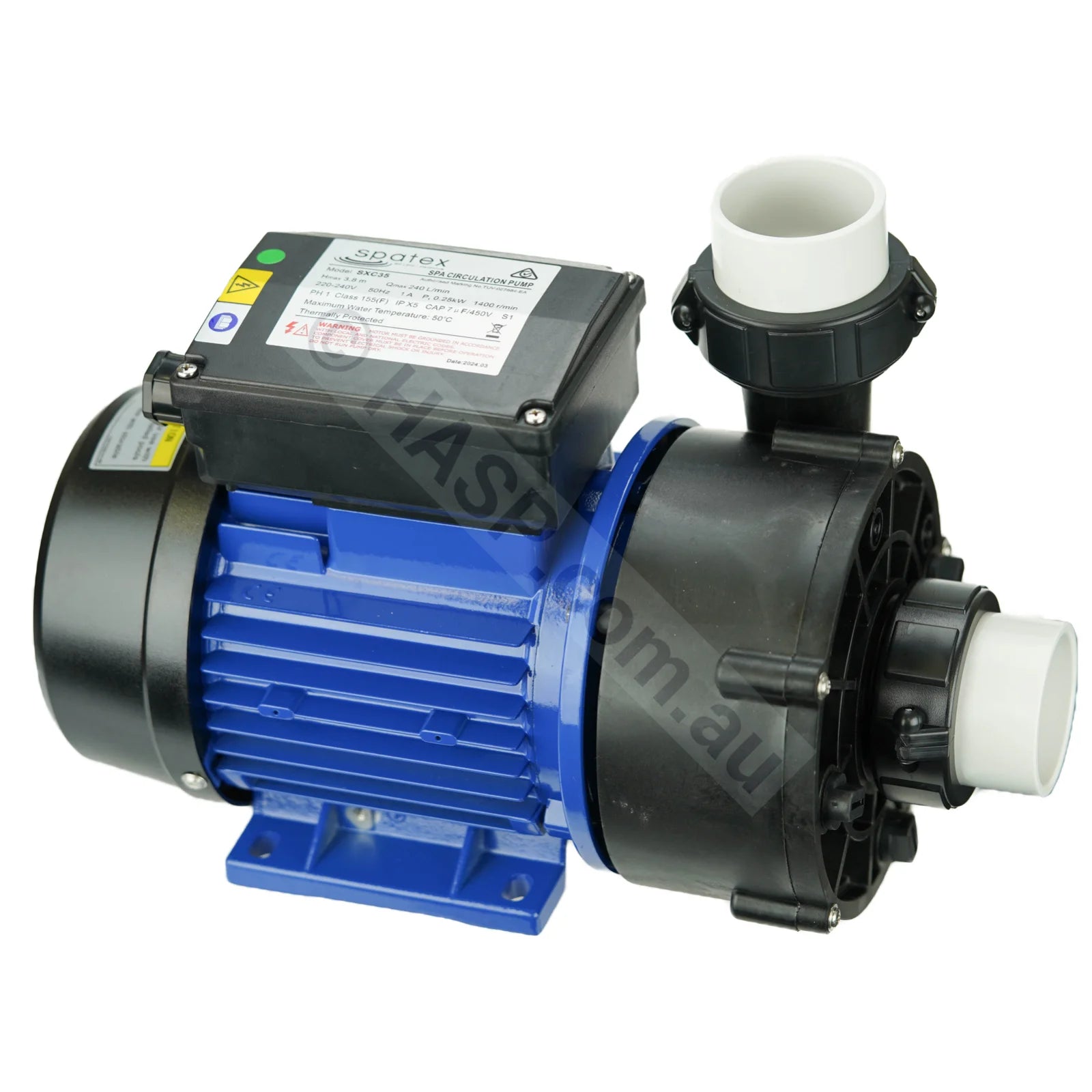

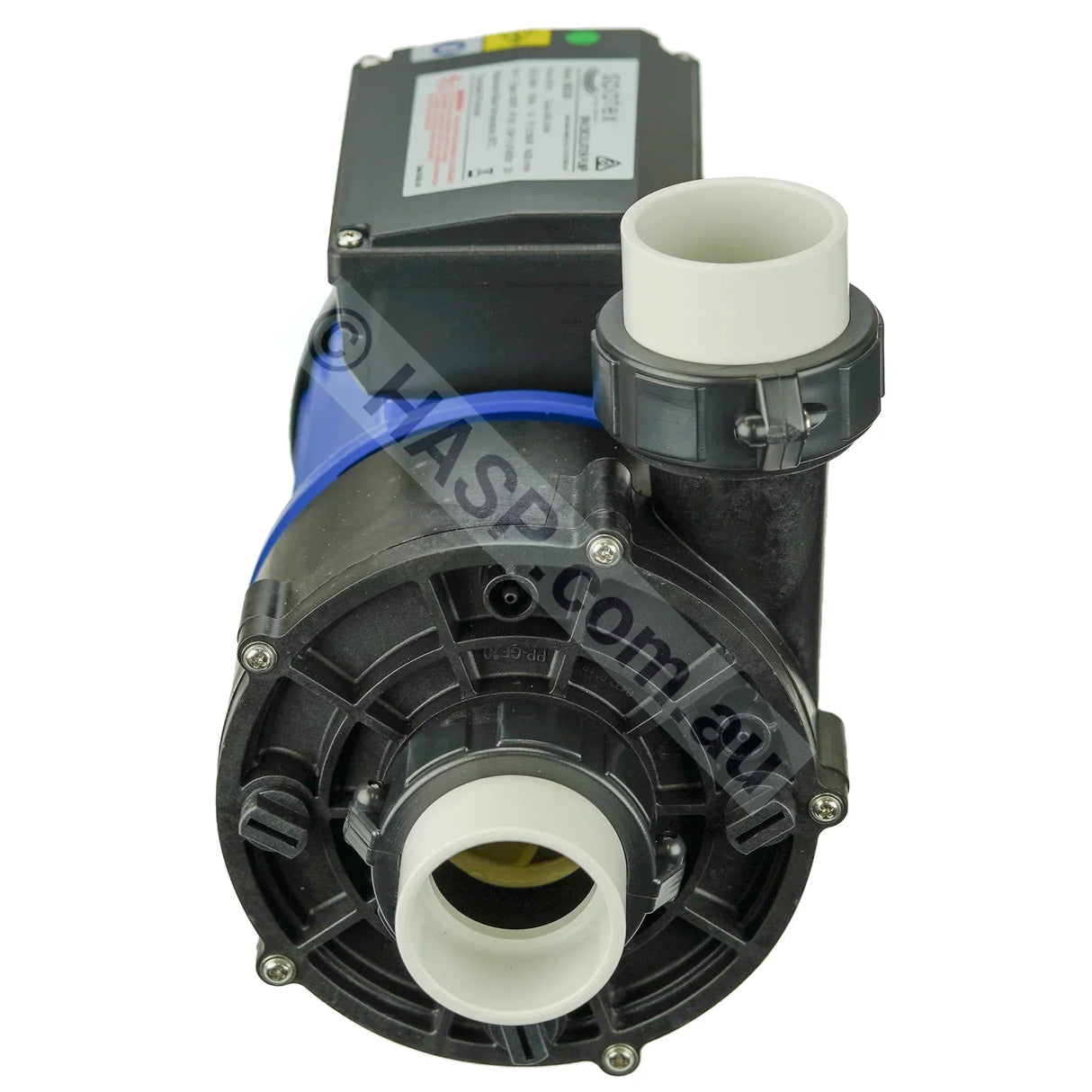

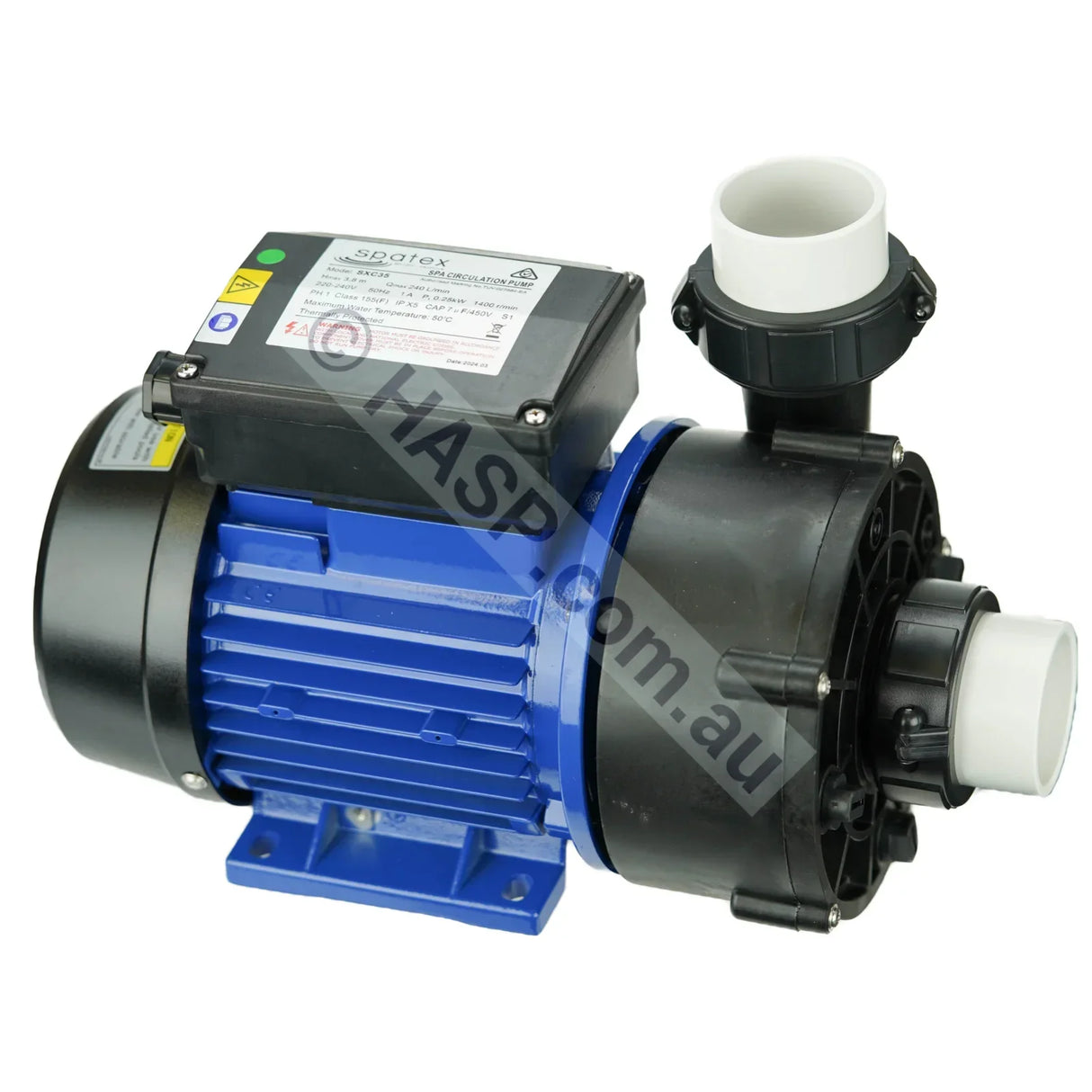

The SXC35 is an offset universal-fit 1/3HP spa circulation pump with centre suction and tangential side discharge — built for higher flow rate and improved performance over older offset-wet-end designs. It's an extremely efficient 250W motor in a compact, quiet package, designed as a workhorse replacement for the most common spa circ pumps on the Australian market. Perfect for replacing most spa circulation pumps such as the LX WTC50M & Balboa Eco Circ Pumps.
For older Aquaflo Circmaster CMHP/CMCP pumps, see the Circmaster Adapter Kit version — it includes the split-union adapters needed for a direct retrofit.
The Standard version ships with split-union connections, suiting many spa plumbing layouts that use offset or in-line circulation pumps.
What's In the Box
- SXC35 Spa Circulation Pump (1/3HP / 250W)
- Standard split-union connections (1.5" FPT / 55mm ID collar)
- Pre-fitted power lead (see plug type above)
At a Glance
- Power: 0.35HP / 250W / 1/3HP
- Voltage: 220-240V, 50Hz, 1A
- Max flow rate: 340 L/min
- Motor: 1400 rpm, 4-pole, extremely efficient
- Plumbing: 1.5" FPT thread, 55mm ID collar to slip over existing pump male tail
- Sound: Quiet running
- Warranty: 2 years (excluding chemical damage)
Best Replacement For
- LX Whirlpool WTC50M — perfect drop-in replacement
- Balboa Eco / Ultima 1031030, 1030017, 10700107 circulation pumps
- Spa Industries Global EcoSpa / EcoSpa 1 circulation pump
- Many other generic / Chinese-imported spa circ pumps using 1.5" FPT / 55mm union connections
About Spatex
Spatex has over 30 years in the Australian spa industry. These pumps are specified with high-end bearings, mechanical seals, and quality materials that exceed OEM specifications for all major brands of spa pump. They've been welcomed by the spa industry and are used by the best spa technicians around.
Looking for a different plug or adapter option? See the SXC35 options page for all four configurations.

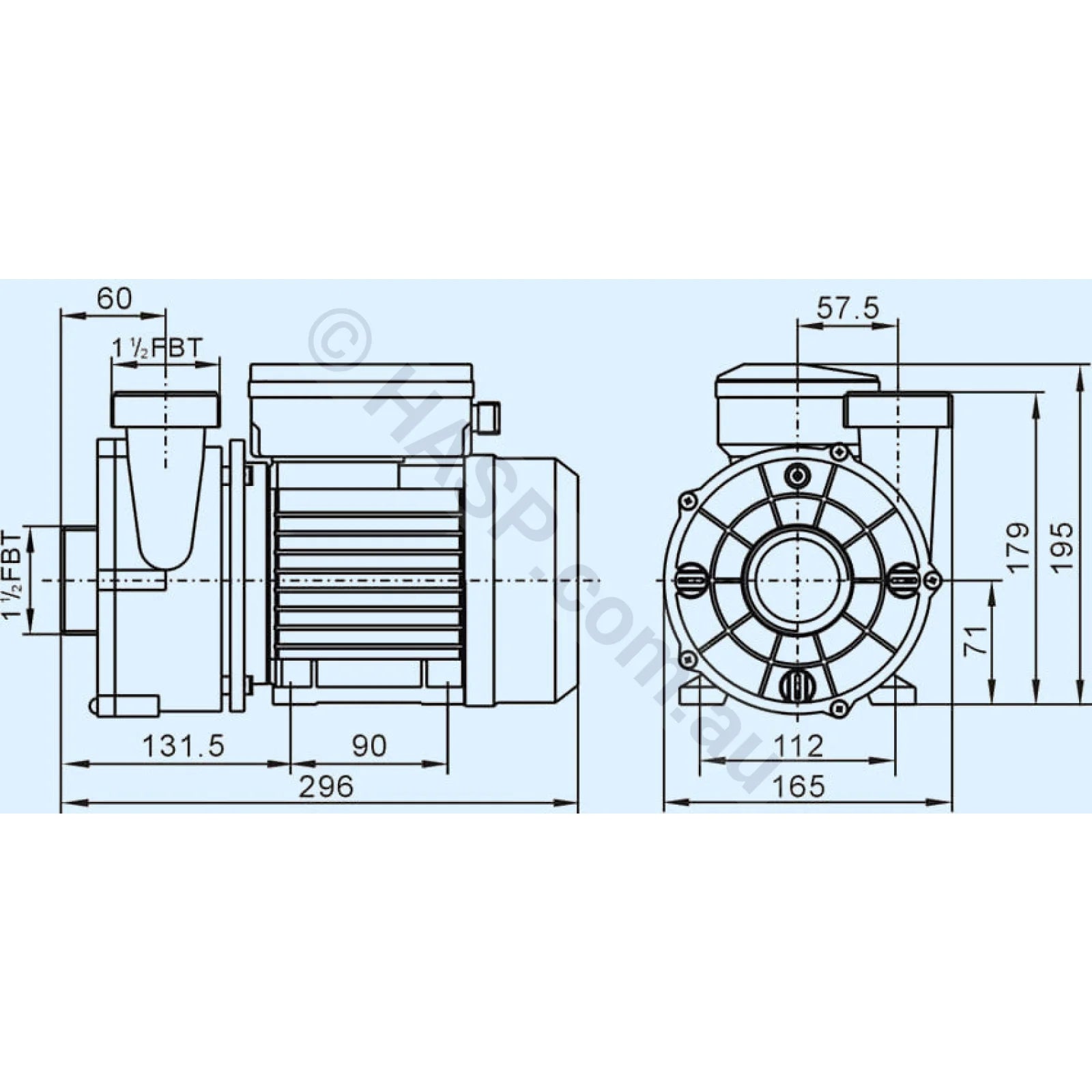

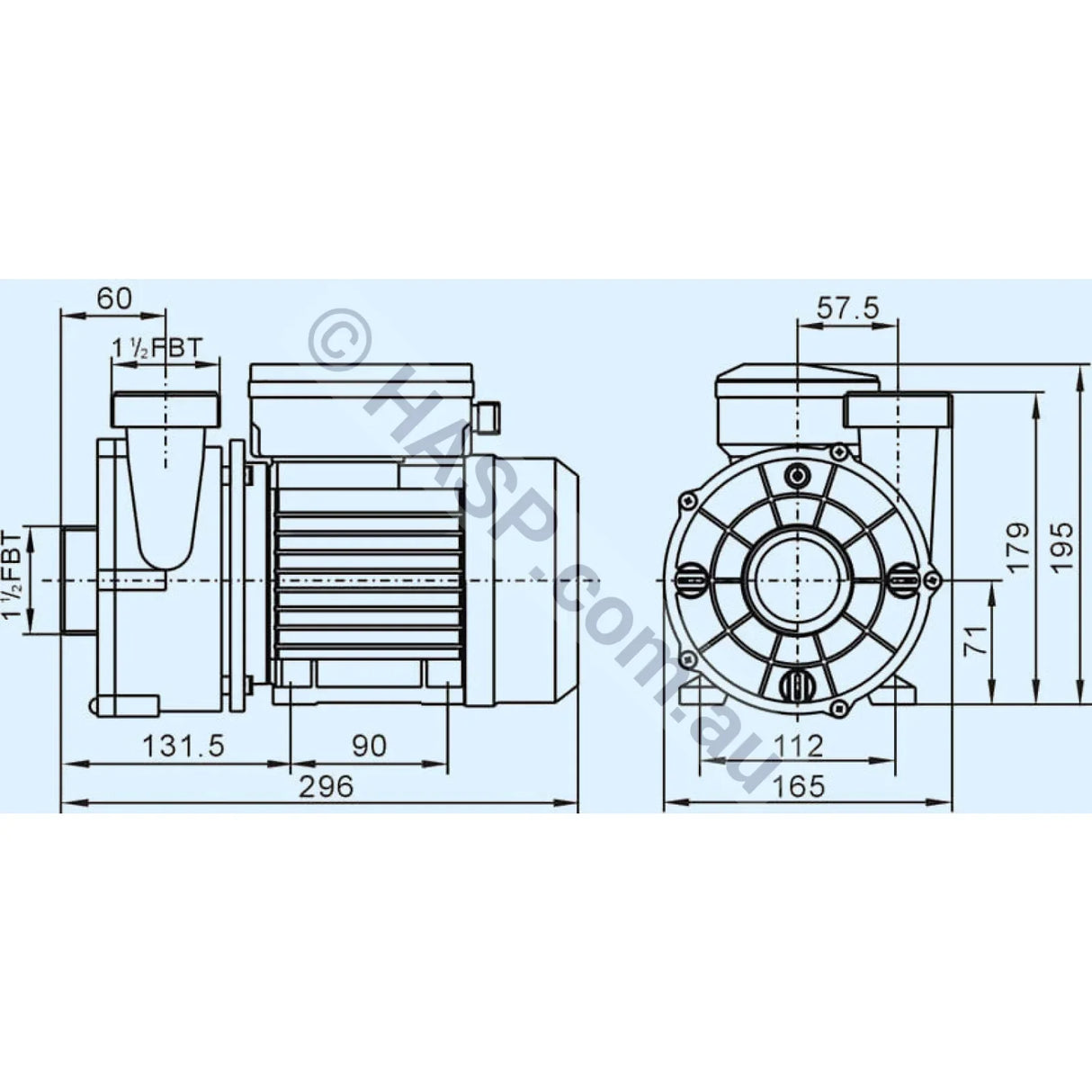

These pumps can replace most major brands of spa circulation pump. Their unique split-union adaptors allow retrofit fitting where pump threads may differ between brands. Always check pump dimensions to ensure correct fit for your installation. Specifications may change without notice.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
