Ultra Pure Water Quality UPS350 Spa Ozonator - Obsolete
Ultra Pure Water Quality UPS350 Spa Ozonator - Obsolete is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!
Ultra Pure Water Quality UPS350 Spa Ozonator was used in spas in the early 2000s and is no longer sold. Use the Balboa ozone generator listed here.
Archived Information:

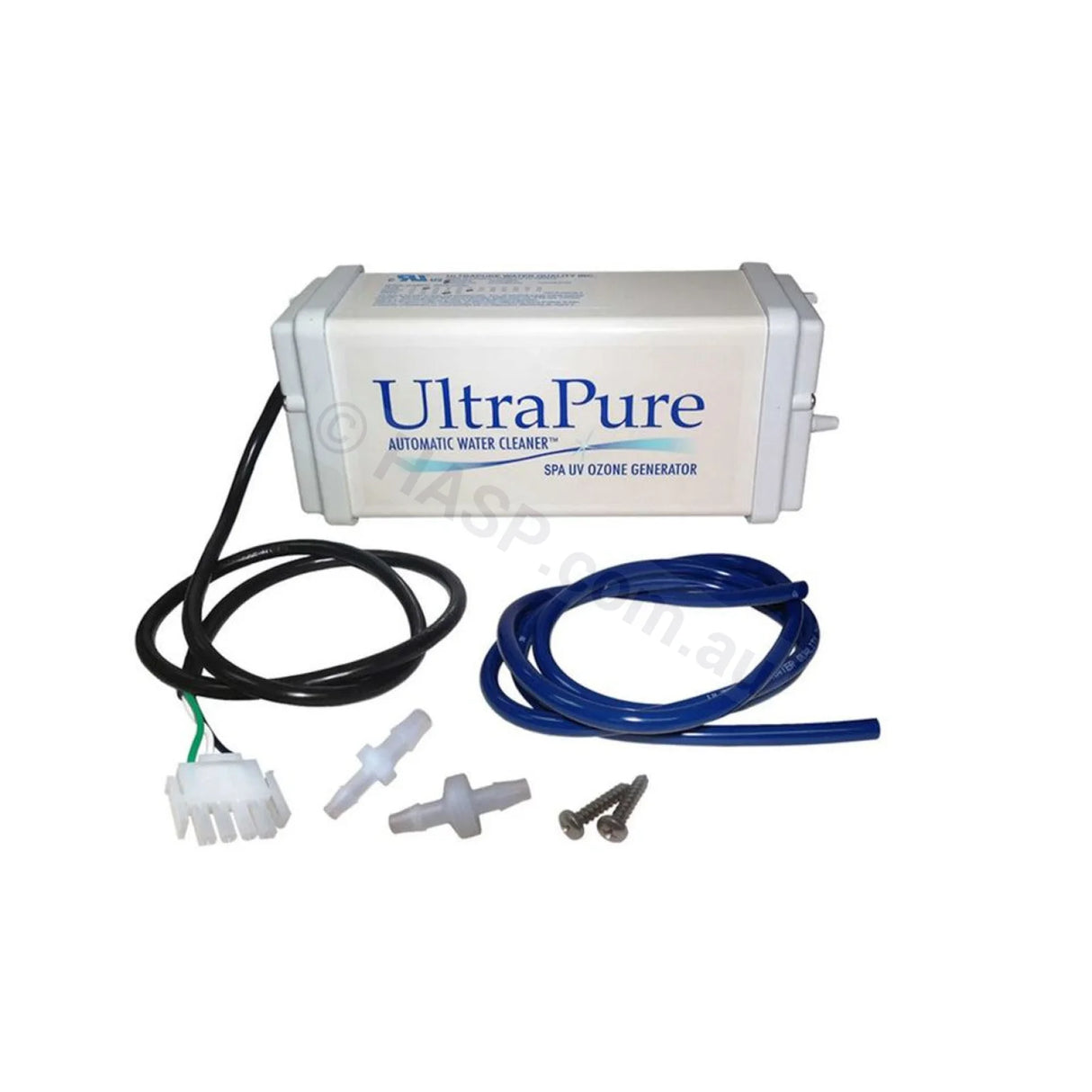

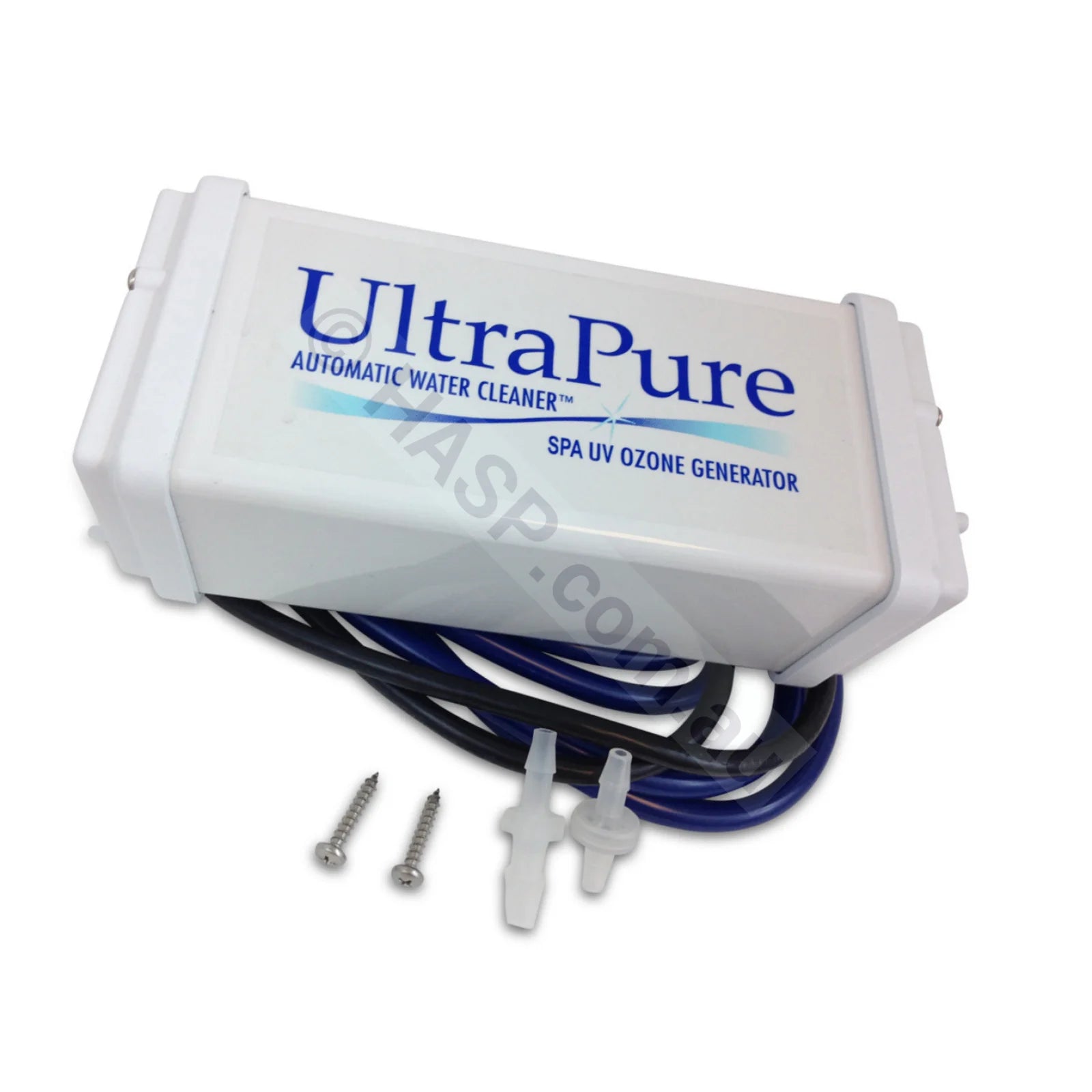

The Ultra Pure 1006520 Spa Ozone Generator Plug is the perfect choice for keeping your hot tub, spa, or jacuzzi clean and healthy. With a 600-gallon capacity, this ozone generator has a UV bulb-type ozonator that runs on 120V voltage. It has a 7" ozone bulb length and up to 10K hour lamp life. Plus, this ozonator comes with an AMP cord type for easy installation.
- Spa Ozonator Application
- 600 Gallons Ozonator Capacity
- UV Bulb Ozonator Type
- AMP Ozonator Cord Type
- 115v Ozonator Voltage
- 7" Ozonator Bulb Length
- Up to 10K hour lamp life
The Ultra Pure ozonator makes water maintenance easier and ensures cleaner, fresher water. All spas require a sanitizer such as bromine, chlorine, biguanide, etc. You can't replace these sanitizers unless the product provides a stable measurable residual; is a biocide that kills viruses, bacteria and algae; and oxidize impurities introduced by bathers. Chlorine and Bromine are the only sanitizer that fulfill all of these three functions. However, Chlorine and Bromine is not the best oxidizer. Incomplete oxidation accounts for up to 90% of their usage and 100% of their problems.
The UltraPure Automatic Water Cleaner produces the strongest oxidizer available (ozone). The UltraPure ozonator does the oxidation work normally attempted by Chlorine and Bromine. Since the only element added by the Ozone generator is oxygen, no unwanted compounds (like chloramines) are created, and many bi-products of bromine and chlorine in the spa simply gas-off. Combined Chlorine/Bromine compounds are eliminated. Now your chlorine/Bromine only provides a "free available" residual. All problems and wasted chemicals associated with combined Chlorine/Bromine are eliminated.
With the UltraPure ozonator water balance is easily maintained. Filter runs longer, since clogging greases and oils are broken down. Scum line or bath tub rings are kept away or easily brushed off. Your overall spa water maintenance and care will be minimized. The UltraPure water cleaner is an automatic water cleaner that pays for itself.
Features:
- Ultra Violet Style Spa Ozonator
- Improves spa water and reduces chemical usage
- Oxidizes unwanted contaminants and by-products of chlorine/bromine
- Reduces water lines and clogged filters
- Reduces red eyes, skin irritation and chlorine/bromine smells
Fitment guidelines:
For portable and inground spas
Additional Information:
Alternate part numbers: 1006520, 42-280-1000, 6-05-0122, UPS350-120
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
