120mm Waterway Dual-Flo Diverter Jet aka Whirlpool Swimjet Volcano je - Obsolete (No Longer Available)

This product is no longer available.

Scroll down for replacement options and more information.

Description

This item is obsolete and no longer available. We recommend contacting a spa repair technician to modify and replumb your spa. Due to various factors, we cannot provide specific instructions for this process.

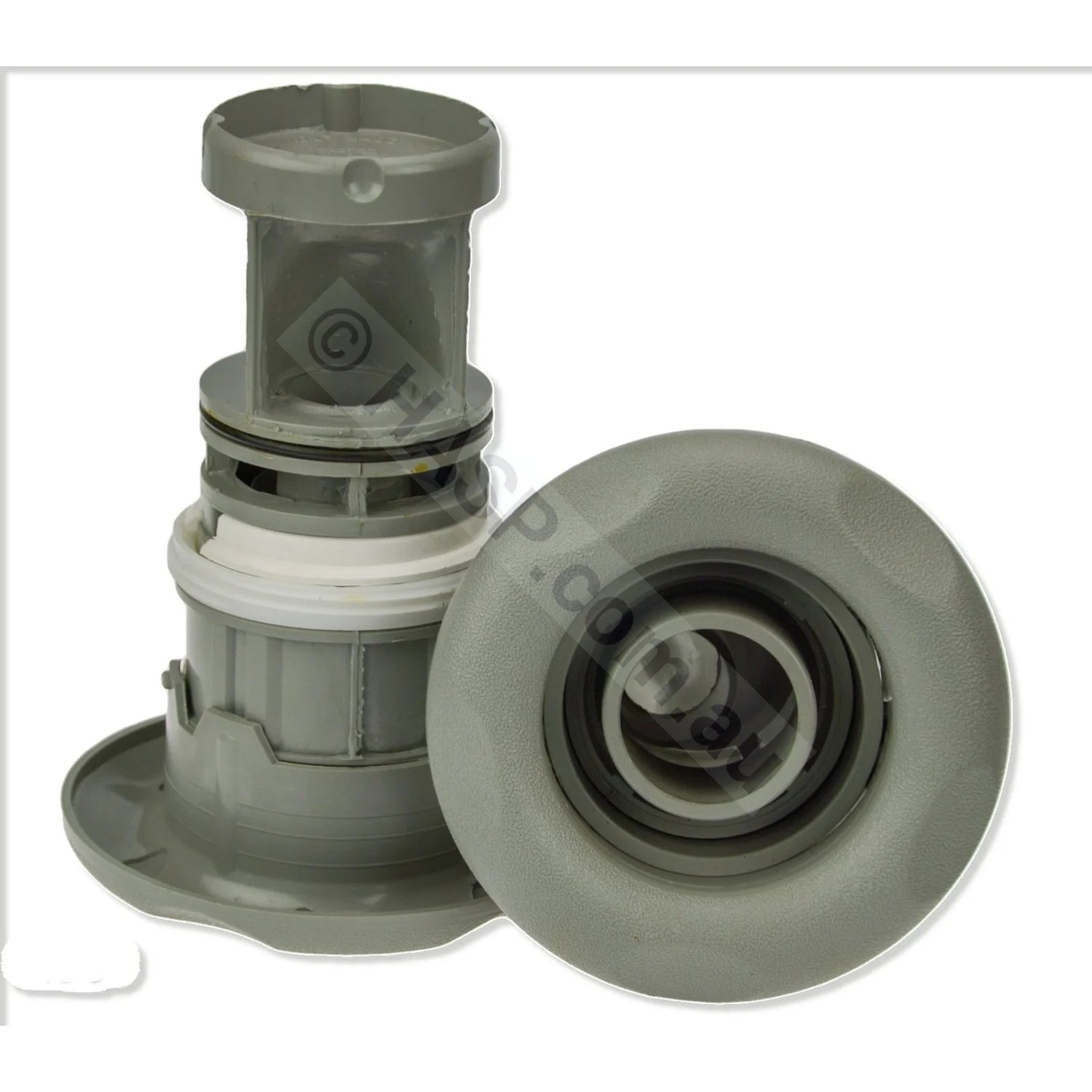

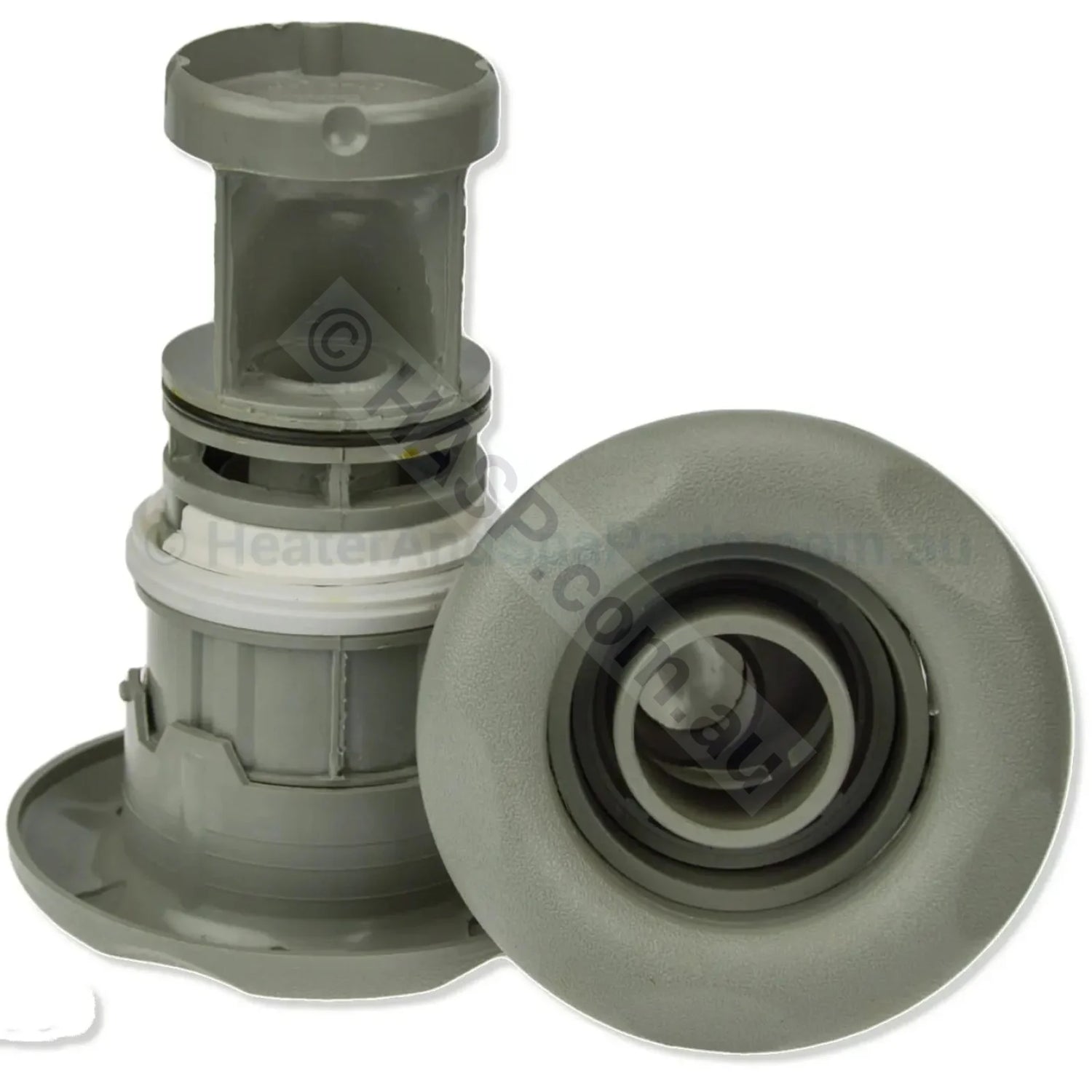

Waterway Dual-Flo Diverter Jet. Has a face diameter of 120mm. Also called a Swimjet, Diverter jet, Whirlpool jet or Volcano jet in some spas. Has a grey textured face with 5 scallops and a internal nozzle with a diameter of 37mm. Discontinued line. Limited to stock on hand. Internal jet barrel 212-4147. Note that old scalloped style was replaced with a more detailed scallop.

Dimensions:

  • 120mm diameter face
  • 36.5mm ID nozzle
  • 25mm orifice

Waterway Plastics Dual Flo jet barrels are able to rotate 150 degrees or 1/3 of a turn, to divert the water to either this jet or one other jet system/manifold in the spa

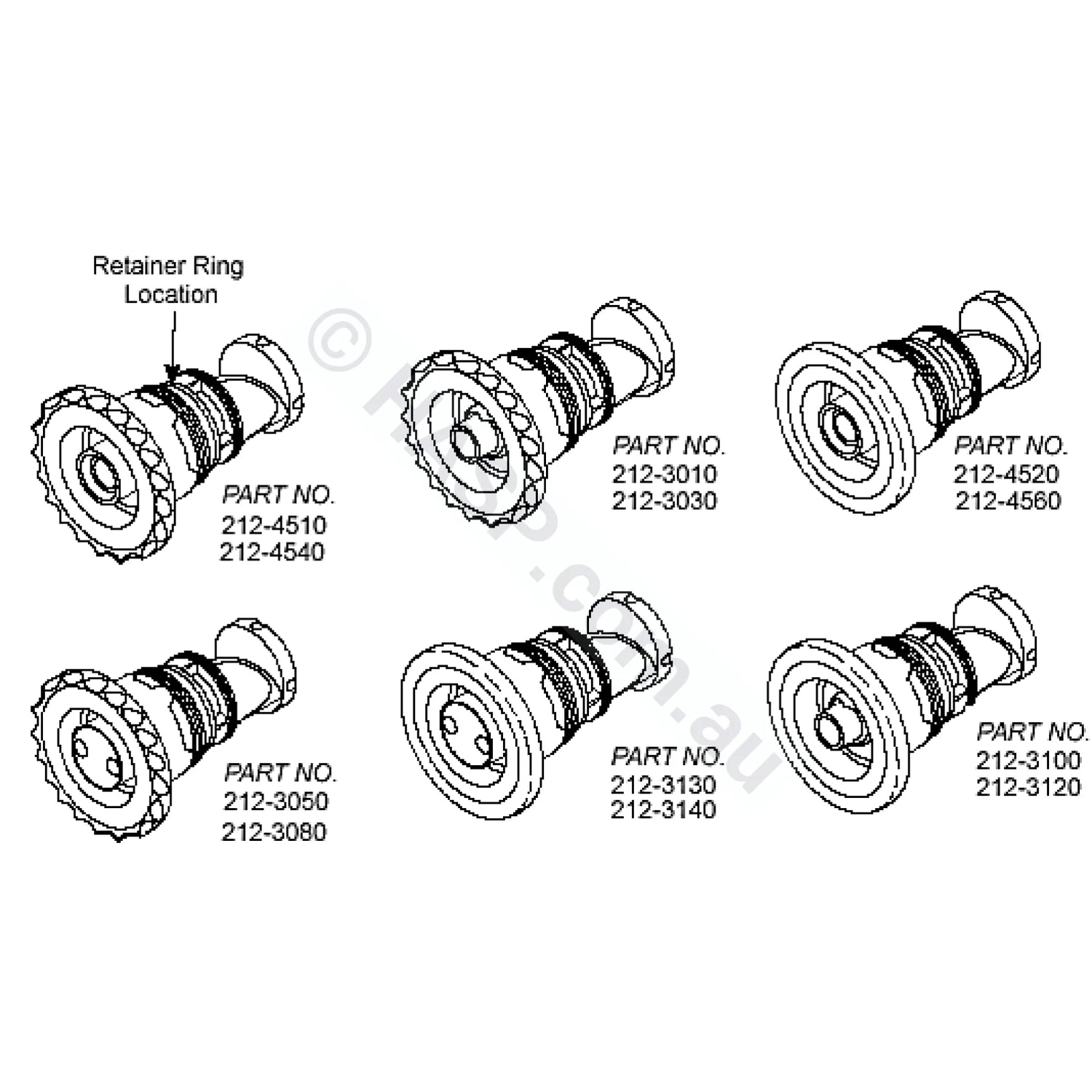

IN SOME CASES THE THREADED RETAINER RING ON THIS JET MUST BE REVERSED FOR JET TO FUNCTION CORRECTLY AND TO PREVENT A 'DEAD HEAD' TO THE PUMP WHICH COULD DAMAGE THE PUMP - This depends on which side the water inlet is plumbed to.

Heavily used on Maax Spas and others.
