Name: Astralpool ZX Cartridge Filters - ZX50, ZX75, ZX100, ZX150, ZX200, ZX250 - Obsolete
Brand: Fluidra
SKU: 10045
Price: 0.01 AUD
Availability: OutOfStock

Astralpool ZX Cartridge Filters - Replaces Hurlcon QX and others - Heater and Spa Parts

Roll over image to zoom in Click on image to zoom

Obsolete as of 2023 - Options for replacement:

Emaux Vortex CF, Madimack Elite Clear or Astralpool XC filters listed below:

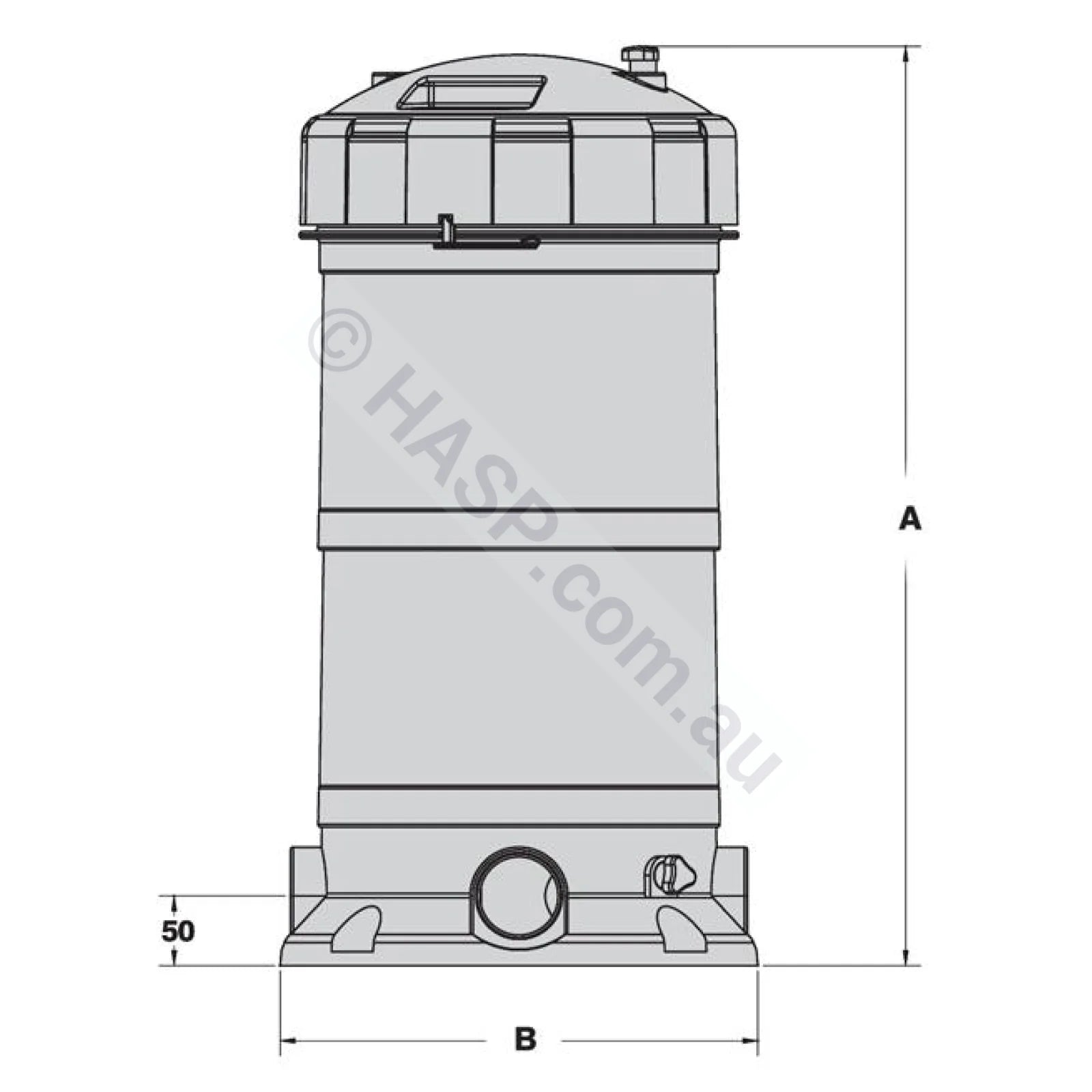

Models, Specifications & Replacements:

ZX 50: 225lpm Max / 4.7M² Filter Area / 300kPa Max / 7.0kg / 510mm Height
ZX 75: 290lpm Max / 7.0M² Filter Area / 300kPa Max / 8.0kg / 510mm Height
ZX 100: 375lpm Max / 9.4M² Filter Area / 300kPa Max / 15.5kg / 710mm Height
ZX 150: 445lpm Max / 14.0M² Filter Area / 300kPa Max / 16.5kg / 710mm Height
ZX 200: 490lpm Max / 19.0M² Filter Area / 300kPa Max / 24.0kg / 910mm Height
ZX 250: 515 lpm Max / 24.0M² Filter Area / 300kPa Max / 25.0kg / 910mm Height
ZX 310: No direct replacement. We recommend Twin XC 150 or similar.

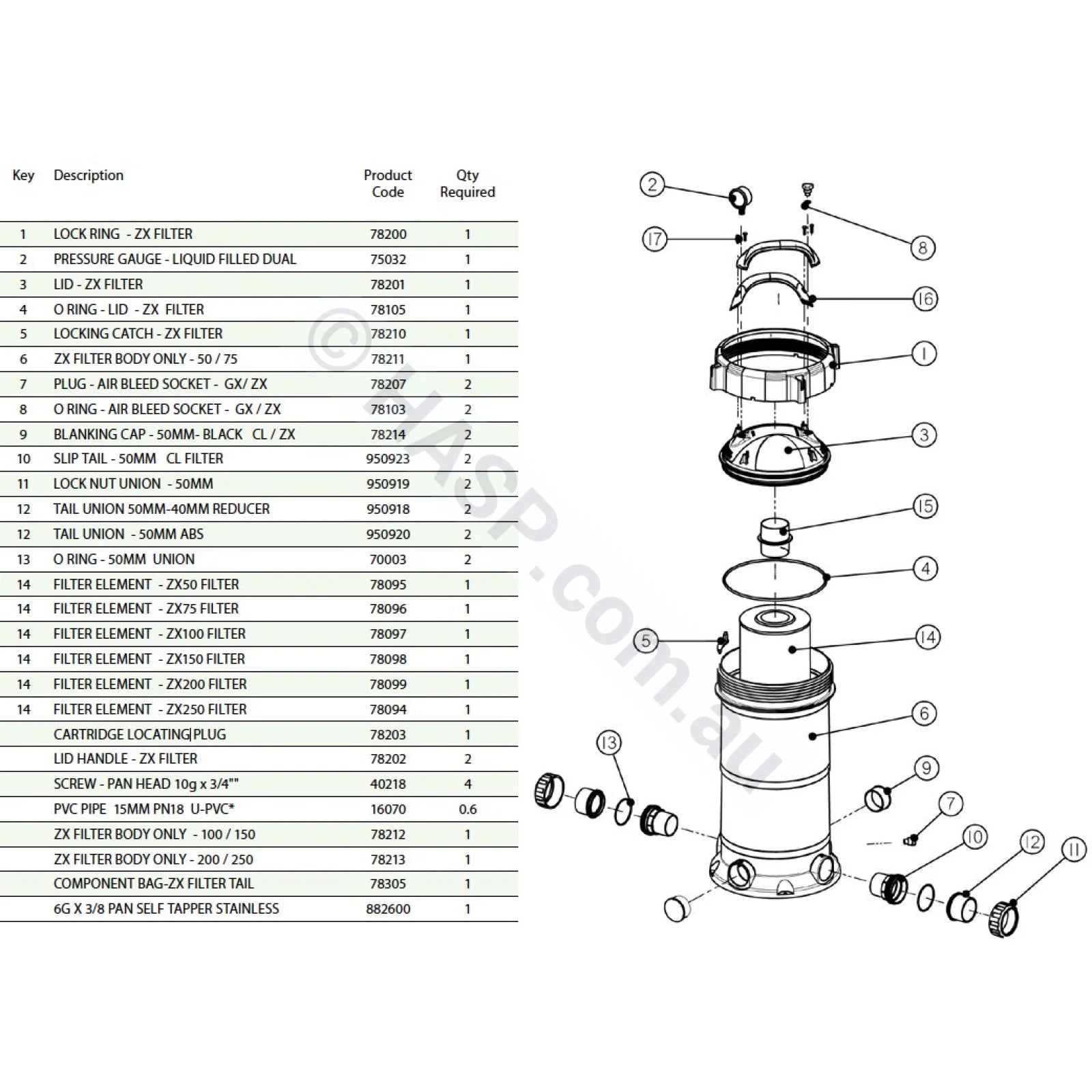

Parts:

ZX Filter Tanks (Body)
ZX Filter Lid
ZX Filter O-ring
ZX Filter Air Bleed
ZX Filter Cartridges - ZX50, ZX75, ZX100, ZX150, ZX200, ZX250, ZX310
Pressure Gauge

ZX Cartridge Filters are a small compact design, that does not require a back washing line so they are ideal for places or situation where waste water disposal or water restrictions are in force. Based on the very popular QX series from Hurlcon.
