Basic Spa Retrofit Kit - 1 or 2 Pump System - SpaNet Mini Retrofit Kit - Modular
Basic Spa Retrofit Kit - 1 or 2 Pump System - SpaNet Mini Retrofit Kit - Modular - is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

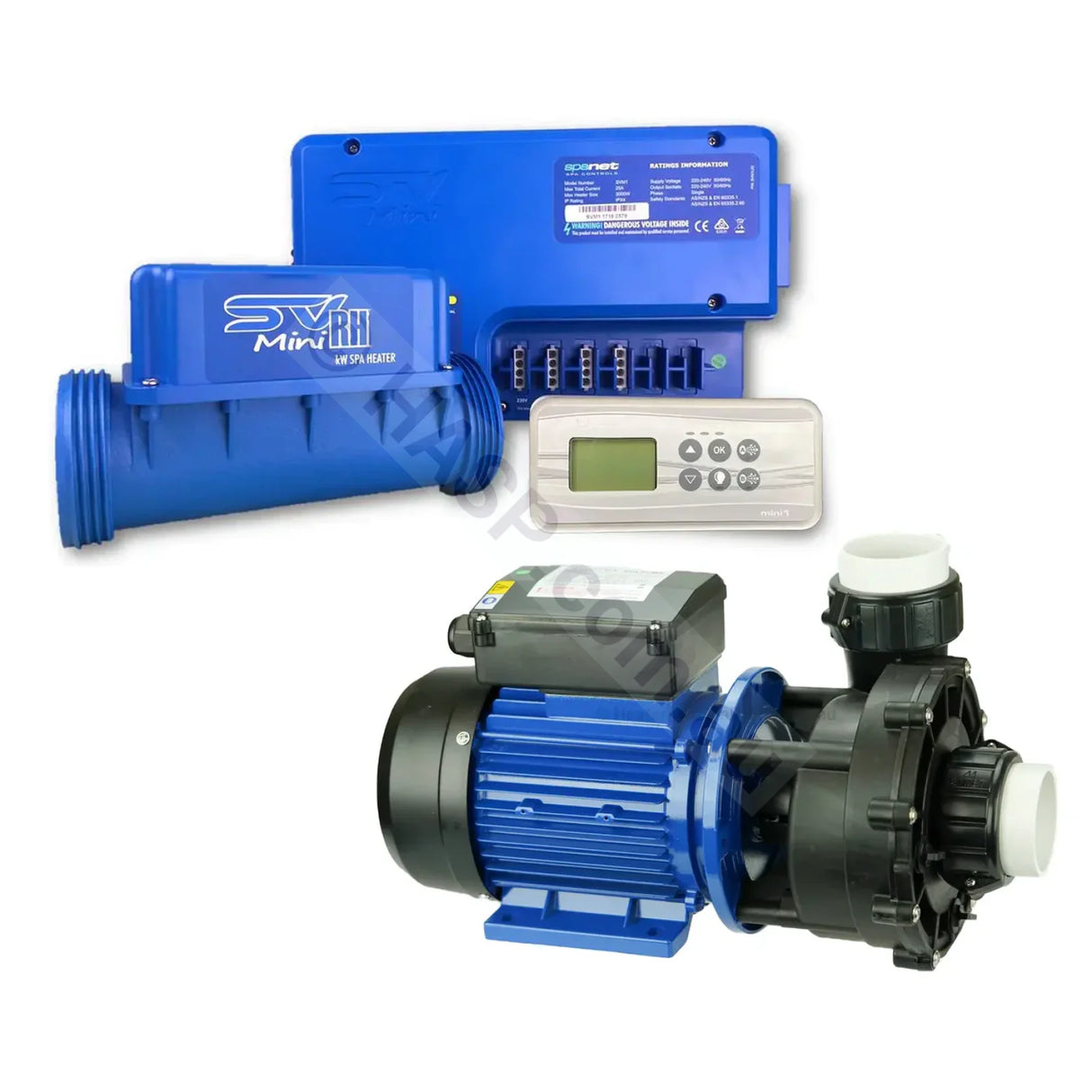

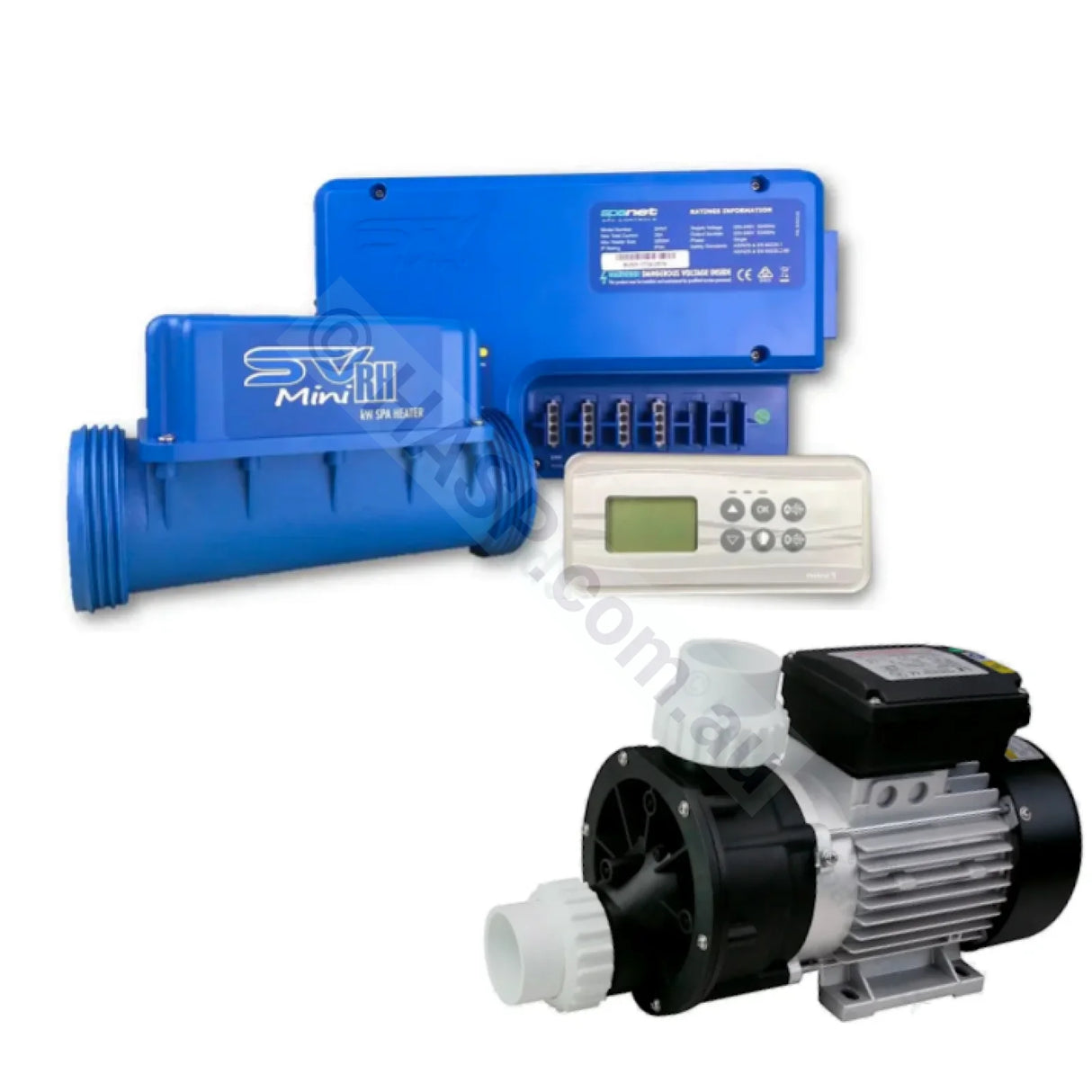

Basic Spanet Retrofit Spa Kits for 1 or 2 pump systems.
We recommend fitting a 2-speed pump where possible to save on running costs, as when heating & filtering the pump uses half the power of a 1-speed pump. WiFi can be added to this system for even more power savings. Supplied with standard plumbing fittings to suit 50mm pressure pipe for 2-speed pump and heater, while the 1-speed pump uses 40mm pressure pump.
Requires replumbing & electrical work. To be fitted by qualified persons.
Add heater size amperage + pump amperage as a guide to how many amps you need to run (eg: 1.5kW heater (3.8A) + 1.5HP 2-Speed Pump (2A) = 5.8A on low speed. Note the amperage usage is a rough guide only. Consult with electrician for more info.
While heating in load-shed mode, a 2-speed pump will run at Low Speed using less power.
These Kits Can Control (Max 25A Total Load):
- One 1-Speed Pump or
- One 1-Speed Pump & One Air Blower or
- Two 1-Speed Pumps or
- One 2-Speed Pump & One 1-Speed Pump or
- One 2-Speed Pump & One Air Blower
Options:
- Pump Optionss: 1HP 1-Speed Pump (LX), 1.5HP 2-Speed Pump (LX), 2.0HP 2-Speed Pump (Spatex/ LX),2.5HP 2-speed Pump (Spatex/LX), 3.0HP 2-Speed Pump (Spatex/LX)
- Heaters: 1.5kW, 2.0kW, 3.0kW
Comes With:
- Control Box, Pump, Heater, Plumbing Unions, Touchpad, and Leads (cabling) for 2 Pumps (or 1 pump + 1 blower) & heater.
- Choose Add-ons for light, touchpad hole adaptor, extra leads, etc.
About the SpaNet Mini 1 Controller:
The SpaNet Mini 1 has become one of the most popular retro-fit spa control systems due to it's simple, modular system. It comes with a Control box, Touchpad, Heater. It also has a spare outlet should you wish to fit an Ozone / UV system such as the Ultrazone.
Each part of the SpaNet Mini 1 can be replaced in the future. (Eg: Heater, Touchpad, Light, etc) rather than a complete system replacement.
It also has the ability to add a WiFi module so your spa can have even more Power-Saving features, and can be controlled from anywhere using a Mobile Phone or Tablet.
Great Replacement System for:
- Onga Spa Master 4352 / 4353 / 4395
- Onga Director
- Davey XS HG
- Davey Xcelsior
- Waterco Portapac
- Ampac Pulsar
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
