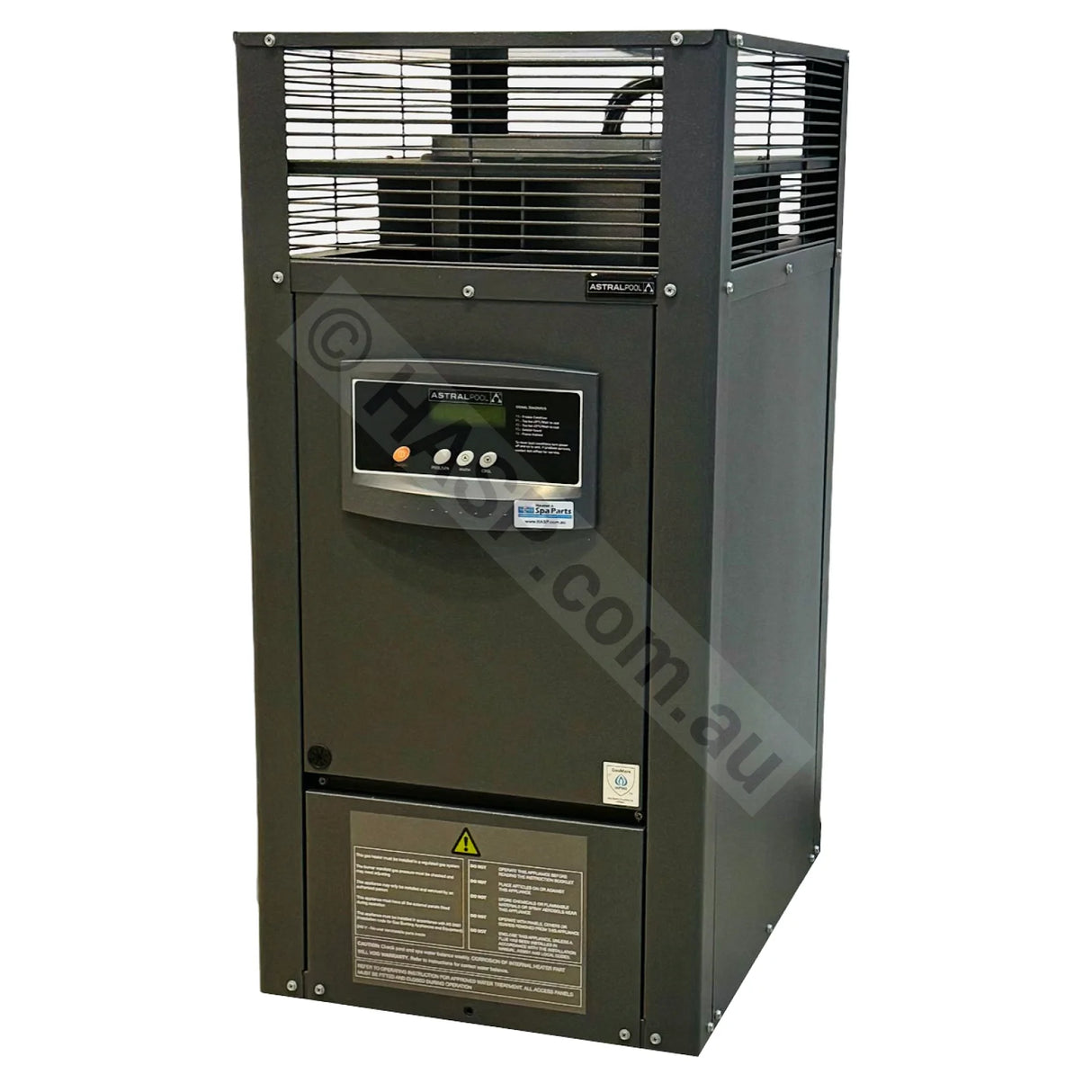

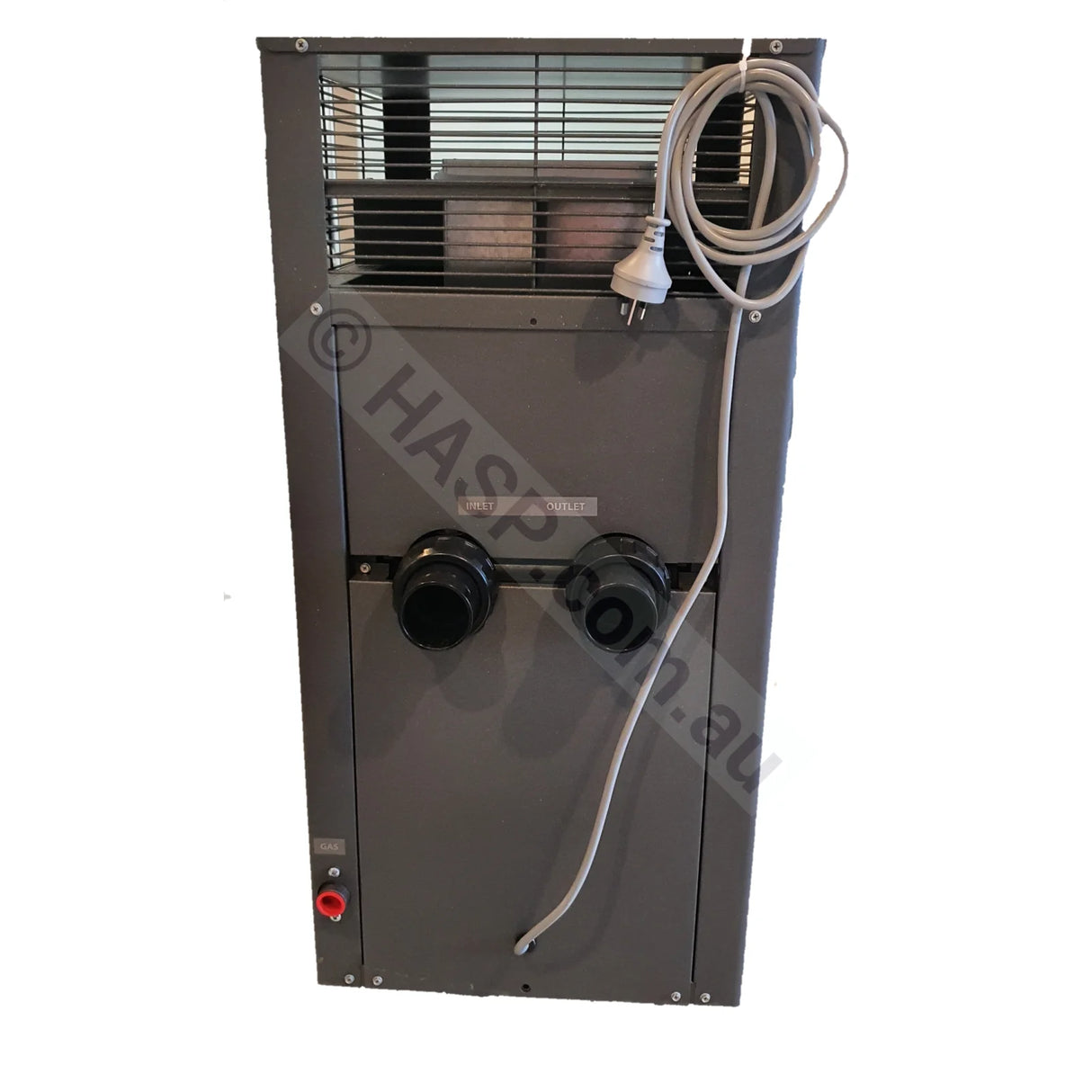

AstralPool HX120 Gas Spa Heater – Natural Gas or LPG (Propane)

The AstralPool HX120 (formerly the Hurlcon HX120) is Australia’s most trusted and best-selling gas spa heater. Designed and manufactured in Australia, this heater combines reliability, speed, and long service life in a compact design that’s remained proven for over 25 years.

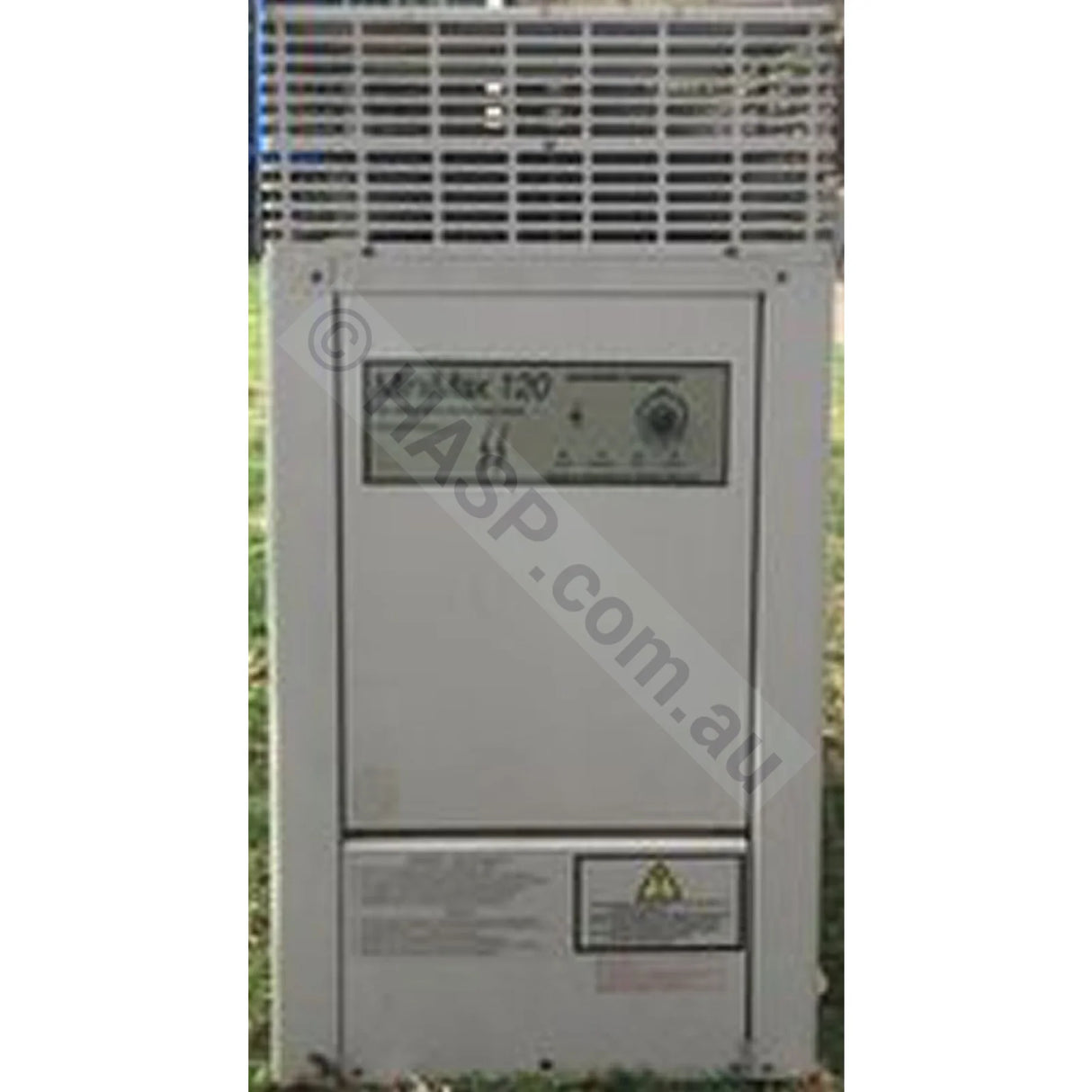

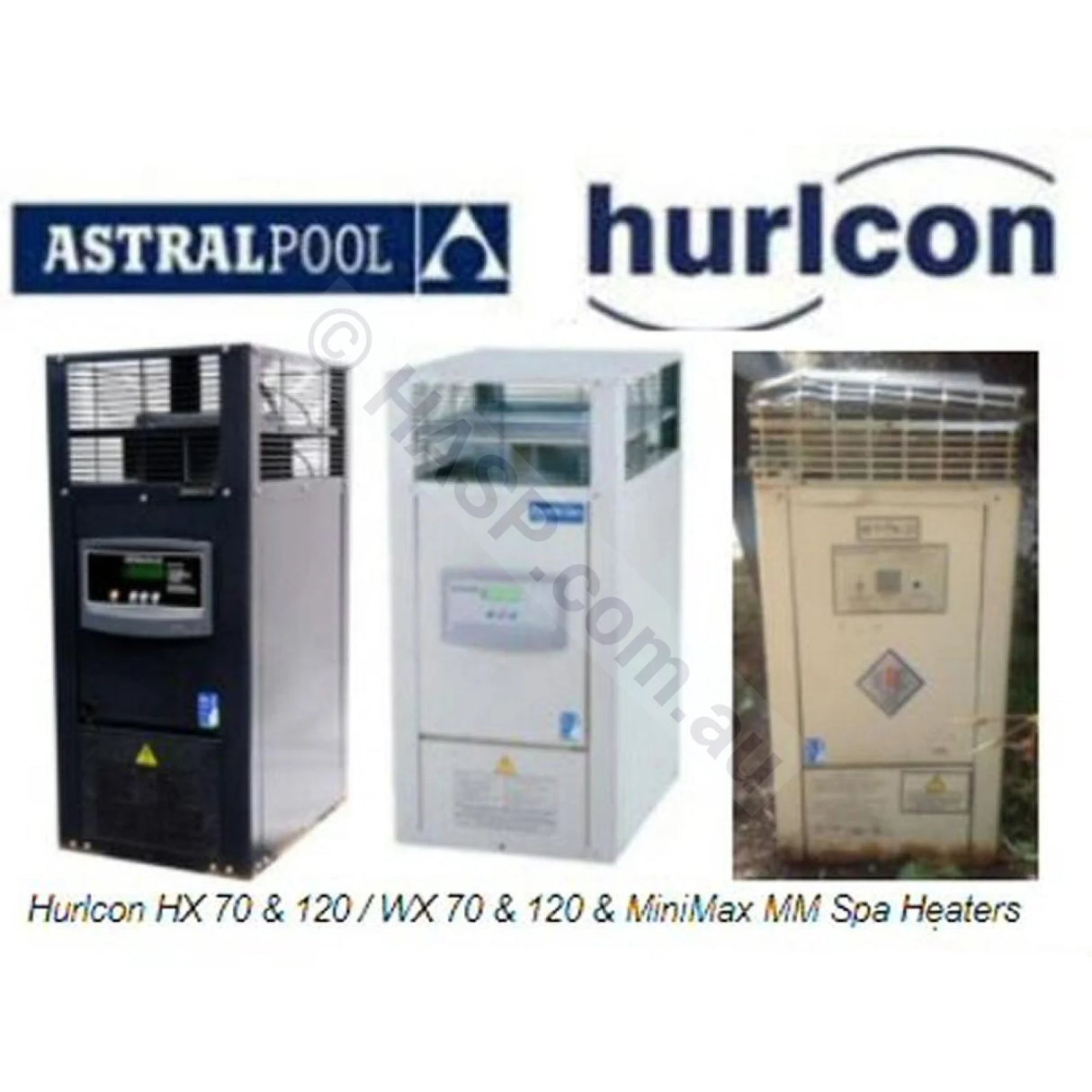

It directly replaces older Hurlcon HX120 in beige, HX150, HX 150, and all earlier HX and WX gas spa heater models. It also replaces older MiniMax, MX125, MX150, HiNRG175, Raypak Spartan 131, and Raypak Premium 109, 127, 167 units — making it the go-to upgrade option for legacy systems.

• Kept in stock at 10 Industry Blvd, Carrum Downs, VIC
• Call to Collect
• We are an Authorised Fluidra Dealer (AstralPool & Zodiac) with real physical stock and a real retail store — not a drop-shipper.
• Beware of unauthorised online resellers selling through websites, eBay, or apps. These are not authorised by Fluidra and may not include full warranty or support.
• Purchase from a genuine dealer with Australian warranty, after-sales service, and the largest HX parts range in Australia.

About the Hurlcon / AstralPool HX120

Gas heating remains the fastest and most reliable way to heat spas and small plunge pools. The HX120 delivers up to 25 kW of heating power with a gas input of ~110 MJ/h, achieving up to 83% thermal efficiency. It can raise 1,000 L of water by 20 °C in about 1 hour under ideal conditions.

The unit features a copper-nickel finned-tube heat exchanger, electronic ignition, and touch controls for precise temperature management. The compact cabinet and side plumbing layout allow a drop-in replacement for older Hurlcon HX/WX or Purex MiniMax heaters — no major re-plumbing required.

Key Features & Benefits

• Australian-made for Australian conditions
• Fast heat-up: ideal for spas used on-demand
• High-efficiency copper-nickel heat exchanger
• Digital touch controller with diagnostic display
• Natural Gas and LPG (Propane) compatible
• Electronic ignition – no standing pilot flame
• Compact and lightweight (25 kg)
• Outdoor standard, indoor conversion kits available
• Equivalent heating output to ~24 kW electric or ~35 kW heat pump (in cold weather)
• Designed for minimal maintenance and long service life

Performance & Heating Times – Raise Water by 20 °C*

• 1,000 L ≈ 65 minutes
• 1,500 L ≈ 78 minutes
• 2,000 L ≈ 95 minutes
• 2,500 L ≈ 110 minutes

*Actual time varies depending on ambient temperature, water starting temp, and insulation.

Technical Specifications

• Model: HX120 (Natural Gas or LPG)
• Heat Output: ~25 kW
• Gas Input: ~110 MJ/h
• Gas Consumption: ~2–2.2 kg LPG/hr | ~2.6–3 m³ Nat Gas/hr
• Efficiency: up to 83%
• Flow Rate: 150–300 L/min (needs bypass above 300 L/min)

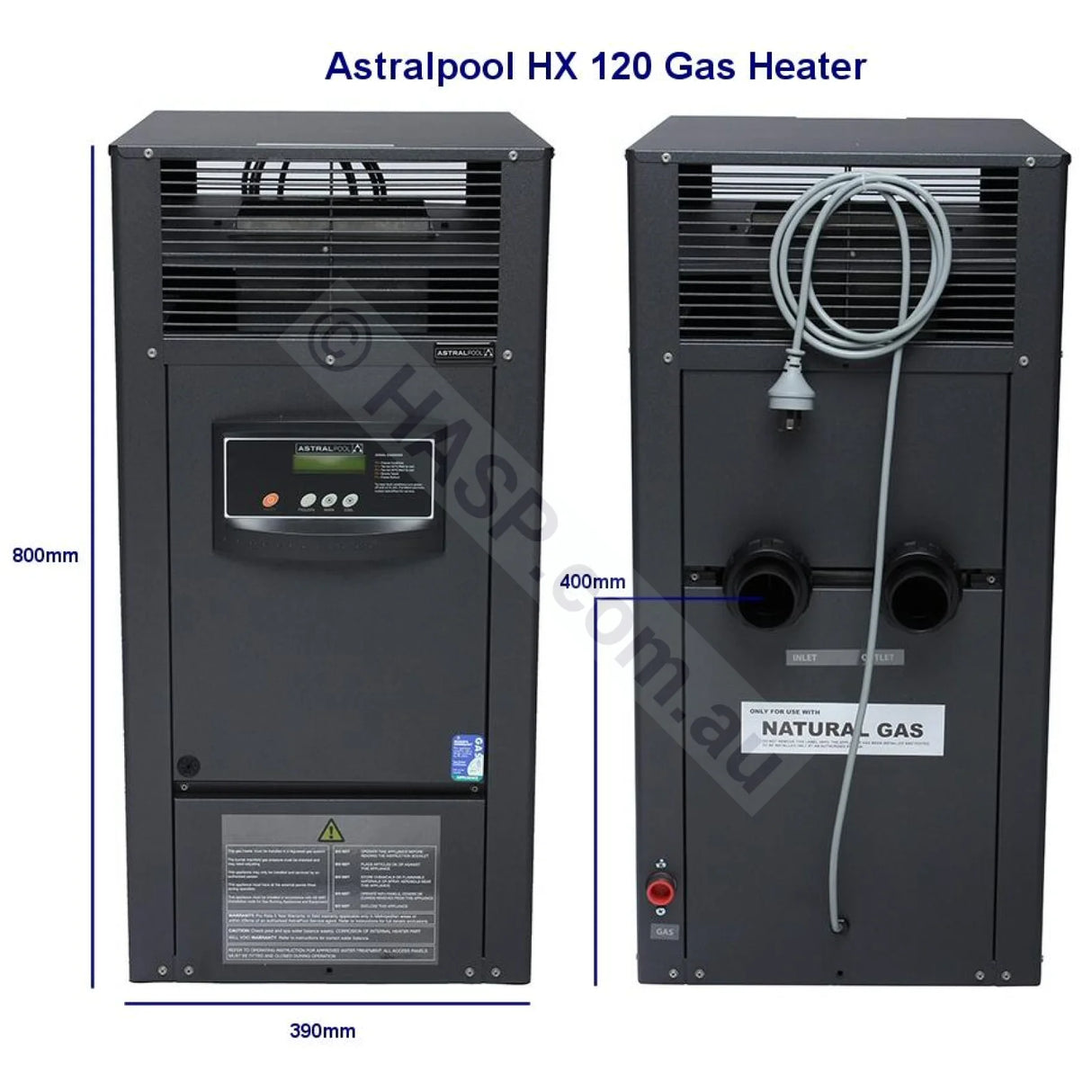

• Dimensions: 820 mm H × 390 mm W × 515 mm D
• Weight: ~33 kg
• Gas Connection: 20mm (1/2") BSP

Maintenance & Care

• HX heaters can last decades with proper maintenance – many units from the 1990s still run today.
• Maintain correct pH (7.2–7.6) and avoid low pH or excessive bromine/chlorine.

• Ensure good water flow and ventilation for efficiency and longevity.

Downloads & Resources

• HX Series Brochure (PDF)
• Installation & Operation Manual
• HX/WX Spare Parts
• Optional Remote Controller

---

Heater & Spa Parts – Australia’s largest authorised dealer for AstralPool and Hurlcon HX series heaters. We carry more spare parts, touchpads, controllers, and exchangers than anyone. Buy from a genuine source for full compliance with Australian standards, warranty coverage, and expert backup support.

---
