Genuine Pentair® Mastertemp HSI Igniter & Gasket Kit - 200, 300, 400

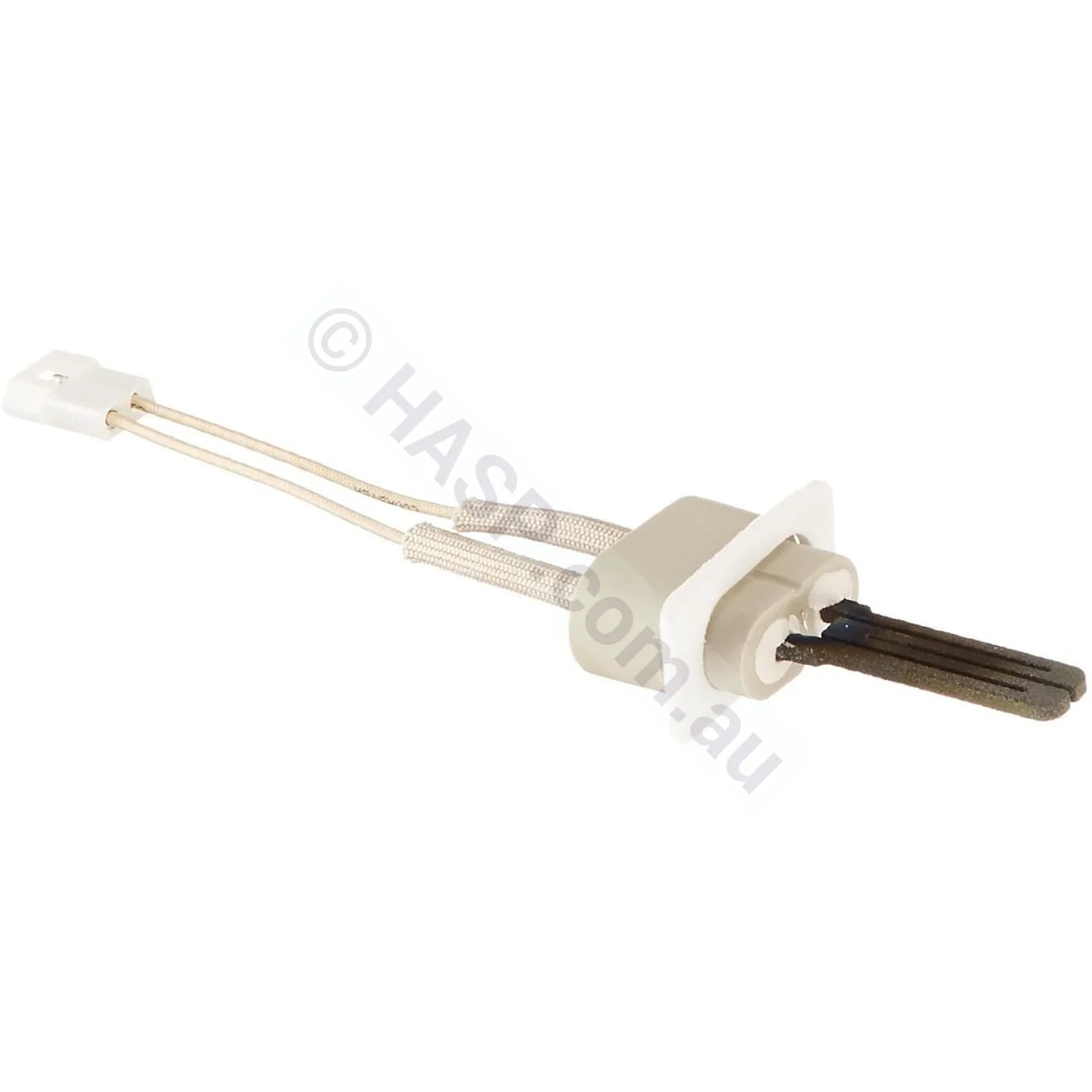

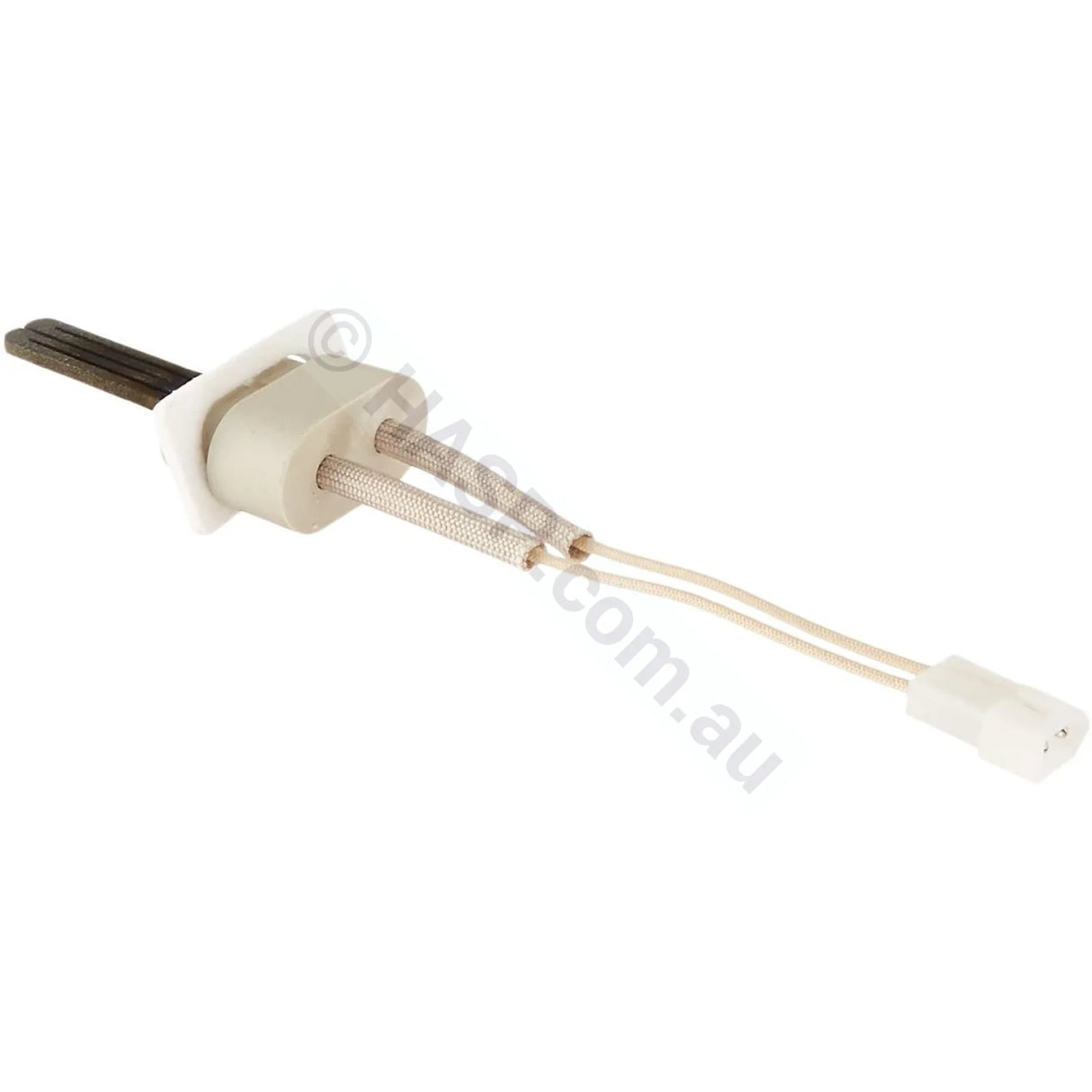

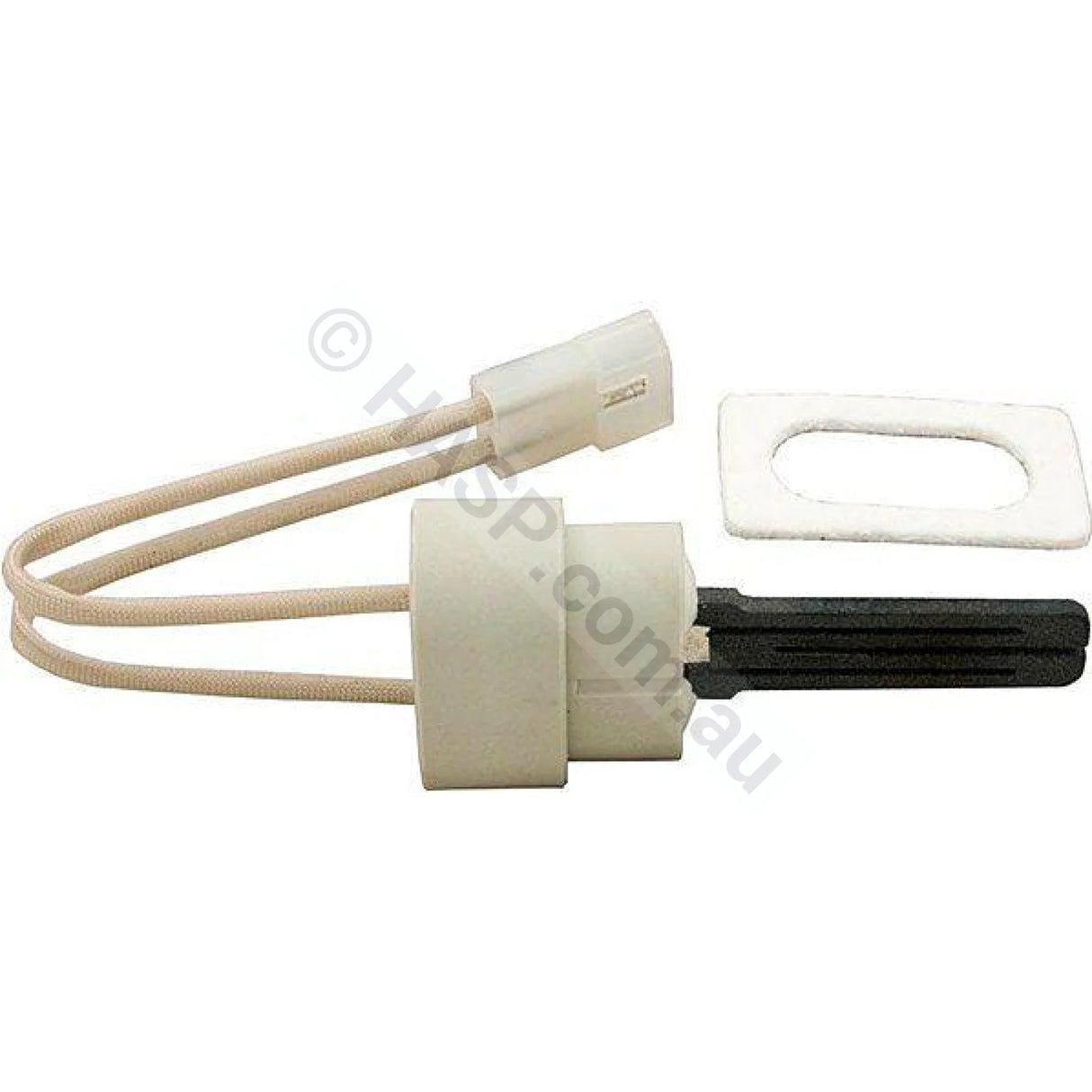

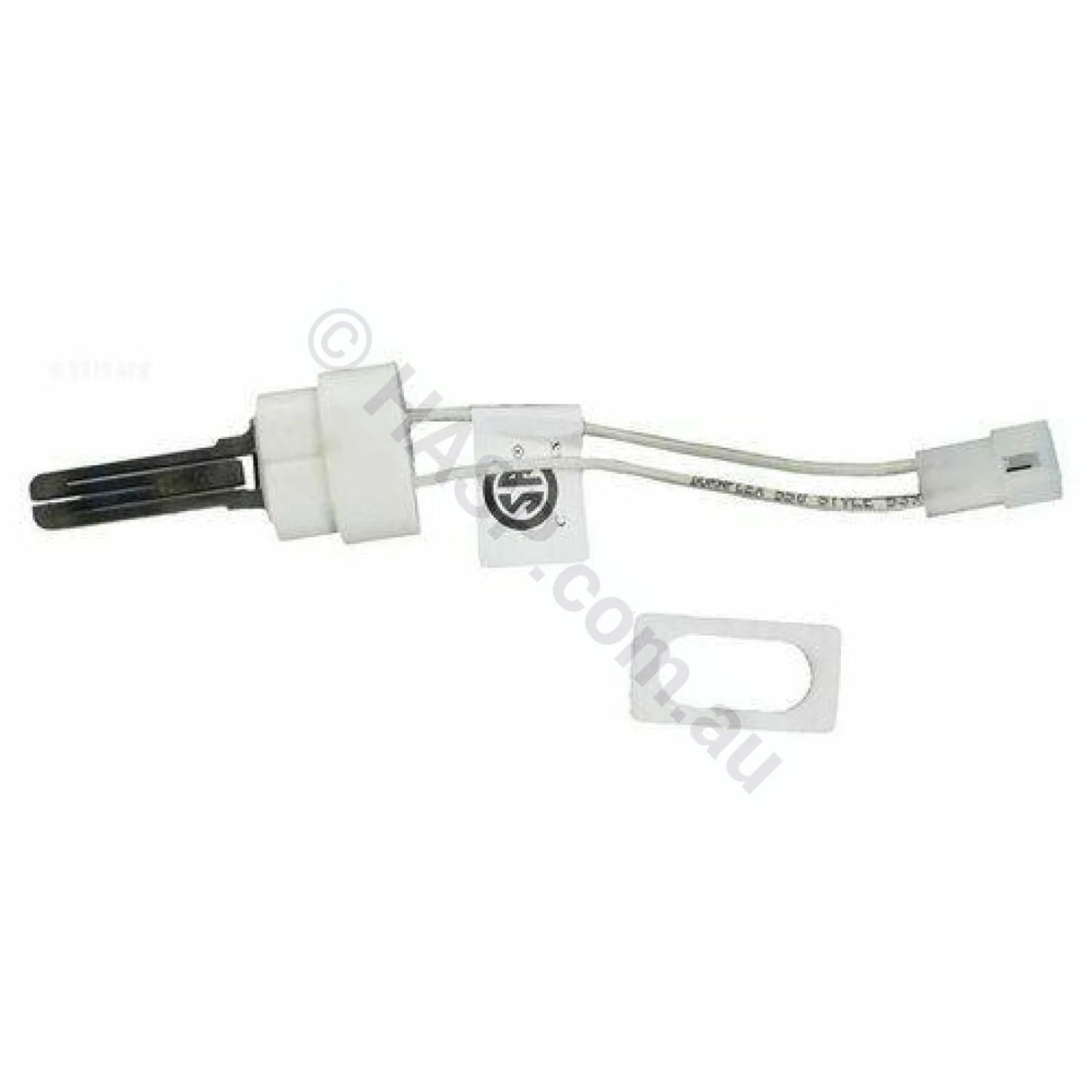

Genuine Pentair Mastertemp / Waterco Turbotemp HSI Igniter & Gasket Kit

GENUINE Igniter / Ignitor & Gasket Kit For Pentair Mastertemp, Waterco Turbotemp, Sta-Rite Max-E-Therm Gas Pool & Spa Heaters - 200 / 300 / 400 HD models.

• Physically Stocked, unlike most "drop-shipping" websites.
• Shipped from VIC, NSW, WA, QLD
• This is not a cheap, generic part found online. It is a genuine Pentair® OEM product.

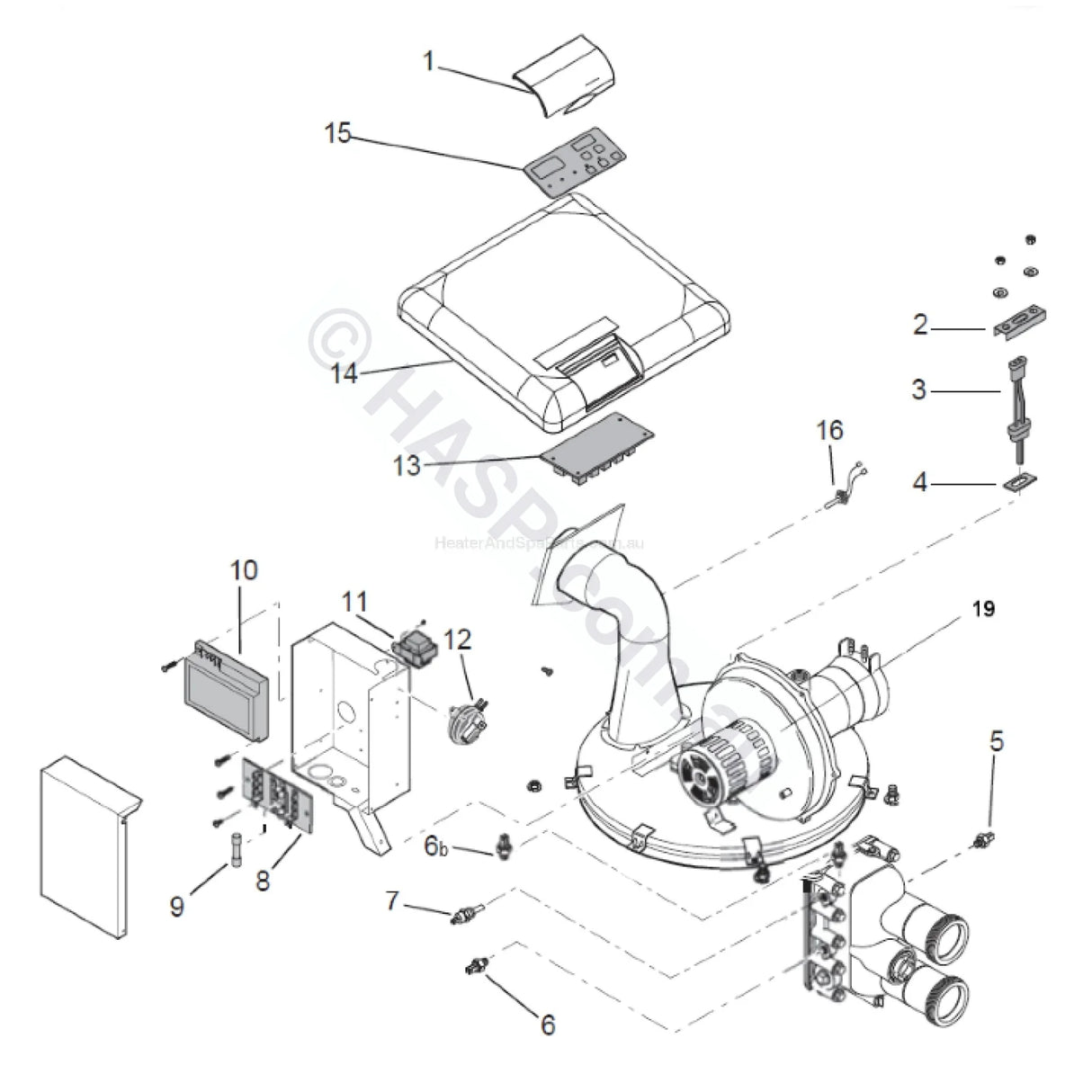

Numbers 2, 3 & 4 in the Diagram.

Important Notes:

• These igniters should test 50-500Ω. Note that generally, we replace igniters that measure over 90Ω, as anything higher suggests a fault.
• Cannot be returned for change of mind.
• These are fragile and easily broken. Each igniter is packed well, and inspected before posting.

Pentair Mastertemp / Waterco Turbotemp Electrical Parts List:

• 2. / 3. / 4. Igniter & Gasket Kit
• 5. AGS Switch 60°C / 140°F
• 6. HLS Switch 55°C / 131°F
• 6b. 45°C Switch
• 7. Thermistor / Temperature Sensor
• 10. Ignition Control Module
• 12. Air Flow Switch
• 13. Main PCB / Control Panel
• 15. Touchpad Membrane
• 16. SFS Sensor

Pentair Mastertemp, Waterco Turbotemp, Sta-Rite Max E Pro Error Codes:
Diagnostic LEDs / Error Messages & Causes:

• PS - Check / Replace Pressure Switch. Signifies flow issues.
• HLS - Check / Replace High-Limit Switch/es (faults above 45°C or 55°C) Signifies flow, bypass, governer issues, or other issues.
• AFS - Check / Replace Air Flow Switch. Signifies fan, air flow, or other issues.
• AGS - Check / Replace AGS Automatic Gas Shutoff Switch/es (faults above 60°C). Signifies flow, bypass, governer issues, or other issues. Can also be caused by a 45° Limit Switch on top of the manifold.
• SFS - Check / Replace SFS Stack Flue Sensor (faults above 249°C). High or Low Flue Temperatures are a sign of significant combustion issues, or other issues.
• E01 - Thermistor Fault. Replace Thermistor.
• E05 - General Fault. Needs service. This can be caused by several issues.
• Showing Incorrect Temperature - Replace Thermistor. Check all filters clean. If thermistor shows corrosion, water balance is poor.

77707-0054
