Pentair Mastertemp / Waterco Turbotemp AGS 60°C Switch - 140°F

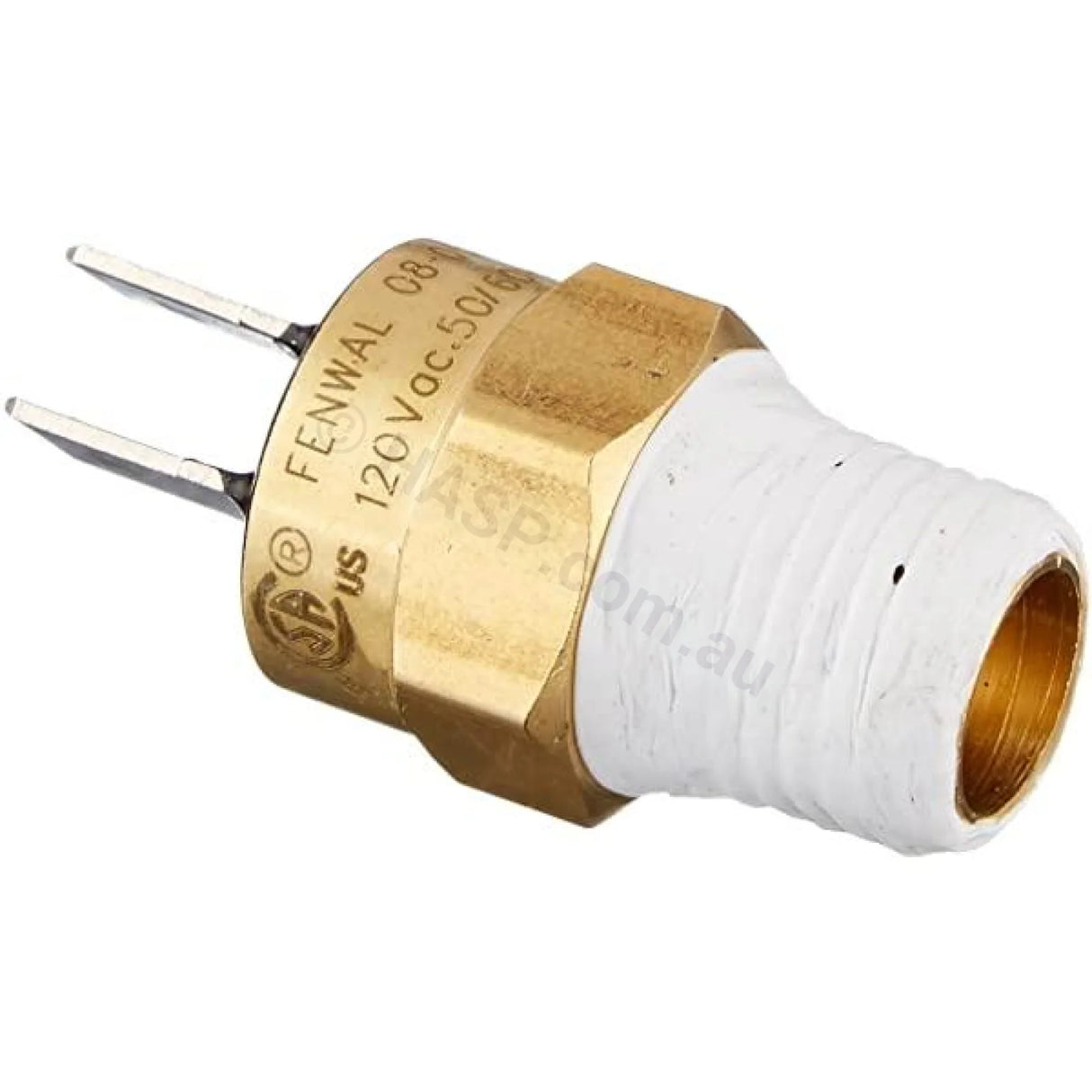

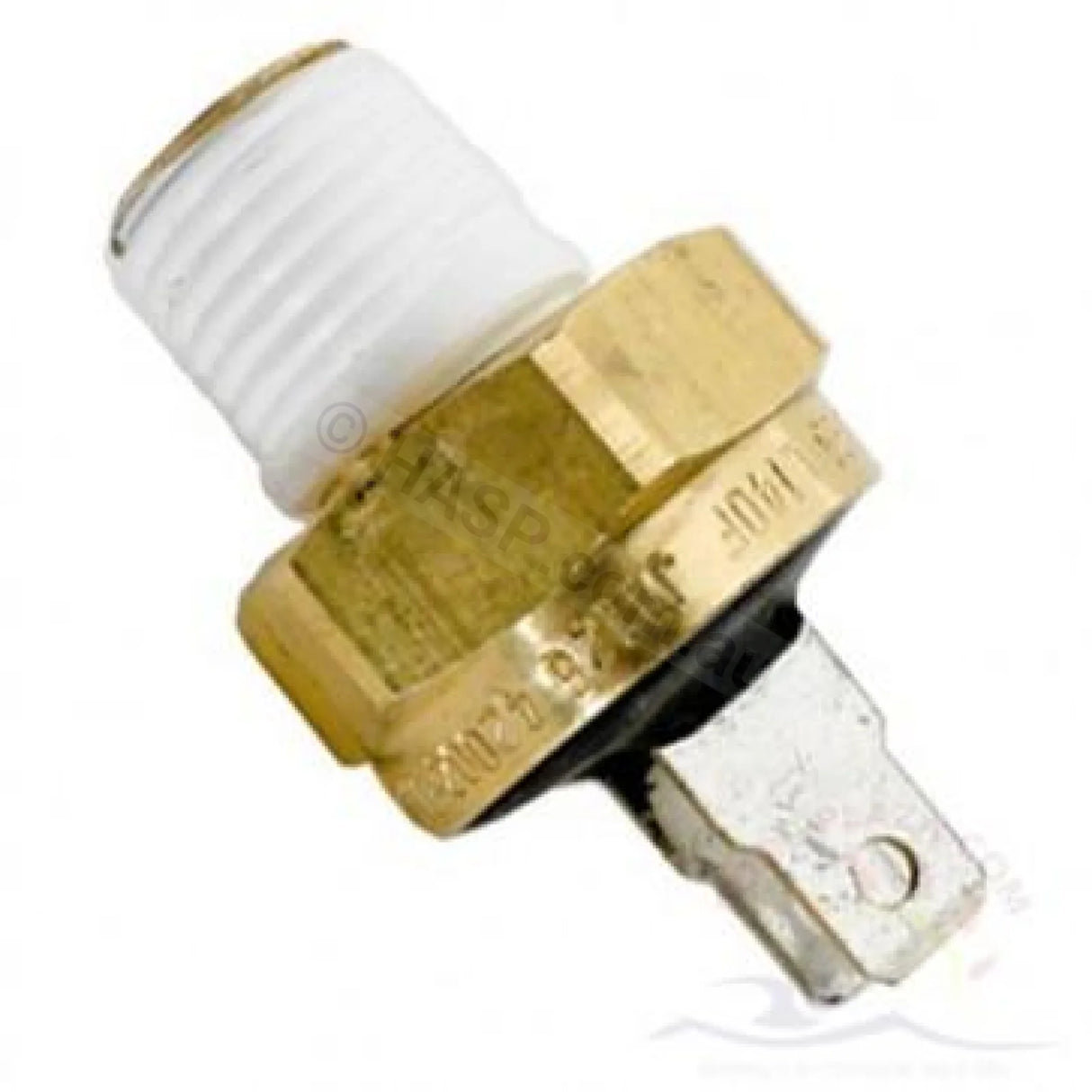

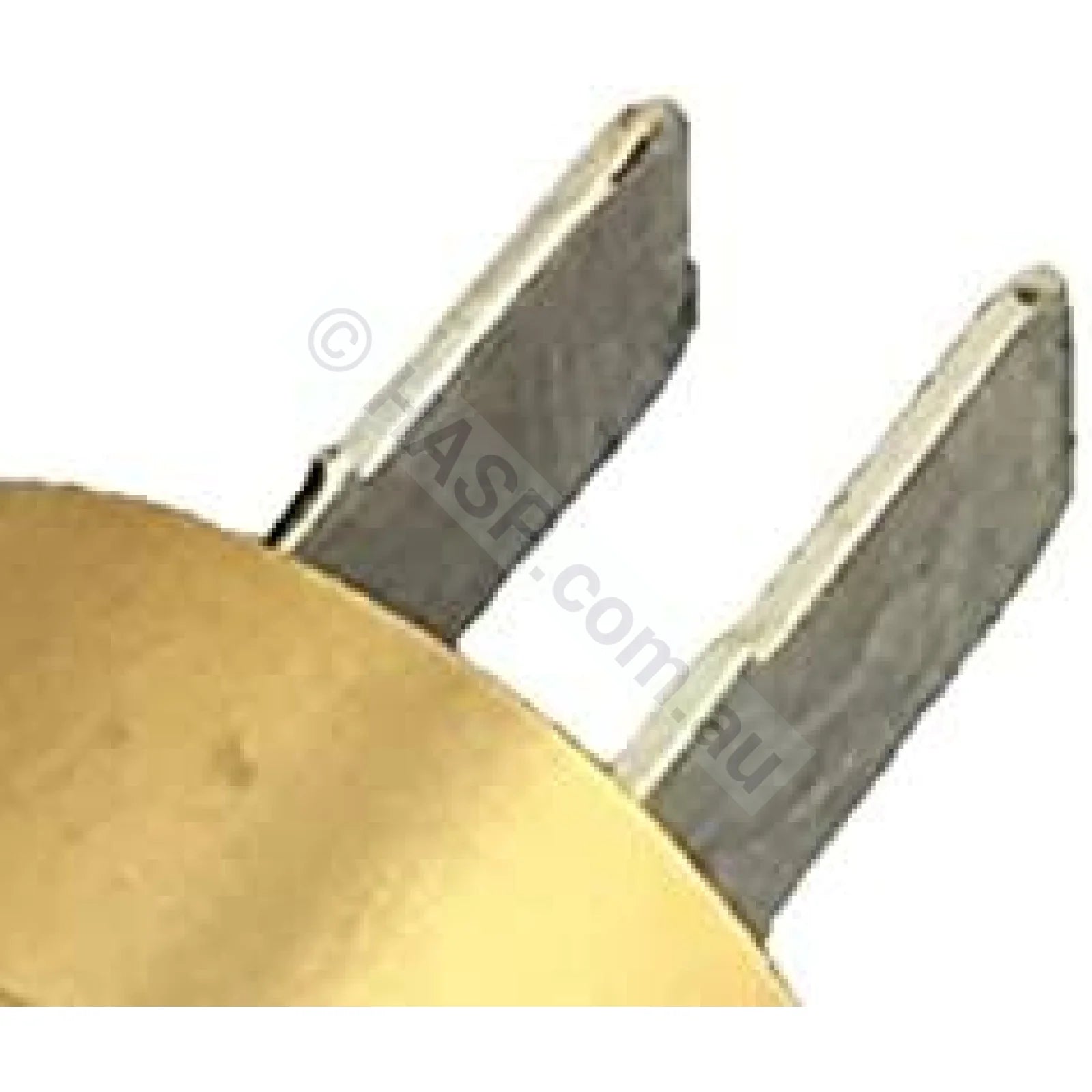

140°F / 60°C AGS Limit Switch for Pentair Mastertemp, Waterco Turbotemp, Sta-Rite Max-E-Therm Gas Pool & Spa Heaters - 200 / 300 / 400 HD models. Choose Number on Diagram for spare part and picture from the dropdown menu. Often corrode and cause an AGS fault. Number 5. in the Diagram.

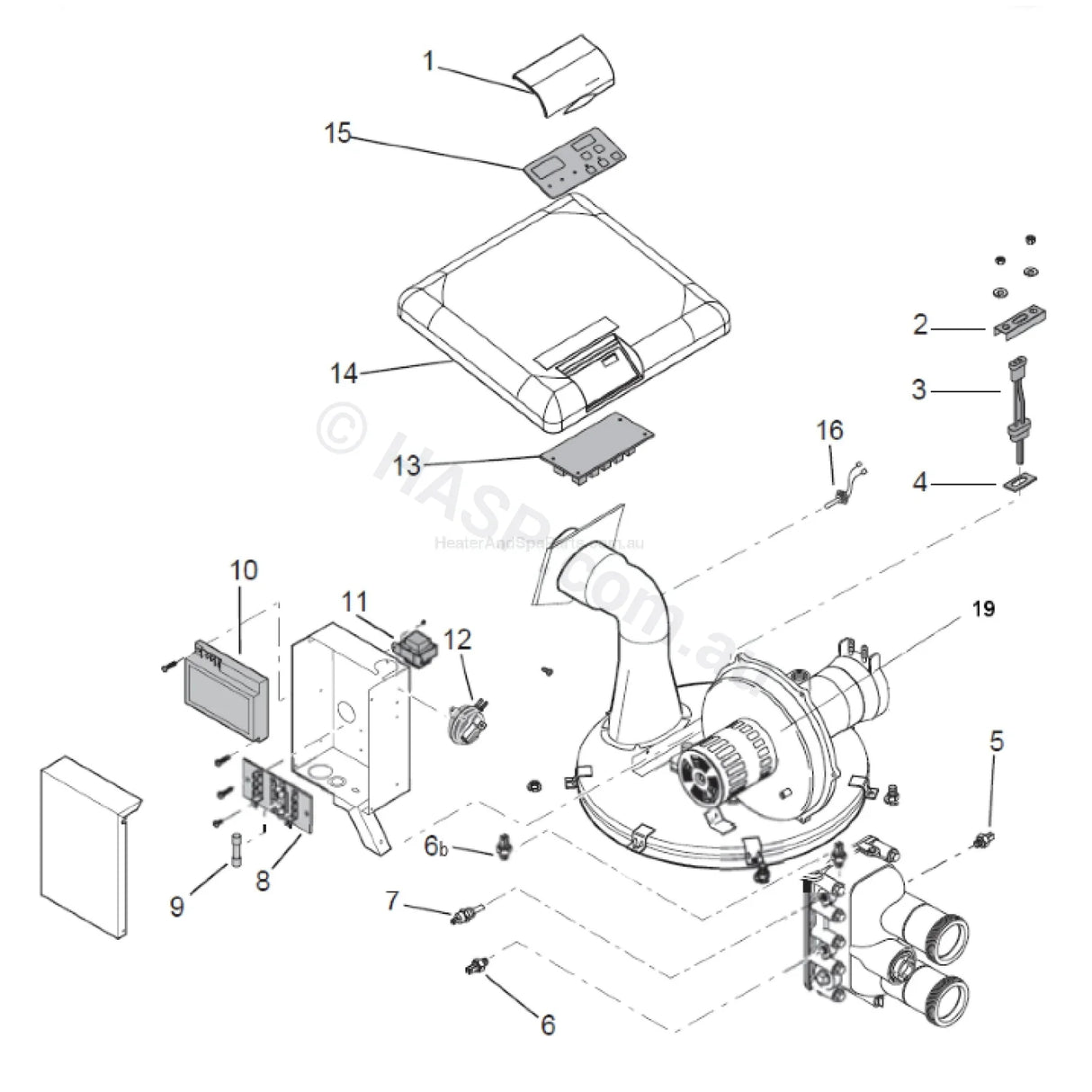

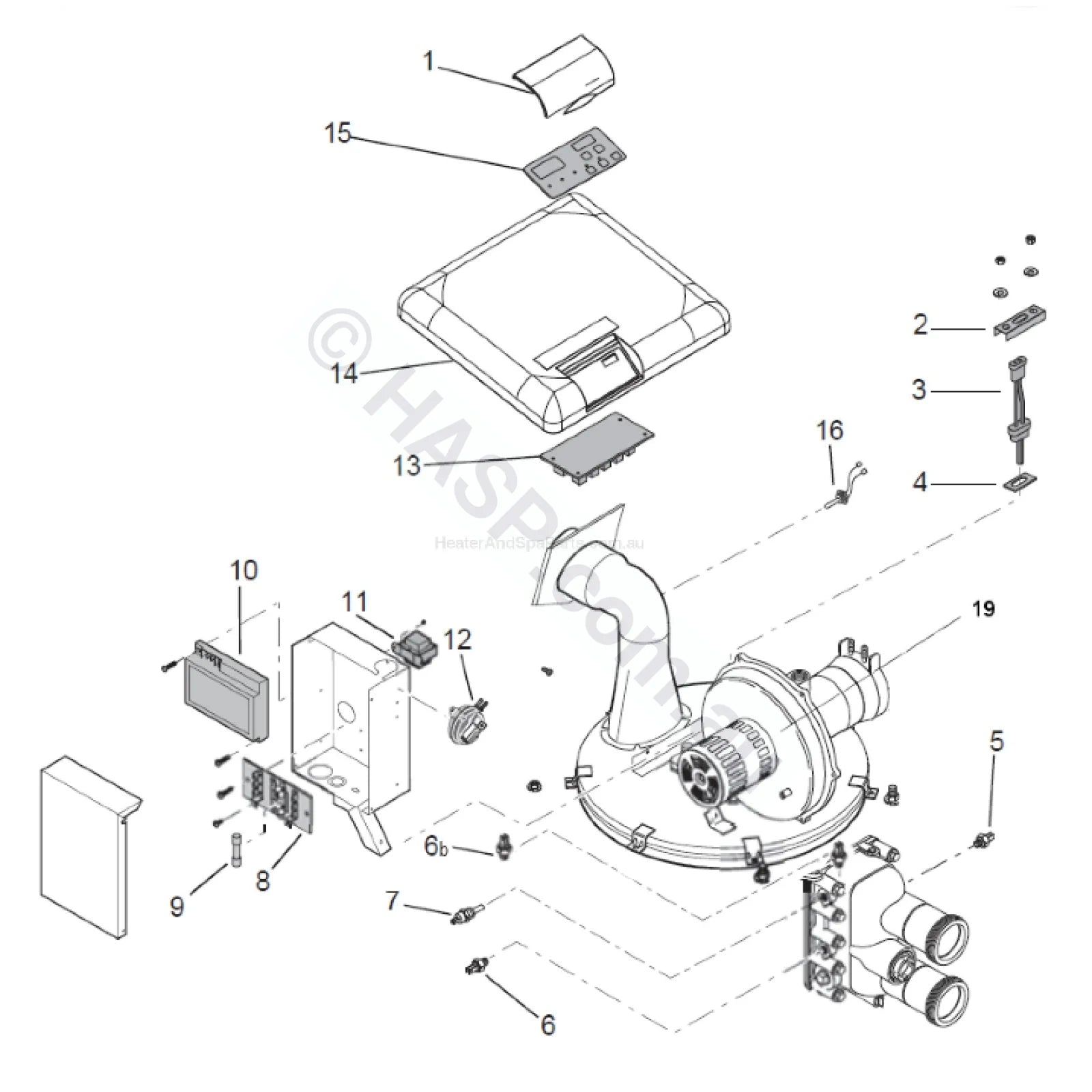

Pentair Mastertemp / Waterco Turbotemp Electrical Parts List:

• 2. / 3. / 4. Igniter & Gasket Kit
• 5. AGS Switch 60°C / 140°F
• 6. HLS Switch 55°C / 131°F
• 6b. 45°C Switch - OBSOLETE
• 7. Thermistor / Temperature Sensor
• 10. Ignition Control Module
• 12. Air Flow Switch
• 13. Main PCB / Control Panel
• 15. Touchpad Membrane
• 16. SFS Sensor

For other Pentair Mastertemp / Waterco Turbotemp spare parts, click the correct category below:

• Pentair Mastertemp Gas Heater Spare Parts - Water System
• Pentair Mastertemp Gas Heater Spare Parts - Burner System

Pentair Mastertemp, Waterco Turbotemp, StaRite Max E Pro Error Codes:
Diagnostic LEDs / Error Messages & Causes:

• PS - Check / Replace Pressure Switch. Signifies flow issues.
• HLS - Check / Replace High-Limit Switch/es (faults above 45°C or 55°C) Signifies flow, bypass, governer issues, or other issues.
• AFS - Check / Replace Air Flow Switch. Signifies fan, air flow, or other issues.
• AGS - Check / Replace AGS Automatic Gas Shutoff Switch/es (faults above 60°C). Signifies flow, bypass, governer issues, or other issues. Can also be caused by a 45° Limit Switch on top of the manifold.
• SFS - Check / Replace SFS Stack Flue Sensor (faults above 249°C). High or Low Flue Temperatures are a sign of significant combustion issues, or other issues.
• E01 - Thermistor Fault. Replace Thermistor.
• E05 - General Fault. Needs service. This can be caused by several issues.
• Showing Incorrect Temperature - Replace Thermistor. Check all filters clean. If thermistor shows corrosion, water balance is poor.
