S&P Spa Bath Suction w/ Male Thread - 3 Screws - 40mm glue in or 50mm Male Thread

FREE SHIPPING OVER $149 (T&Cs)

$30.00 $34.00
Tax included Shipping calculated at checkout.

Don't Guess - Ask Us!

Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.

Delivery and Shipping Info*

Free Shipping over $99 for most products. Choose Express Post for fastest shipping!

Free, Flat Rate & Express Post Shipping Information.

S&P Spa Bath Suction w/ Male Thread - 3 Screws - 40mm glue in or 50mm Male Thread

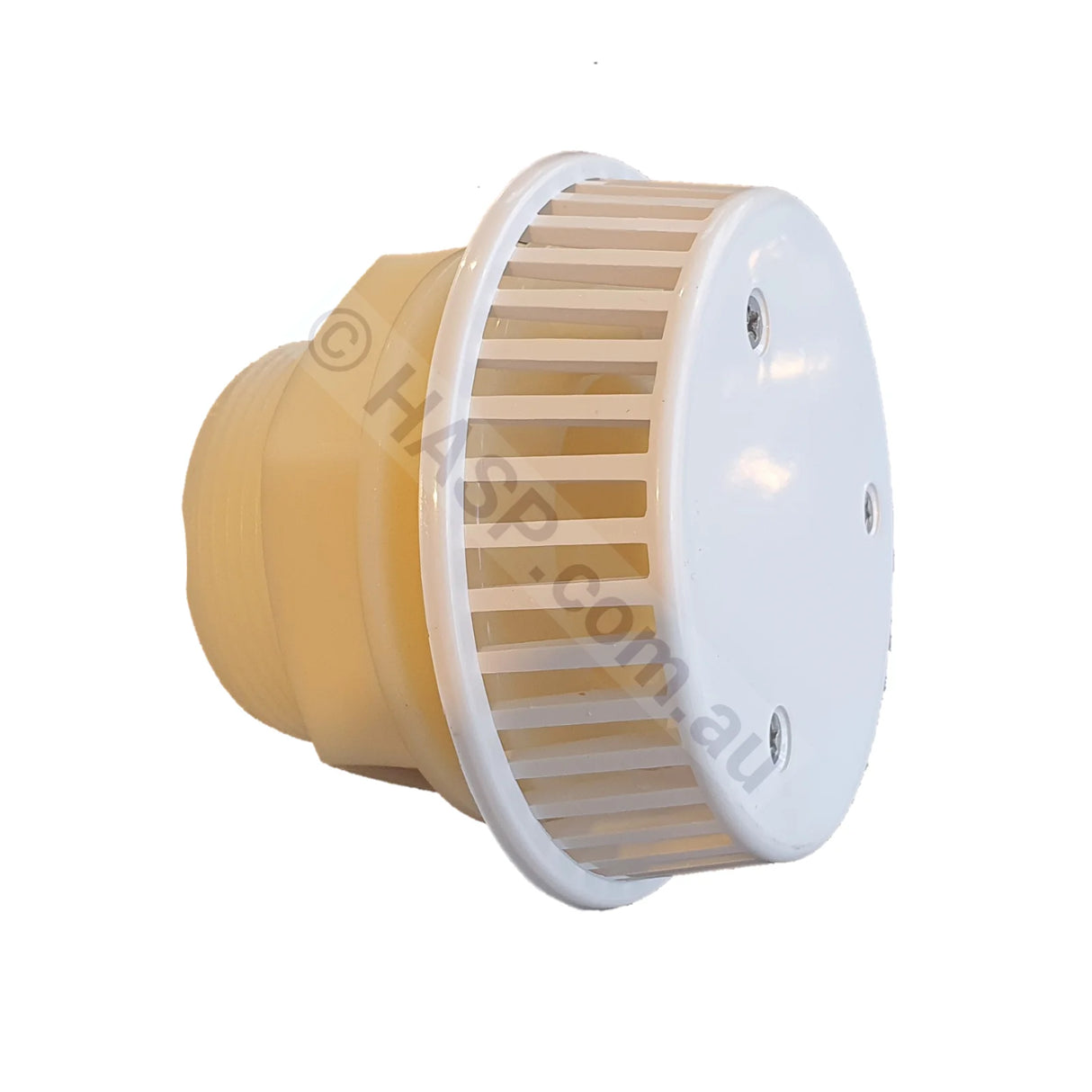

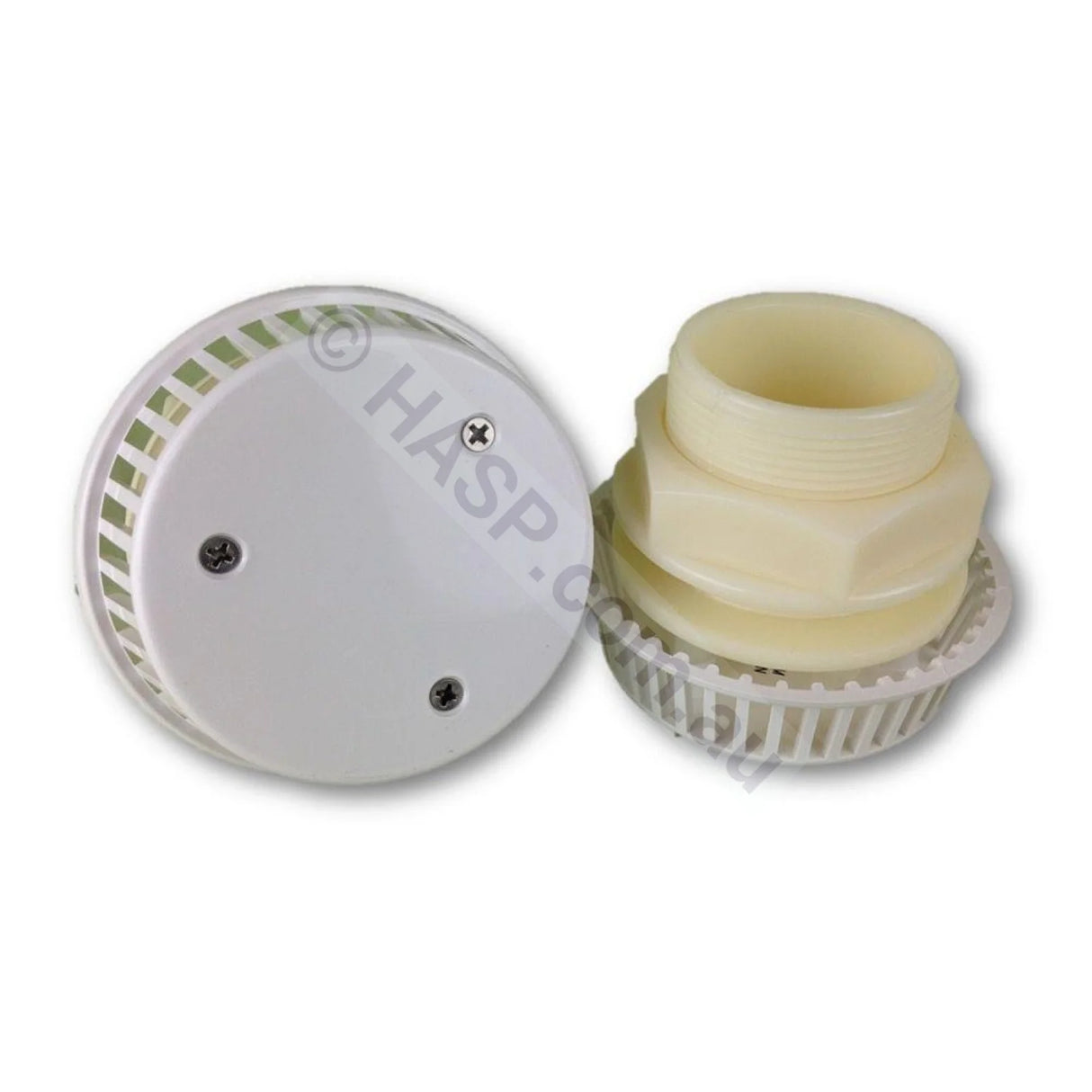

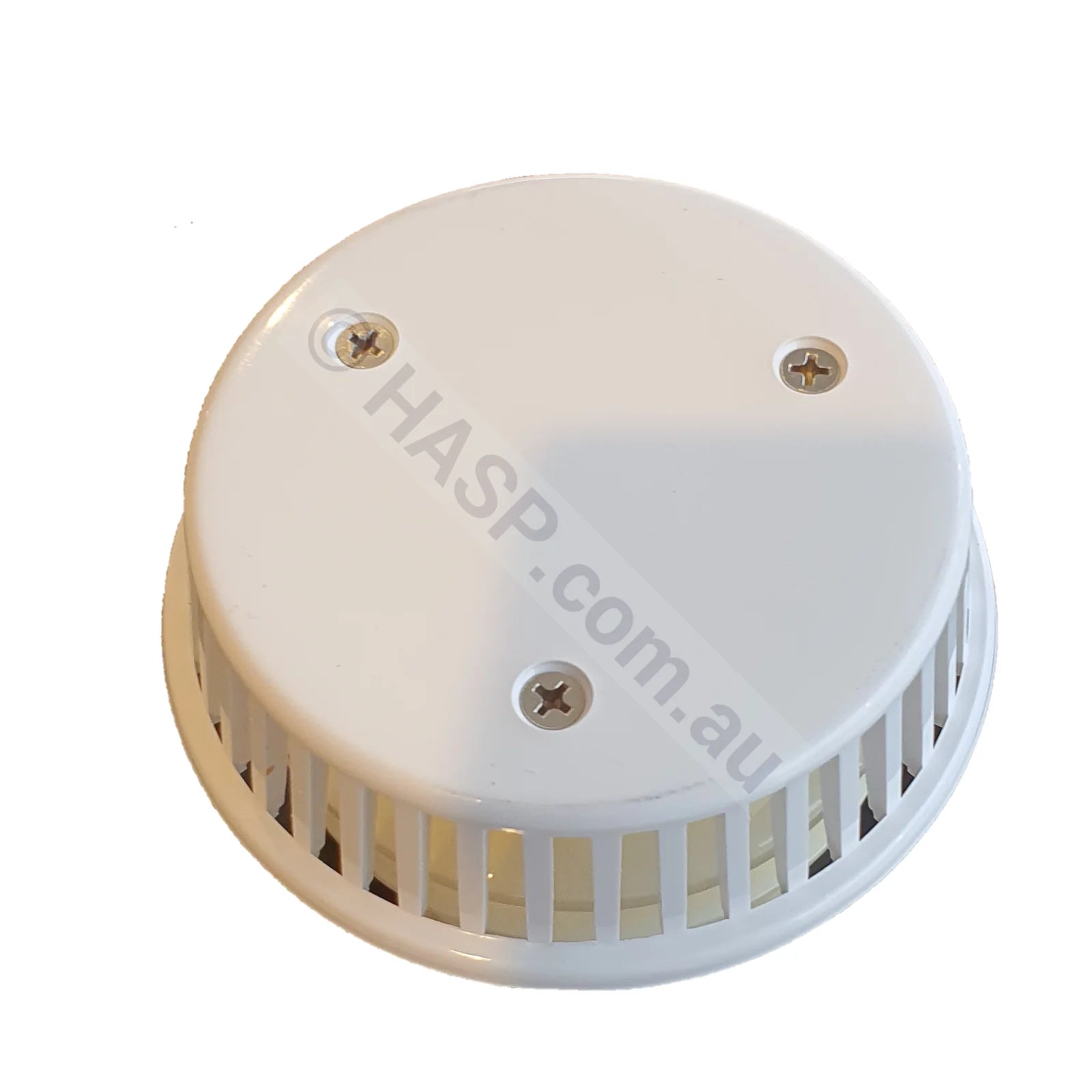

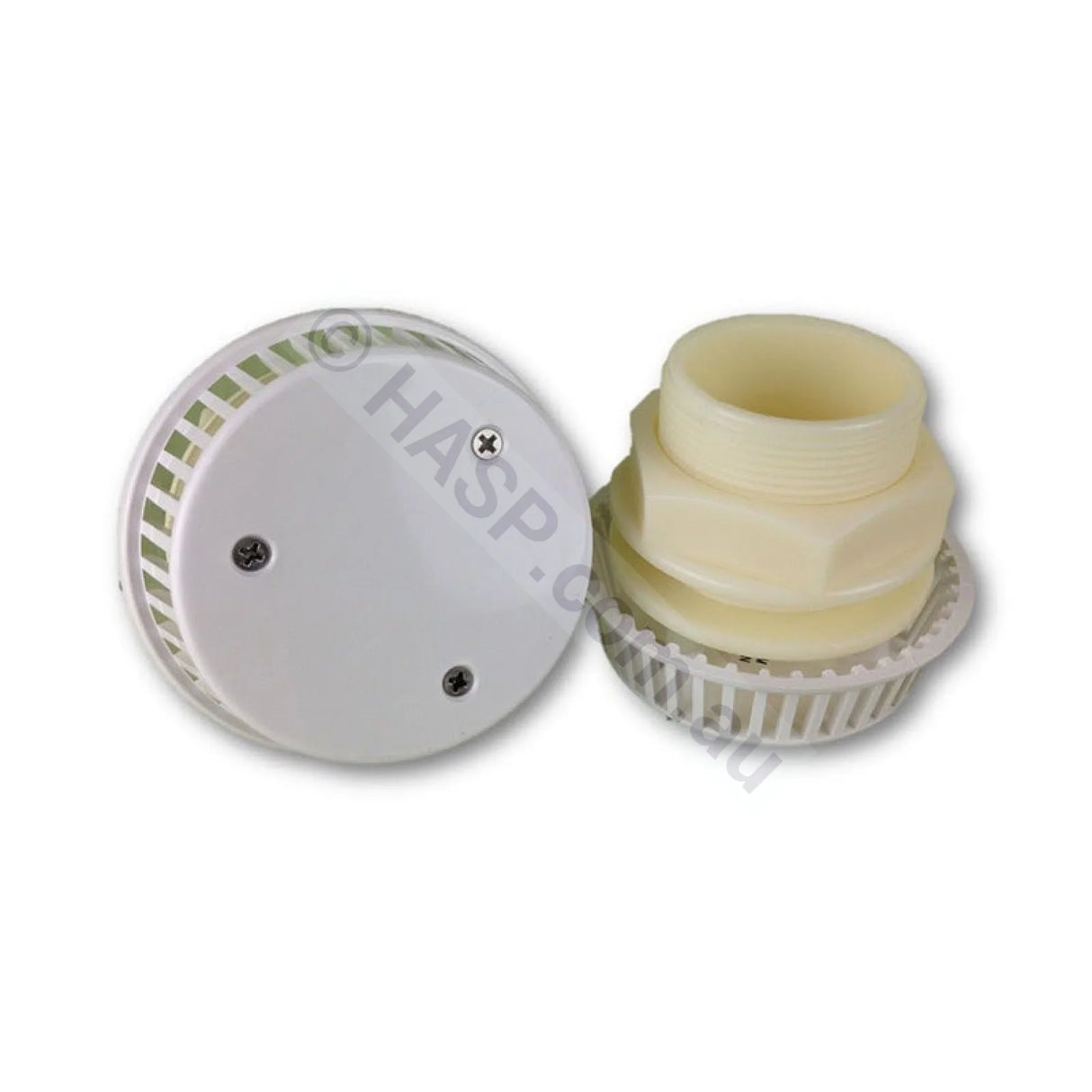

S&P spa bath suction. Replaces older Chrome, Gold, and Plastic spa bath suction covers with 3 screws. Uses 40mm slip fit. 40mm pressure PVC pipe glues into this or uses 50mm male thread (~59mm OD) into a BSP socket. Replaces many spa bath suctions. Replaces both plastic and metal suction covers with 3 screws from S&P and Onga. Sold individually.

  • Physically Stocked, unlike most "drop-shipping" websites.
  • Shipped from VIC, NSW, WA, QLD

S&P Supa Suction:

  • 48mm ID slip (40mm pipe) and ~59mm OD male thread w/ Locking Nut
  • 85mm / 100mm OD faceplate diameter
  • 27.5mm thick (cover itself)
  • Cover screws are 49-50mm apart
  • Hole size required: ~59mm
  • Max flow rate: 192 LPM
  • Comes as a complete part. Cover can be unscrewed from base to replace older covers. Cover not available separately.

May be used to replace threaded Davey Aquaselect suction covers that are no longer available.

wc-ASF523, ASF523, wcasf523, ASP211, ASF579

Payment & Security

We accept: Visa, Mastercard, Amex, Apple Pay, Google Pay, ShopPay, Paypal, Zip, Afterpay

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WC-ASF523

Important Information
Brand Information

We are an authorised dealer, retailer, and/or service & warranty agent for many leading brands, including: Fluidra (AstralPool, Zodiac, Hurlcon), Aeware, Air Supply of the Future, Aqua-Flo, Balboa, Celsior, CG Air, CMP, Custom Moulded Products (CMP), Darlly, Davey, Del Ozone, Dontek, Edgetec, Emaux, Filtrite, Gecko, Goulds, Harwil, Henden, Herga, Honeywell, HydroAir, HydroQuip, ITT, Jandy, Joyonway, Laing, Len Gordon, Lo-Chlor, LX, LX Whirlpool, Magic Plastics, Magnum, Monarch, Onga, Pentair, PoolSystems, Presair, Raypak, Reemay, Rheem, Rising Dragon, S&P, Sensaheat, Spa-Craft, Spa-King, SpaNet, Spa-Quip, SpaTex, SpaZazz, Tecmark, Therm Products, Thermcore, Waterco, Waterway, Weld-On, Whirlpool, Xylem, and others.

We also sell parts for many spa and swim spa brands, including parts to suit Alpine Spas, Artesian Spas, AquaPulse Spas, Balboa spas, Bullfrog Spas, Caldera Spas, Canadian Spa Company, Cedar Spas, Chinese import spas, Coast Spas, Costco spas, Cyclone Spas, Davey spas, Decina, Designer Spas, Dimension One Spas, eBay spas, Endless® Spas, Fastlane Pools, Fisher Spas, Gecko spas, Halo Spas, H2O Spas, H20 Spas, Heritage Spas, HotSpring Spas, HydroQuip spas, Impact Spas, Jacuzzi, Just Spas, Just Swim Spas, LA Spas, Lanark Spas, Leisurite Spas, Maax Spas, Monarch Spas, MySpa, O2 Spas, Oasis, Sapphire Spas, Sapphire Swim Spas, SCS Spas, Signature Spas, Silver Spas, Spa Industries, Spa-Quip spas, SpaNet spas, Spas Direct, Sundance Spas, Sunrans, SwimEx, Trueform Spas, Tuff Spas, Urban Pool, Vortex®, Vortex® Swim Spas, and many others.

Important Information Links

Shipping Policy & Info | Terms of Service | Returns Policy | Warranty Info | Zero Abuse Policy

Contact Us

  • Handy PVC Plumbing Size Info

    Plumbing sizes can be confusing. Pressure PVC pipe use nominal sizes - the size is simple a name, not the measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.

    • 50mm / 2" = ~60-61mm OD
    • 40mm / 1.5" = ~48mm OD
    • 25mm / 1" = ~33-34mm OD

  • Plug Types & Styles

    Common plug types found on spa equipment are AMP, Mini JJ, C38 (Aus 3-pin), Gecko in.link, etc. For more information please click here.

    • AMP plugs are the most common type used for over 20 years.
    • Many Mini J&J plugs are no longer available and must be modified.
    • C38 is the common Australian 3-pin plug found in normal household outlets.
    • Gecko (Aeware) in.link style plugs are no longer available and must be modified.
