Basic Spa Retrofit Kit - 1 or 2 Pump System - SpaNet Mini Retrofit Kit - Modular

Basic Spanet Retrofit Spa Kits for 1 or 2 pump systems.

We recommend fitting a 2-speed pump where possible to save on running costs, as when heating & filtering the pump uses half the power of a 1-speed pump. WiFi can be added to this system for even more power savings. Supplied with standard plumbing fittings to suit 50mm pressure pipe for 2-speed pump and heater, while the 1-speed pump uses 40mm pressure pump.

Requires replumbing & electrical work. To be fitted by qualified persons.

Add heater size amperage + pump amperage as a guide to how many amps you need to run (eg: 1.5kW heater (3.8A) + 1.5HP 2-Speed Pump (2A) = 5.8A on low speed. Note the amperage usage is a rough guide only. Consult with electrician for more info.

While heating in load-shed mode, a 2-speed pump will run at Low Speed using less power.

Technical Manual

These Kits Can Control (Max 25A Total Load):

• One 1-Speed Pump or
• One 1-Speed Pump & One Air Blower or
• Two 1-Speed Pumps or
• One 2-Speed Pump & One 1-Speed Pump or
• One 2-Speed Pump & One Air Blower

Options:

• Pump Optionss: 1HP 1-Speed Pump (LX), 1.5HP 2-Speed Pump (LX), 2.0HP 2-Speed Pump (Spatex/ LX),2.5HP 2-speed Pump (Spatex/LX), 3.0HP 2-Speed Pump (Spatex/LX)
• Heaters: 1.5kW, 2.0kW, 3.0kW

Comes With:

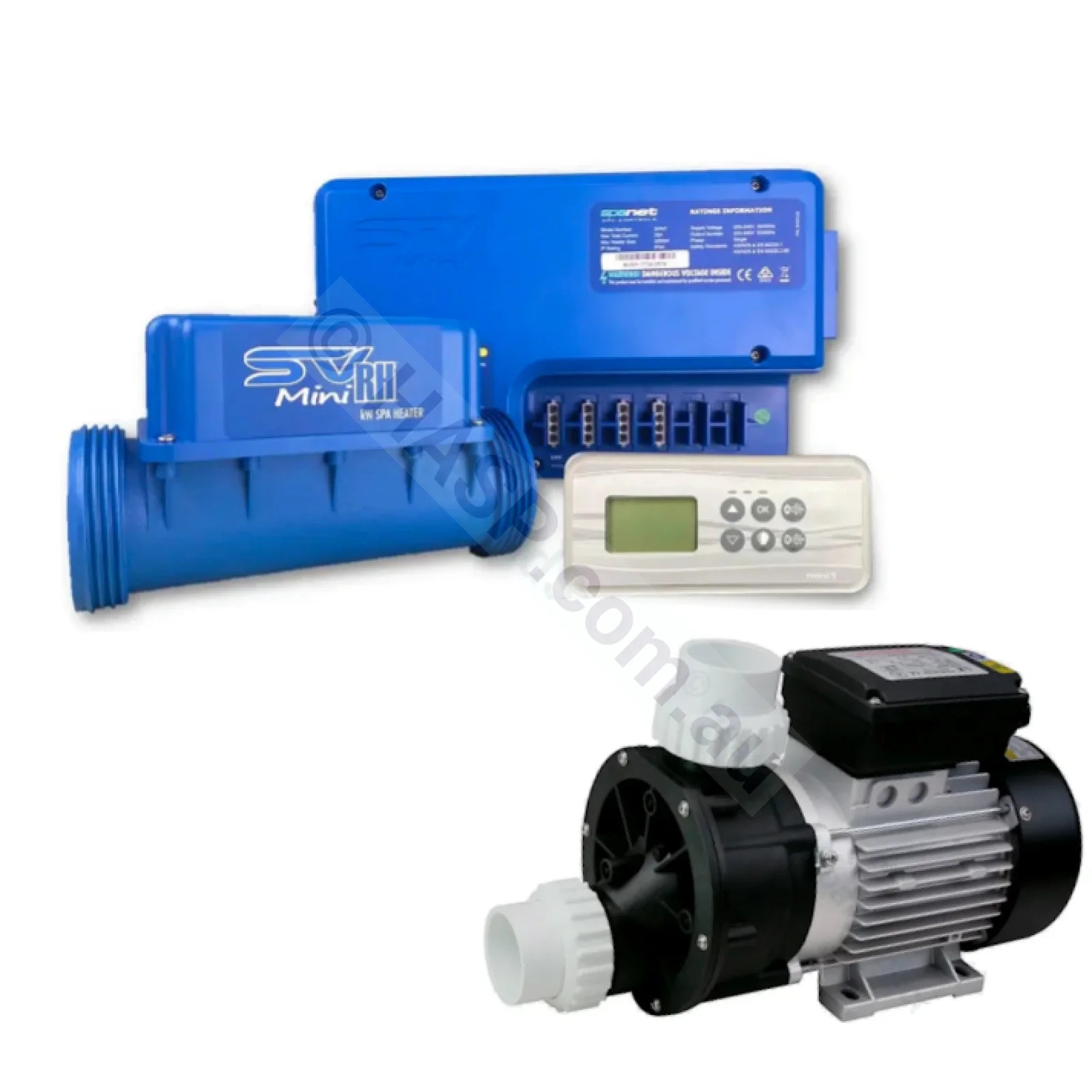

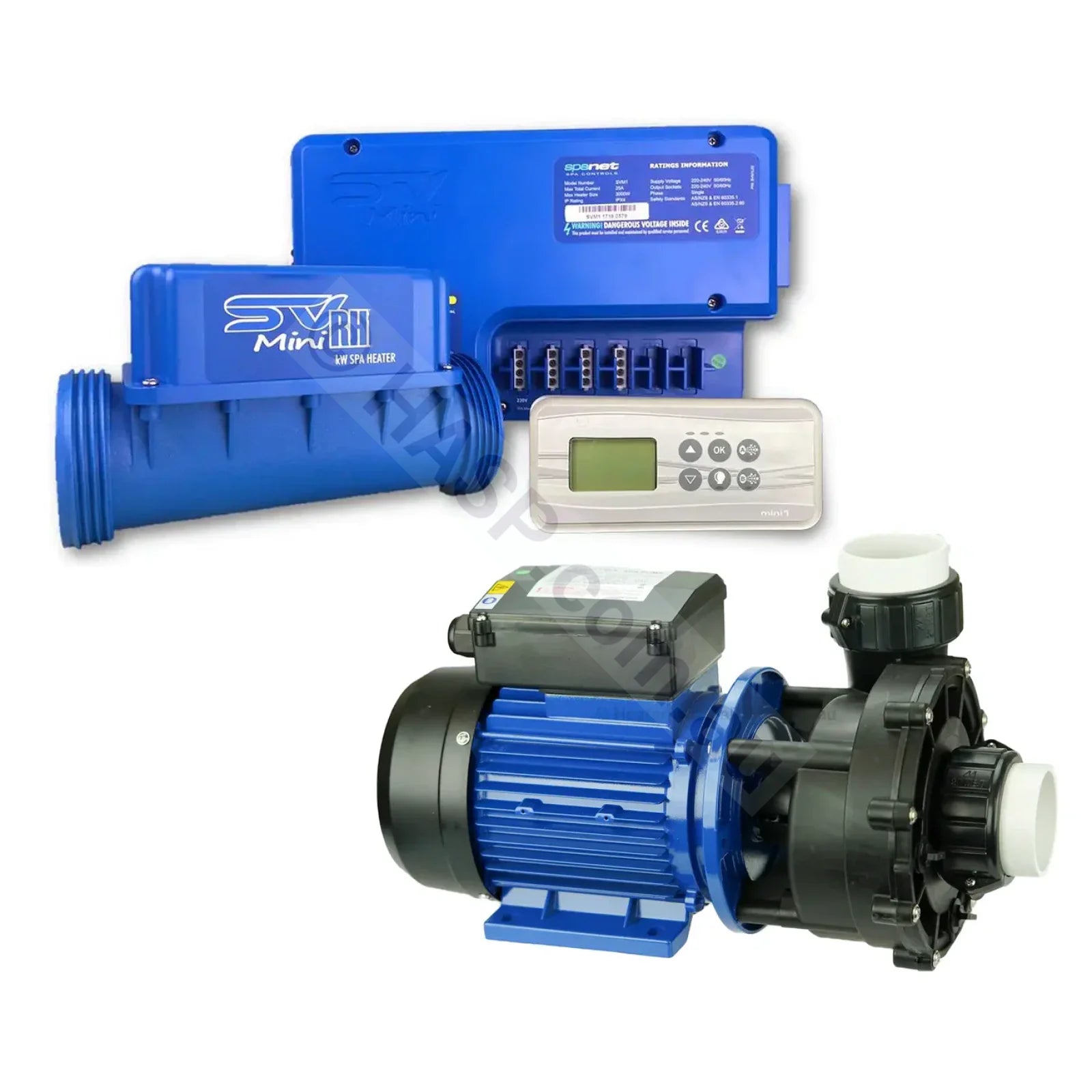

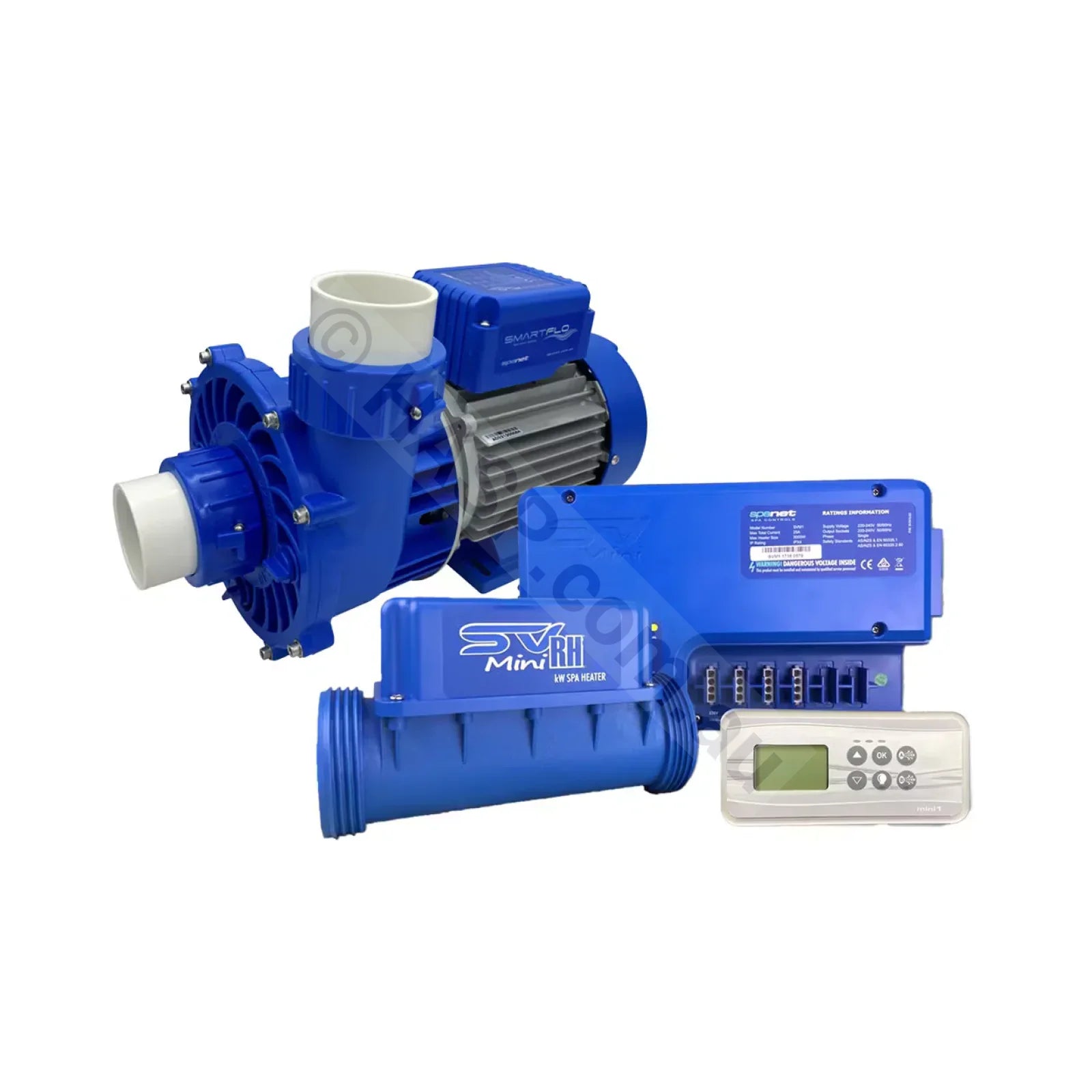

• Control Box, Pump, Heater, Plumbing Unions, Touchpad, and lead for pump & heater.
•  Choose Add-ons for light, touchpad hole adaptor, extra leads, etc.

About the SpaNet Mini 1 Controller:

The SpaNet Mini 1 has become one of the most popular retro-fit spa control systems due to it's simple, modular system. It comes with a Control box, Touchpad, Heater. It also has a spare outlet should you wish to fit an Ozone / UV system such as the Ultrazone.

Each part of the SpaNet Mini 1 can be replaced in the future. (Eg: Heater, Touchpad, Light, etc) rather than a complete system replacement.

It also has the ability to add a WiFi module so your spa can have even more Power-Saving features, and can be controlled from anywhere using a Mobile Phone or Tablet.

Great Replacement System for:

• Onga Spa Master 4352 / 4353 / 4395
• Onga Director
• Davey XS HG
• Davey Xcelsior
• Waterco Portapac
• Ampac Pulsar
