Edgetec / Decina 1.0HP Xtra-Heat w/ Air Switch - Spa Bath Pumps - Triflo

Edgetec / Decina 1.0hp Triflo 750 Xtra-Heat w/ Air Switch - Spa Bath Pumps. Air Switch operated, pump is fitted with a 700watt stainless steel heater element. TF075-XH-50-HF

MULTI PORTS: can be plumbed as a top or front discharge plump.

AIR BLEED: Air Bleed can be activated any time should air locking occur, the air bleed has an o'ring seal to ensure positive sealing once air has been expelled.

Details / Models / Replaces:

• Edgetec / Decina Xtra-Heat 1.0hp
• E-6101 - TF075-XH-50 / TF075-XH-50-HF
• E-6201 - DC075-XH / DC075-XH-50-HF
• Also replaces the following obsolete models:
  • E-6107: TF060-XH-50 / TF060-XH-50-HF (0.8hp w/ 700w heater)
  • E-6207: DC060-XH-50 / DC060-XH-50-HF (0.8hp w/ 700w heater)

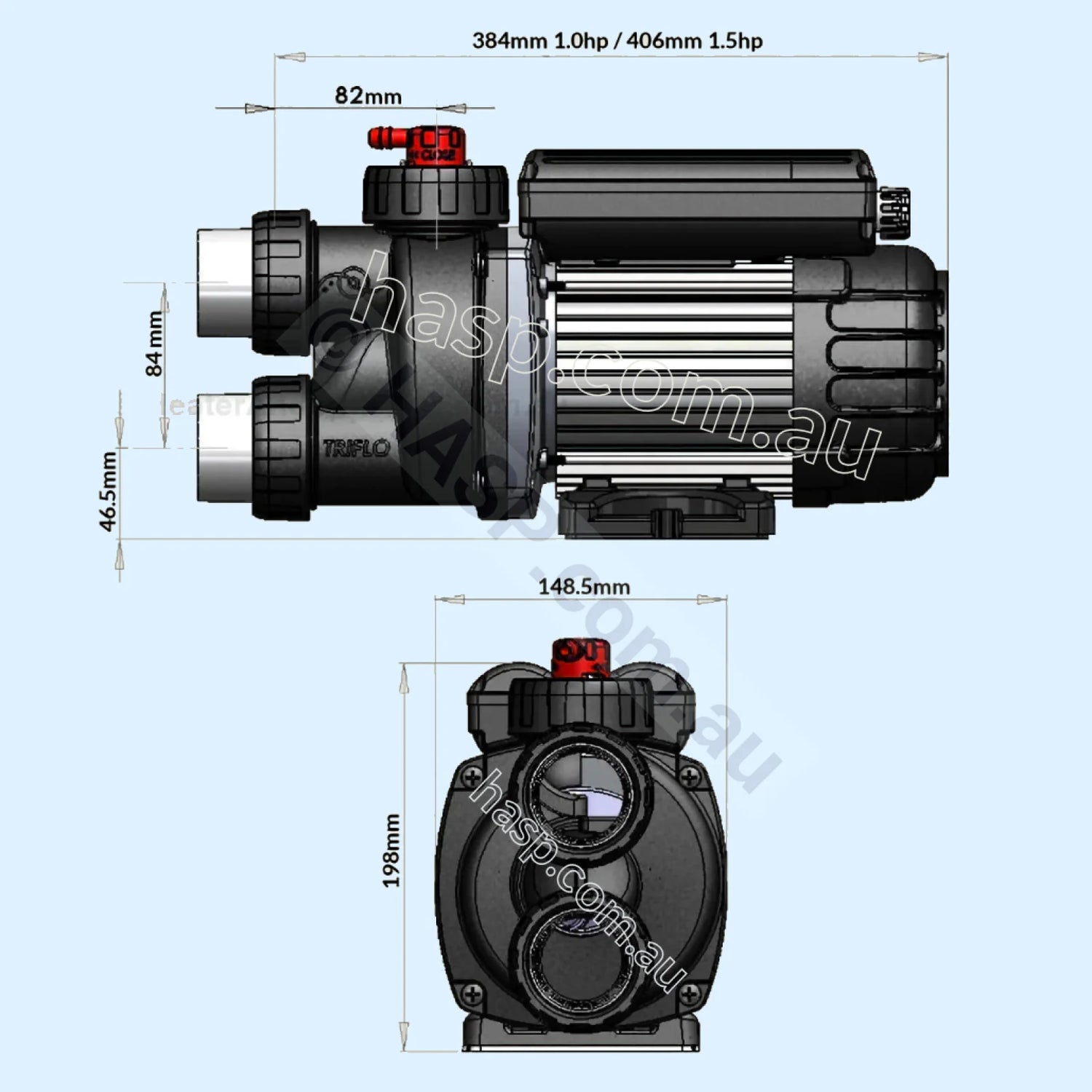

• Dimensions:  L: 384mm   |   W: 148mm   |   H: 198mm   |   10kg
• Warranty: 1 Year Domestic / 6 Month Commercial - Note: we often see these pumps last over 10+ years!

Documentation:

• Edgetec Bath Pump Installation Manual w/ Diagrams

Xtra Heat spa bath pumps are operated from an air button located on the side of your spa bath, a simple press of the air button and your spa pumps starts, inviting you to sit back and relax in an invigorating hydro massage.

A revolutionary new “Flat Plate” stainless steel 700 watt heater element is built into the pump, out of the main water flow path. Extensive research and development has renewed the process and captured the full power of the element that will maintain your bath water temperature.

The TriFlo pump internal design allows the water to self drain so that there is no residue water left in the pump when the spa is emptied in accordance with Local Health Regulations.

IMPORTANT:

• TriFlo spa bath pumps are designed for spa bath operation only and should not be used in chemically treated water or permanently filled spas or any other purpose.
• These bath pumps are intended to help maintain temperature in a bath to roughly 36-38° and not to heat a bath from cold.
