Astralpool HiNRG Return M/Fold - With Baffle
Astralpool HiNRG Return M/Fold - With Baffle - is backordered and will ship as soon as it is back in stock.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Astralpool HiNRG Return M/Fold - With Baffle
Astralpool HiNRG Return M/Fold - With Baffle - is backordered and will ship as soon as it is back in stock.
Astralpool

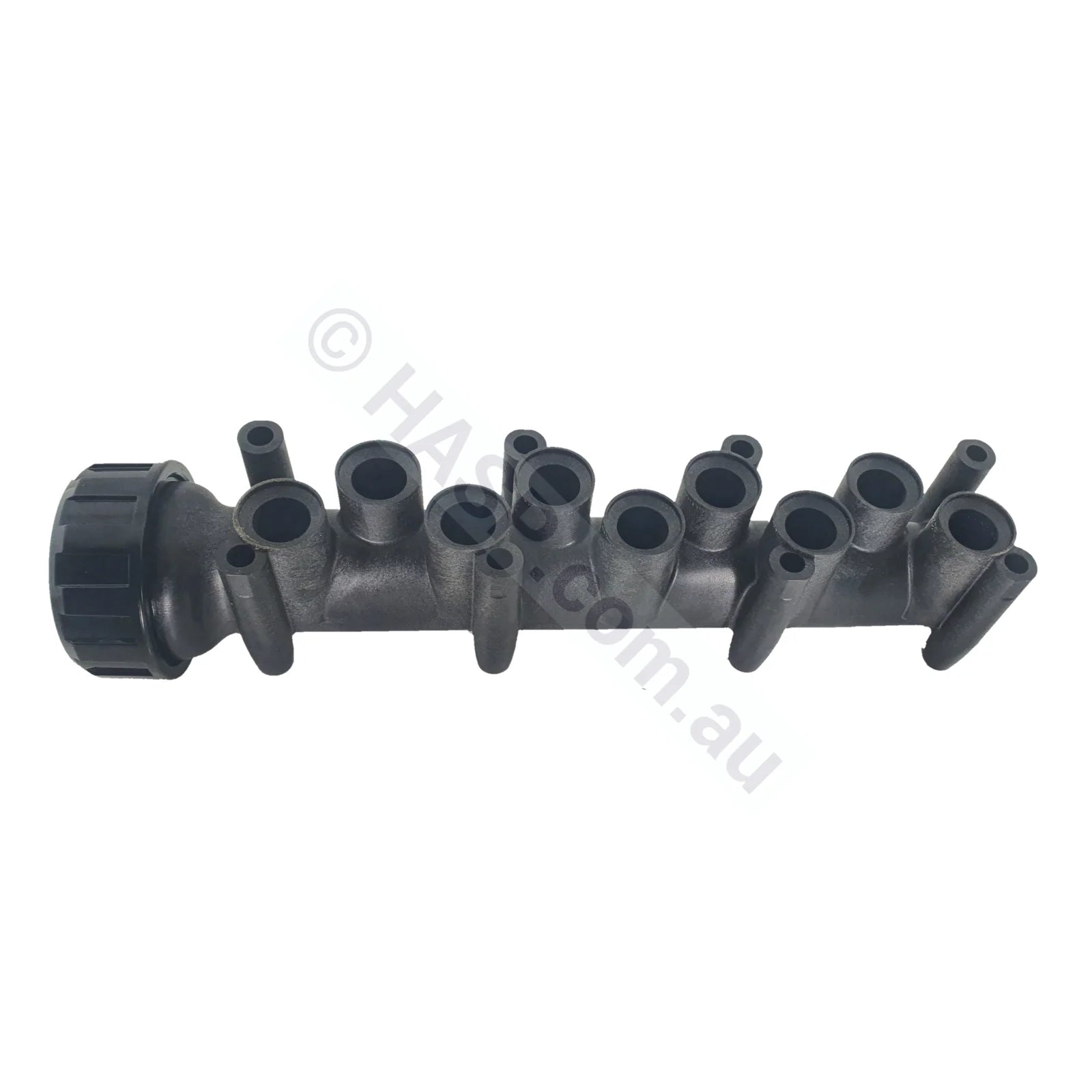

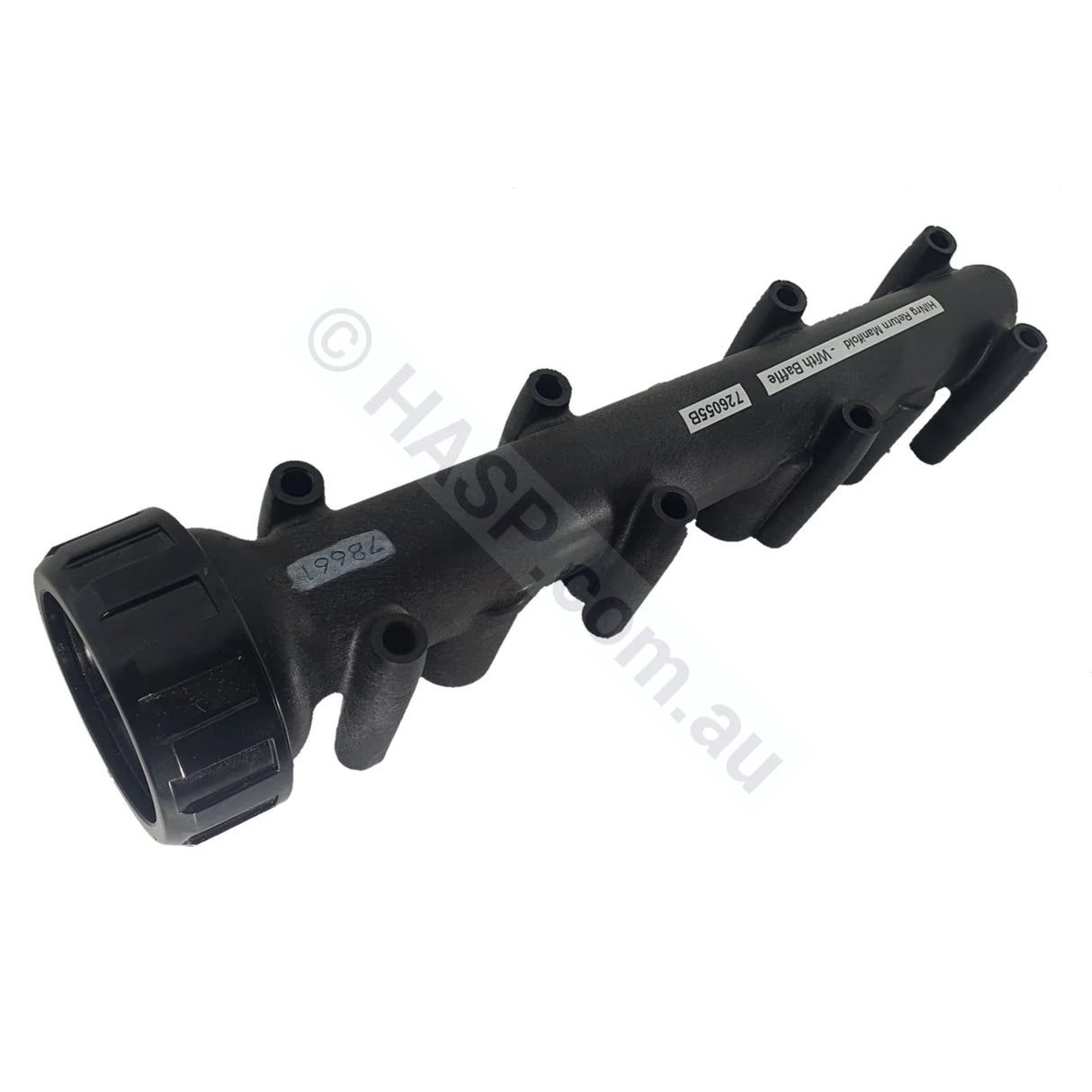

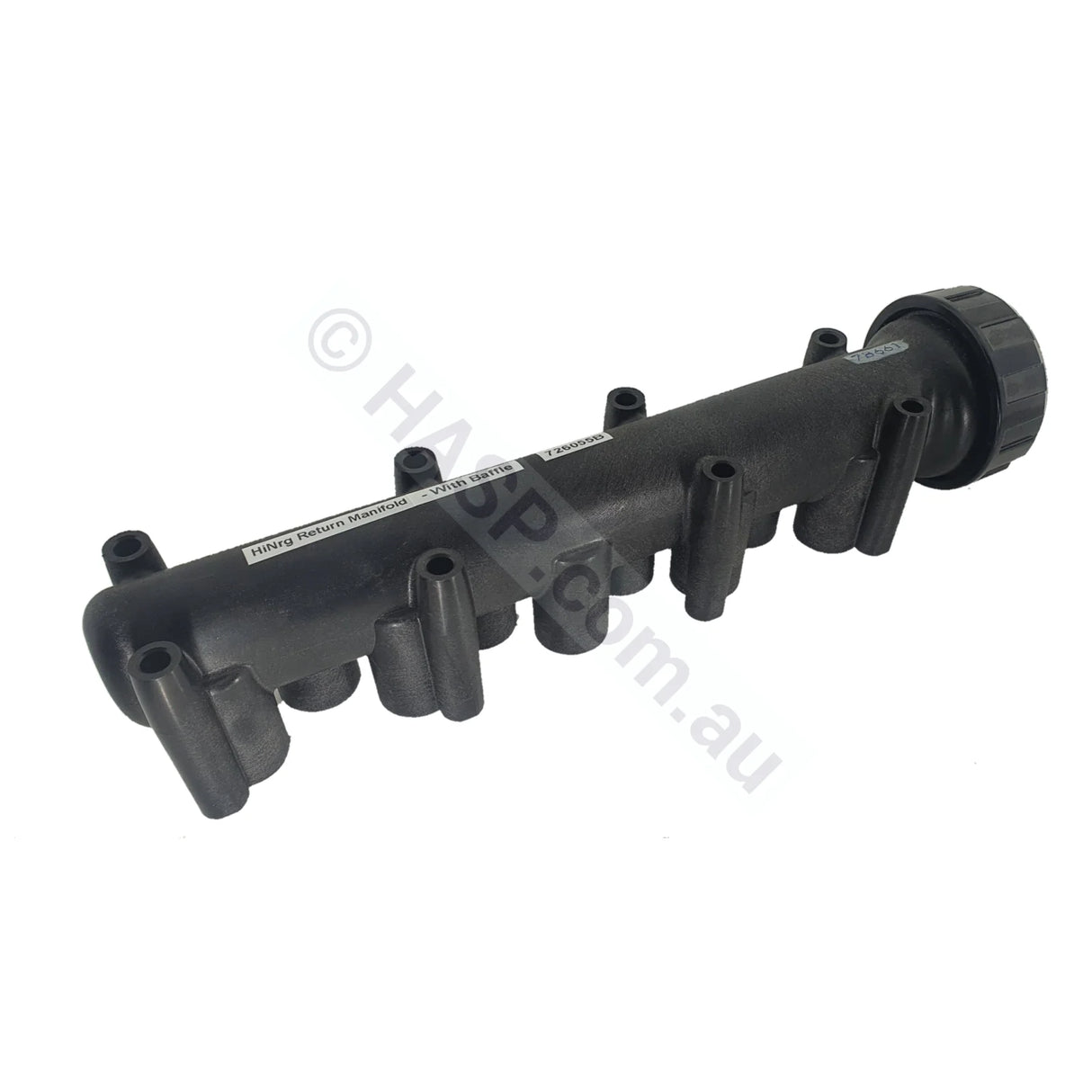

Return header manifold for all Astralpool HiNRG gas heaters. Includes the 78661 manifold, 78665 end cap, nut, and bypass assembly. Manifolds should be inspected annually, and tube seals replaced when necessary. Also suits some North American Jacuzzi gas pool and spa heaters.
Note: There are two versions of these manifolds. There is no way to tell by Serial number or from looking at it externally. We recommend sending photos of the inside if your manifold, or sending it to us.
- Baffled - has long stem under end cap.
- Non-baffled - has no stem under cap, just a plug.
78661 is just one component of the assembly
78661, 726066, 78665, 726055,726055b, 78661
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: AstralPool Catalogue 2026 | Zodiac Catalogue 2026
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
