Astralpool Hurlcon Astralpool MX Raypak Heater Pilot Assembly - HSI Hot Surface Ignition Assembly

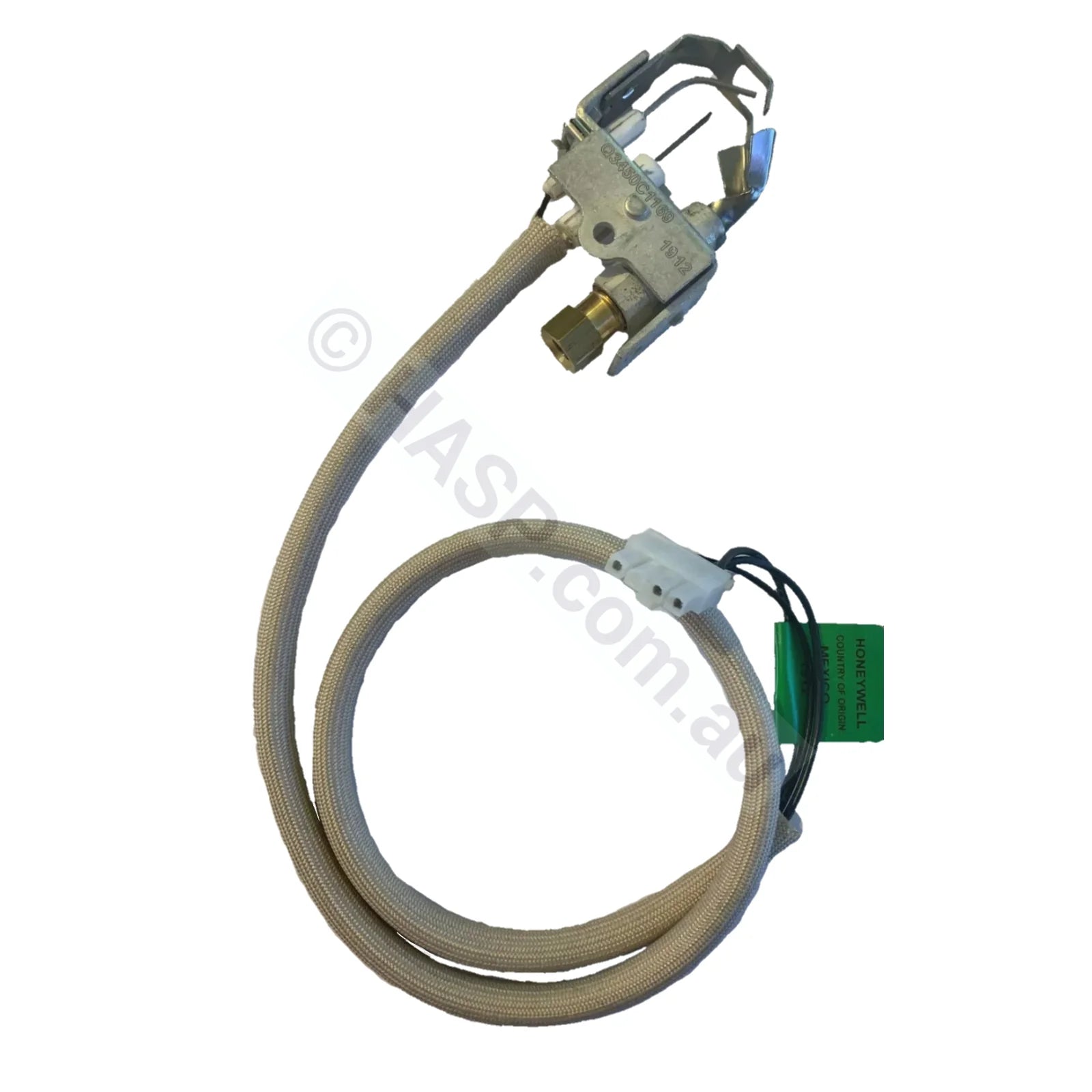

HSI Pilot Igniter / Ignitor w/ Flame Sensor. Suits Raypak 200-430 / Hurlcon / Astralpool MX 125 through MX 400 gas heaters with a Honeywell Smart Valve SV9605H 1004 gas valve. Suits all Hurlcon / Astralpool MX series heaters (except MX 500). May also suit Brivis Buffalo & Wombat models. Has Hot Surface Ignitor (HSI), Pilot, and Flame Sensor. Comes with tube nut and olive.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Suits Raypak, Davey gas heaters with a Honeywell SmartValve SV9605H 1004. Has built-in Hot Surface Ignitor (HSI), Pilot, and Flame Sensor. Comes with tube nut and olive. Comes with Natural gas nozzle, but if using LPG, make sure old nozzle is swapped into the new HSI assembly.
Other parts that go with this:
Hurlcon / Astralpool:
- Suits: MX 125, MX 150, MX 200, MX 250, MX 300, MX 350, MX 400, WWDG 250-400. Part Number 73734.
Raypak:
- Suits Raypak 200, 280, 350, 430 and RP2100 (above 180mJ) gas heaters w/ SmartValve
HWQ3450C1169, B012918, 73734, 56609199, B012918
