Zodiac Jandy® (Genuine) 40mm - 1.5" Two-way Valve
Zodiac Jandy® (Genuine) 40mm - 1.5" Two-way Valve is temporarily out of stock and will ship as soon as it's available.

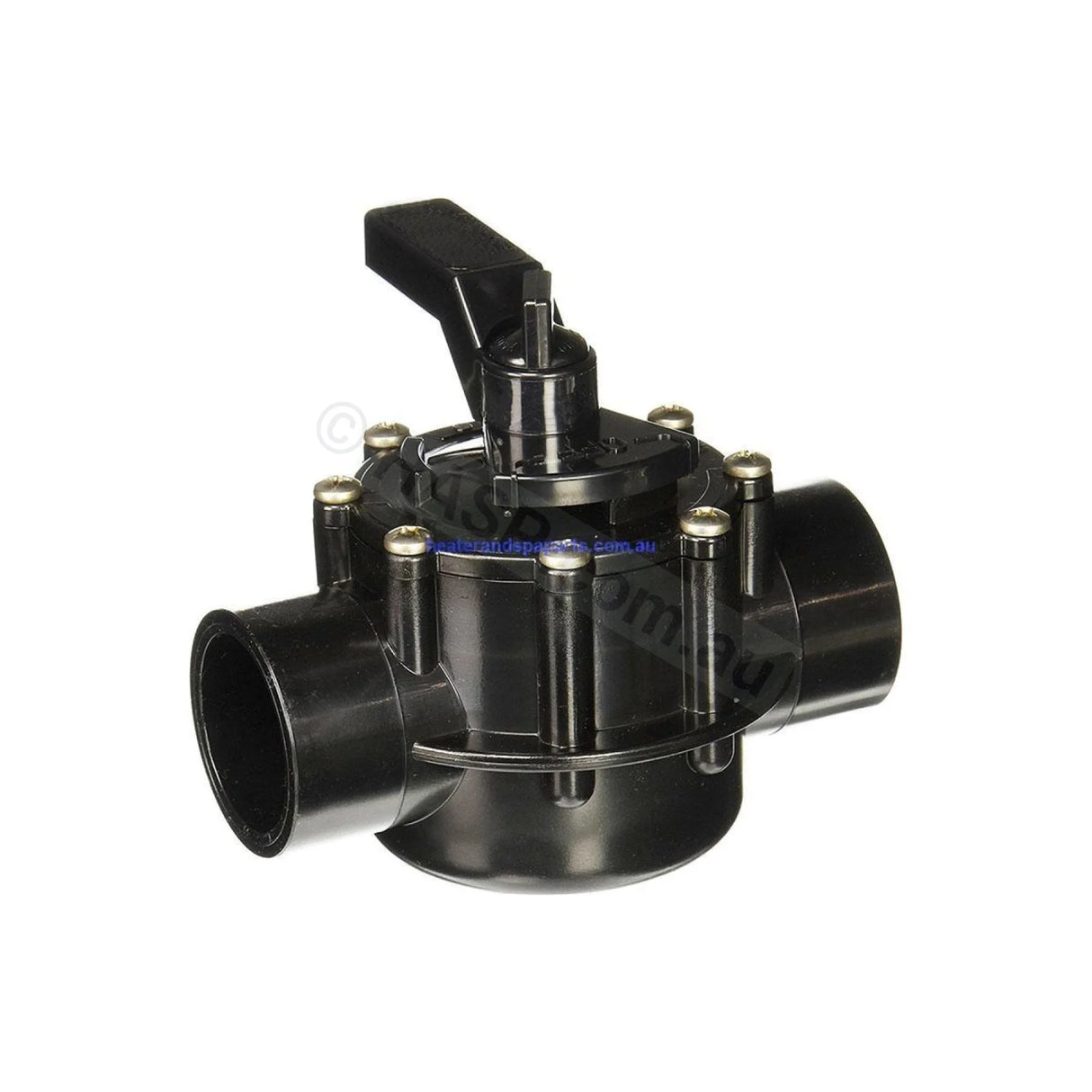

Zodiac Jandy® (Genuine) 40mm — 1.5" Two-way Valve
Genuine Zodiac Jandy® Pro Series NeverLube® 2-way valve in 40mm. Used to shut off or throttle a single line at the equipment pad. The top section is interchangeable with every other Jandy valve body of the same size, including actuator-driven ones, so it can be serviced or automated later without recutting pipe.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Which size do I need? The dual-socket rule
Jandy valves are named for two pipe sizes because each port takes two. That is why this one is listed as 40mm and marked 1.5" x 2" on the body:
- 40mm (1.5") pipe fits inside the socket
- 50mm (2") pipe fits over the spigot
So a 40mm Jandy valve is the right choice if your pipework is 40mm — glue the pipe into the socket as normal. Measure your existing pipe rather than going by the number printed on the valve, because the printed size is a pair, not a single dimension.
NeverLube® — no greasing, ever
The diverter seal is a proprietary material that does not need lubricating for the life of the valve. Moulded in CPVC rather than PVC, so it handles the heat coming off a gas heater or heat pump return without softening, and shrugs off chlorine and salt.
- Never requires lubrication
- CPVC construction — chemical and temperature resistant
- Serviceable, with spare parts available separately
- Top section swaps onto any same-size Jandy body, including actuated valves
- Adjustable stop lets you limit travel and balance flow
Automation
This valve is actuator-ready. Fitting a 24V valve actuator converts it to automatic changeover under a controller such as AquaLink RS, Viron Connect or Halo — the top section lifts off and the actuator drops straight on, so no replumbing is needed.
Genuine Zodiac part number
Jandy Pro Series part 4724. Genuine Zodiac stock, not a copy.
Other genuine Jandy valves in this range
- Zodiac Jandy® (Genuine) 50mm 2-Way Valve
- Zodiac Jandy® (Genuine) 40mm 3-Way Valve
- Zodiac Jandy® (Genuine) 50mm 3-Way Valve
- Zodiac Jandy® (Genuine) 40mm Check Valve 180°
- Zodiac Jandy® (Genuine) 50mm Check Valve 180°
- Zodiac Jandy® (Genuine) 40mm Check Valve 90°
- Zodiac Jandy® (Genuine) 50mm Check Valve 90°
Compatible alternatives
The Jandy pattern is used by several makers, and the bodies share a common footprint. We also stock Hayward Jandy-Style valves in 40mm and 50mm, which are equivalent in quality and performance. The same pattern turns up on Astralpool, Praher, Pentair, Spas Direct, SpaPro and WWDG equipment pads across Australia.
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: Astralpool Catalogue 2026 | Zodiac Catalogue 2026
Common search terms
Jandy valve, Jandy 4724, Zodiac Jandy valve, NeverLube valve, Never Lube valve, 40mm 2 way valve, 40mm pool valve, 40mm spa valve, Jandy diverter valve, pool plumbing valve, SpaPro valve, WWDG valve.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
