Description
Madimack InverECO Plus 13kW — an efficient, quiet entry-level pool heat pump with reverse-cycle heating and cooling, sized for small to medium pools. Peak COP of 10.8 keeps running costs low, WiFi control is built in, and the titanium heat exchanger is backed by a 25-year warranty.
- Free Shipping Australia Wide
- Documentation: Brochure | User Manual | Sizing Chart
- Shipping: Someone may be required to help lift the heater from the delivery truck if a tailgate lifter isn't available.
- Pickup: Available at 10 Industry Blvd, Carrum Downs VIC
Choose Your Size — InverECO Plus Range
The InverECO Plus is available in 6 sizes. This page is for the 13kW model. View other sizes:

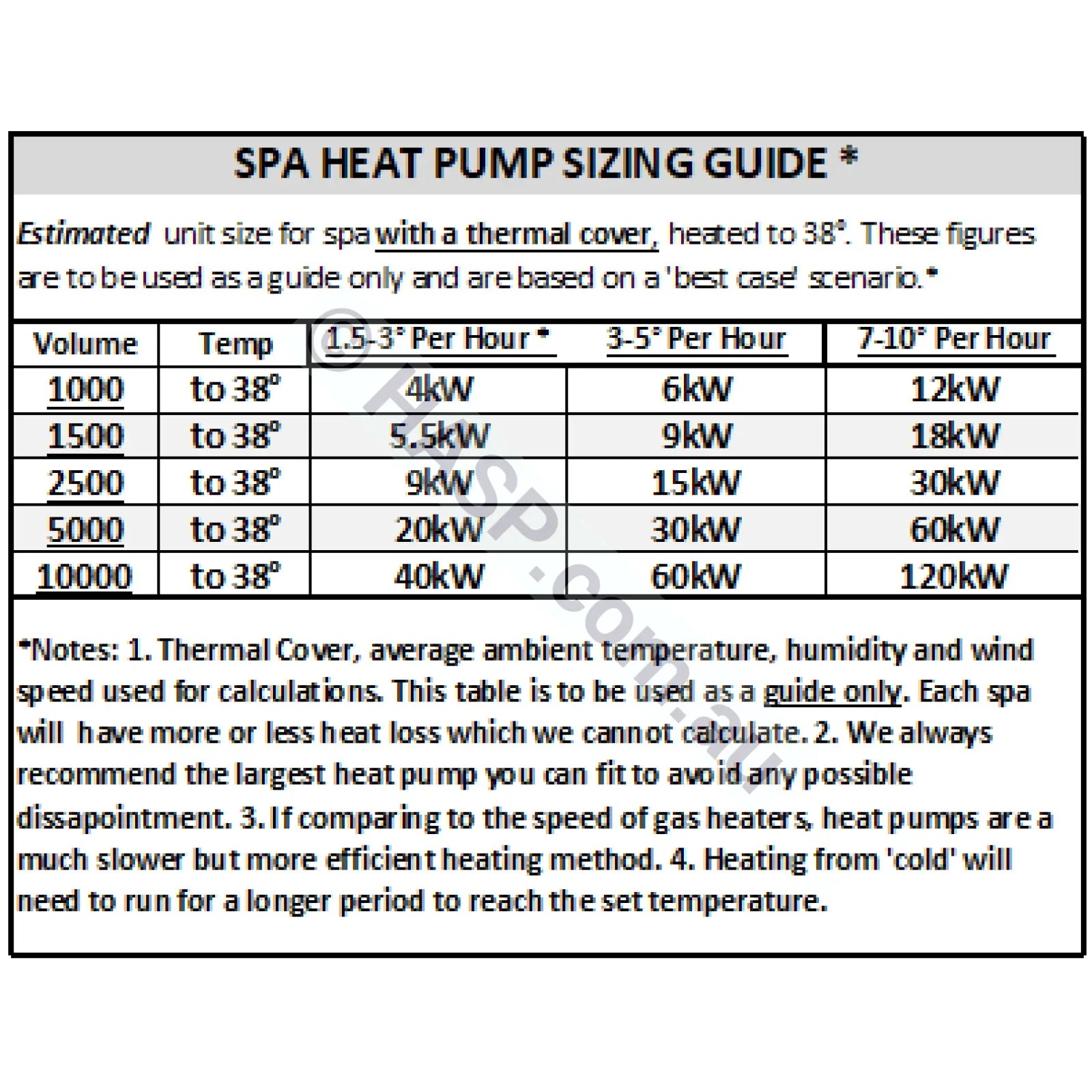

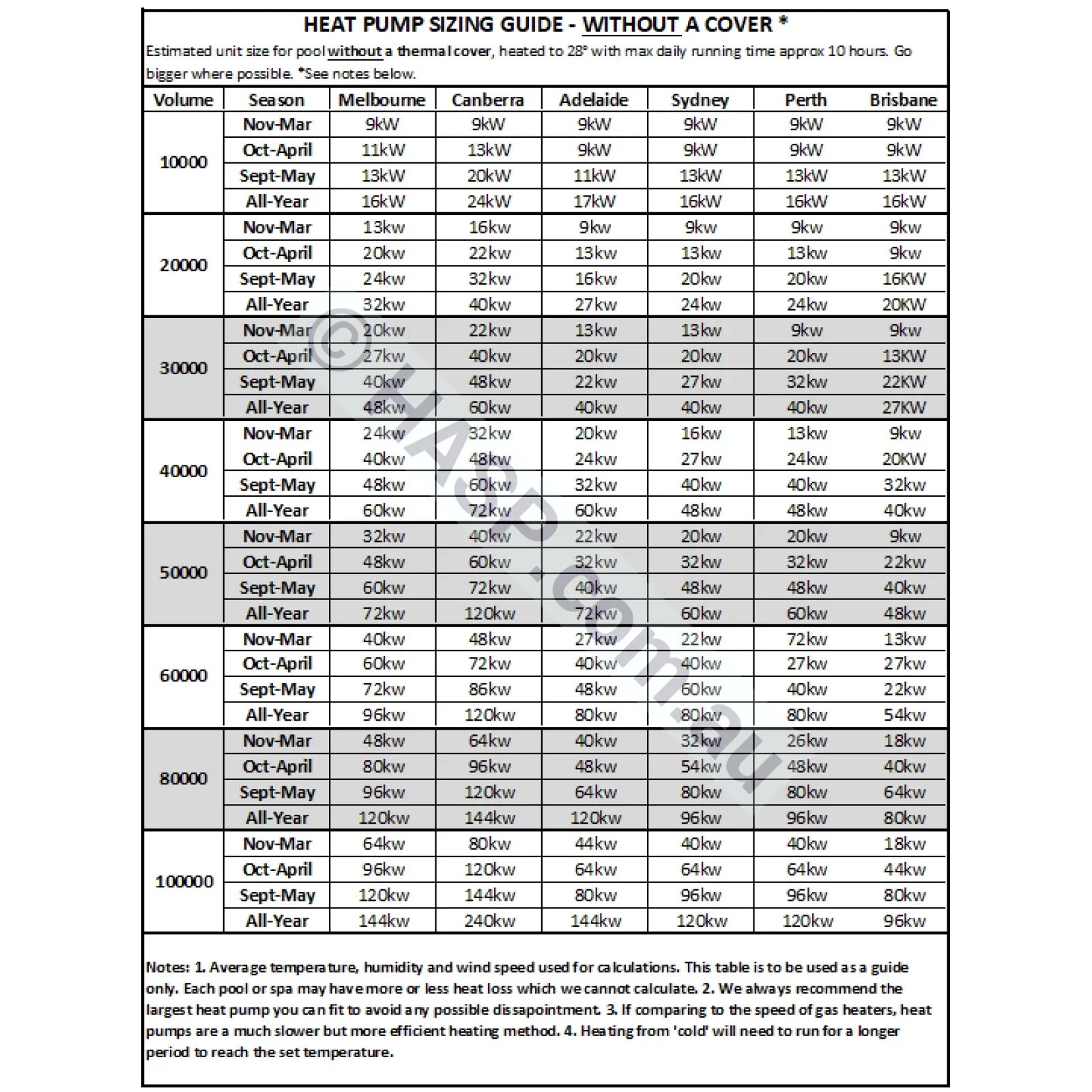

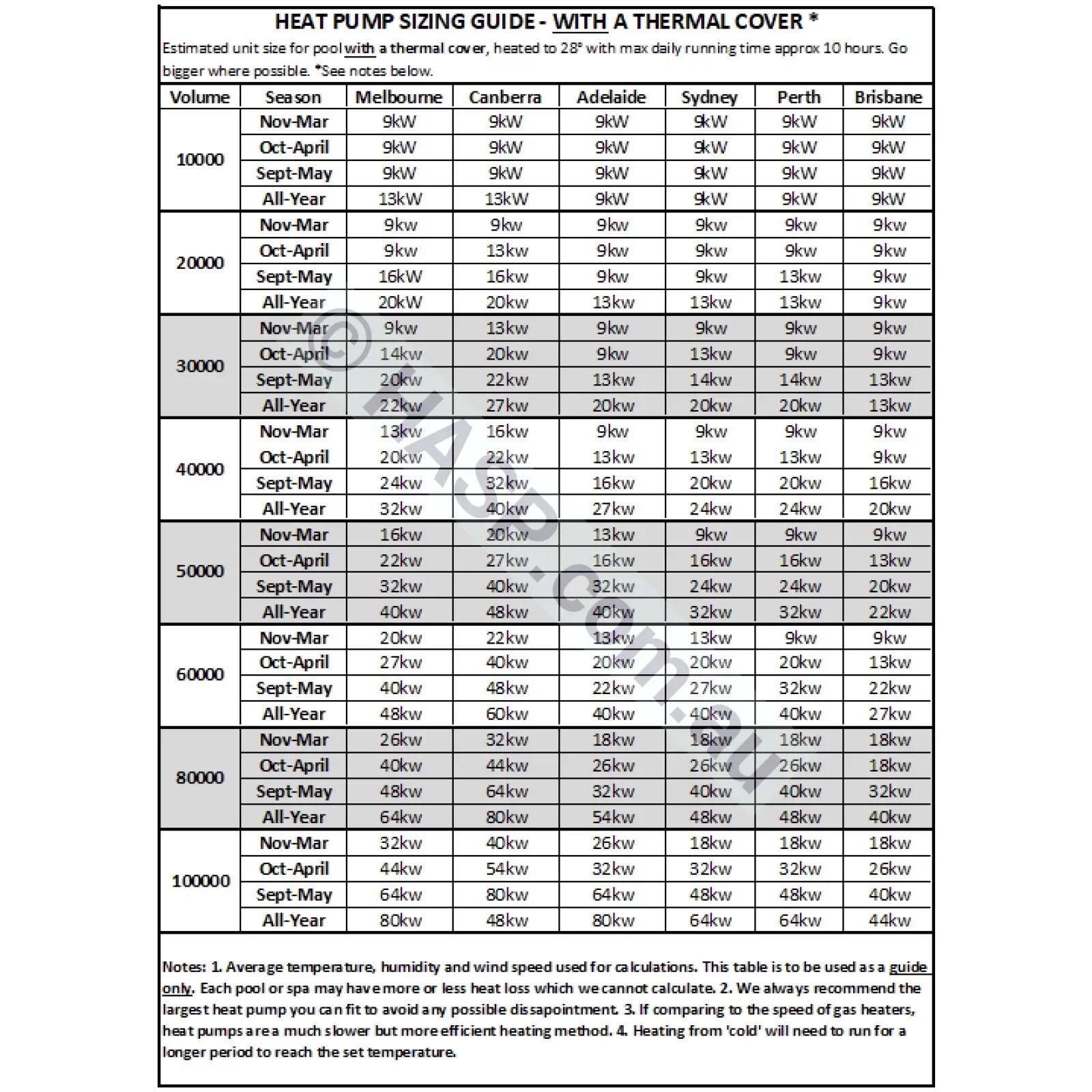

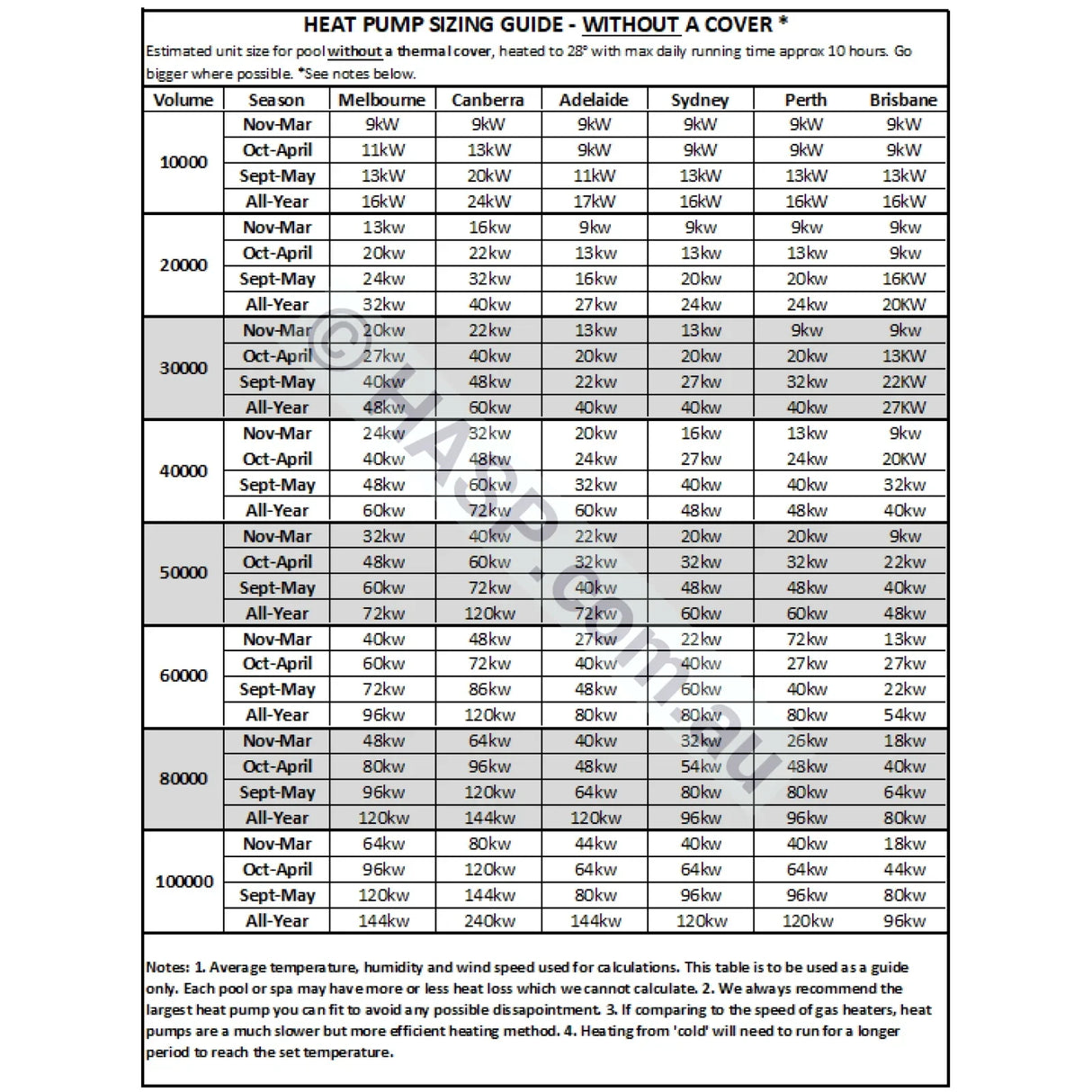

Unsure which size is right for your pool? View the Madimack Sizing Chart or contact our team for a recommendation.
InverECO Plus 13kW — Key Specifications
- Model code: ECO PLUS 130
- Heating Capacity (Air 27°C / Water 27°C / 80% humidity): 13.0 kW
- Heating Capacity (Air 15°C / Water 26°C / 70% humidity): 9.0 kW
- COP Range (warm conditions): 10.8~6.3
- COP Range (cool conditions): 6.2~4.5
- Cooling Capacity (Air 35°C / Water 28°C / 80% humidity): 5.0 kW
- Rated Input Power: 0.41~2.01 kW
- Rated Input Current: 1.76~8.70 A
- Maximum Input Current: 12.5 A
- Sound Level at 1 m: 43.9~54.0 dB(A)
- Sound Level at 10 m: 23.9~34.0 dB(A)
- Recommended Water Flow: 75 L/min
- Power Supply: 230V / 1-Phase / 50Hz
- Electrical Connection: 10A Plug
- Net Weight: 49 kg
- Net Dimensions (L × W × H): 903 × 349 × 654 mm
- Water Connection: 40 mm
- Refrigerant: R32
- Operating Air Temperature: -5°C to 43°C
- Temperature Set Range: 12°C to 40°C
- Compressor: Full Stepless DC
- Heat Exchanger: Twisted Titanium
- Casing: Anti-corrosion ABS
Why Choose the InverECO Plus?
InverMAC Inverter Technology — Full stepless DC compressor and inverter fan adjust output continuously, saving up to 66% on running costs vs traditional pool heating and reducing energy use by up to 20% over on/off heat pumps.
WiFi Control Standard — Adjust pool temperature and set timers from anywhere using the Madimack app. No optional extras required.
Heating and Cooling — Reverse-cycle operation lets you warm the pool in cooler months and cool it down in summer.
Twisted Titanium Heat Exchanger — Suitable for salt, mineral, and chlorinated pools. Backed by a 25-year warranty.
Anti-Corrosion ABS Casing — Slim, weather-resistant design built to last in coastal and high-salt environments.
Active Defrost — Maintains performance in cold climates down to -5°C ambient air temperature.
R32 Refrigerant — Lower global warming potential than legacy refrigerants, more efficient heat transfer.
TüV Rheinland Certified — Independently certified for performance and safety.
Warranty*
- 5 years on all parts
- 5 years on the compressor
- 25 years on the heat exchanger
*Refer to Madimack's Warranty Schedule for full terms and conditions.
