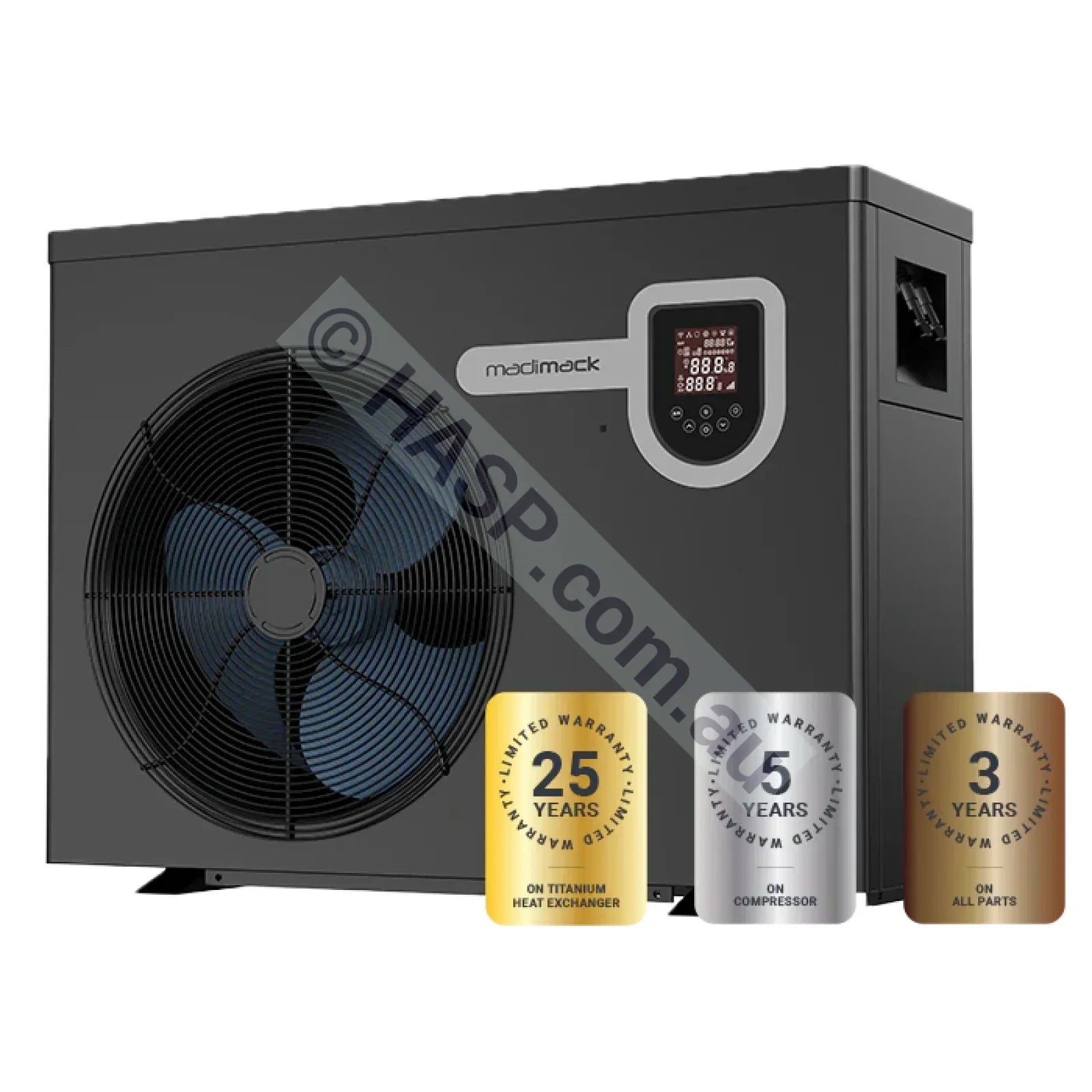

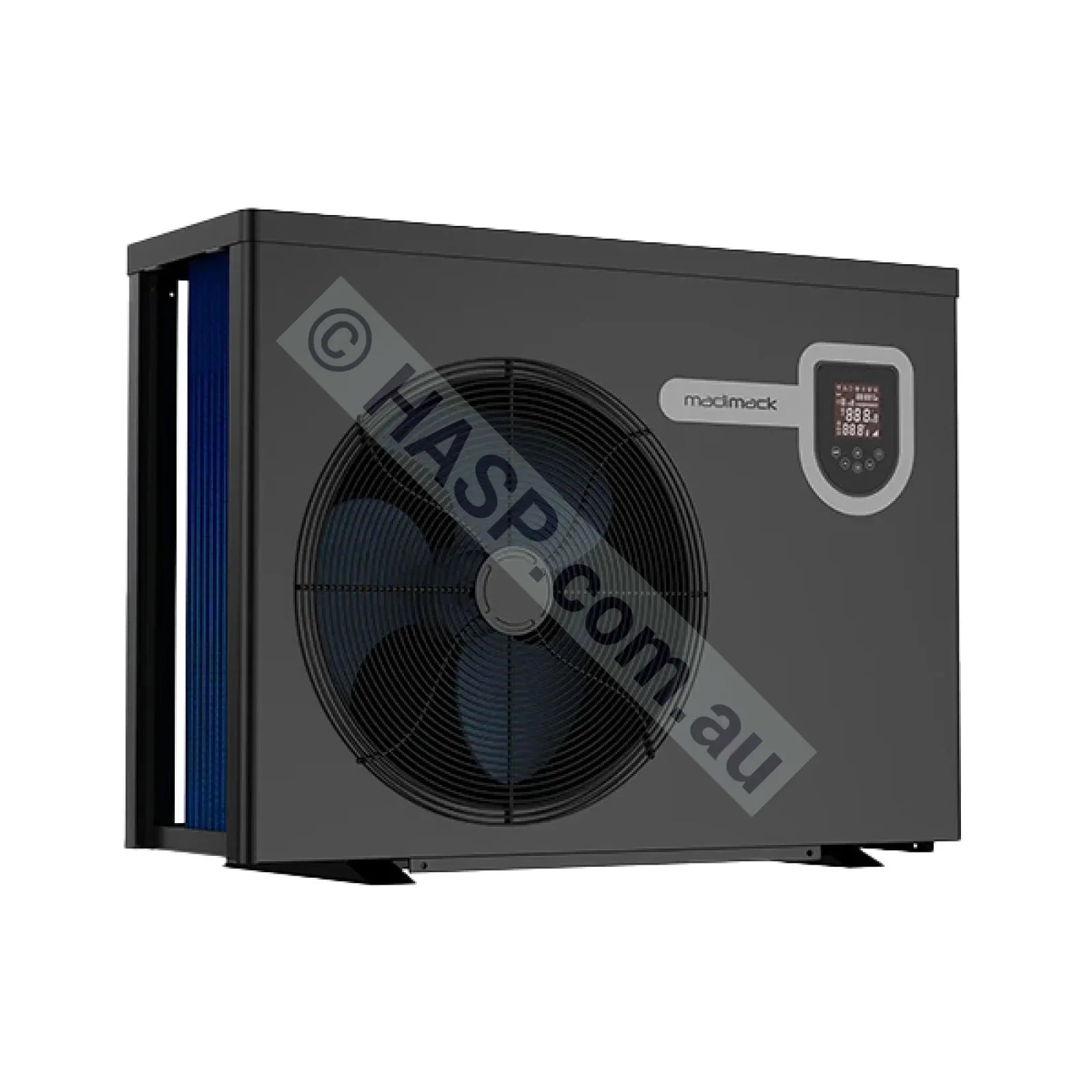

Madimack InverECO Plus 24kW — an efficient, quiet entry-level pool heat pump with reverse-cycle heating and cooling, sized for large residential pools. Peak COP of 10.8 keeps running costs low, WiFi control is built in, and the titanium heat exchanger is backed by a 25-year warranty.
- Free Shipping Australia Wide
- Documentation: Brochure | User Manual | Sizing Chart
- Shipping: Someone may be required to help lift the heater from the delivery truck if a tailgate lifter isn't available.
- Pickup: Available at 10 Industry Blvd, Carrum Downs VIC
Choose Your Size — InverECO Plus Range
The InverECO Plus is available in 6 sizes. This page is for the 24kW model. View other sizes:

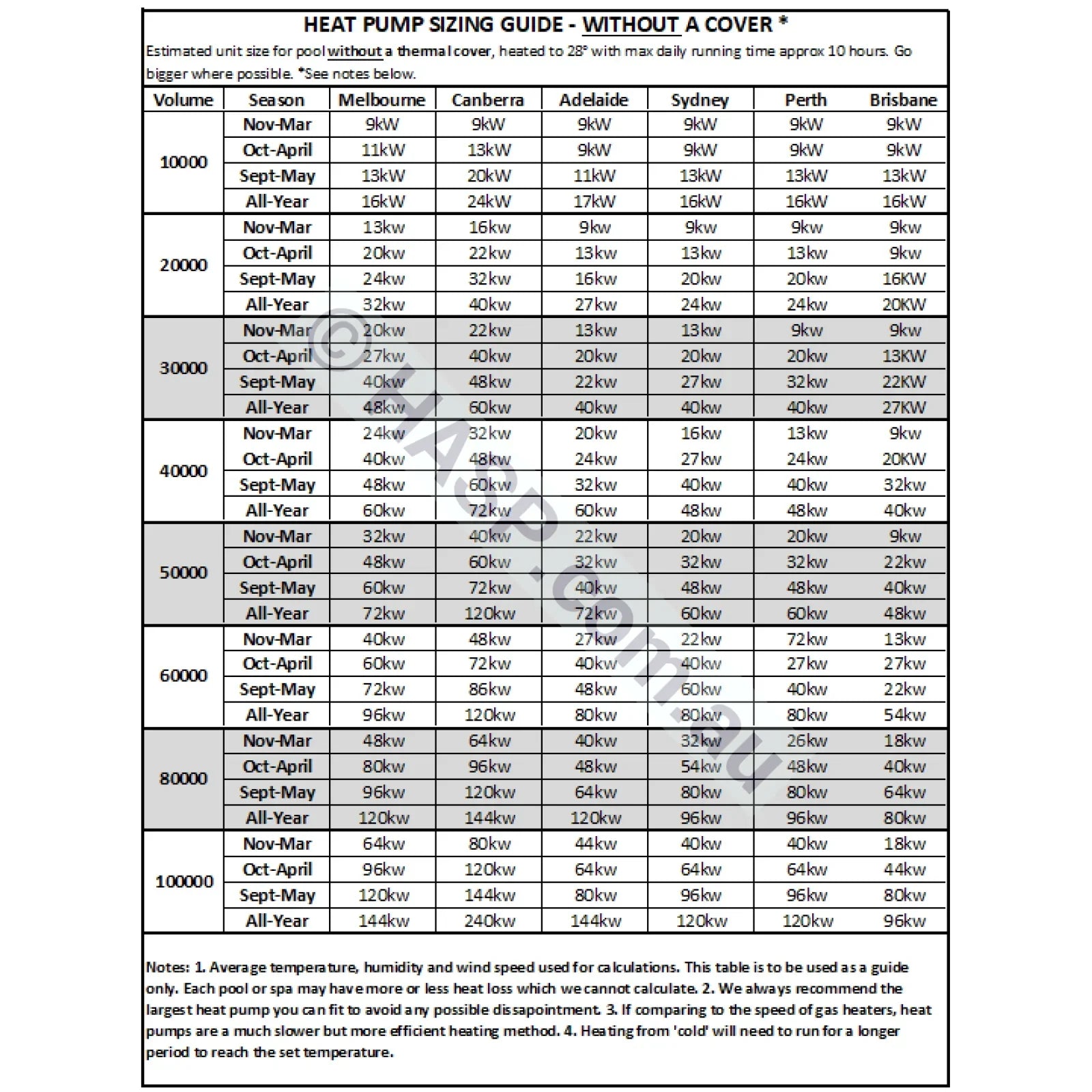

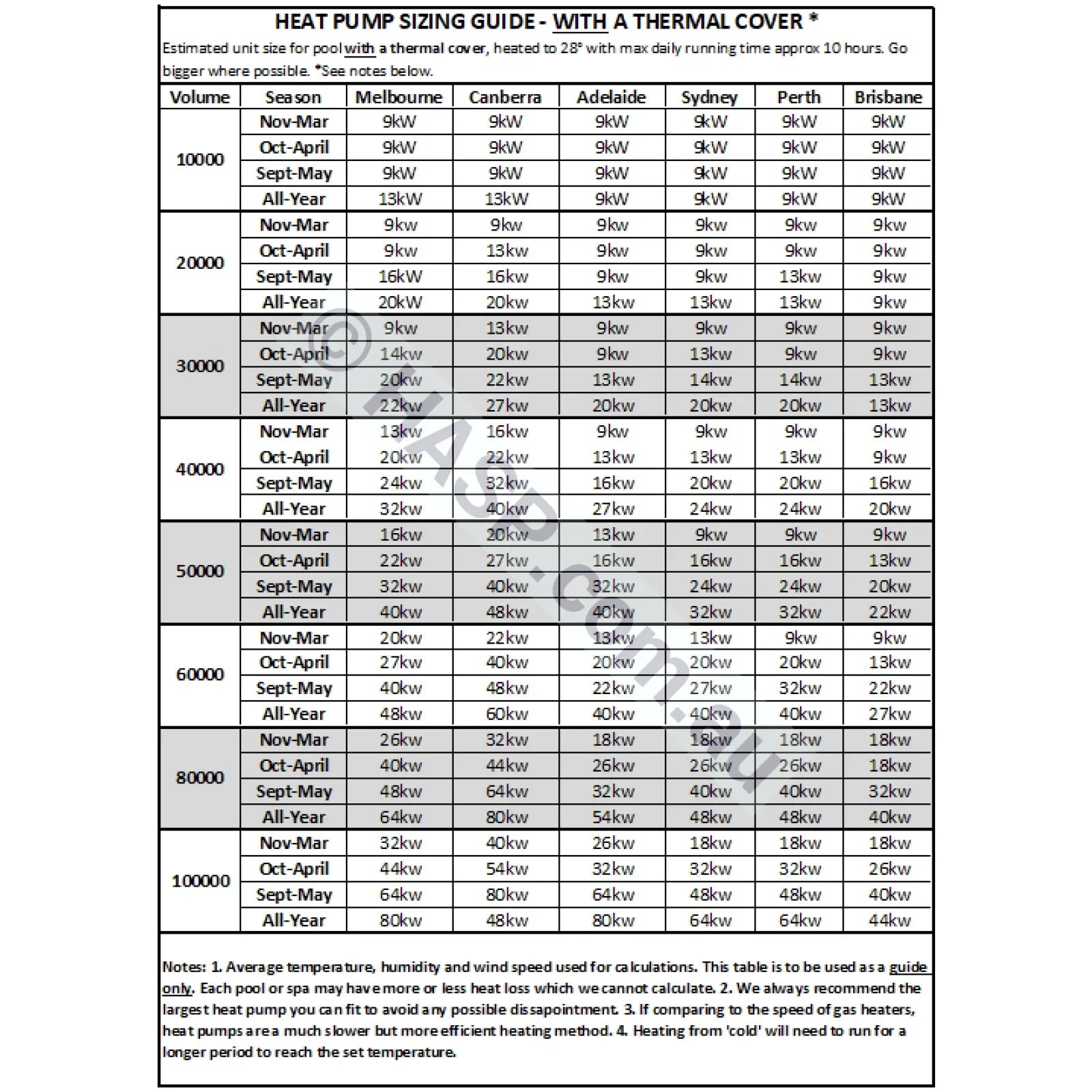

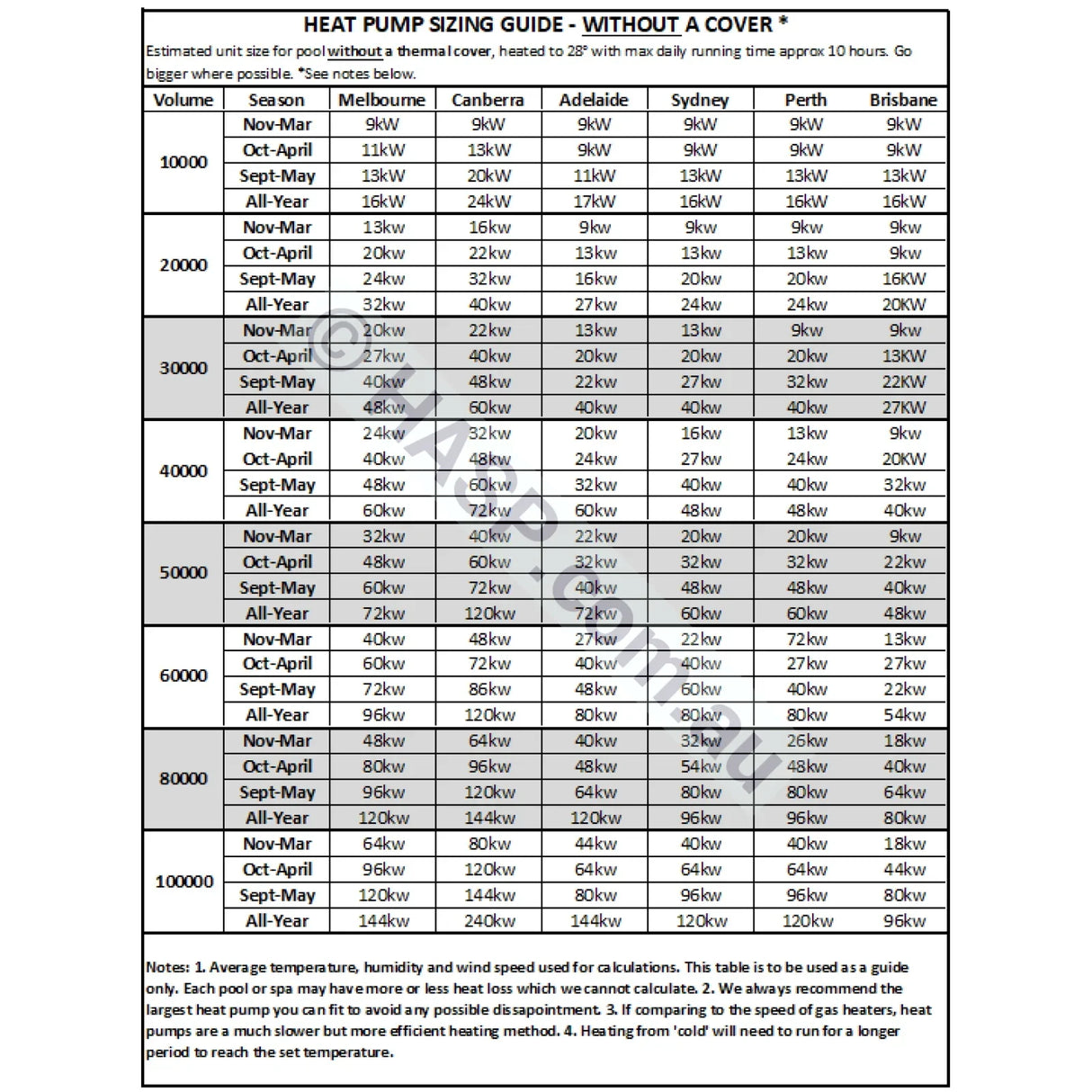

Unsure which size is right for your pool? View the Madimack Sizing Chart or contact our team for a recommendation.
InverECO Plus 24kW — Key Specifications
- Model code: ECO PLUS 240
- Heating Capacity (Air 27°C / Water 27°C / 80% humidity): 24.2 kW
- Heating Capacity (Air 15°C / Water 26°C / 70% humidity): 16.0 kW
- COP Range (warm conditions): 10.8~6.3
- COP Range (cool conditions): 6.6~4.5
- Cooling Capacity (Air 35°C / Water 28°C / 80% humidity): 8.8 kW
- Rated Input Power: 0.72~3.81 kW
- Rated Input Current: 3.13~16.56 A
- Maximum Input Current: 20 A
- Sound Level at 1 m: 46.9~58.7 dB(A)
- Sound Level at 10 m: 26.9~38.7 dB(A)
- Recommended Water Flow: 150 L/min
- Power Supply: 230V / 1-Phase / 50Hz
- Electrical Connection: Hard Wired
- Net Weight: 68 kg
- Net Dimensions (L × W × H): 991 × 420 × 757 mm
- Water Connection: 40 mm
- Refrigerant: R32
- Operating Air Temperature: -5°C to 43°C
- Temperature Set Range: 12°C to 40°C
- Compressor: Full Stepless DC
- Heat Exchanger: Twisted Titanium
- Casing: Anti-corrosion ABS
Why Choose the InverECO Plus?
InverMAC Inverter Technology — Full stepless DC compressor and inverter fan adjust output continuously, saving up to 66% on running costs vs traditional pool heating and reducing energy use by up to 20% over on/off heat pumps.
WiFi Control Standard — Adjust pool temperature and set timers from anywhere using the Madimack app. No optional extras required.
Heating and Cooling — Reverse-cycle operation lets you warm the pool in cooler months and cool it down in summer.
Twisted Titanium Heat Exchanger — Suitable for salt, mineral, and chlorinated pools. Backed by a 25-year warranty.
Anti-Corrosion ABS Casing — Slim, weather-resistant design built to last in coastal and high-salt environments.
Active Defrost — Maintains performance in cold climates down to -5°C ambient air temperature.
R32 Refrigerant — Lower global warming potential than legacy refrigerants, more efficient heat transfer.
TüV Rheinland Certified — Independently certified for performance and safety.
Warranty*
- 5 years on all parts
- 5 years on the compressor
- 25 years on the heat exchanger
*Refer to Madimack's Warranty Schedule for full terms and conditions.
