Raypak Spartan 131 Natural Gas Spa Heater (Residential) – 24kW / 120MJ Outdoor

Raypak Spartan 131 Residential Spa Heater (Natural Gas) – 24kW / 120MJ.

No Longer Sold - Replace with HX 120 here.

Archived Info Below:

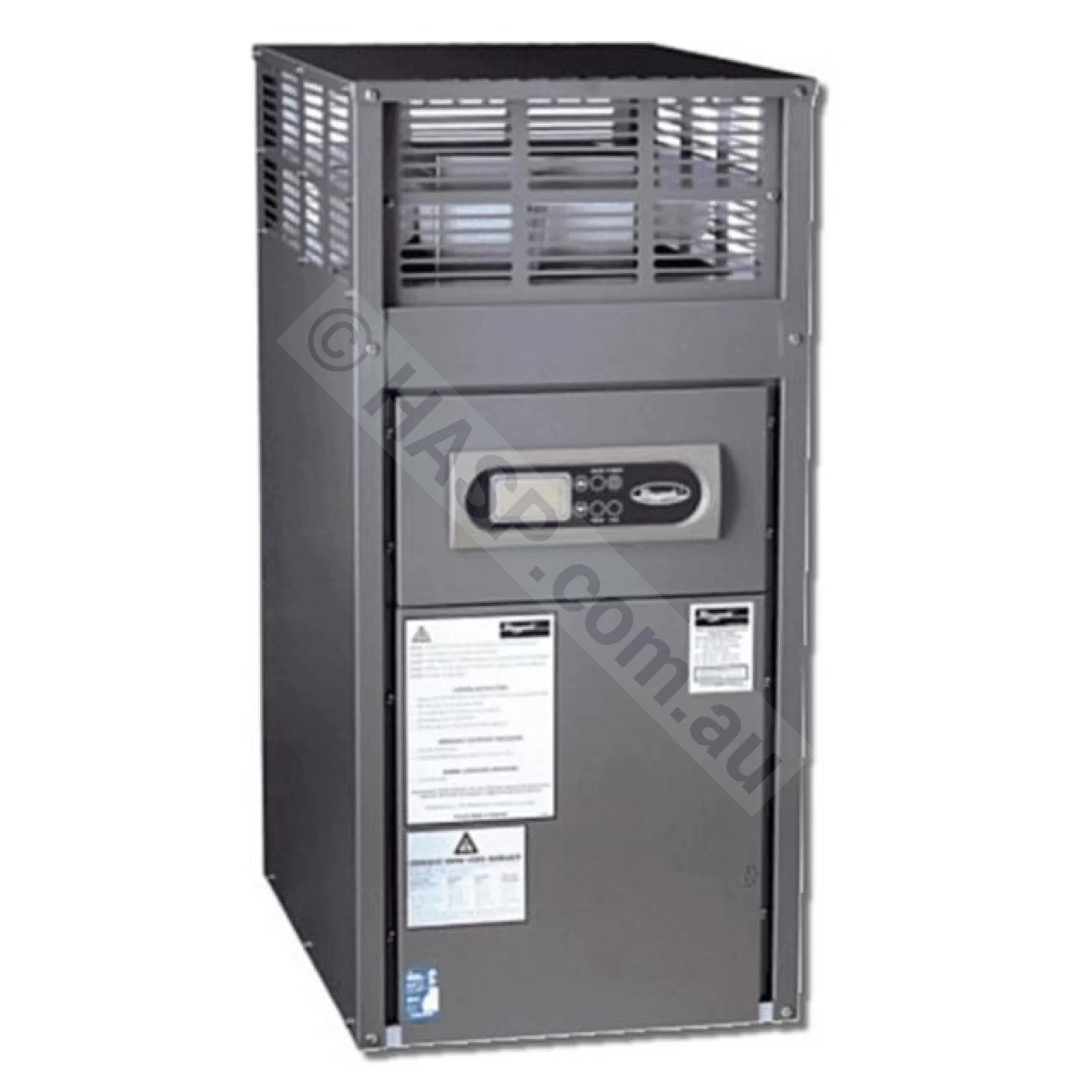

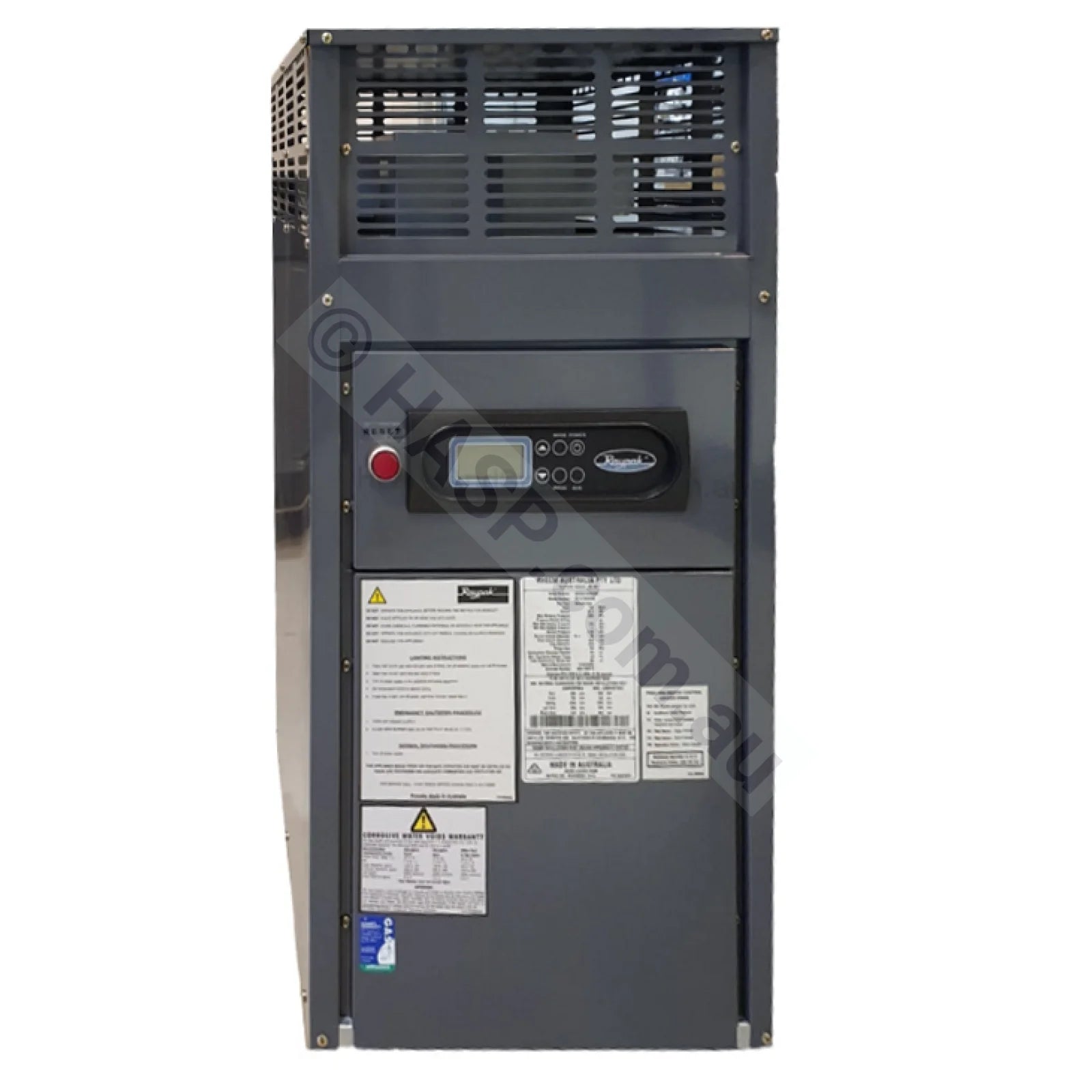

The Raypak Spartan 131 is a purpose-built residential spa heater designed to heat spa water directly through the heater. It uses capron headers and a powder-coated cabinet for durable outdoor installation.

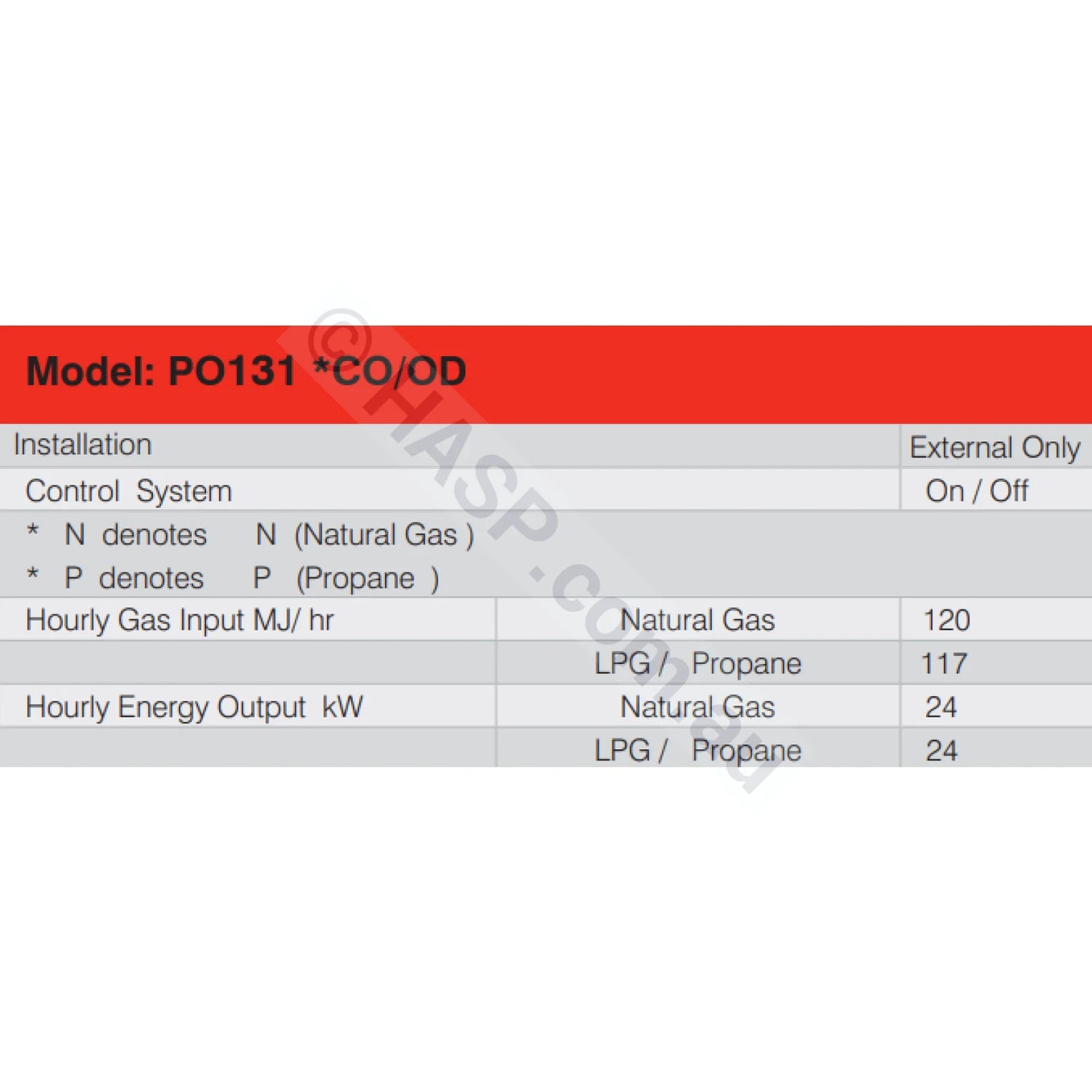

Key specs

• Gas type: Natural Gas
• Gas input: 120 MJ/h
• Heat output: ~24 kW
• Installation: Outdoor / External only
• Control system: On / Off
• Max thermostat setting: 40°C

Why choose the Spartan 131?

• Fast heat-up for residential spas with a solid 24kW output.
• Simple, reliable operation (straightforward On/Off control).
• Built for Australian outdoor conditions with a powder-coated cabinet.

Important notes before you buy

• Outdoor installation only.
• No flue approved / no indoor flue option. If you need an indoor/flued appliance, this model is not suitable.
• Single-try ignition (new units): If it doesn’t light on the first attempt (this can happen on gas appliances), the heater must be manually reset.
• Licensed gas fitter required. Install must comply with relevant standards (incl. AS/NZS5601.1:2013).

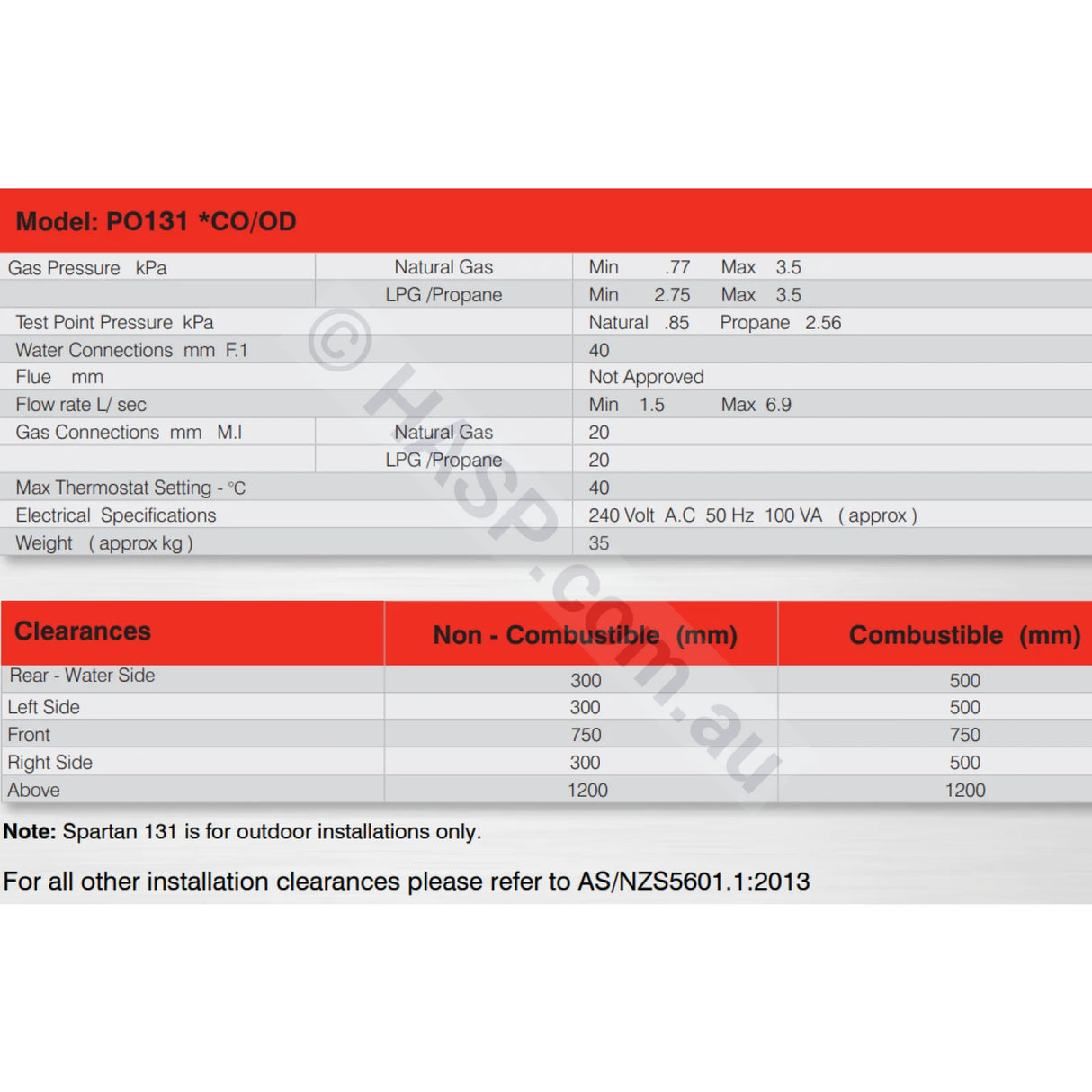

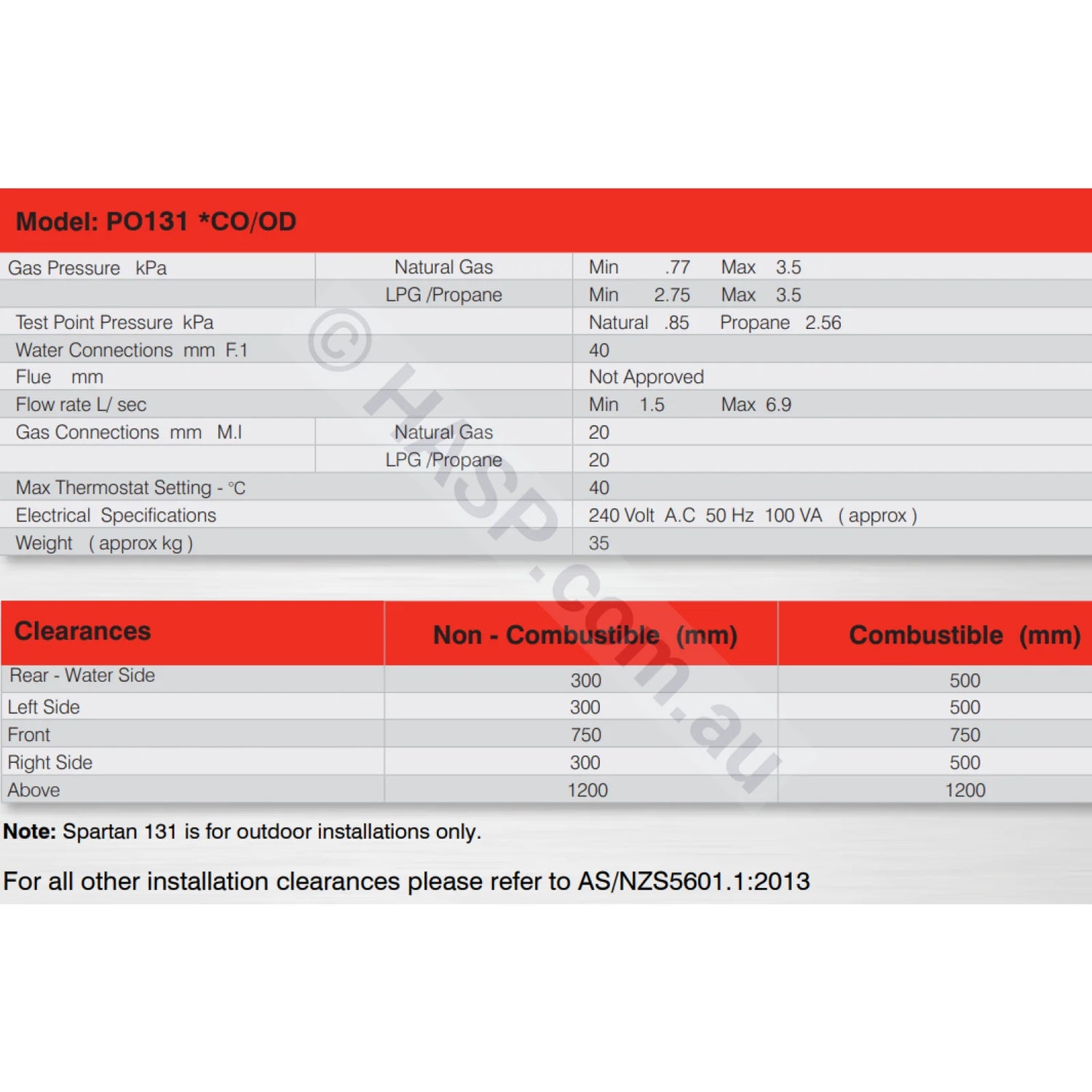

Minimum installation clearances (mm)

For other installation requirements, refer to AS/NZS5601.1:2013.

Plumbing, gas & electrical

• Water connections: 40mm
• Flow rate range: 1.5 to 6.9 L/sec
• Gas connection: 20mm (male iron)
• Natural Gas supply pressure: 0.77 to 3.5 kPa
• Natural Gas test point pressure: 0.85 kPa
• Electrical: 240V AC, 50Hz

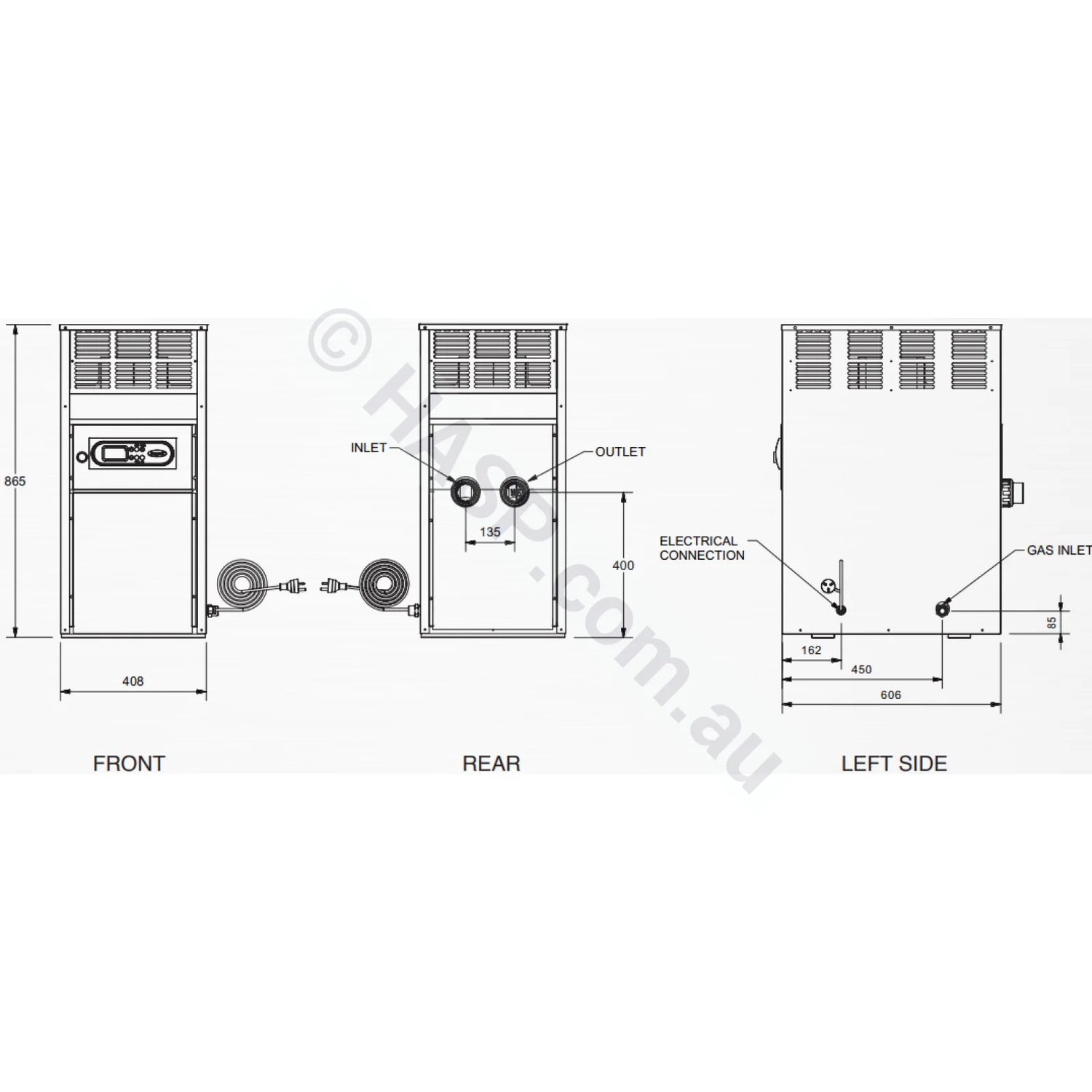

Dimensions & weight

• Approx. dimensions: 865(H) x 408(W) x 606(D) mm
• Approx. weight: 35 kg

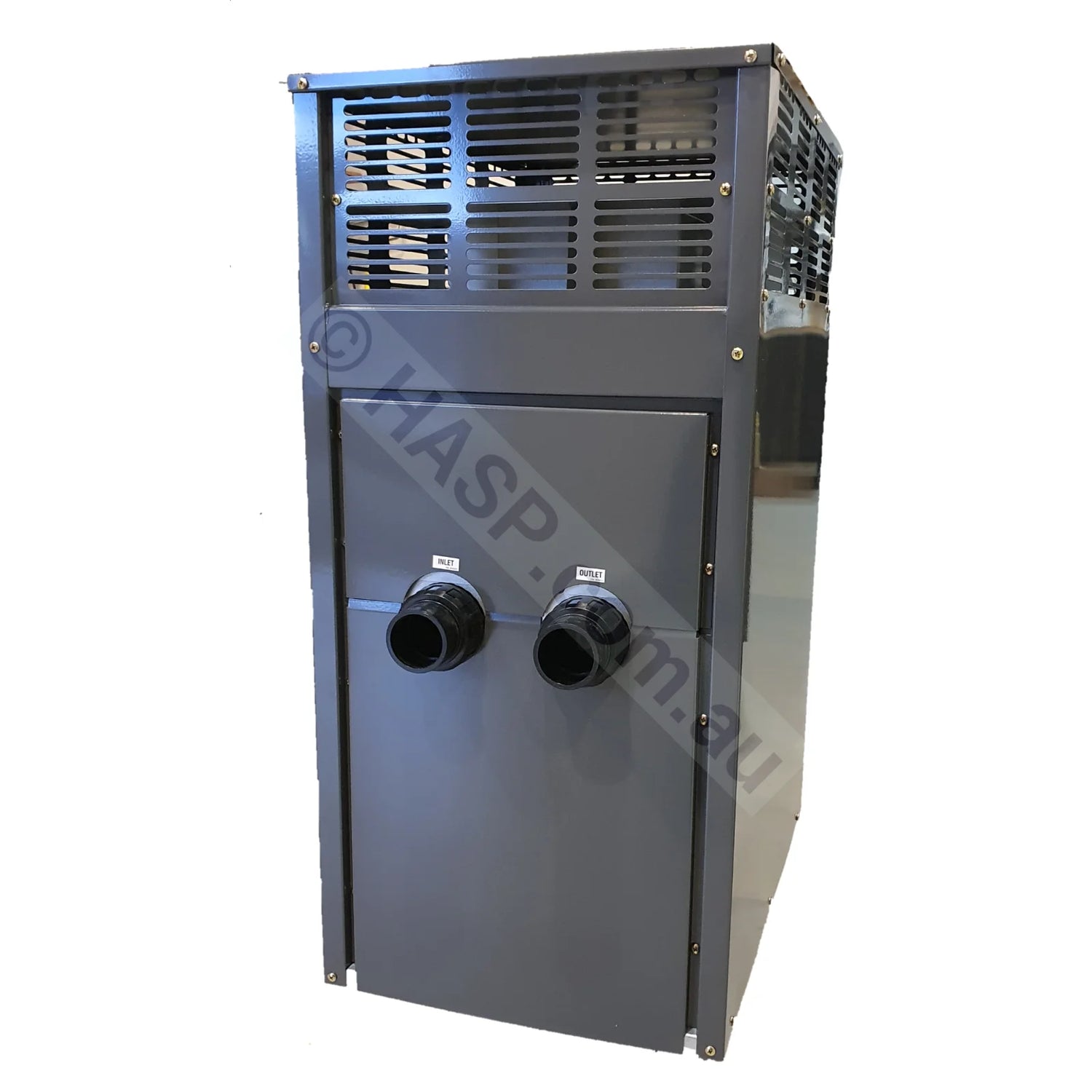

• Rear plumbing port spacing: 135 mm (inlet to outlet)

Warranty (residential)

• 3 years parts
• 1 year labour

Need help confirming suitability? Send us your spa details (make/model, pipe size, and a photo of the install location) and we’ll guide you.
