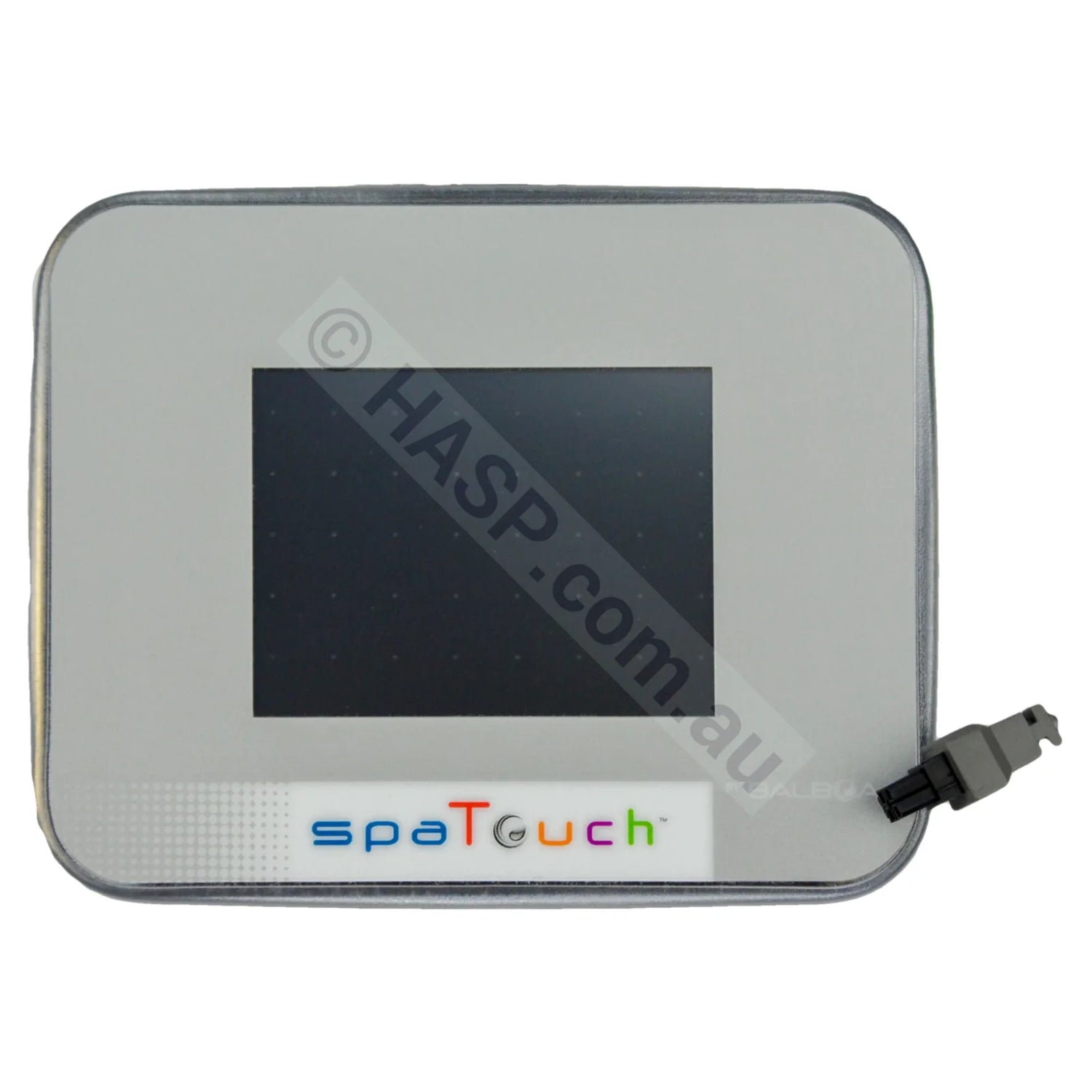

SpaTouch by Balboa - Colour Touchscreen Control Panel - Obsolete (No Longer Available)

This product is no longer available.

Scroll down for replacement options and more information.

Description

Obsolete - No Longer Available. Replaced by black 2T touchpad here.

Archived Info:
Balboa SpaTouch 2T SQ Touchscreen Touchpad. Used with Balboa BP series spa controllers. 4-pin plug. Download Manual here.

Compatible with:

  • BP200 G1, G2 and G3
  • BP600
  • BP601
  • BP6013 G1, G2 and G3
  • BP2100 G1, G2 and G3
  • Note: Older Balboa BBA Audio systems are no longer compatible with new touchpads. As a result, you will lose audio functions with any new touchpad.

Dimensions:

  • Touchpad : 138mm x 110mm
  • Hole cutout: 123mm x 90mm
  • Screen: 70mm x 53mm

Important Information:

  • Do not fit this touchpad where the spa cover can press on the touch screen.
  • Do not leave touchpad exposed to sun for long periods.

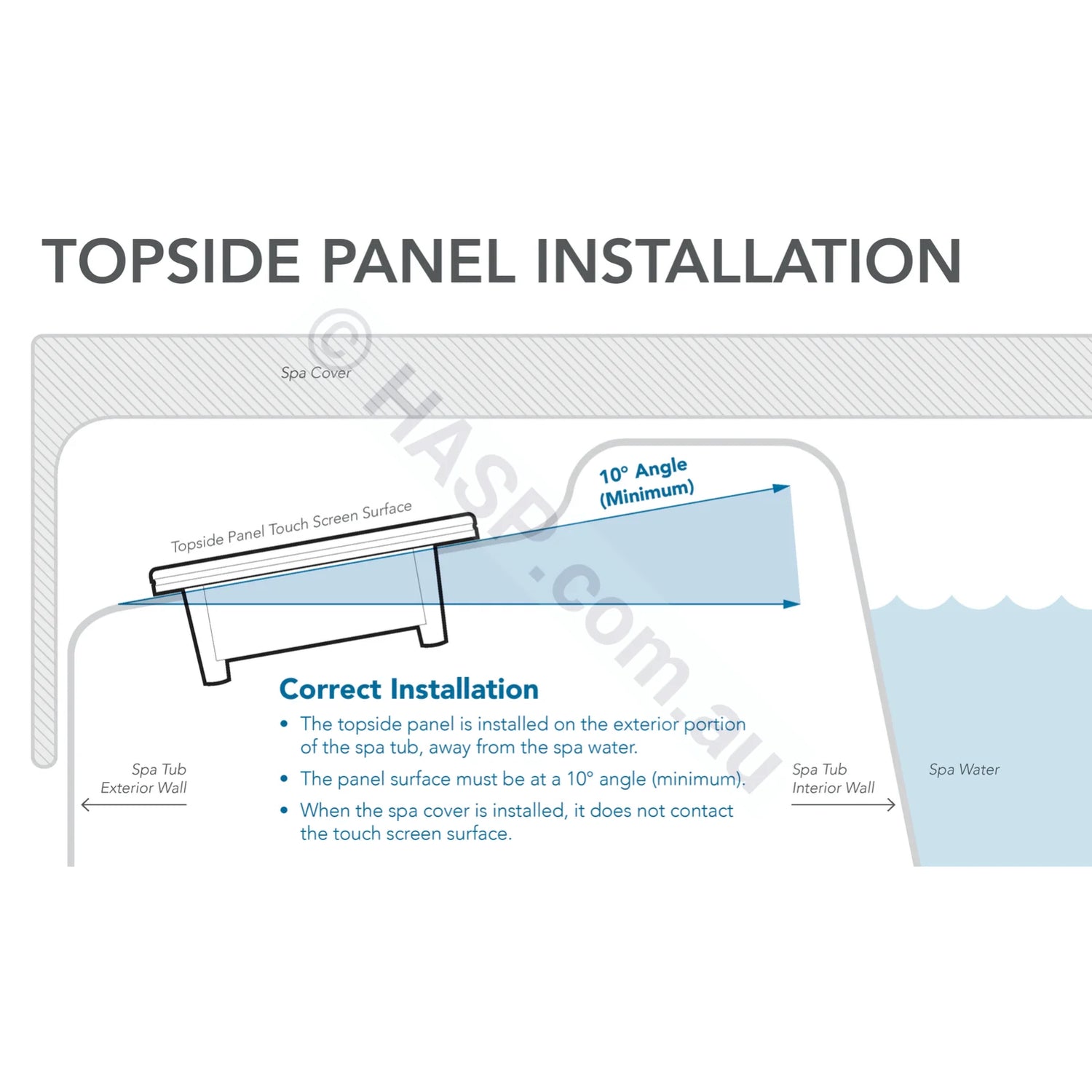

  • Balboa recommends installation on the outside/exterior portion of the spa shell, angled away from the water.

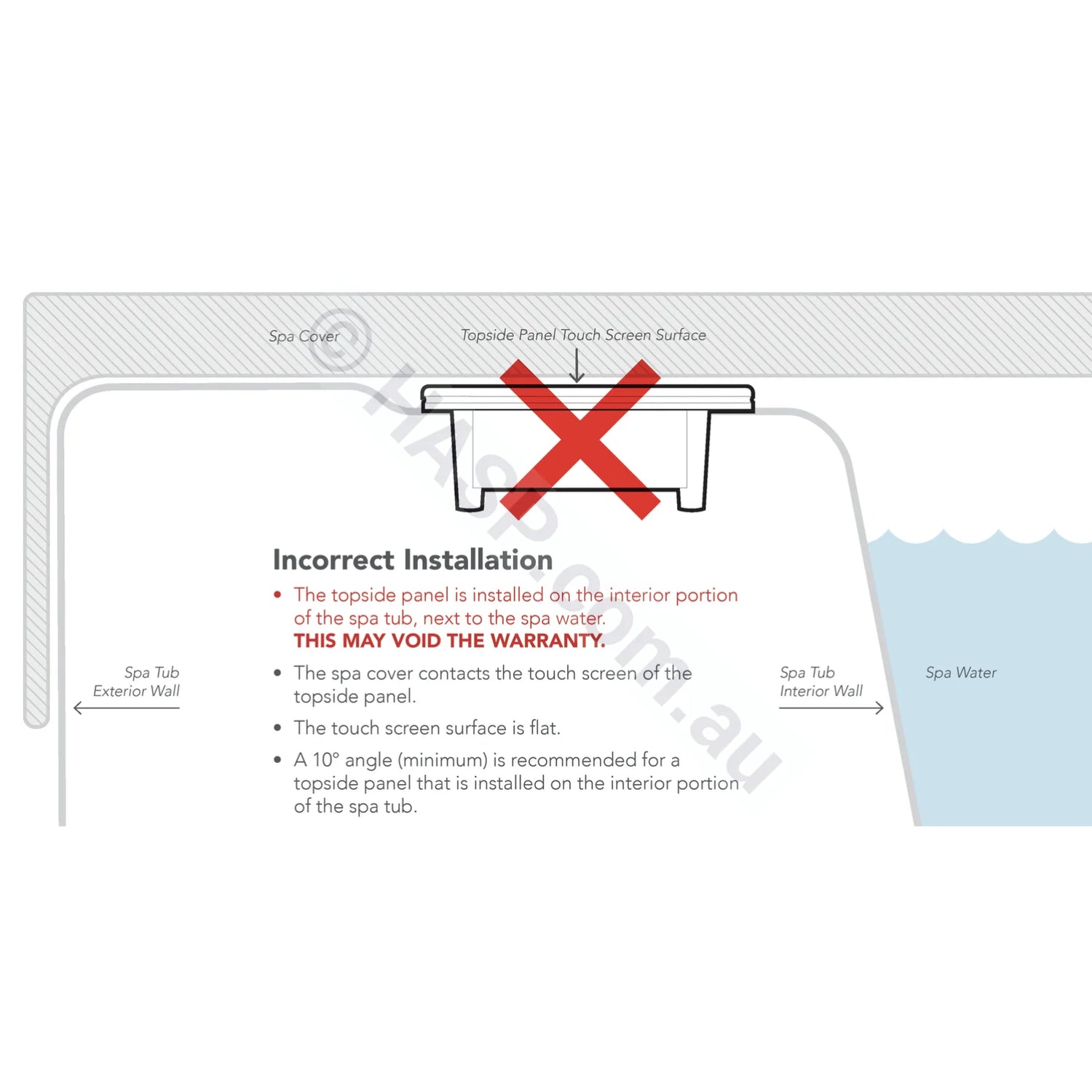

  • If fitted on the interior portion of the spa shell, the panel surface should be on an angle away from the spa water.
  • Flat, or angled in the direction of the spa water, installation in this position is not to specification.
  • Some Chinese spa manufacturers fitted these touchpads against Balboa’s guidelines. See listing images.
  • Warranty may not apply where installed outside Balboa’s specifications.
  • The spa cut-out hole may need modification when replacing older obsolete touchpads.

 B-50587-03, b-50587, b-50586, 50587, 50586
