Description

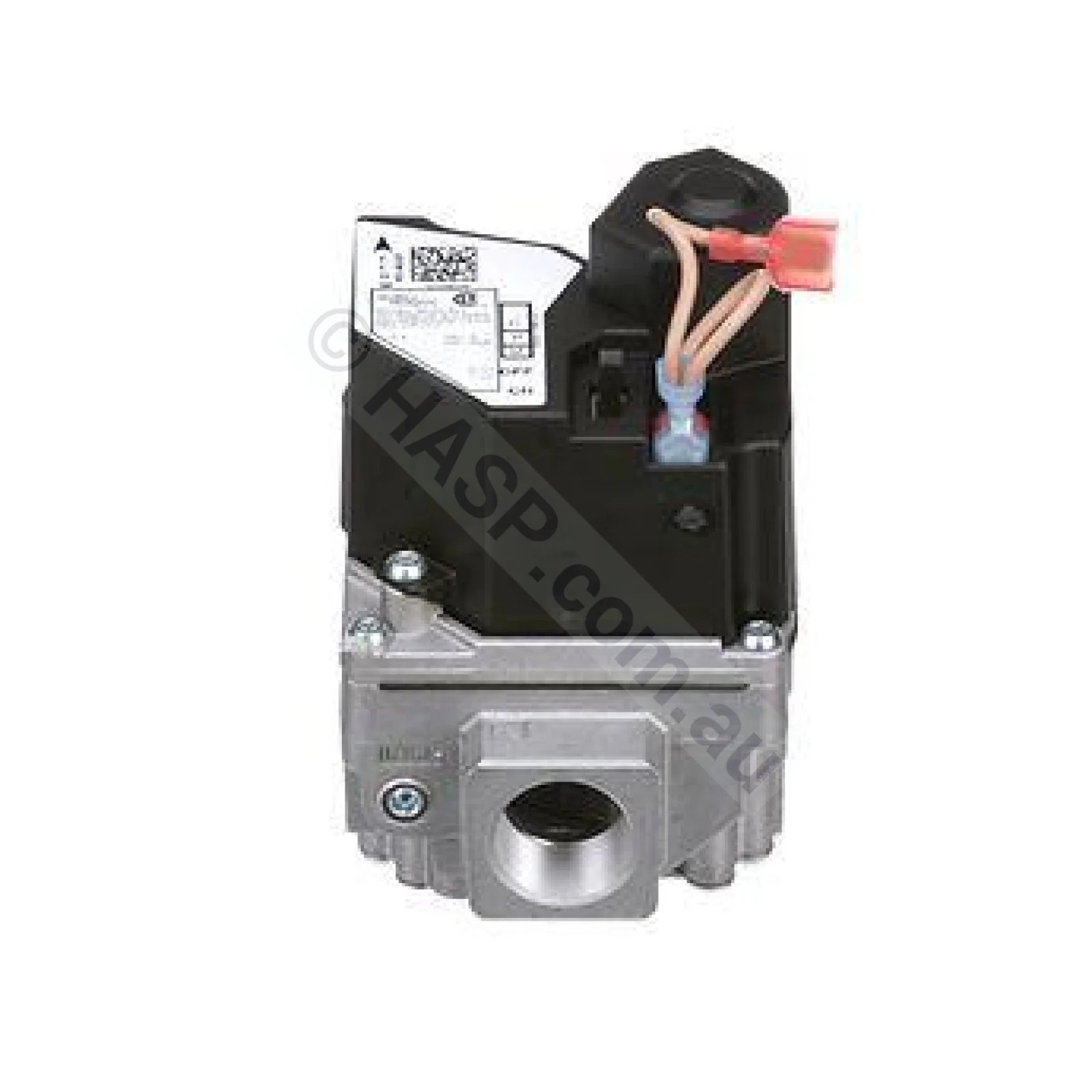

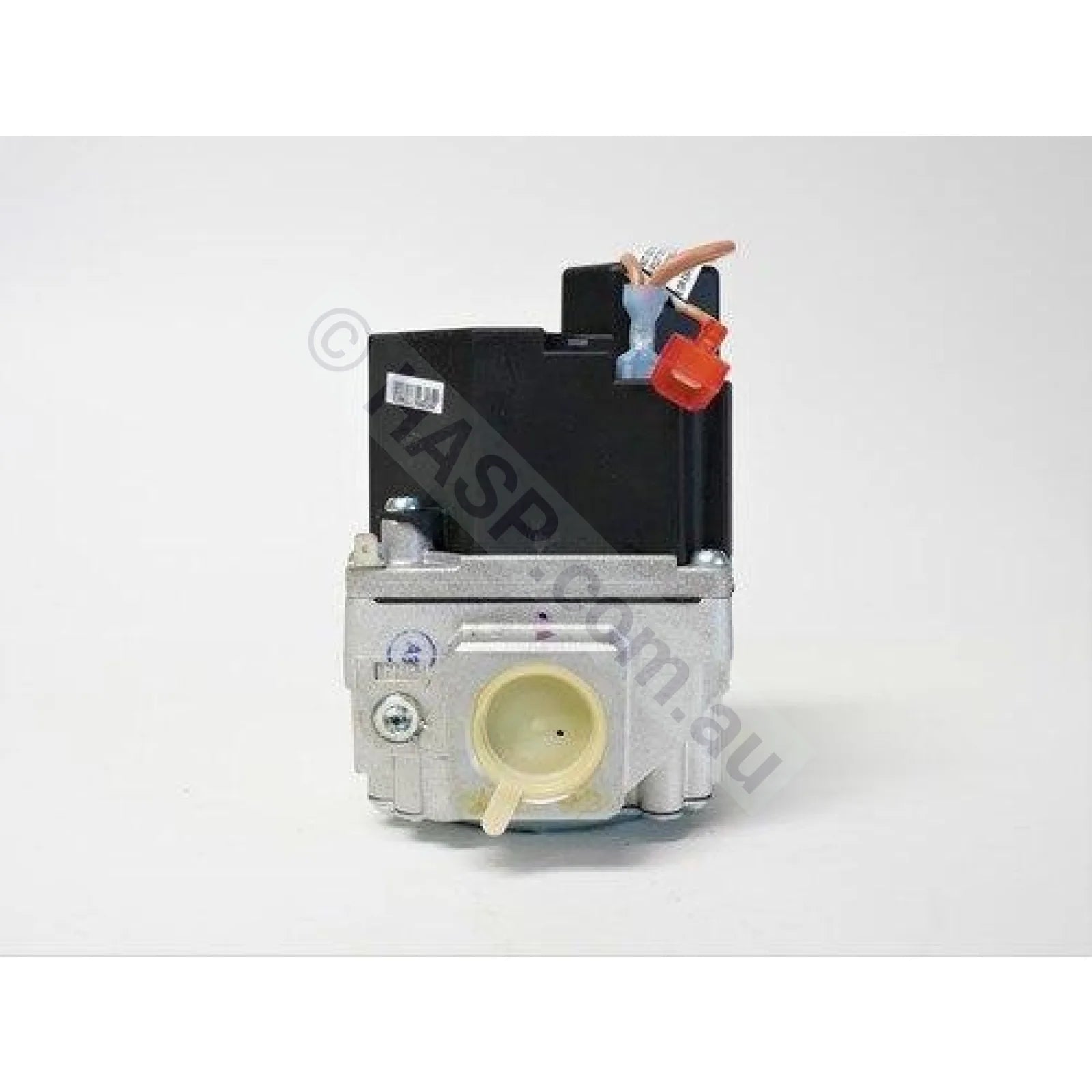

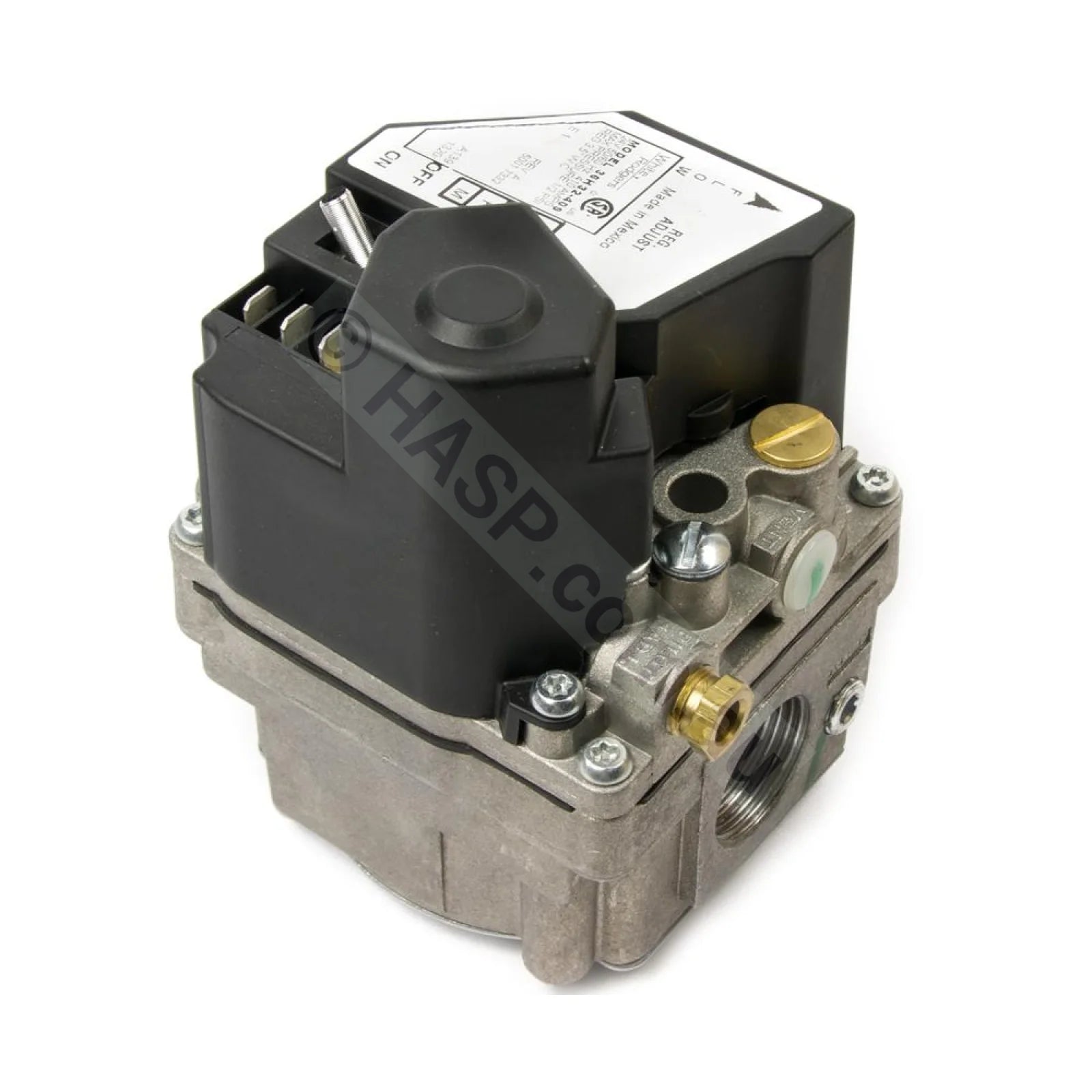

Raypak Gas Valve - since 2019. White Rodgers 36H32-409 24V Gas Valve Solenoid. Used in Raypak 200, 280, 350, 430 gas heaters. Spark ignition. Does not replace old Honeywell Smartvalves.
Uses these pilot assemblies. Comes as Natural Gas or LPG (Propane) variants.

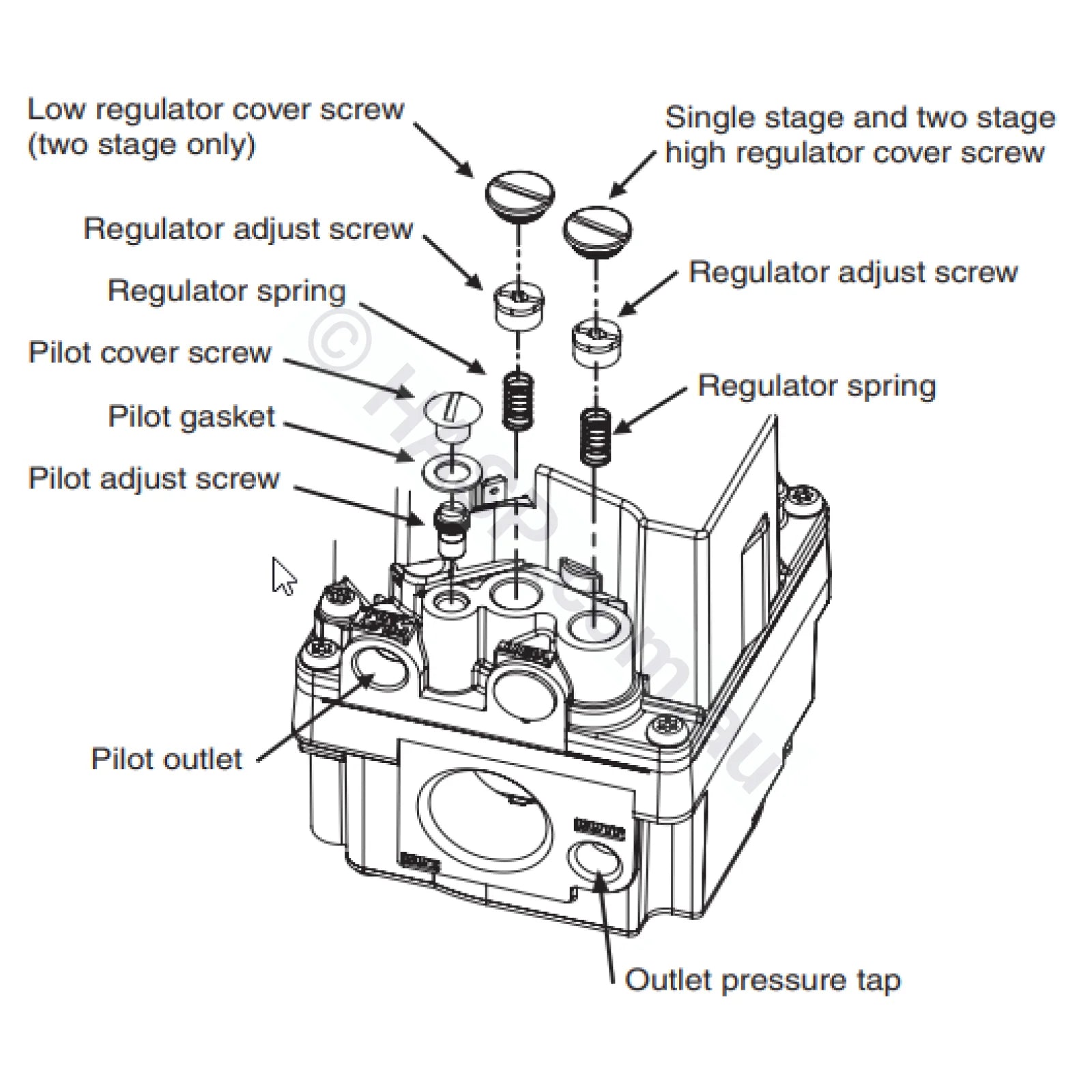

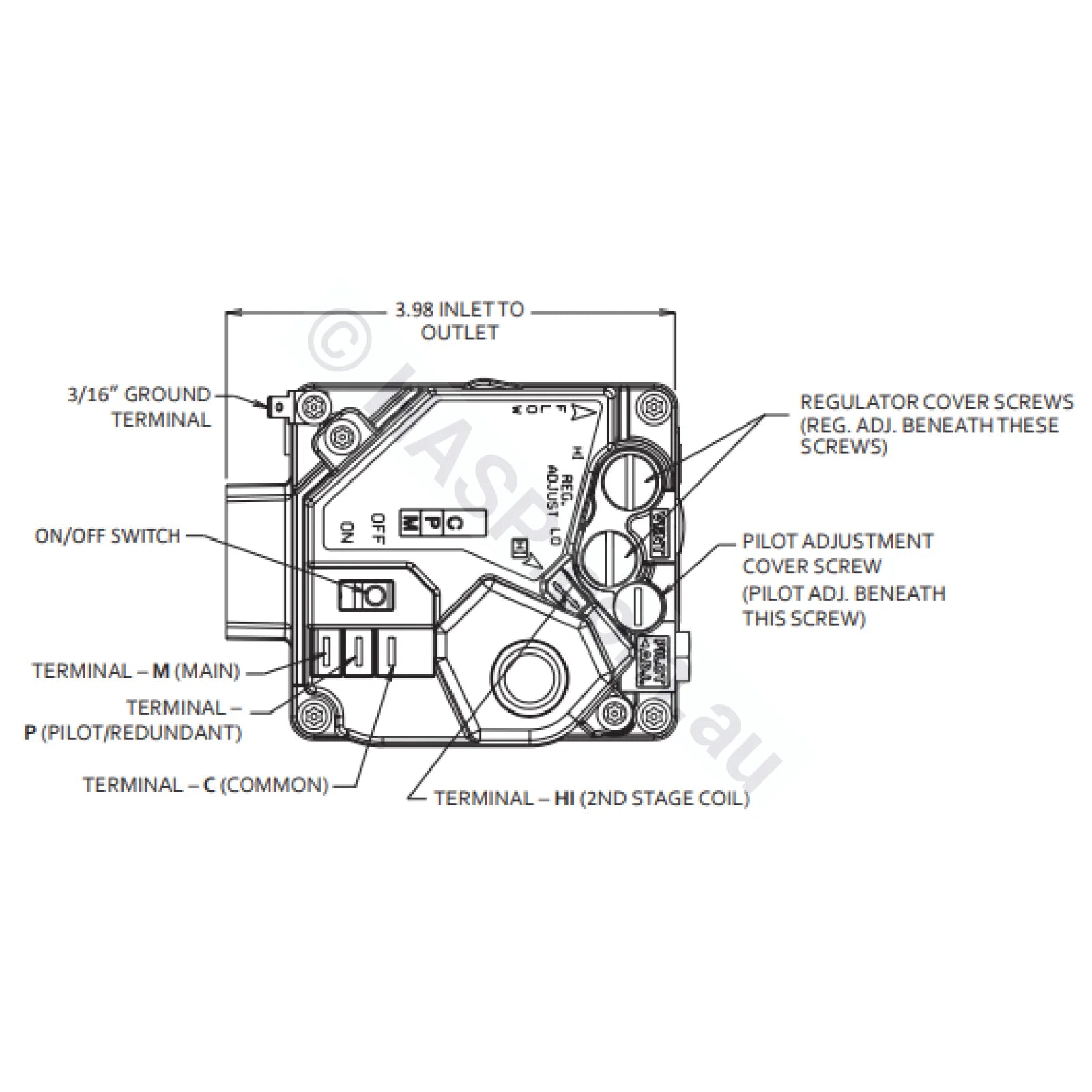

The 36H32 series combination gas valve has redundant and main solenoid valves that control gas flow to the main burners, a pressure regulator to maintain a constant outlet pressure, and a two position on/off switch for electrical shutoff. The valves are shipped from the factory set for natural gas non-piloted applications.
