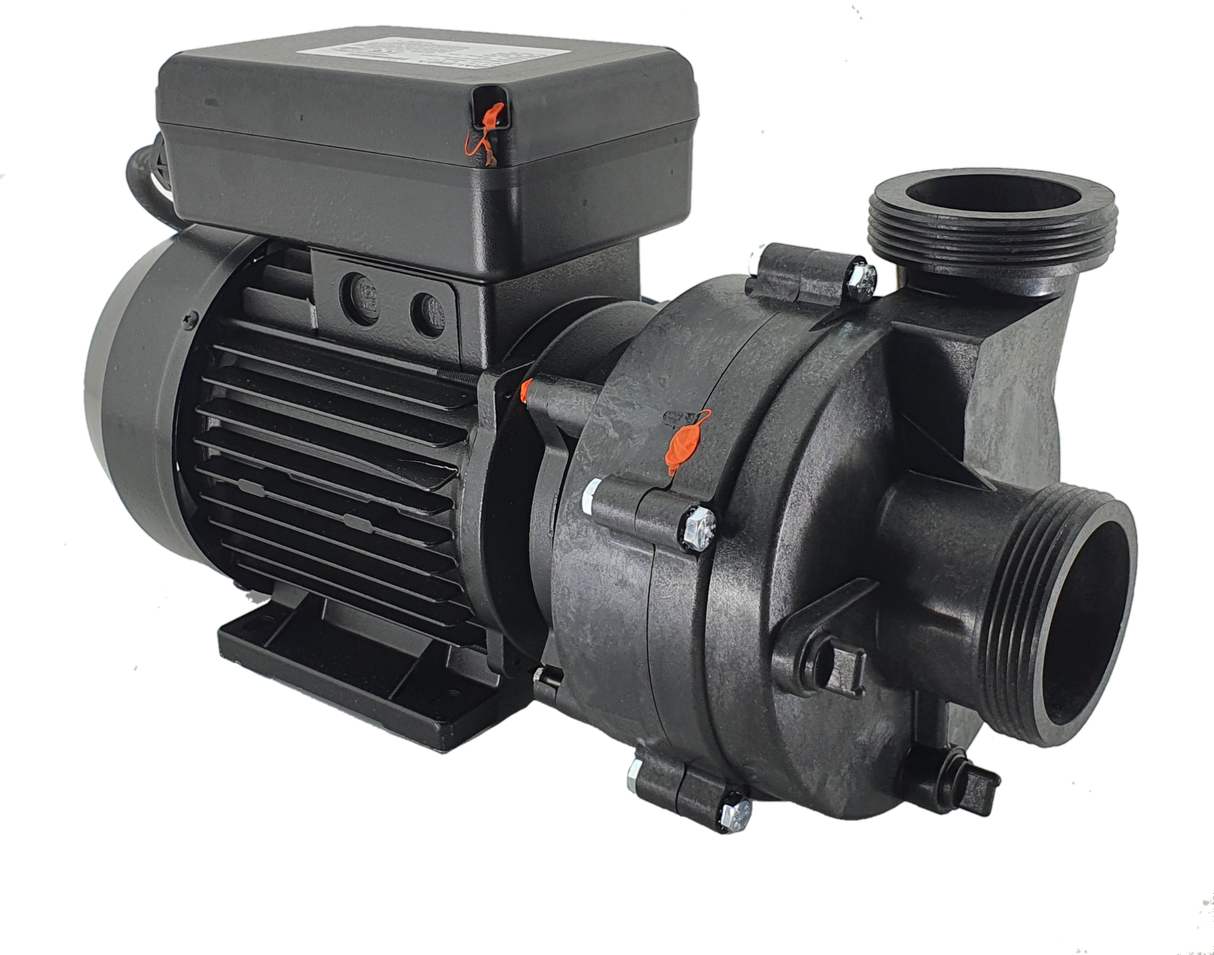

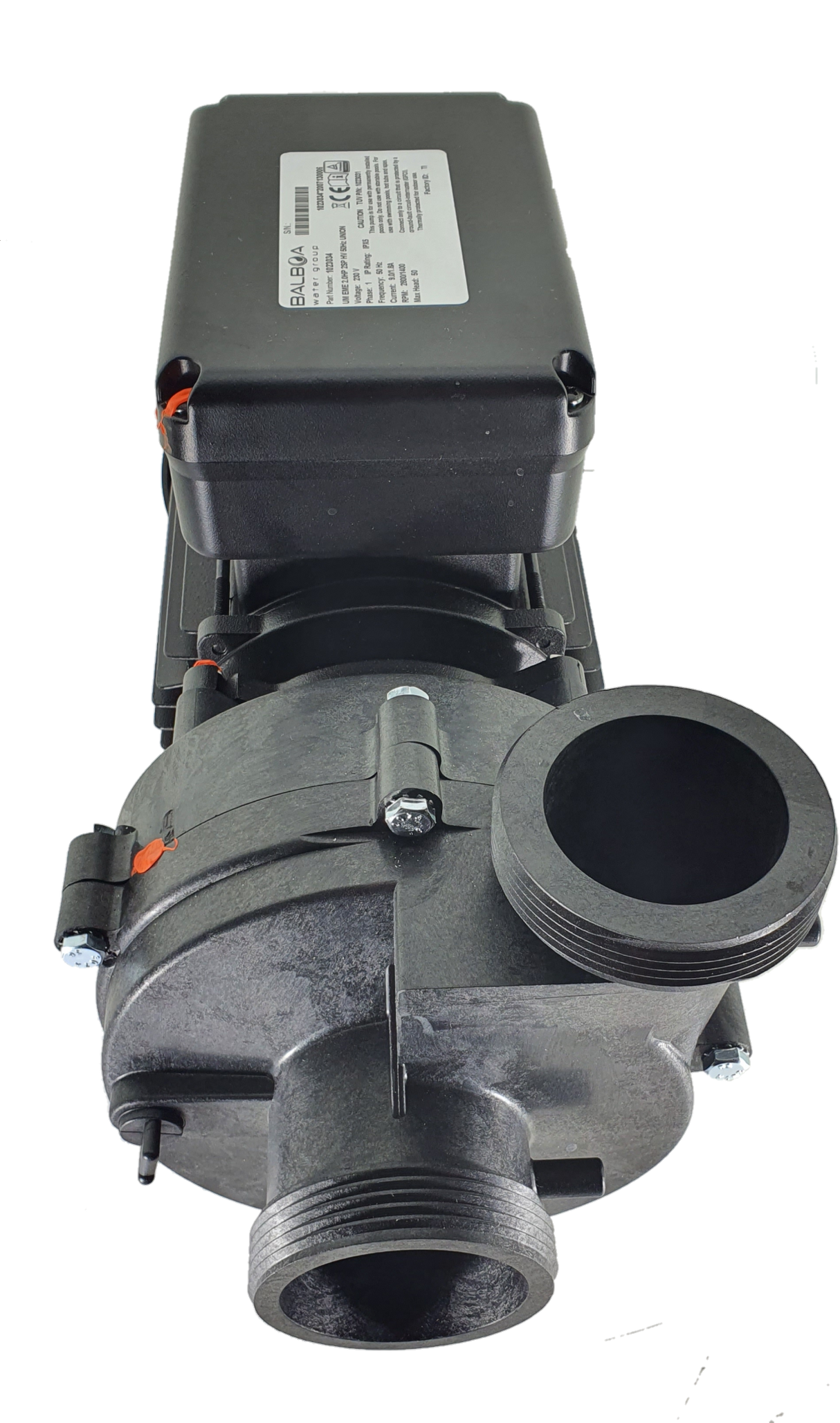

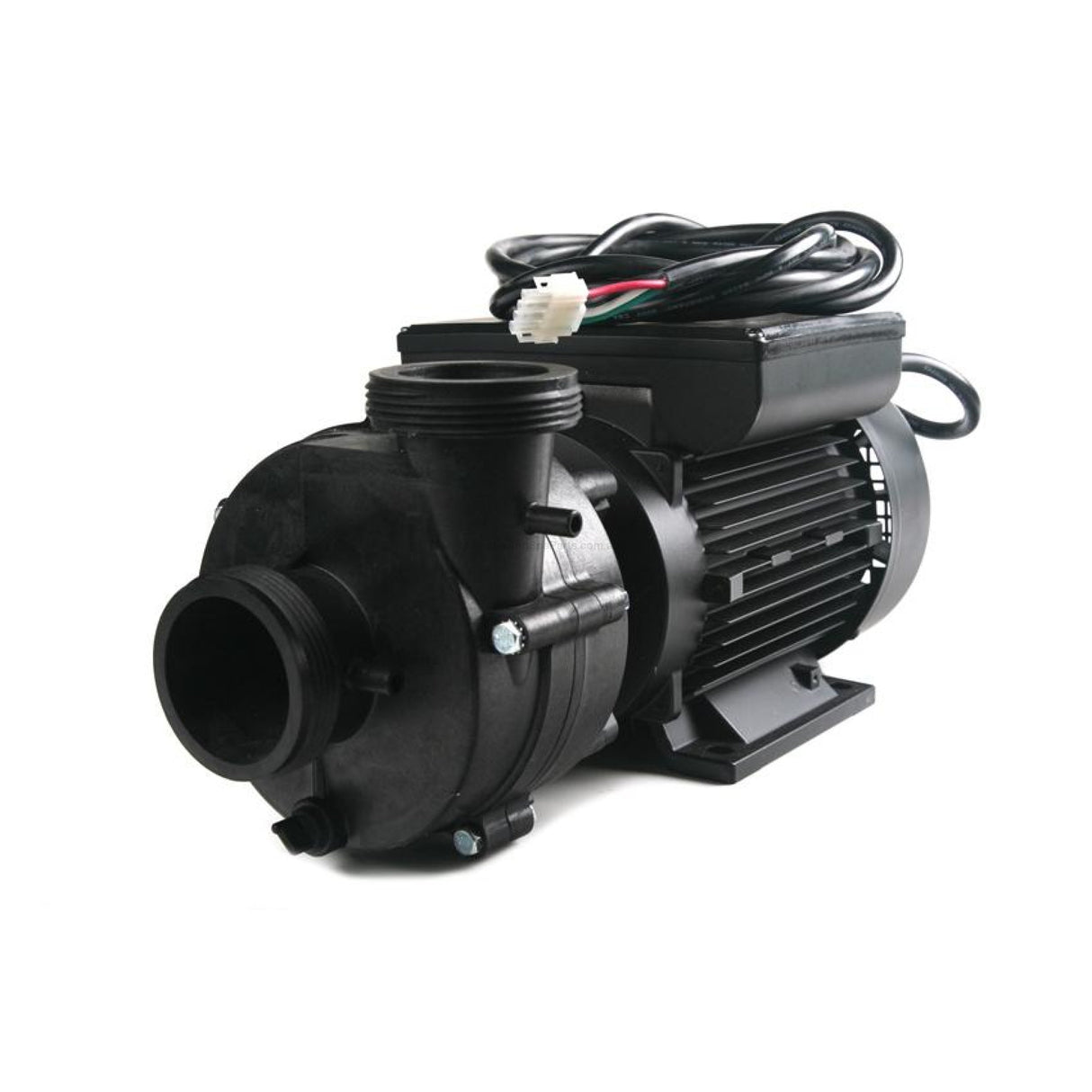

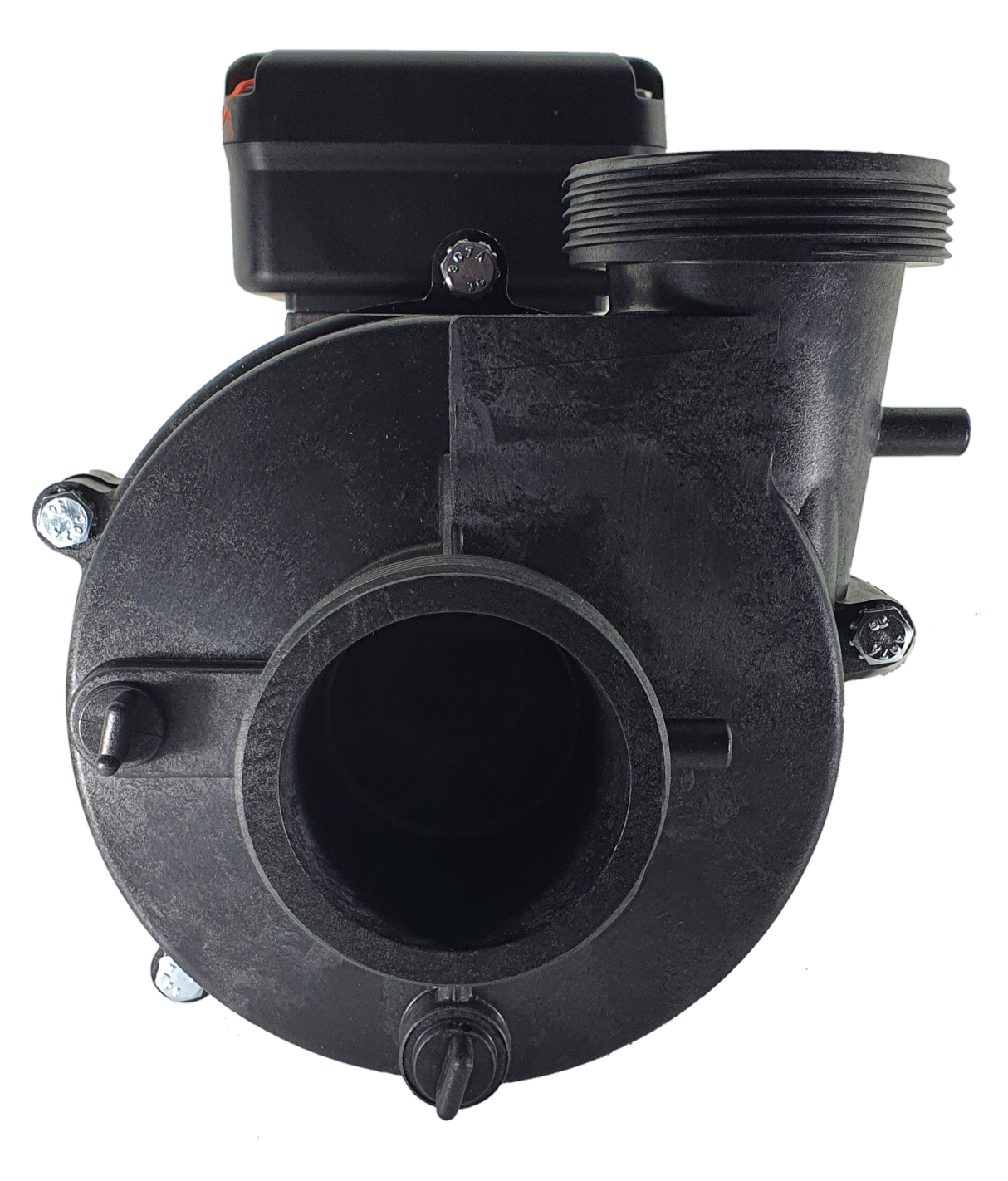

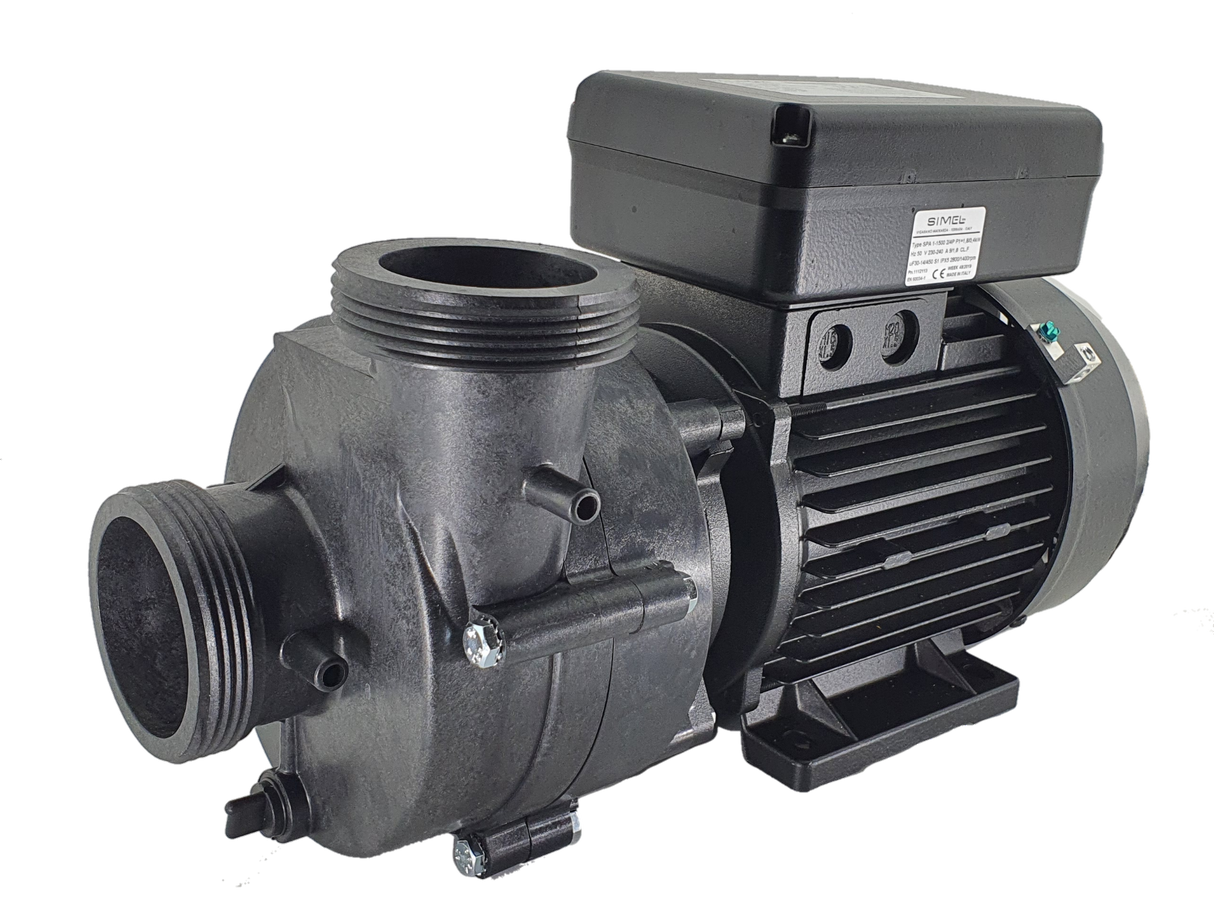

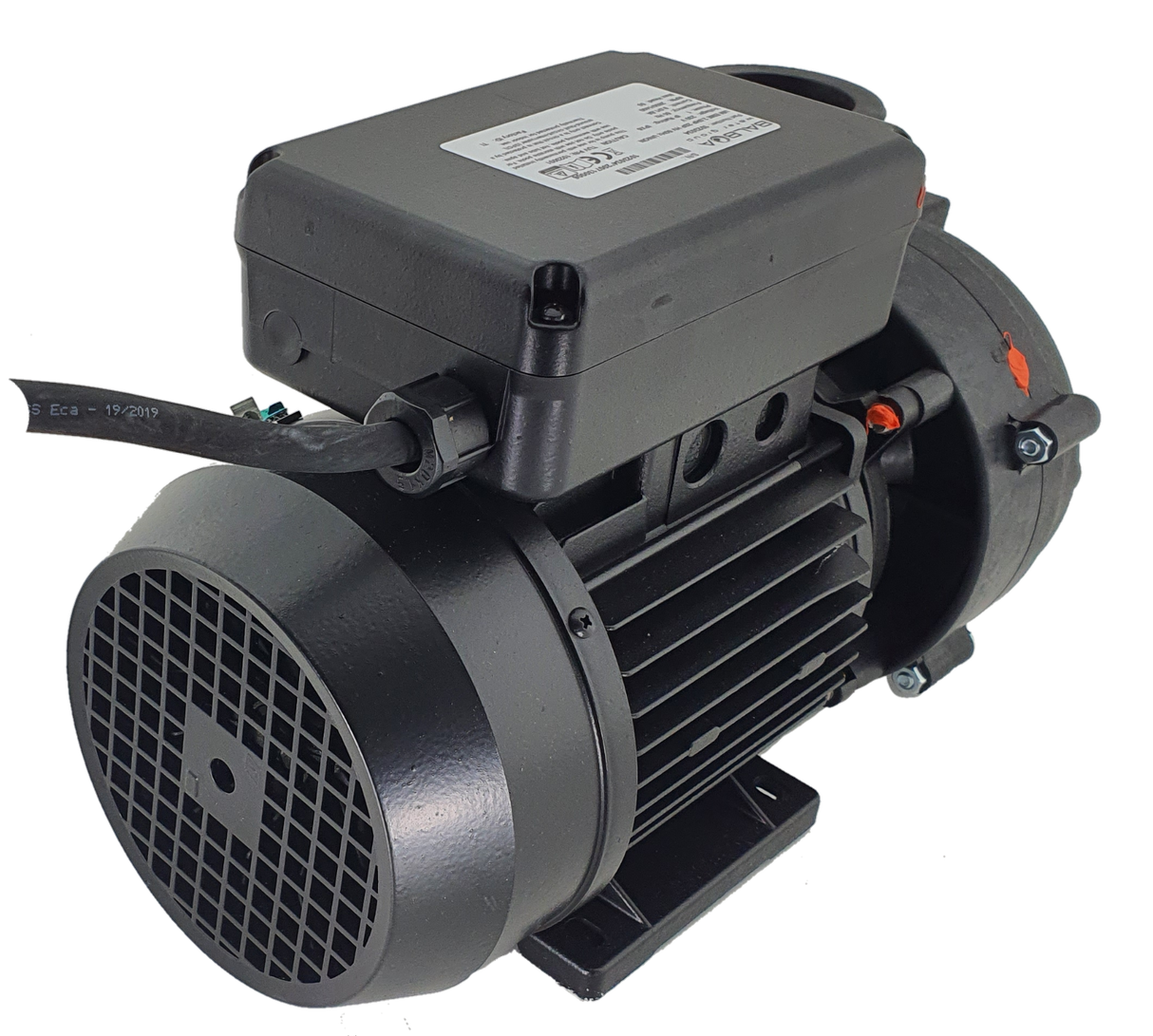

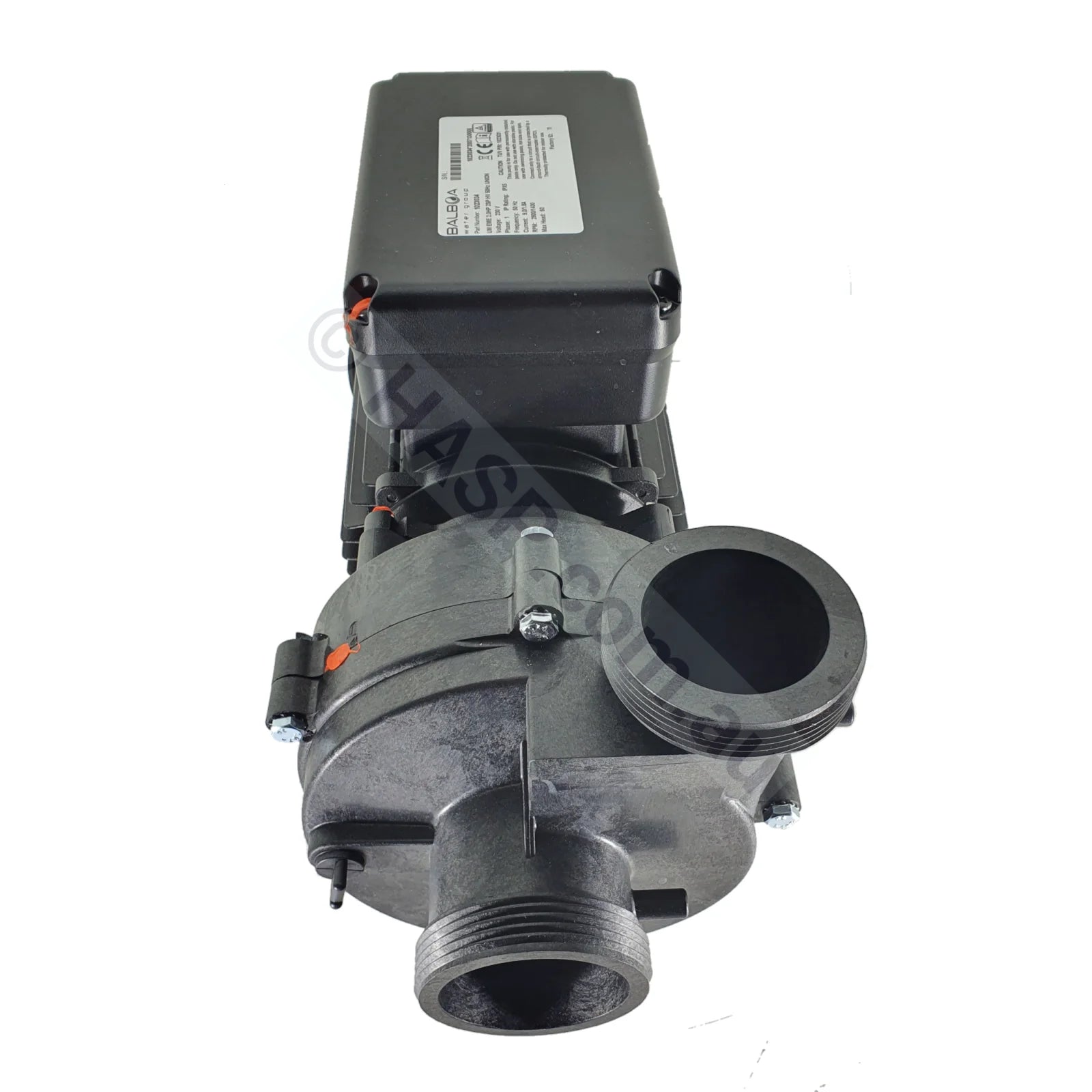

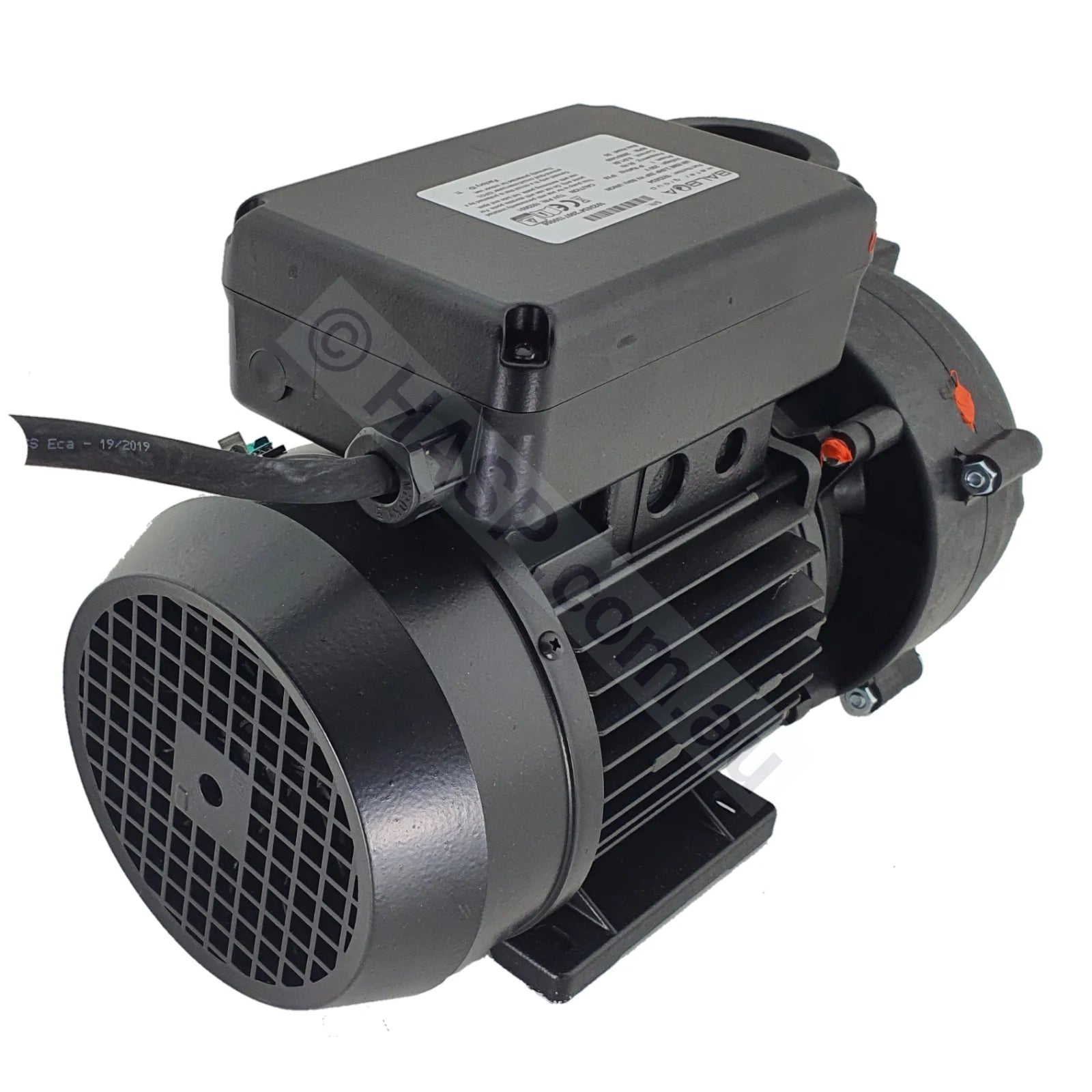

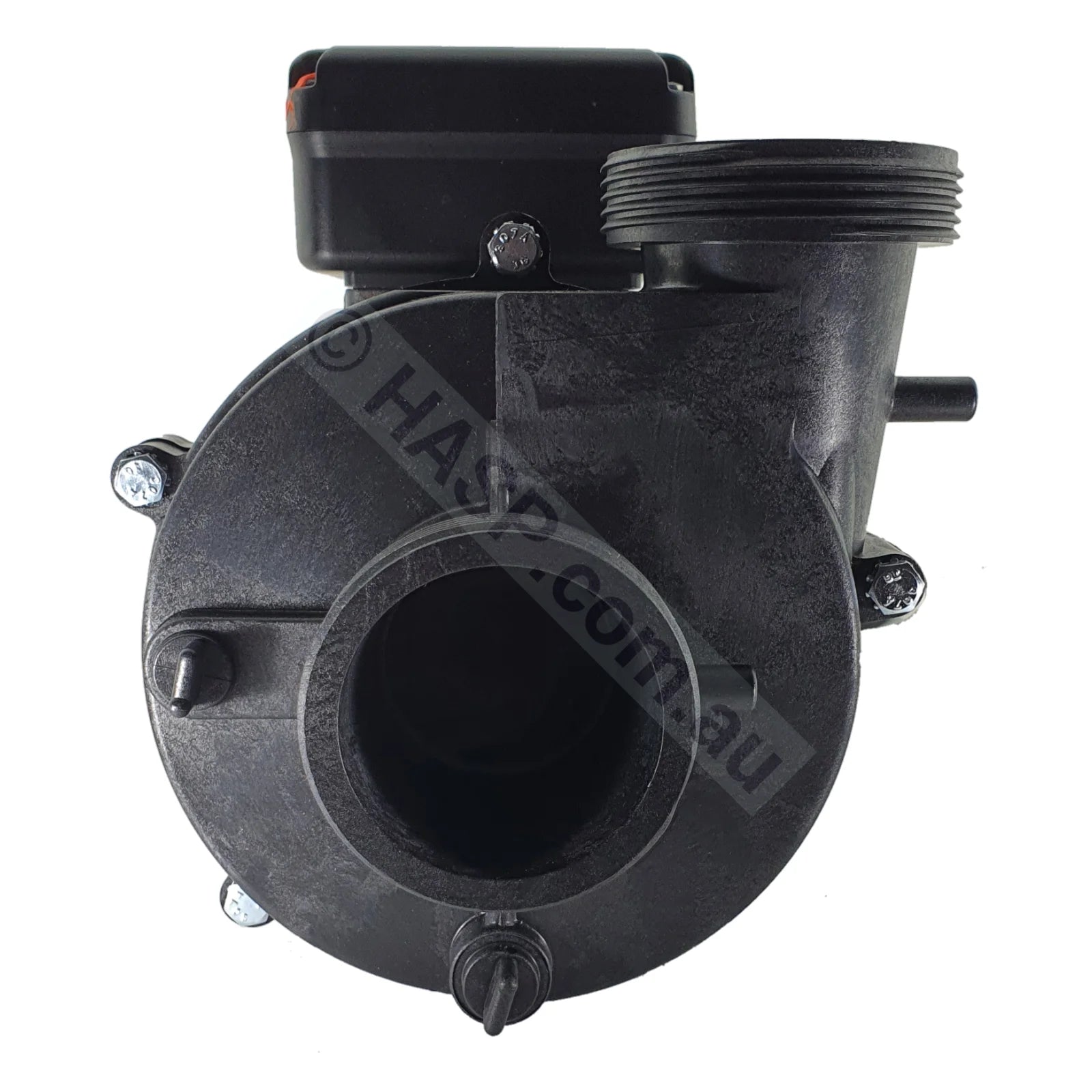

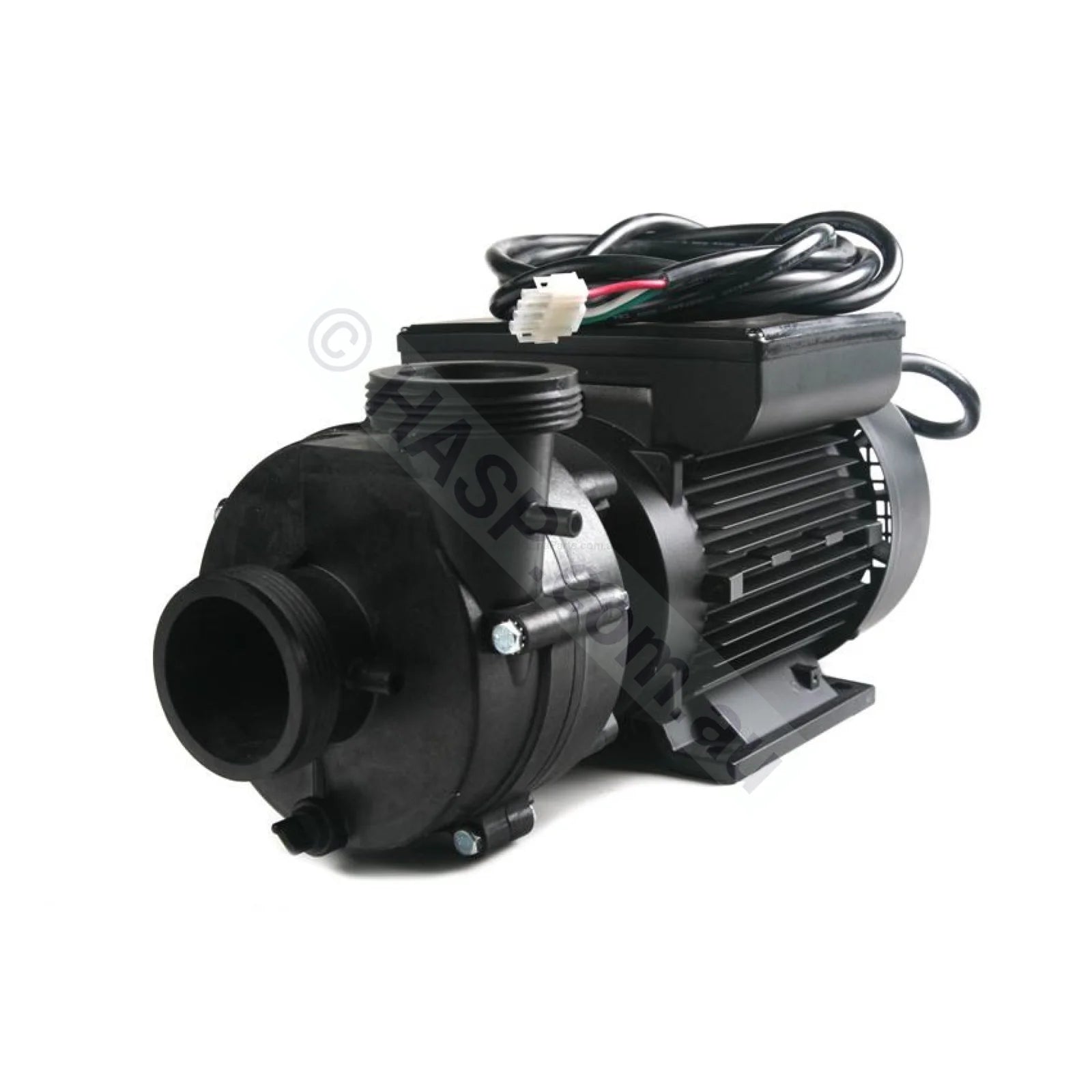

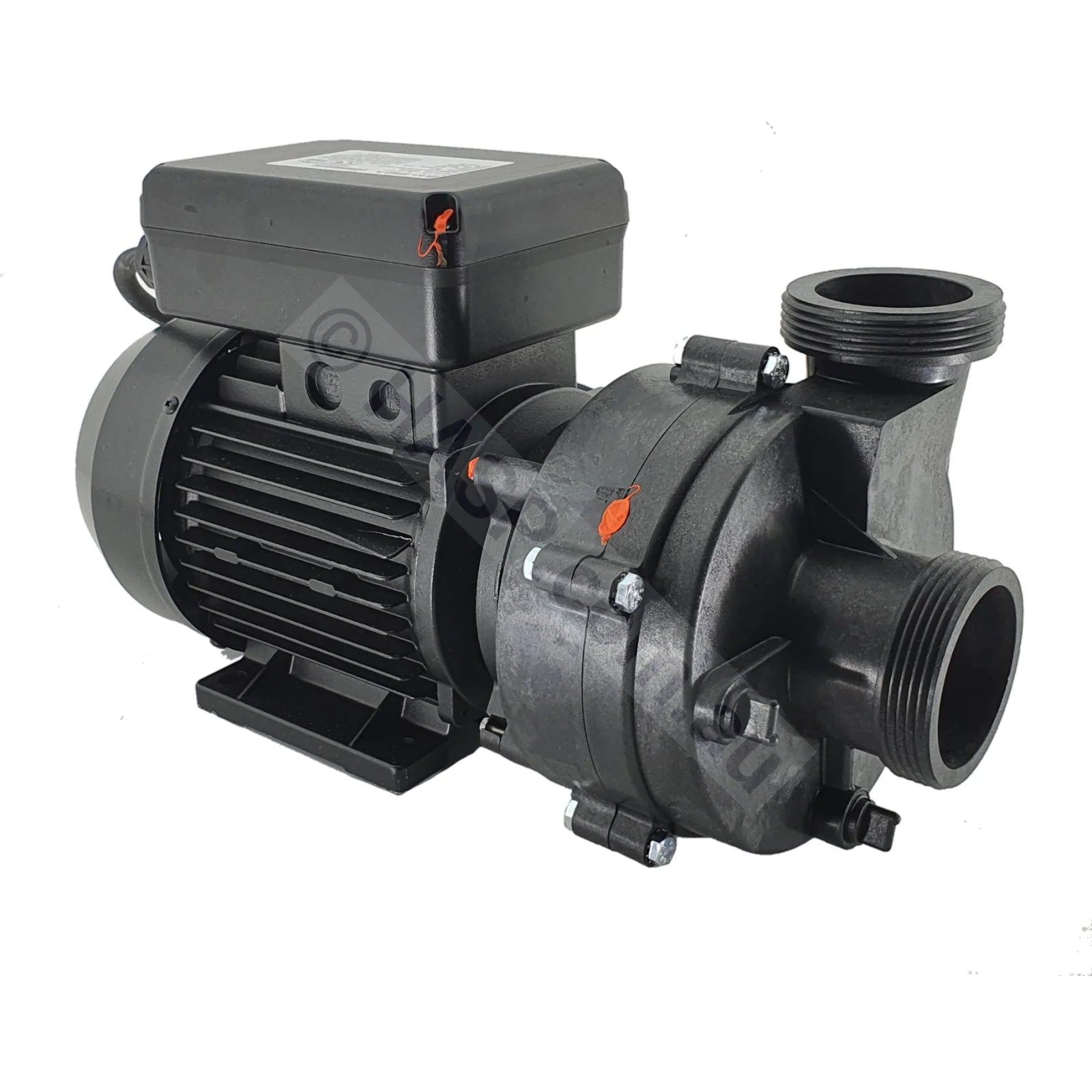

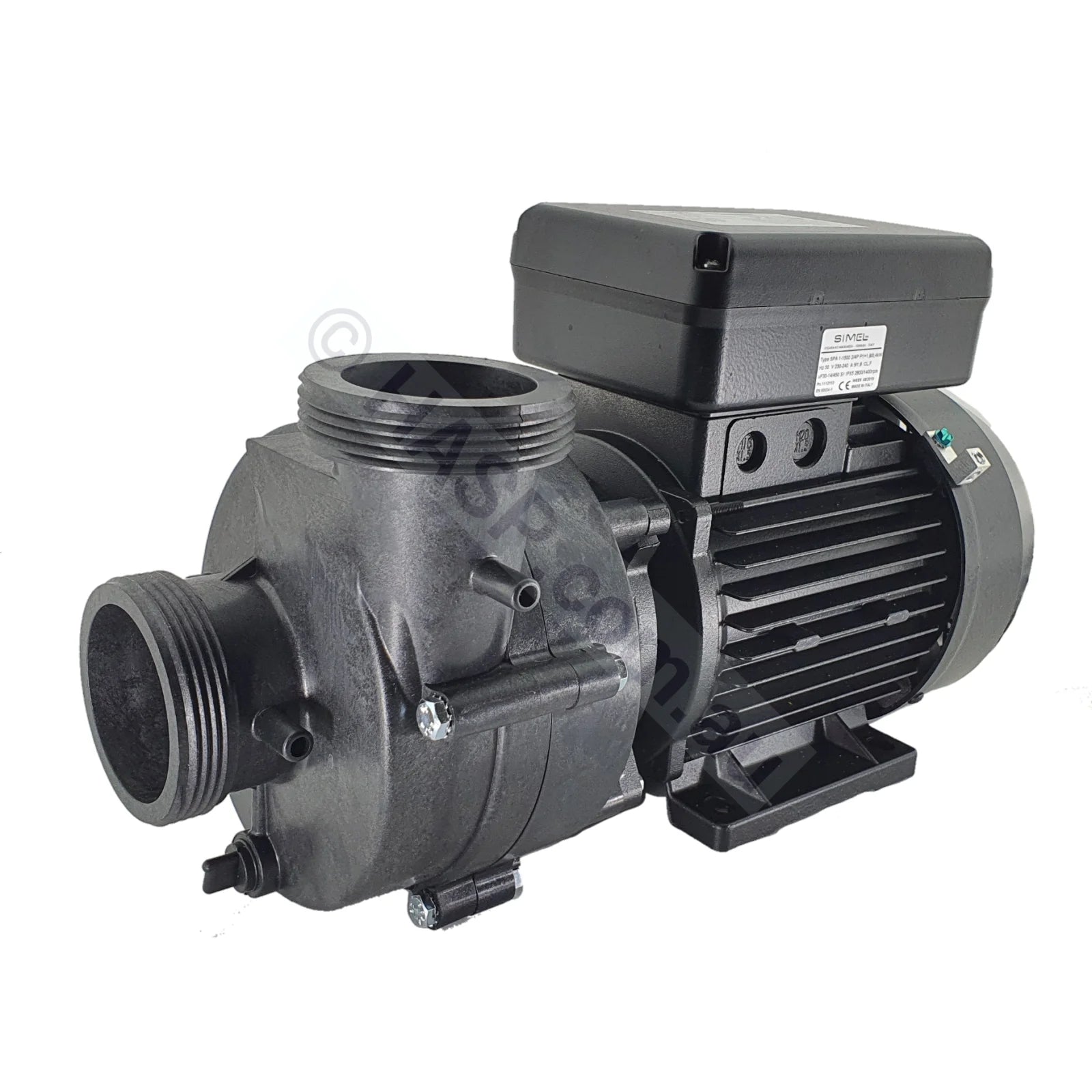

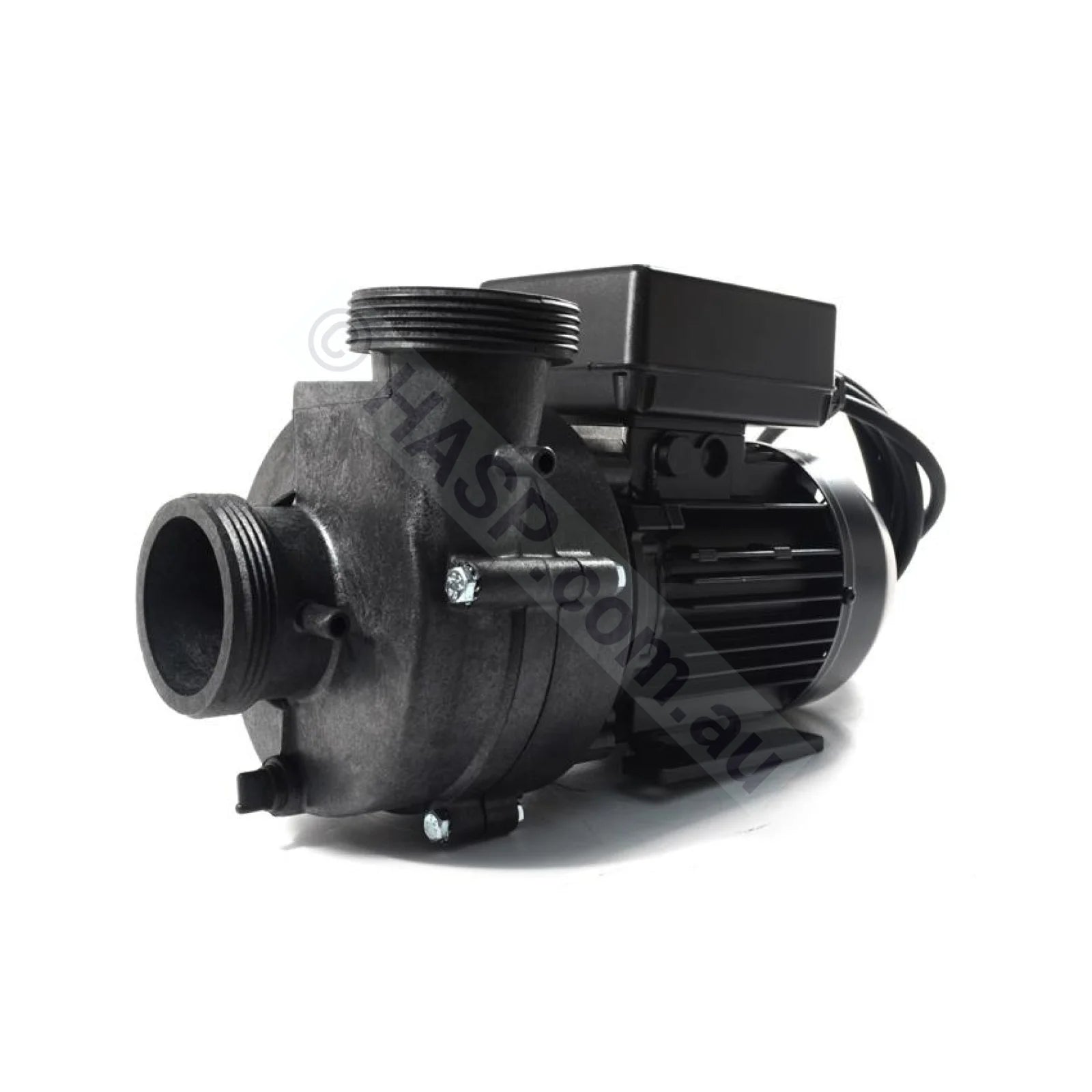

1.5HP - 2 Speed - Balboa Vico Ultimax Spa Jet Booster Pump - Ultima
1.5HP - 2 Speed - Balboa Vico Ultimax Spa Jet Booster Pump - Ultima is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!
Genuine Balboa Ultimax / Ultima / Vico Spa Jet Booster Pumps. This is the uncommon 1.5HP 2-speed pump. These supersede the older SuperWow pumps. Balboa Water Group GG Industries. Comes standard with AMP plug. Made in the USA
- Replaces all older Superwow & Ultimax 1.5hp 2 Speed Pump. May have 1023024, P528216 or other parts numbers.
Installation Notes if Replacing a SuperWow pump:
- Use lubricant on pump thread due to a variance of the thread. Newer pumps have a tigher thread.
- Plumbing side is very similar, but in some cases it will need ot be modified.
- Motor mount is different. Remove mounting studs in spa and mount motor as necessary.
Balboa Pumps marked "4HP" & "3HP" are actually a 2HP pump in Australian spas. See notes below for explanation.
These are a very common pump found on many Spa Industries' brands of spas. (Bullfrog, Signature, Leisurite, Designer, Lanark, SCS Industries, etc) They were often 2-speed pumps with the low-speed wire clipped off, thus actually becoming single speed pumps. If your plug has one wire clipped off, ensure the new pump has the same done!
Dimensions:
- 1.5HP Two-Speed: Length: / Height: / Width: 195mm
- 2"/50mm FBT Thread - measures ~78-79mm OD on pump
Important Notes:
- Some Spa Manufacturers use a complicated & confusing form of Horsepower measurement that was more commonly used in the USA, called hydraulic horsepower (HP=PSI*GPM/1714). It gives a more impressive appearance, and may give a false impression of performance.
- Australian HP ratings are calculated purely on input power in Watts, which are then converted to HP. (1HP=745.7Watts).
- Balboa & Aquaflo have both released pumps to spa manufacturers that use these confusing power ratings at the request of Spa Manufacturers.
- You can always look at the input ratings and convert back to real HP.
- Rough HP measurement can also be calculated using Ohm's Law (V=IR). These pumps also have an Amperage rating that can be roughly converted back to Watts, and then to Horsepower.
- Furthermore, HP ratings are not an ideal measurement of pump performance anyway! Pump flow curves, which measure flow per metre of head pressure are a far more reliable method of measuring pump performance, especially with the advent of variable-speed DC motors.
ha44ng um si 1.5hpr 2sp amp
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
