Balboa GS100 Spa Controller Only

Name: Balboa GS100 Spa Controller Only
Brand: SXSC
SKU: B-56300
Price: 546.00 AUD
Availability: InStock

Price:

$546.00 $669.00

Quantity:

Tax Included. Shipping over $149 FREE or calculated at checkout.

About Us: We keep physical stock in Vic, NSW, Qld, WA unline most online stores. We offer sustainable, value-based pricing that reflects our stock and support. We don’t price match but stay competitive for the long term.

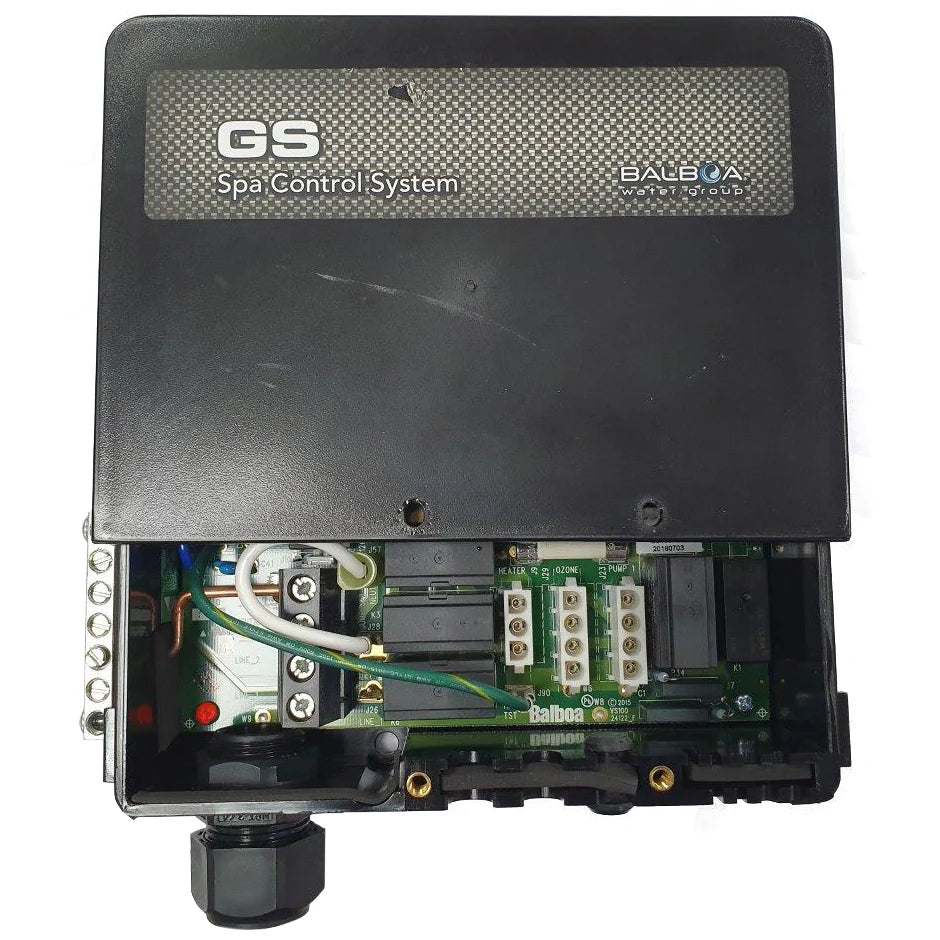

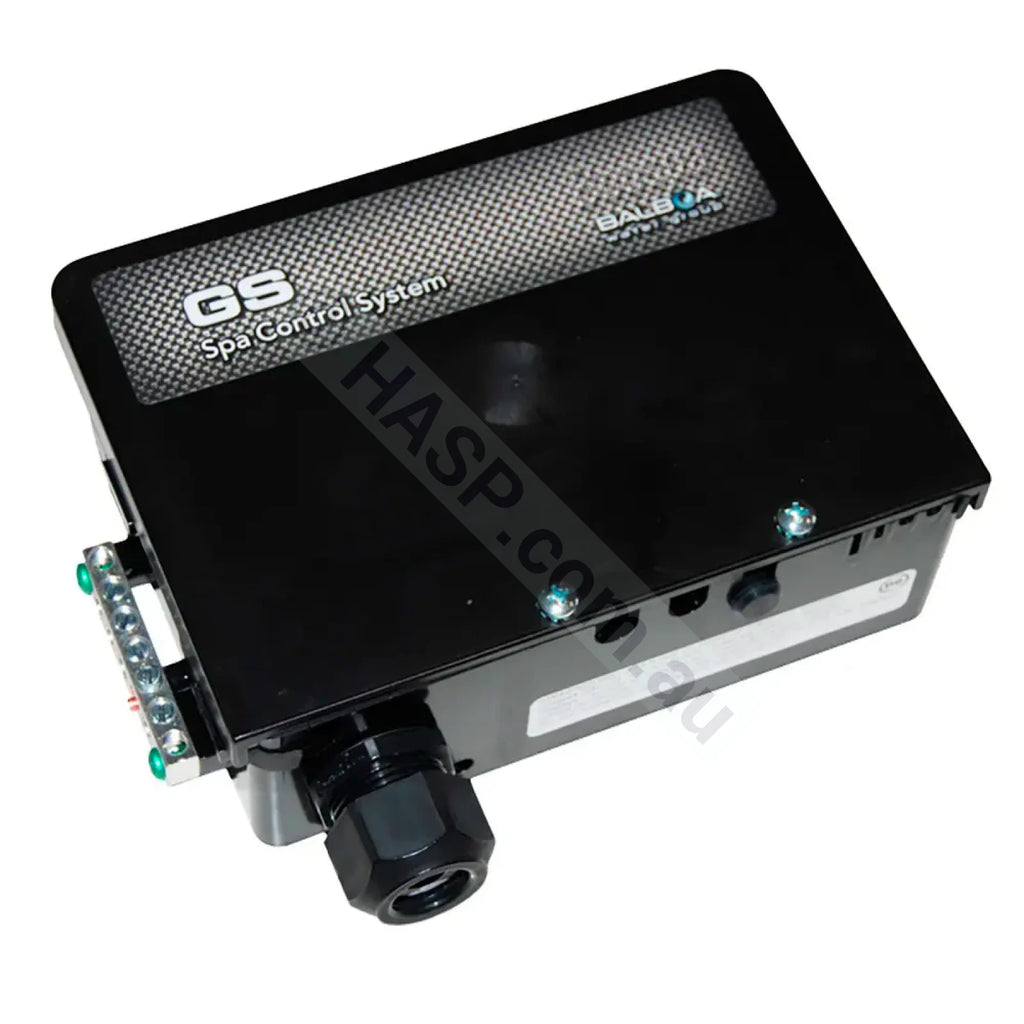

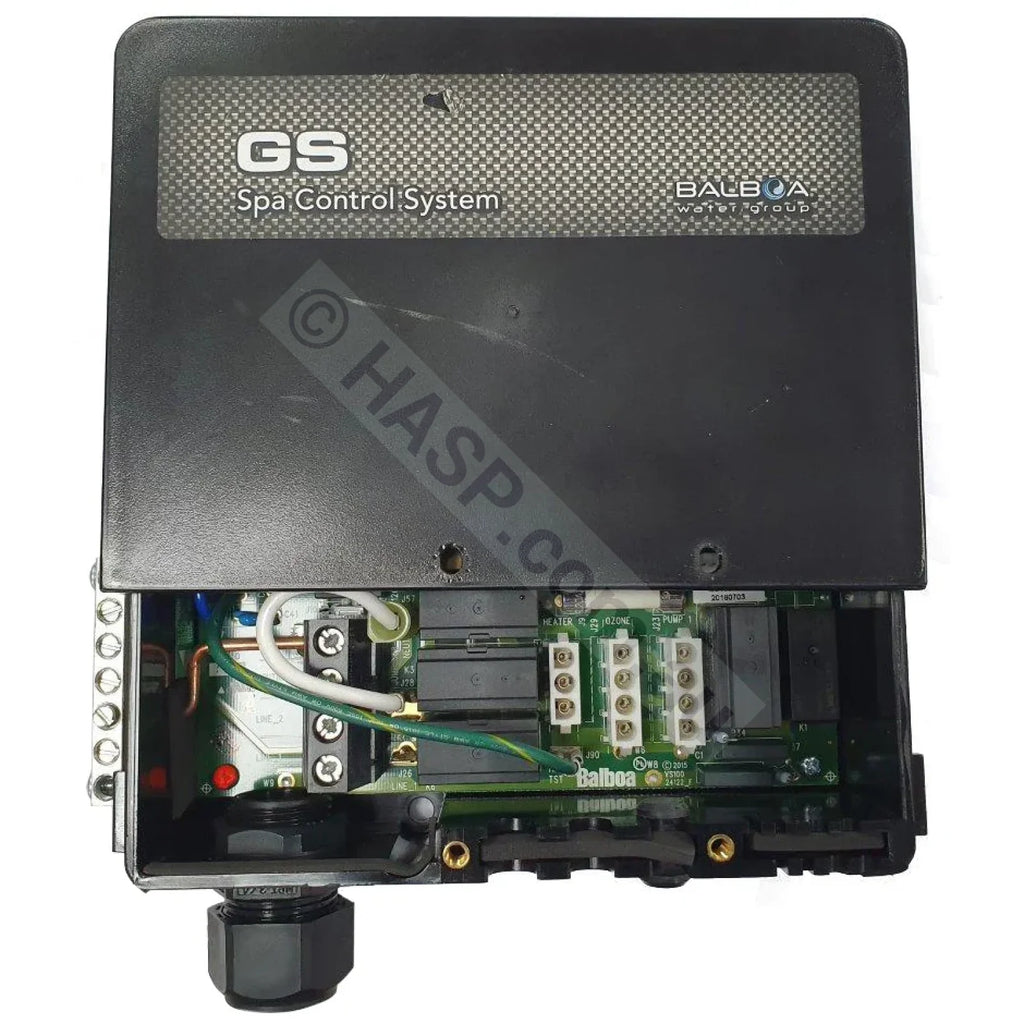

This GS 100 standalone control box can be paired with either a 2kw or 3kw heater, and a VL200, VL240, VL260, VL401, VL403 touchpad. Older systems may stop heating due to failed relays. This system can only run a two speed pump, ozone unit and 12 volt light. Comes with factory default settings. Often found in Spas Direct spas and other Chinese-imported spas. Used with these heaters.

Control box dimensions are 190mm x 140mm x 65mm.

This box is capable of handling the following elements:

Two-speed or Circ
Ozonator (230V)
Underwater lighting
2 kW or 3 kW heater in 10" or 15" lengths

This control box is equipped with M7 technology, which uses temperature probes at the inlet and outlet of the heater to measure water flow, making it much more reliable than systems equipped with a pressure switch or conventional flow sensor.

See here for Balboa GS 100 troubleshooting issues.

Dimensions:
Height: 190 mm (with cable gland and mounting brackets). 137 mm (housing only).
Width: 200 mm
Depth: 60 mm

Warranty: 1 year

Balboa part numbers:
Control system alone : 54806, 54807
Control system + 3kW heater : 56300
Control system + 2kW heater : 56461
Volition : 1SG
Wellis : ACM0598
