Astralpool Volute (Wet End) - CTX / Viron / E-Series MkII, Nov 2020 SP40031

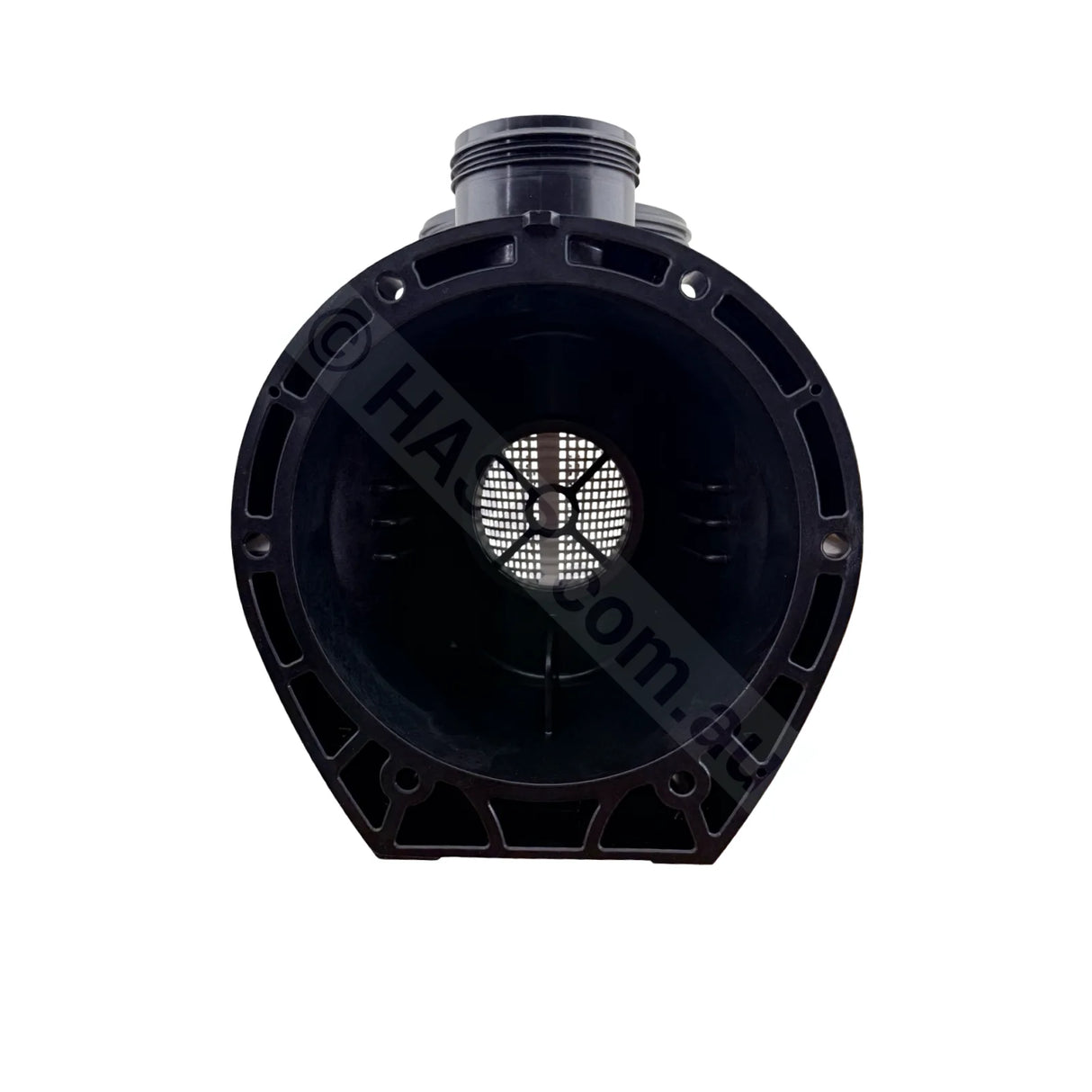

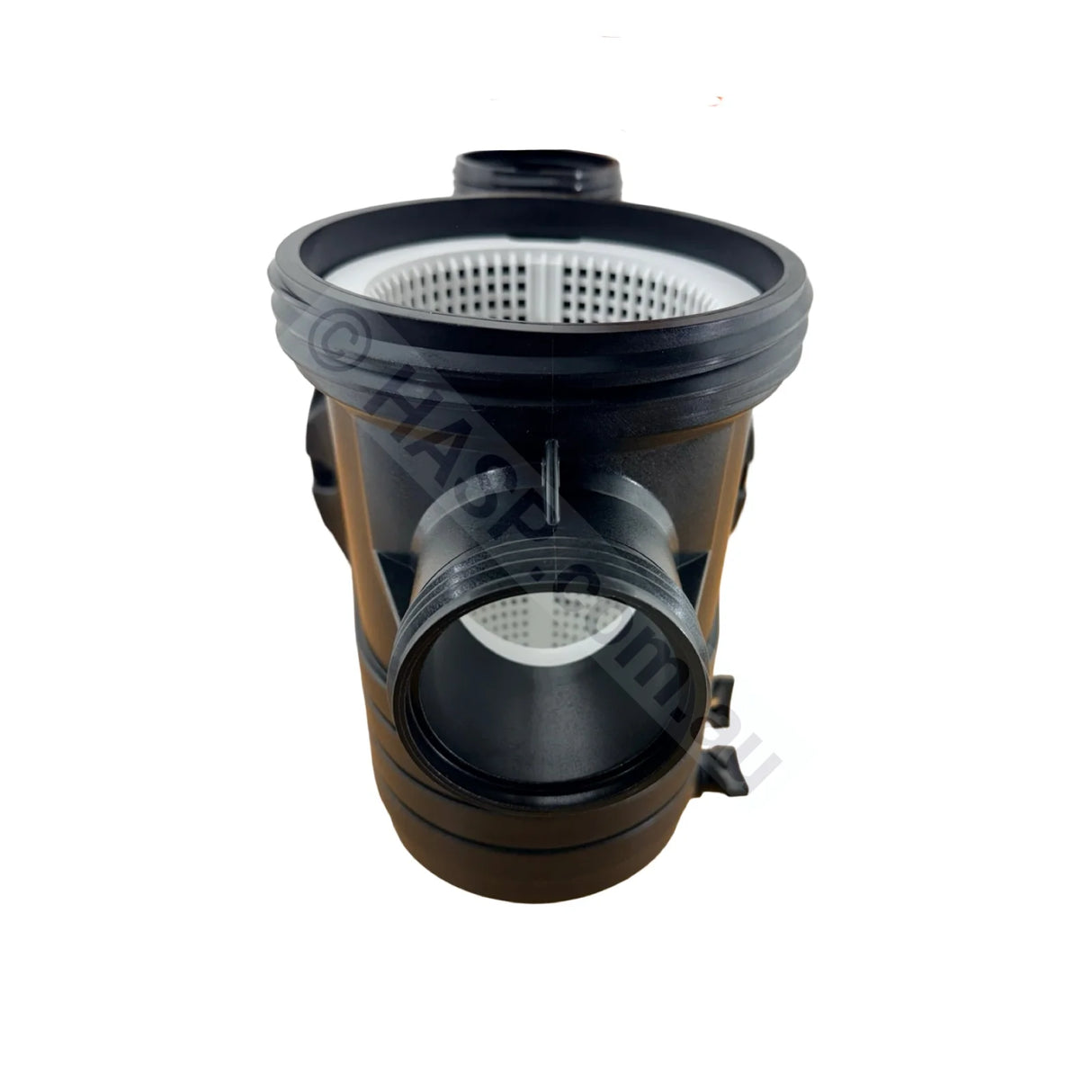

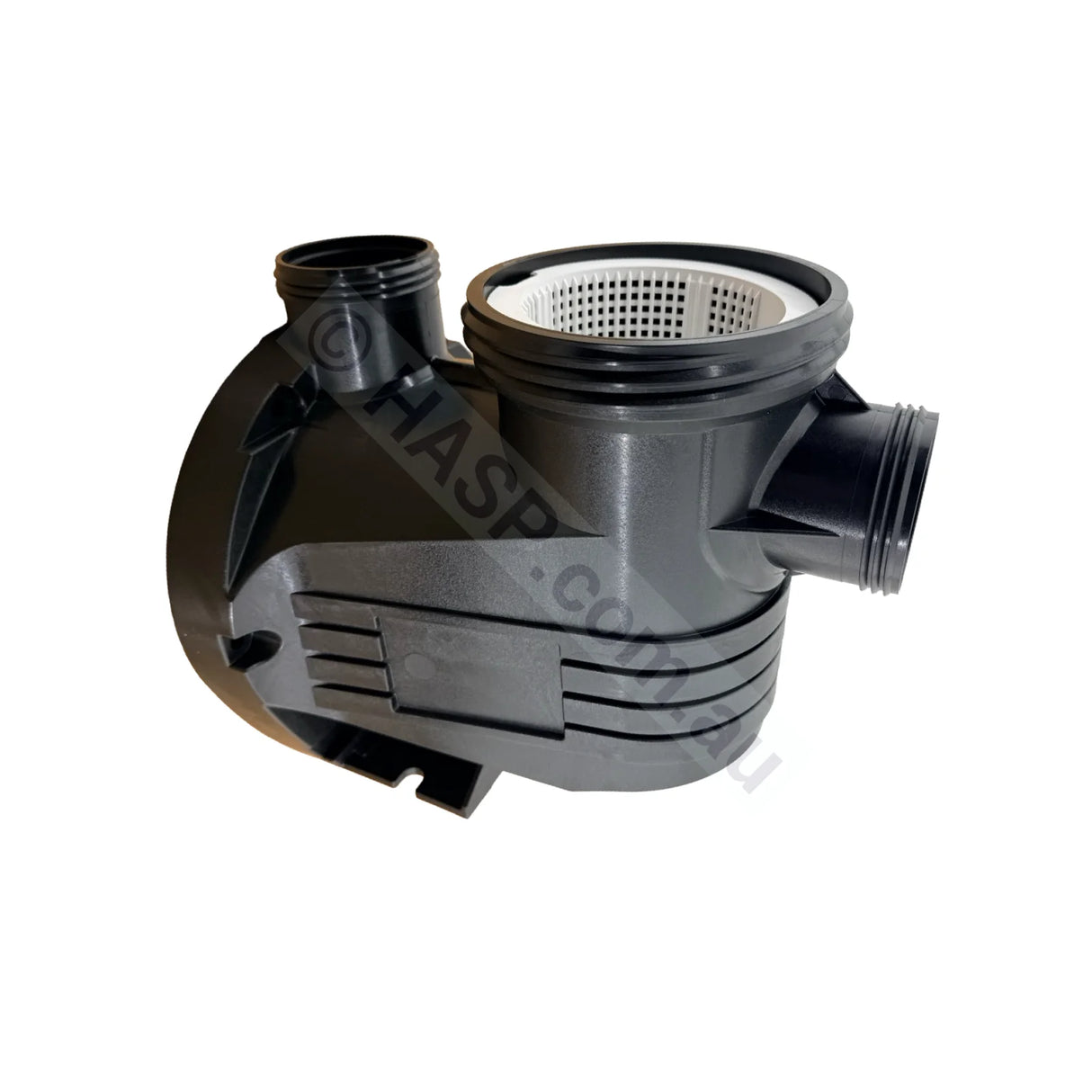

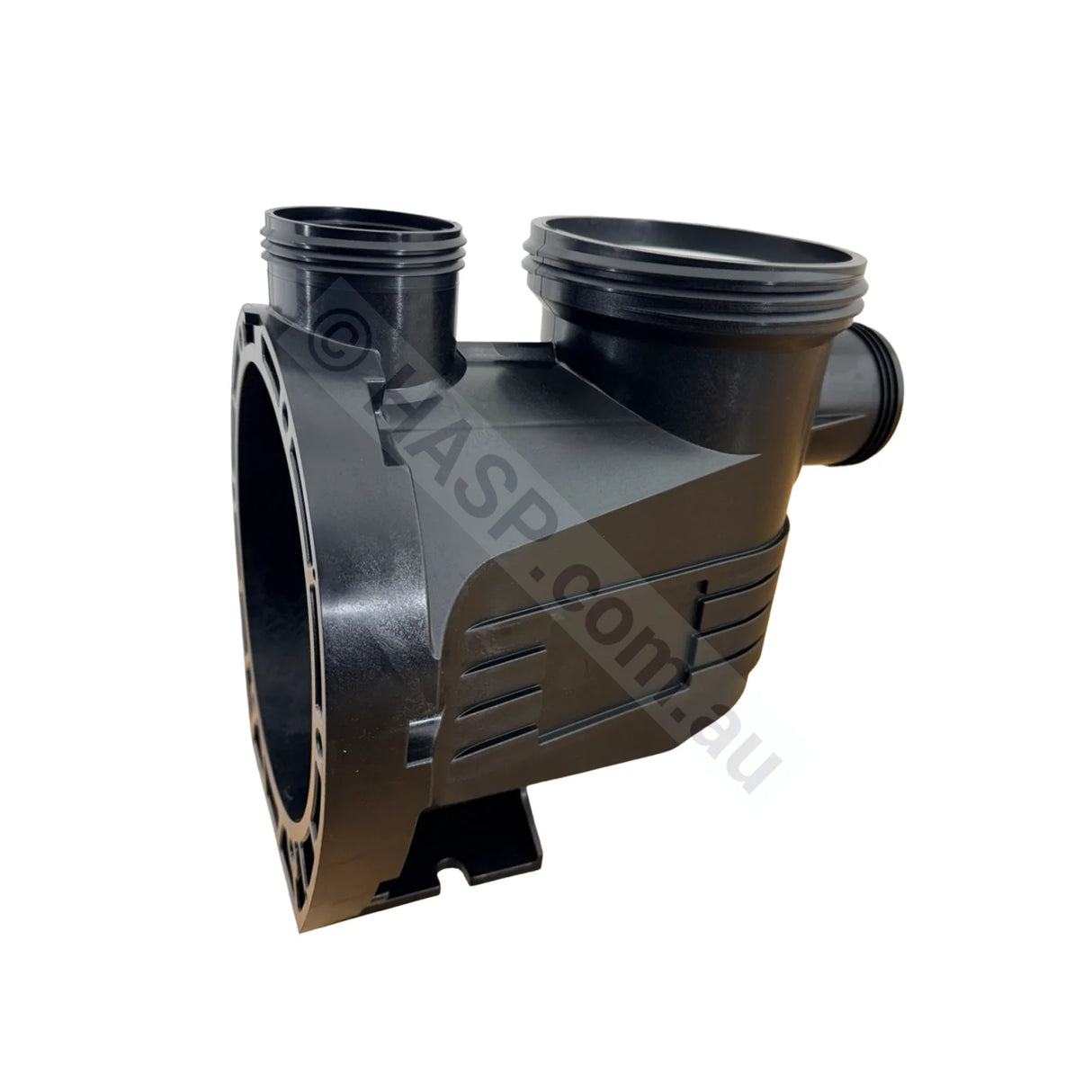

This is the genuine Astralpool MkII volute, part number SP40031 (catalogue 40031). The volute is the main pump body (wet end) that houses the impeller, diffuser and basket. This is the current-style wet end introduced from November 2020, used across the CTX MkII, Viron and E-Series MkII pumps.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Three Generations — Order the Right One
Astralpool changed the CTX wet end twice. The volute and its matching seal plate must come from the same generation as your pump, or they will not bolt up and seal correctly. Identify your pump's era before ordering:
| Generation | Volute (wet end) | Seal plate |
|---|---|---|
| Series 1 — old style, pre-Aug 2014 | 4007502 | 4009002 |
| Series 2 — Aug 2014 to 2018 | 40097 | 40098 |
| MkII — Nov 2020 onwards | SP40031 — this product | SP40030 |
If you are not sure which generation your pump is, send us a photo of the pump and its data plate and we will identify it. This is an expensive part to order wrongly.
Fits These MkII Pumps
The MkII wet end and its matching seal plate (SP40030) are shared across a wide range of current-generation pumps:
- CTX MkII — CTX 280, CTX 360C, CTX 400, CTX 500
- E-Series MkII — 140C, 170C, 230C
- Viron P320 & P520 XT (Nov 2020 to June 2021 build)
- AstralPool XP pump range
What the Volute Is
The volute is the moulded pump body that the motor bolts onto. It holds the basket, the diffuser and the impeller, and forms the pressure chamber that converts the impeller's spin into water flow. It is replaced when the body is cracked, when a union or port thread has failed, or when the internal sealing faces are damaged beyond what a new seal plate and o-rings will fix.
Related MkII Parts
- SP40030 — seal plate, MkII Nov 2020 (buy here)
- 70022 — seal plate o-ring
- 75509 — mechanical seal, current pumps (buy here)
- 78772 — seal plate to wet end bolts (x6)
- 40065 — basket (buy here)
- 40089 — lid complete with o-ring (buy here)
- Impeller — sized to your model, see the CTX or Viron XT impeller ranges
Frequently Asked Questions
How do I know if my pump is MkII?
MkII wet ends were fitted from November 2020. They cover the CTX MkII, E-Series MkII, AstralPool XP range, and the Viron P320/P520 XT of the Nov 2020 to June 2021 build. If unsure, send us a photo of the data plate.
Can I fit a Series 1 or Series 2 volute instead?
The generations are not cross-compatible as a mix. The volute, seal plate and their o-rings changed together. Match the whole wet end to one generation.
Does this cover the AstralPool XP pumps?
Yes. The MkII wet end and SP40030 seal plate are listed for the AstralPool XP range alongside the CTX MkII and Viron XT pumps.
Is this a genuine Astralpool part?
Yes. We are an authorised Astralpool and Fluidra dealer and warranty agent.
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers or diagrams? See the manufacturer catalogue: Astralpool Catalogue 2026
Before ordering: confirm this part is correct for your pump. Use the catalogue above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers and any labels. As with all products, this must be diagnosed and fitted by a qualified and experienced person. This is a special-order item.
Common search terms: Astralpool SP40031, 40031 volute, CTX MkII wet end, Viron XT volute Nov 2020, AstralPool XP pump body, E-Series MkII volute.
