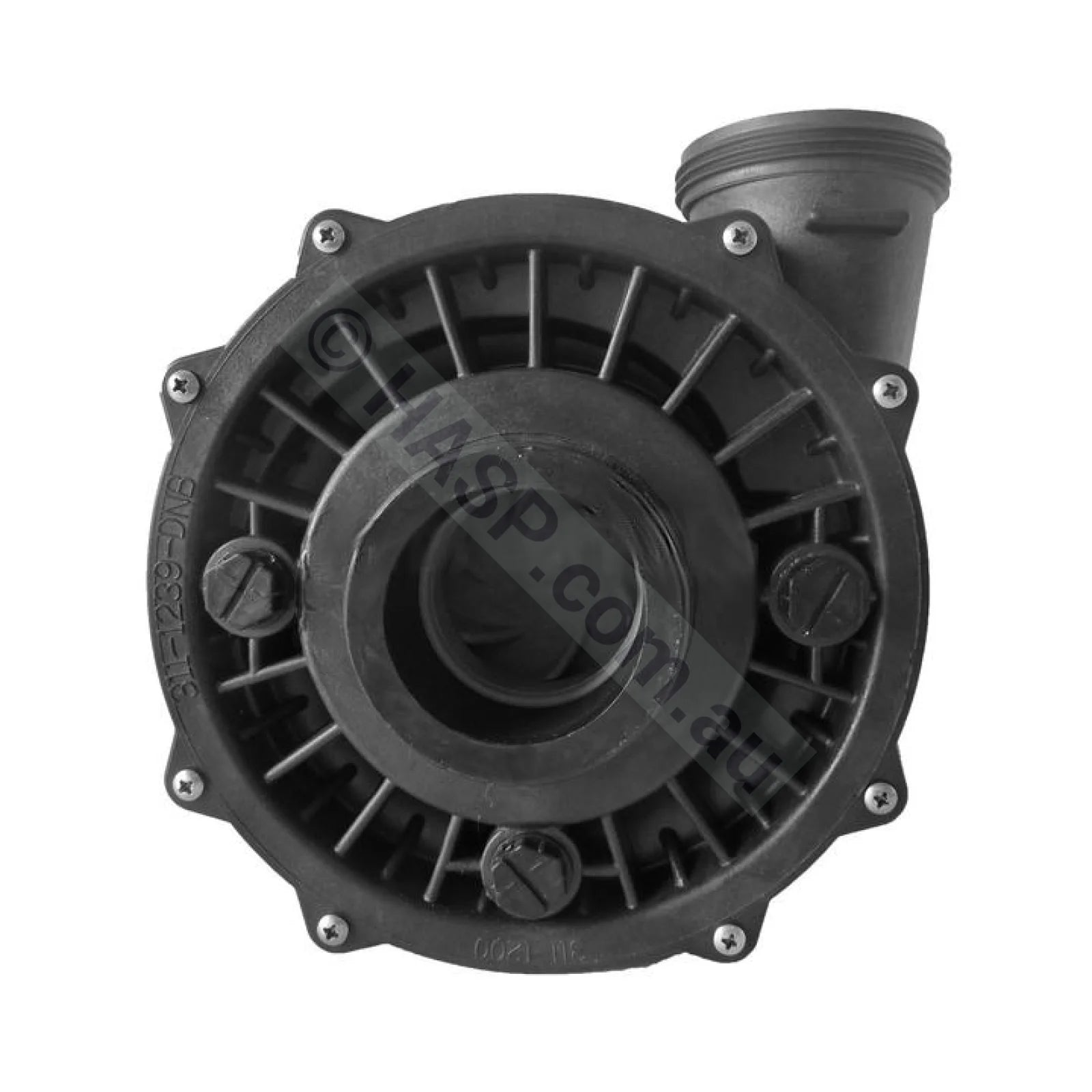

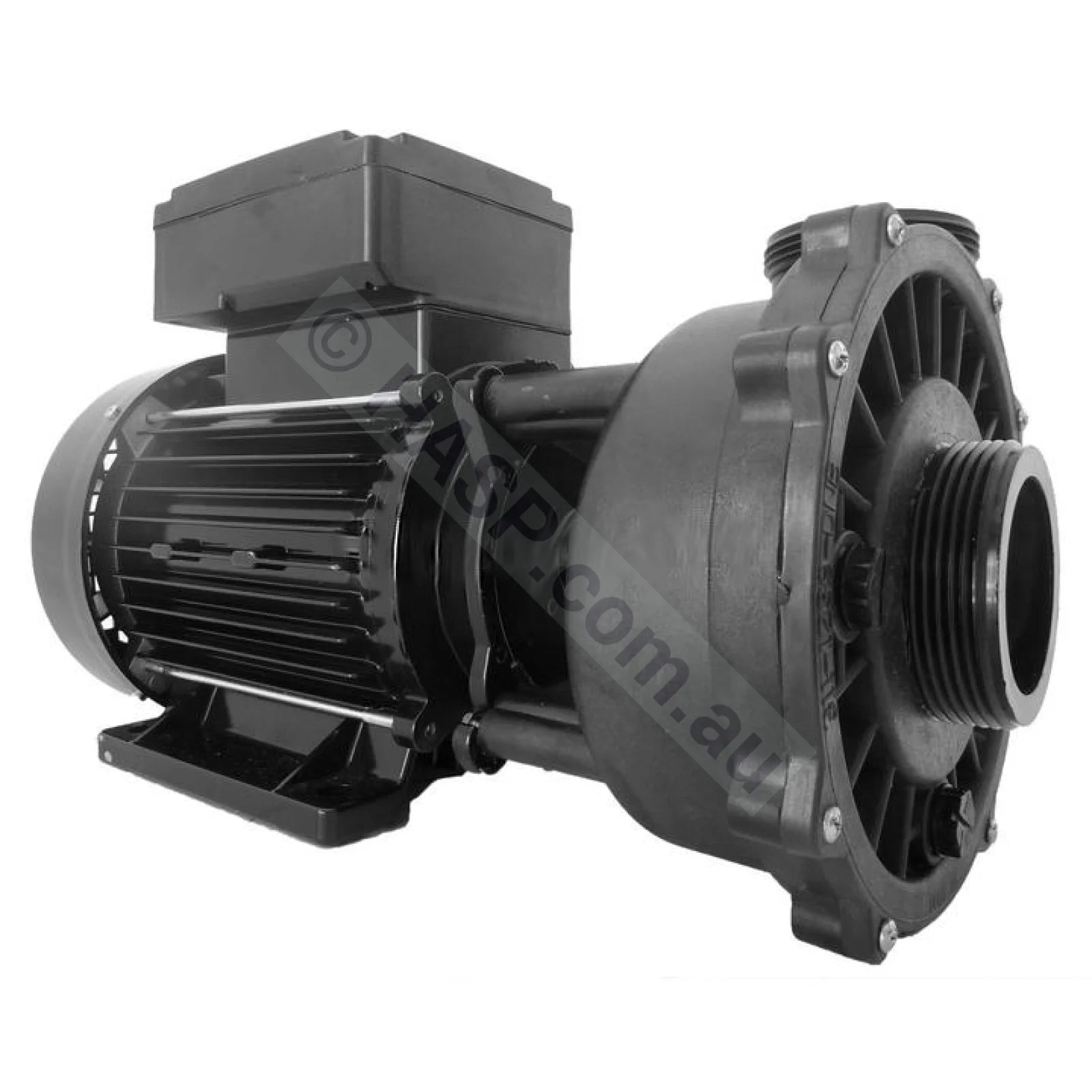

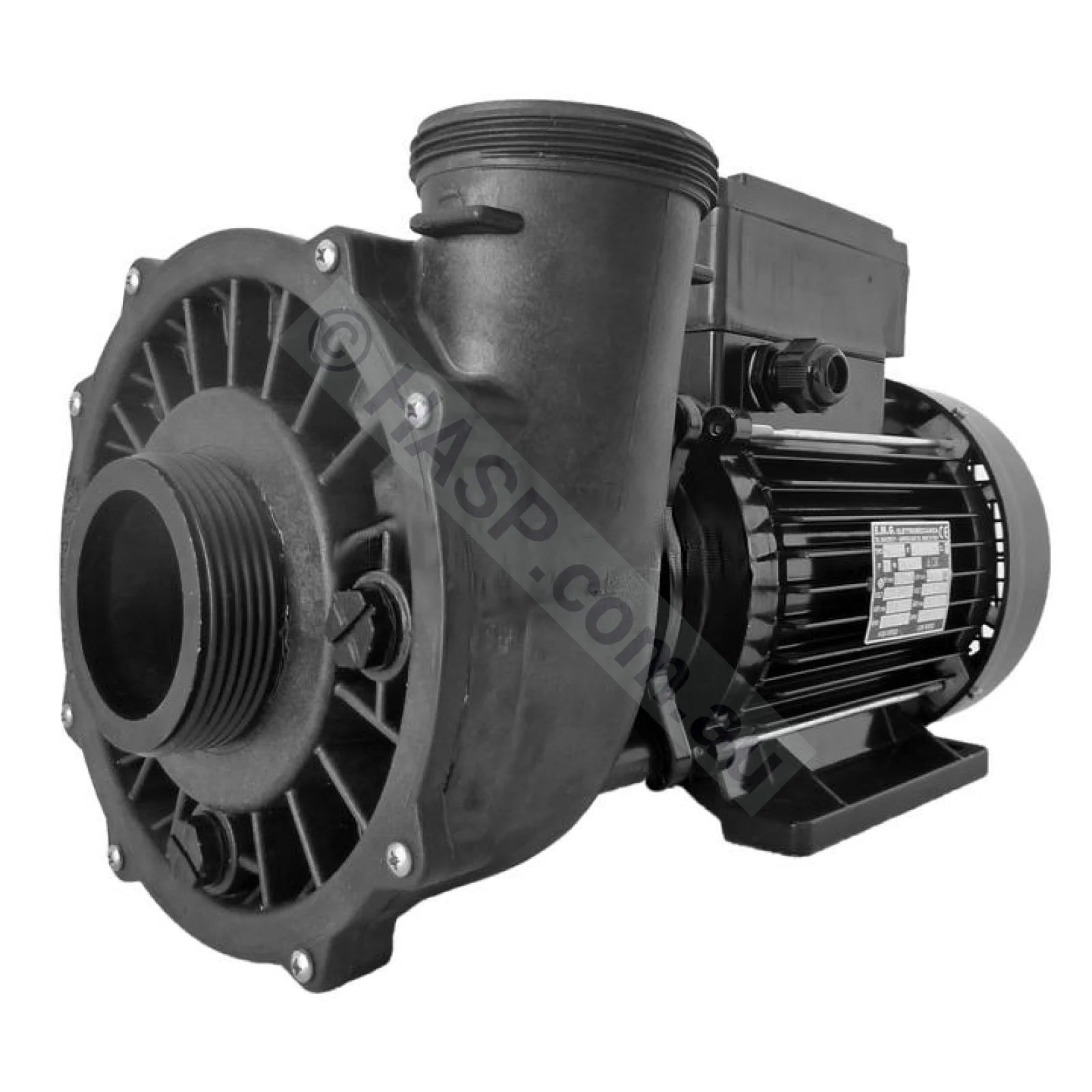

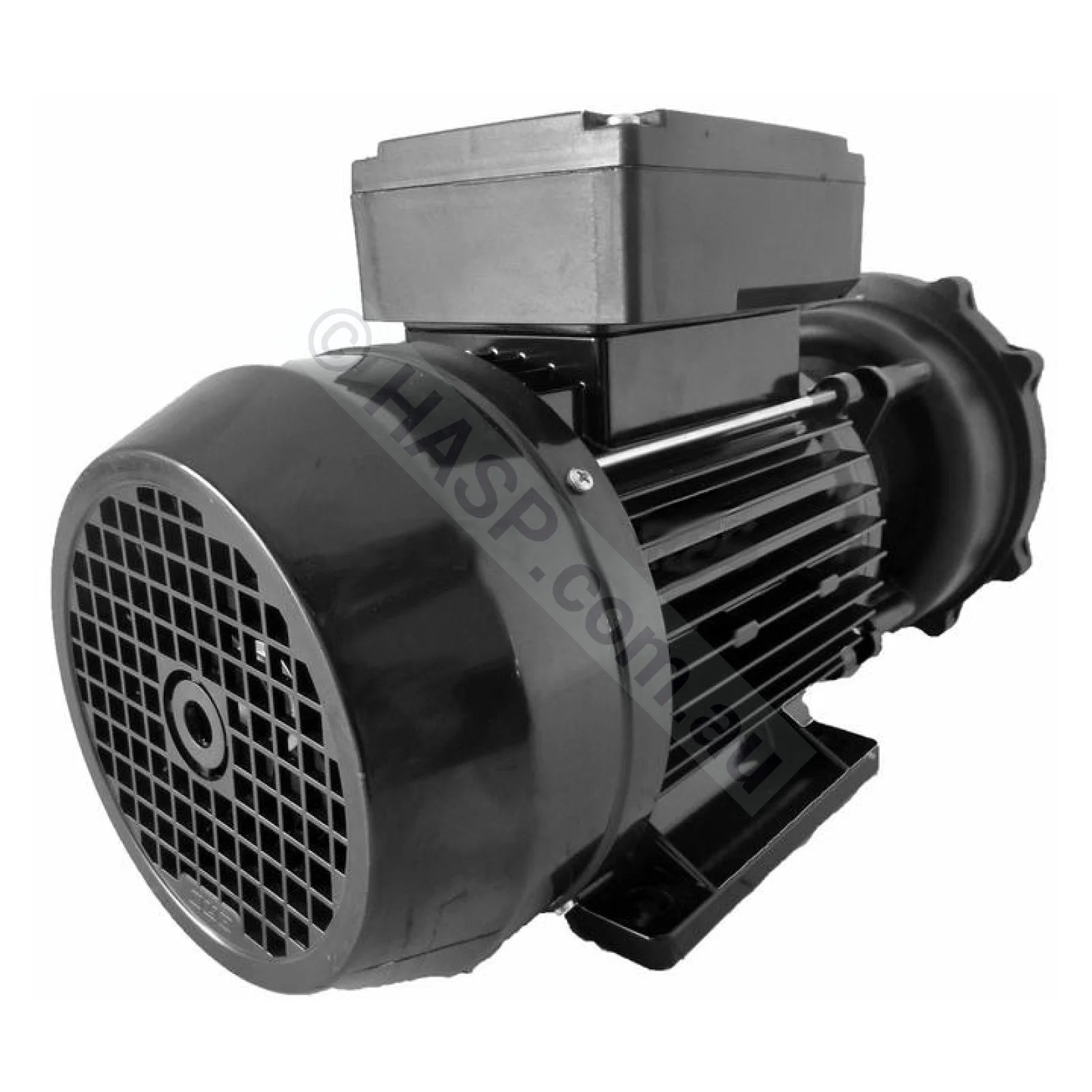

OBSOLETE – Waterway Executive Pumps
Waterway Executive pumps were produced in different sizes and speeds, but their horsepower ratings do not match the standard ratings commonly used in Australia. Do not rely on the sticker horsepower (HP) shown on the pump. For example, a pump marked “3.5HP” might actually be a “BHP” rating, which is closer to a true 2HP pump.
To select a correct replacement:
- Check the motor label for the actual wattage (W) of the motor. Use the wattage (not the sticker HP) with the guide below to choose the right replacement pump.
- Two-speed pumps will usually list two different AMP or WATT values (one for each speed).
- Single-speed pumps will only show one AMP or WATT value.

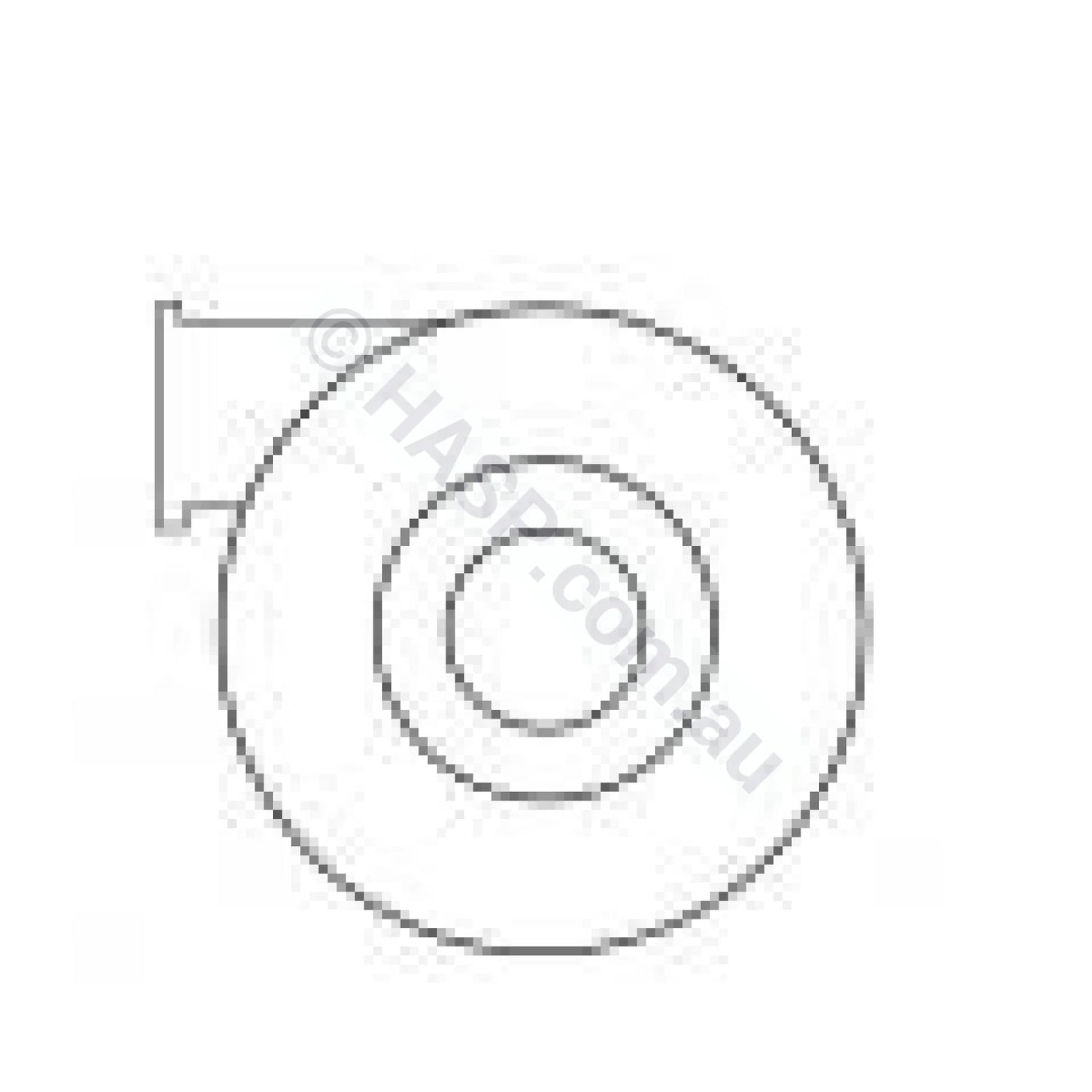

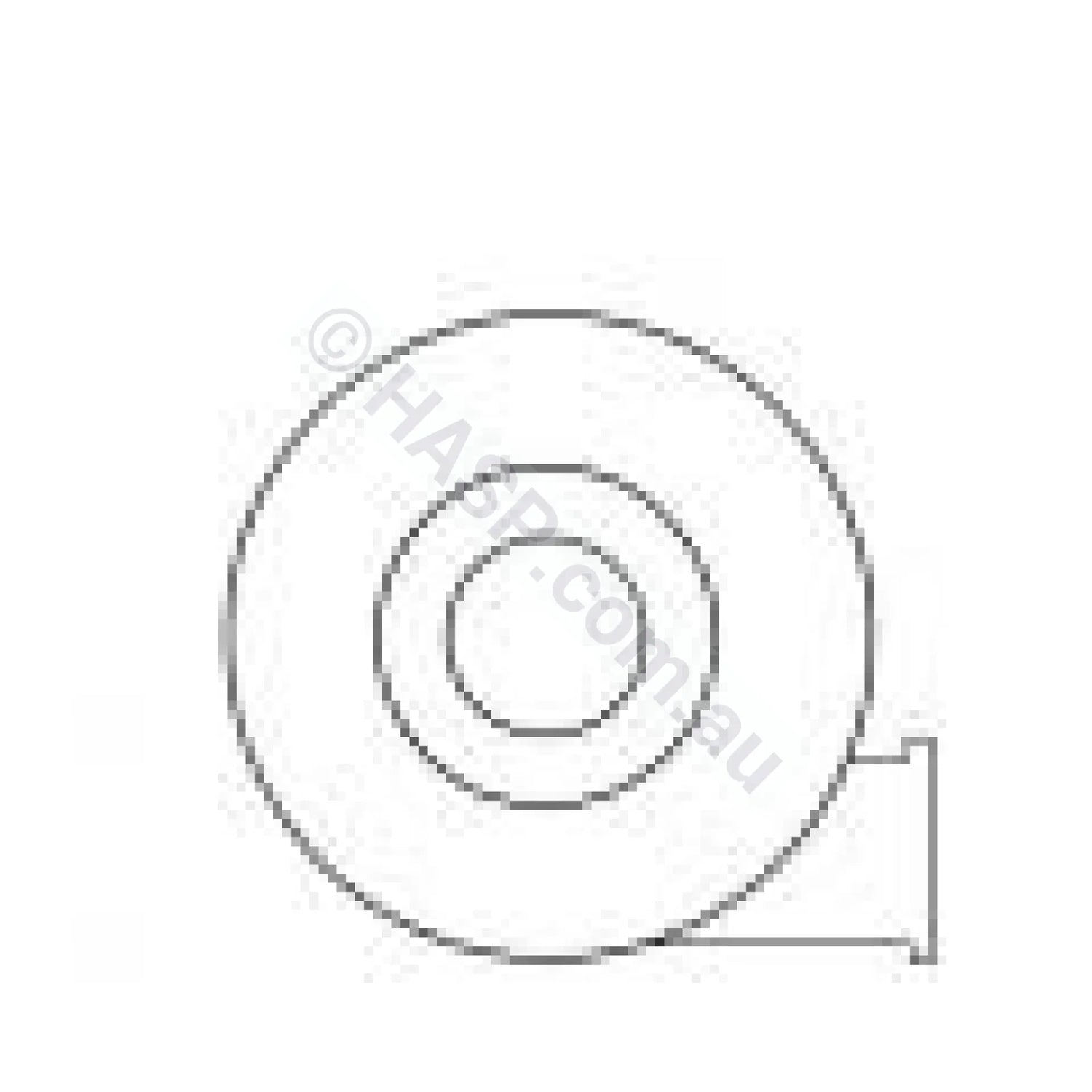

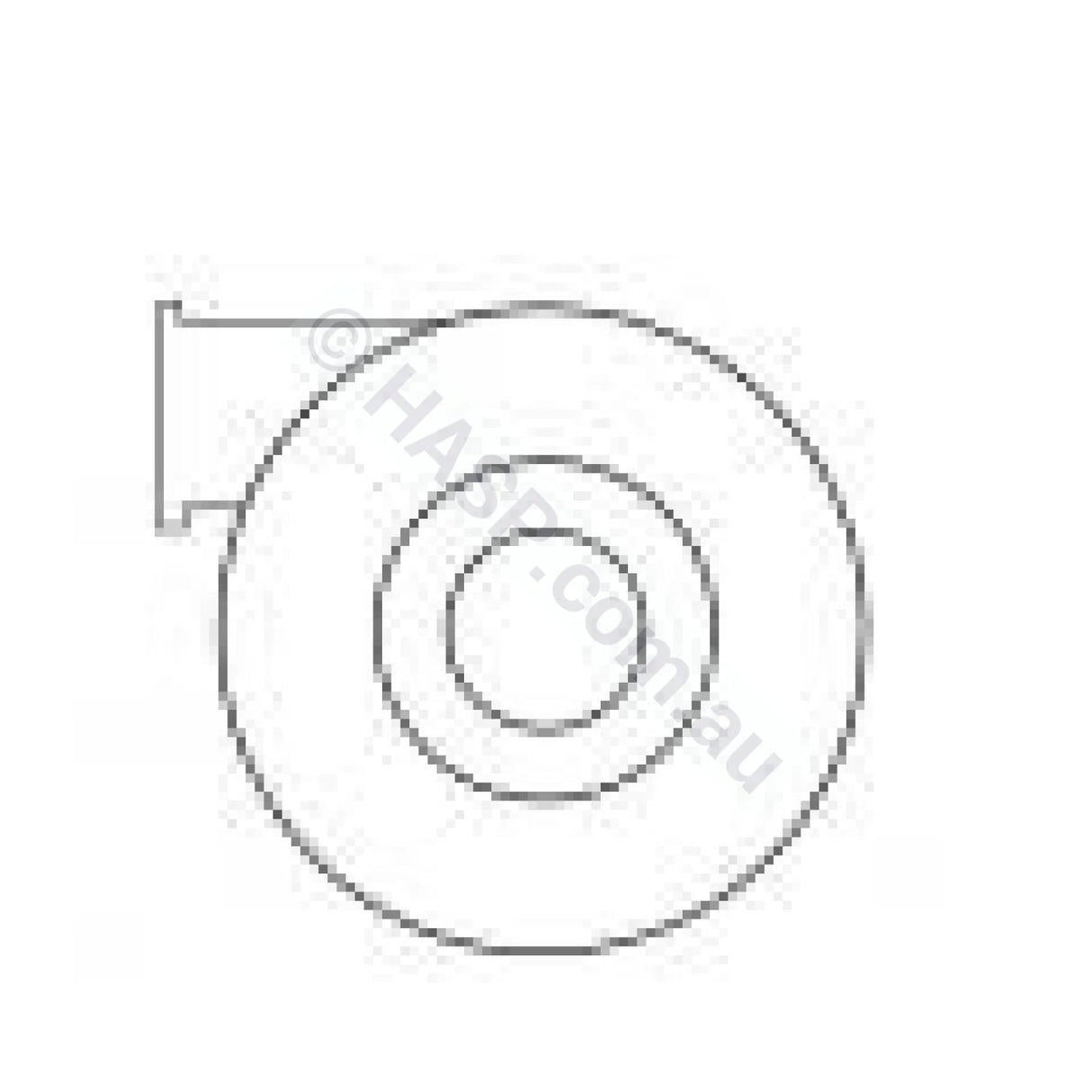

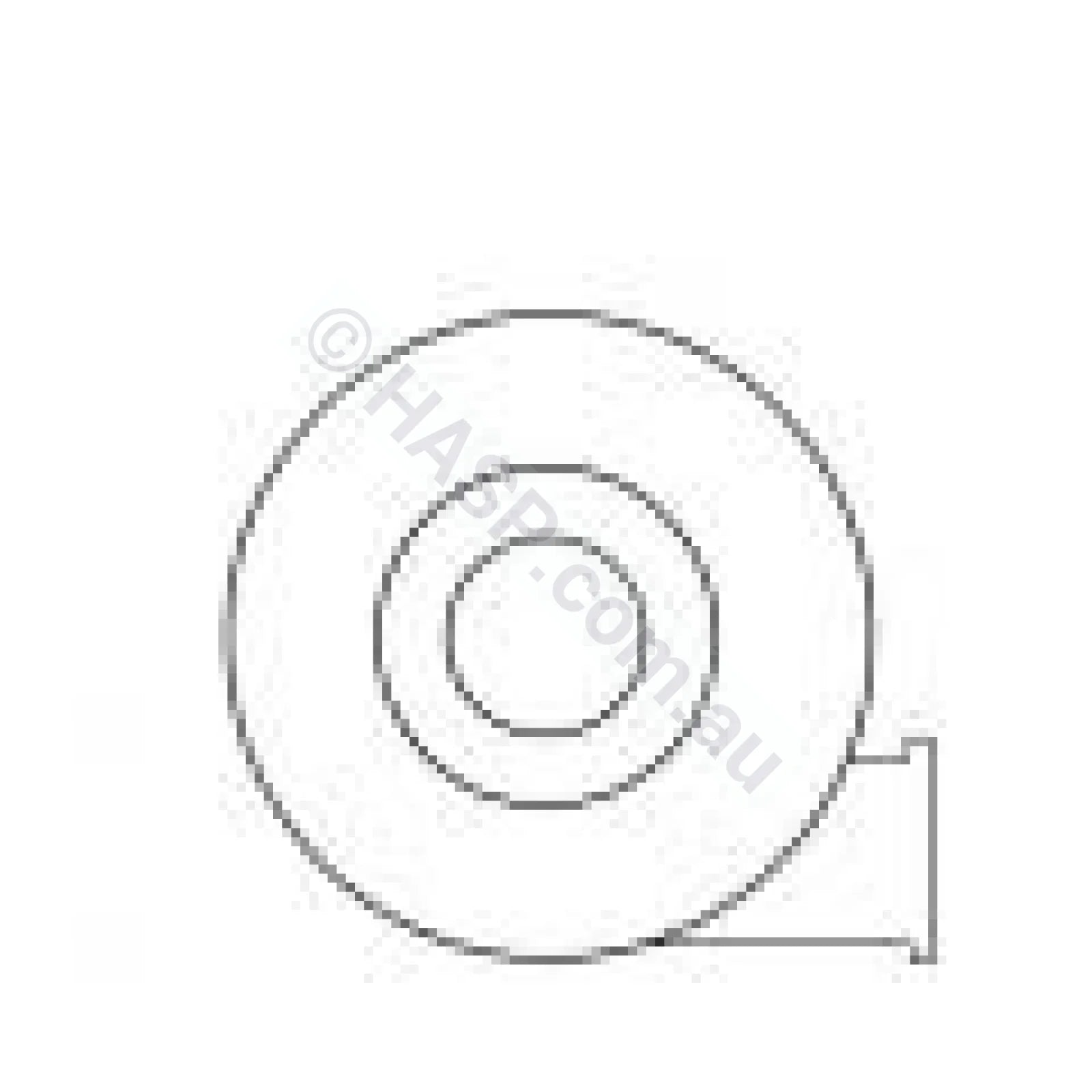

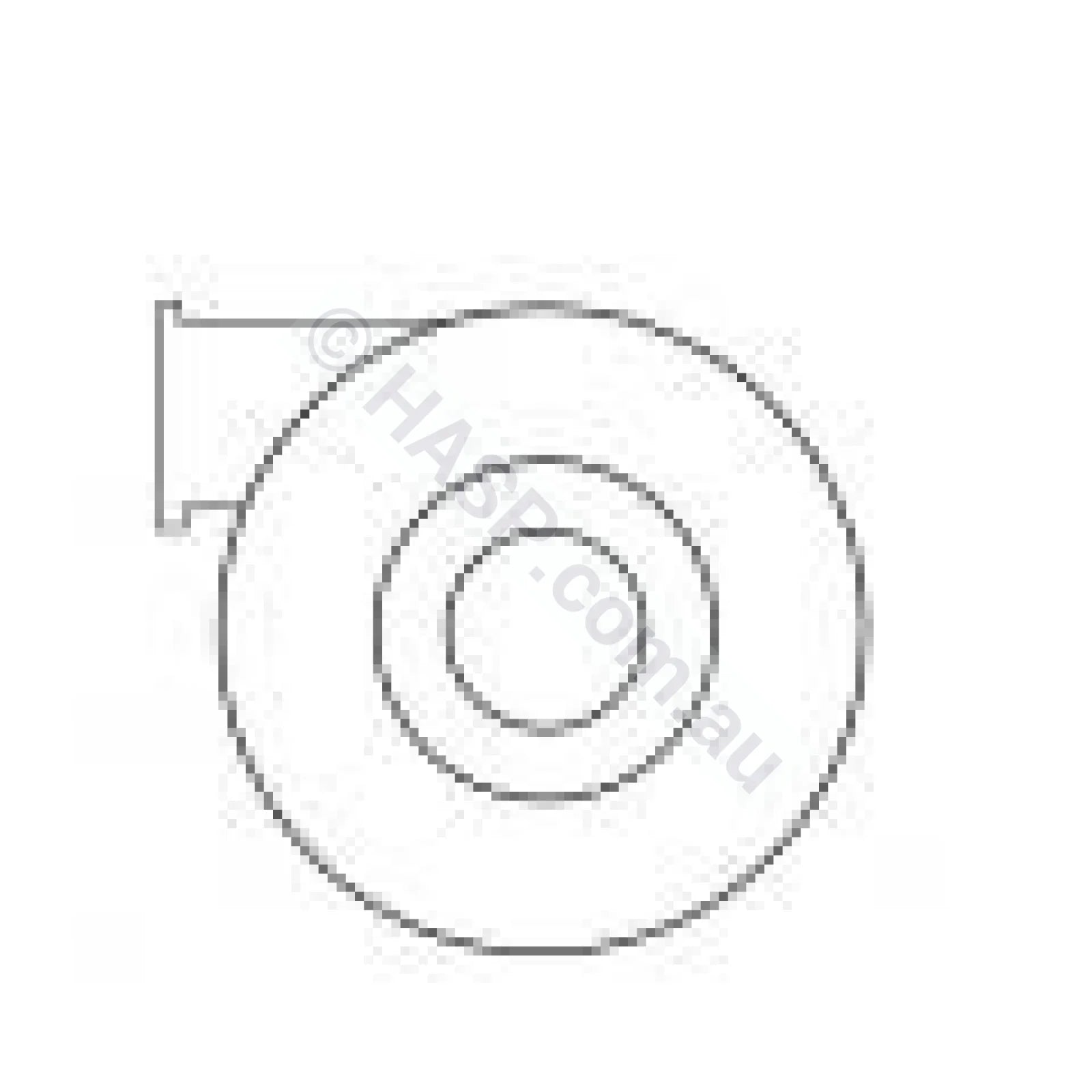

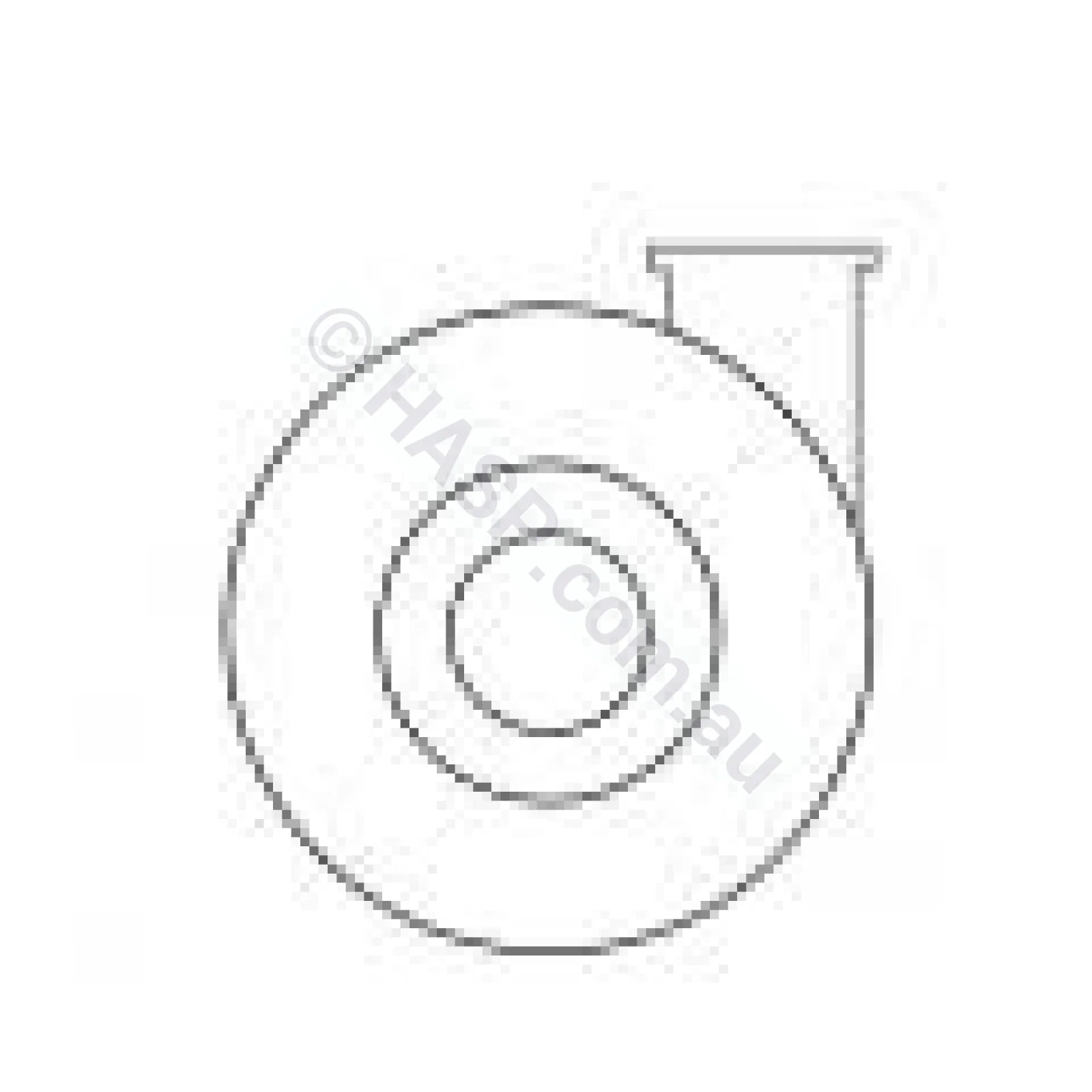

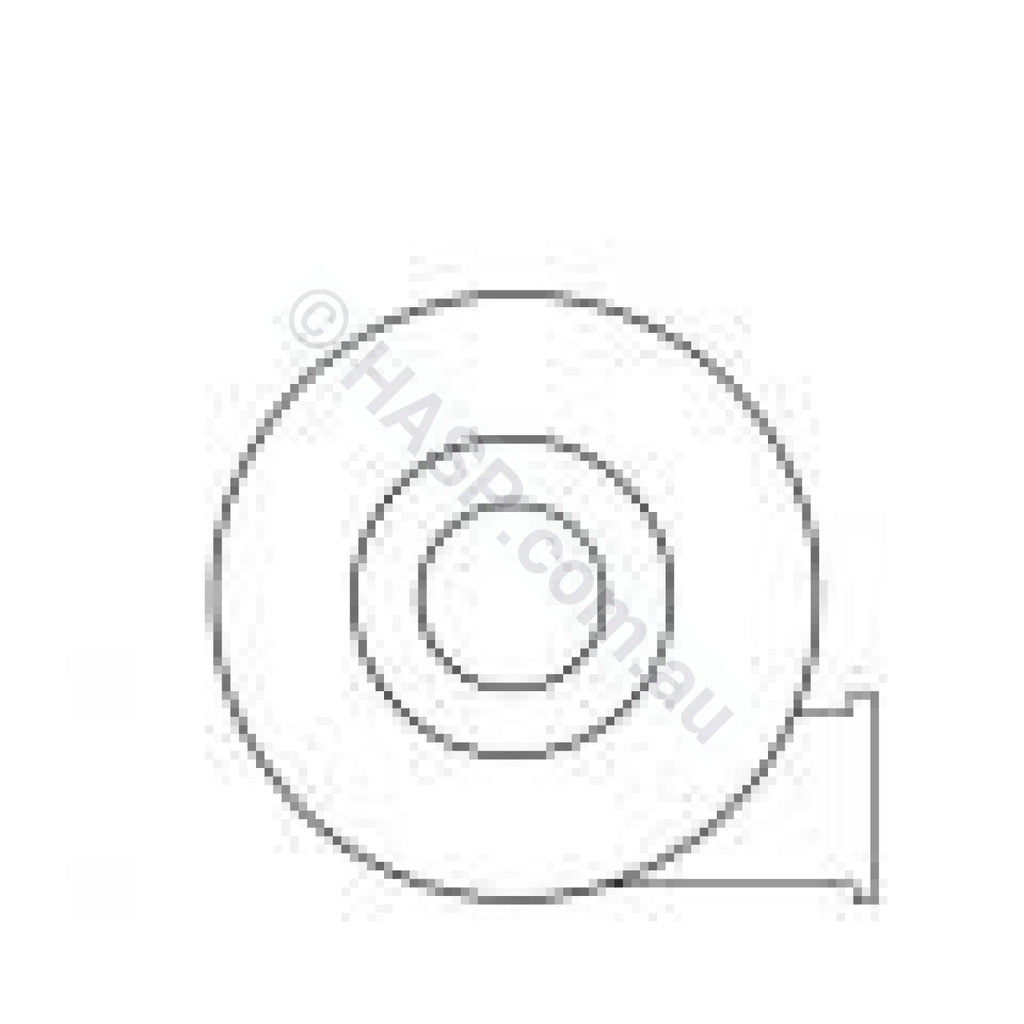

- The wet end can be rotated to suit various plumbing positions.
Two-Speed Pumps (will have 4 wires or metal pins on the plug)
- ~1100W = 1.5HP - Best Replacement Pump
- ~1500W = 2.0HP - Best Replacement Pump
- ~1800W = 2.5HP - Best Replacement Pump (3920651PUAMP)
- ~2100W = 3.0HP - Best Replacement Pump
One-Speed Pumps (will have 3 wires or metal pins on the plug. double check this!)
- ~1100W = 1.5HP - Best Replacement Pump
- ~1500W = 2.0HP - Best Replacement Pump
- ~1800W = 2.5HP - Best Replacement Pump
- ~2100W = 3.0HP - Best Replacement Pump
