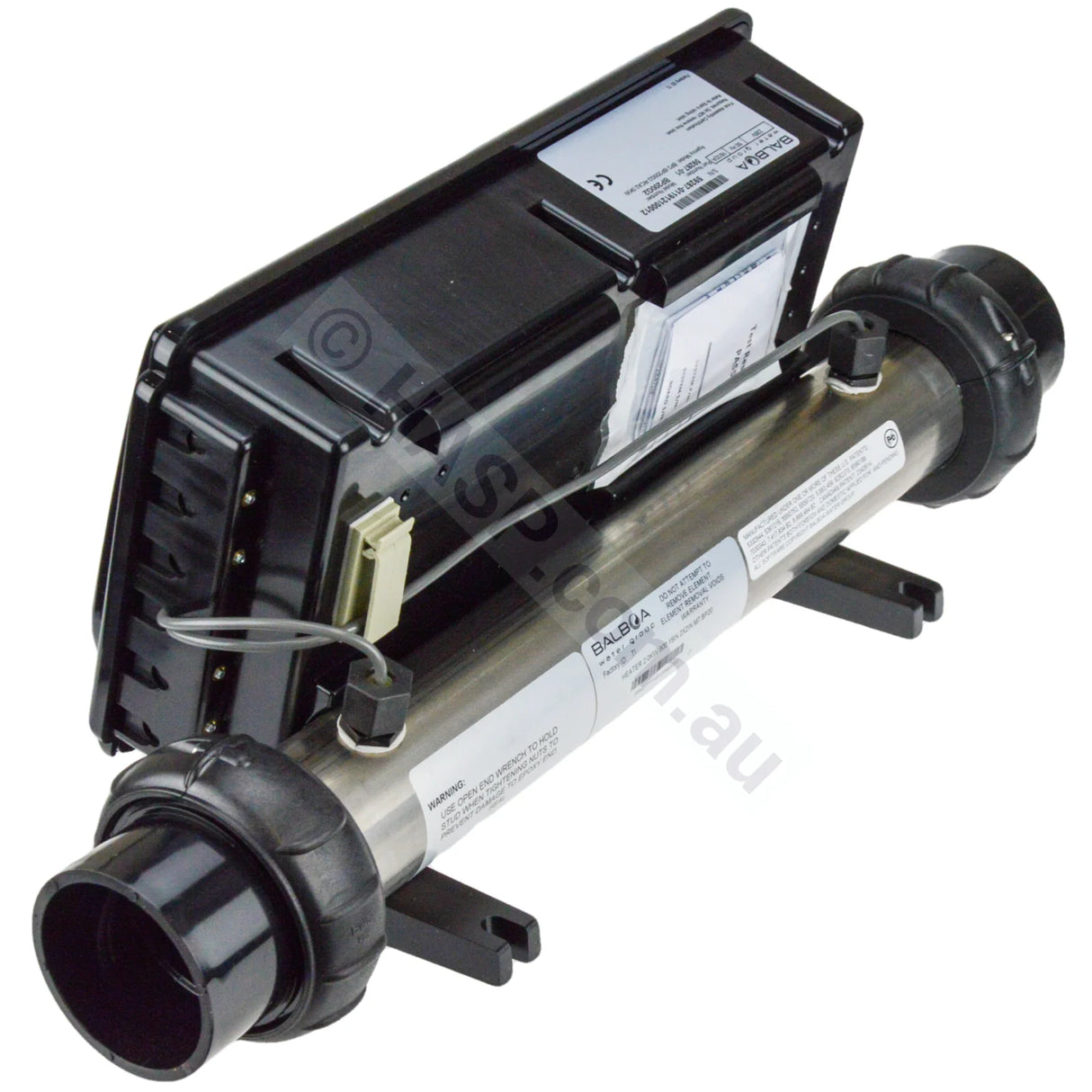

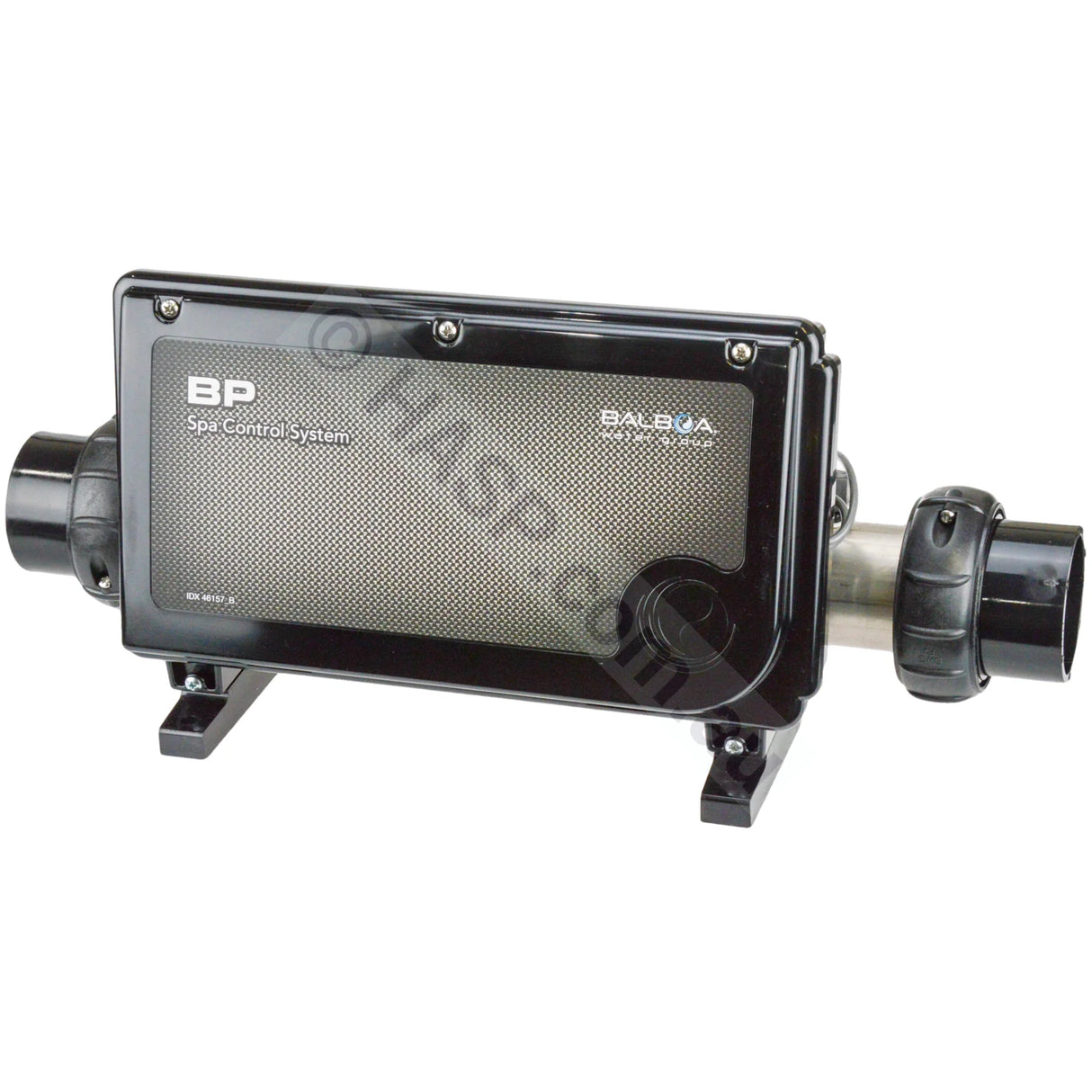

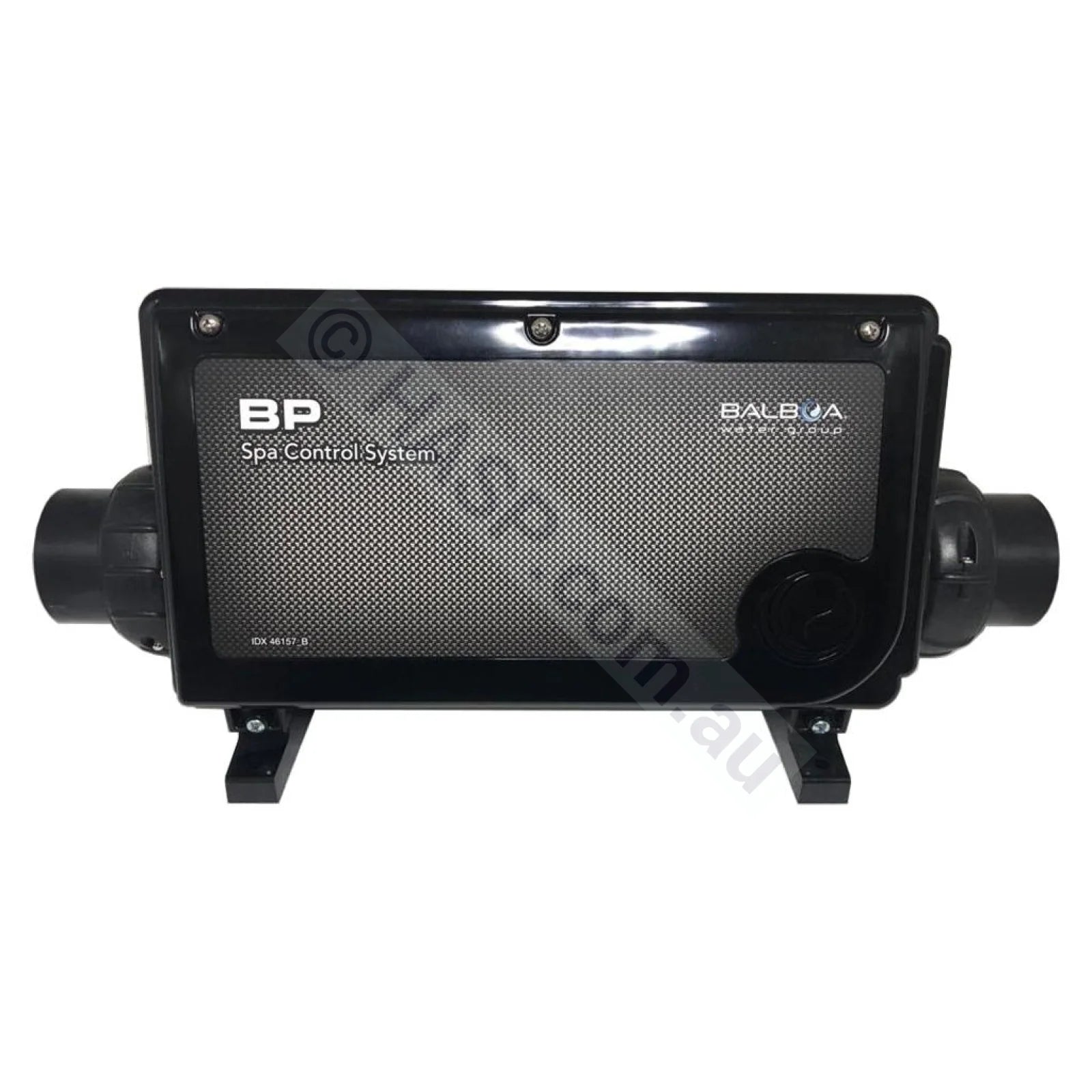

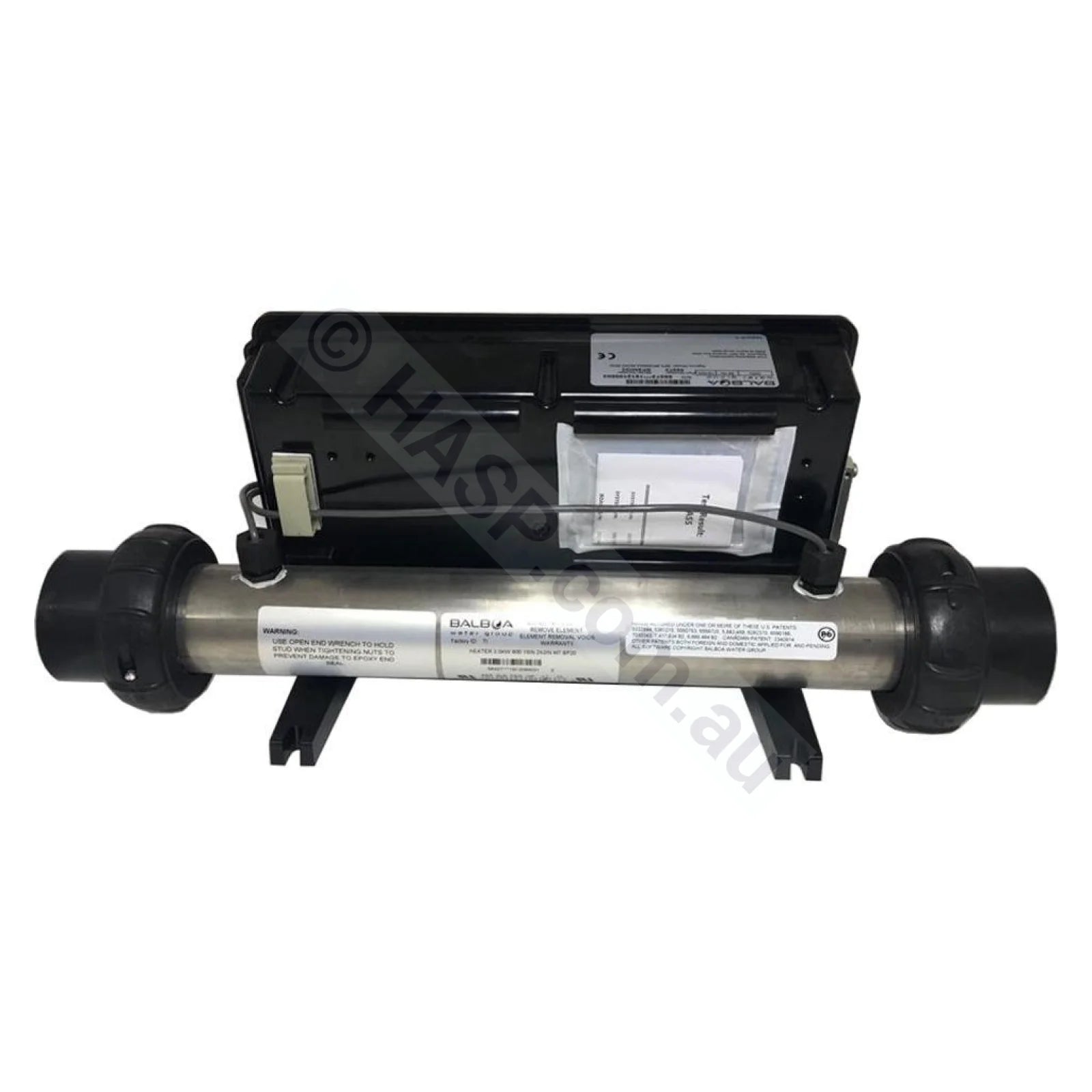

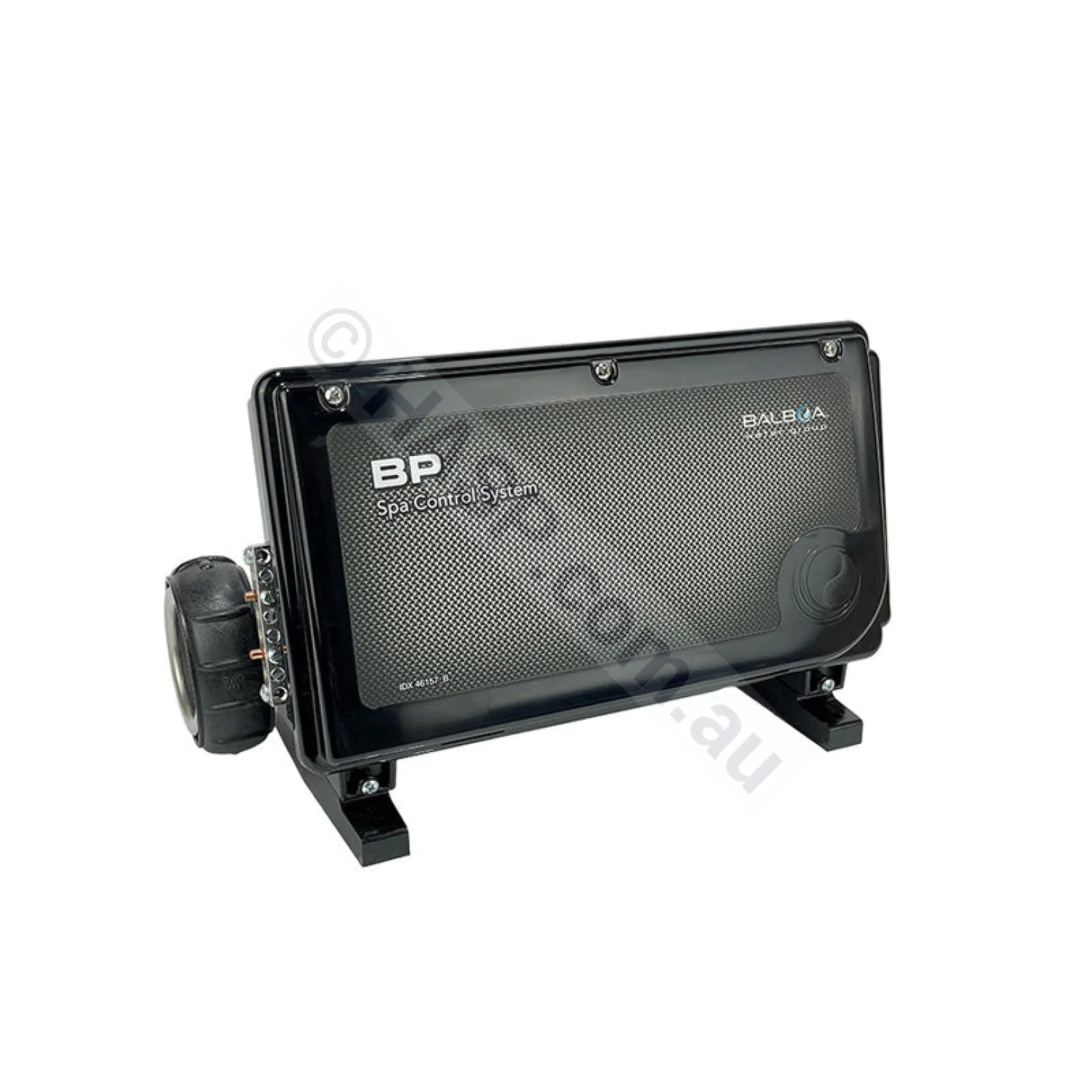

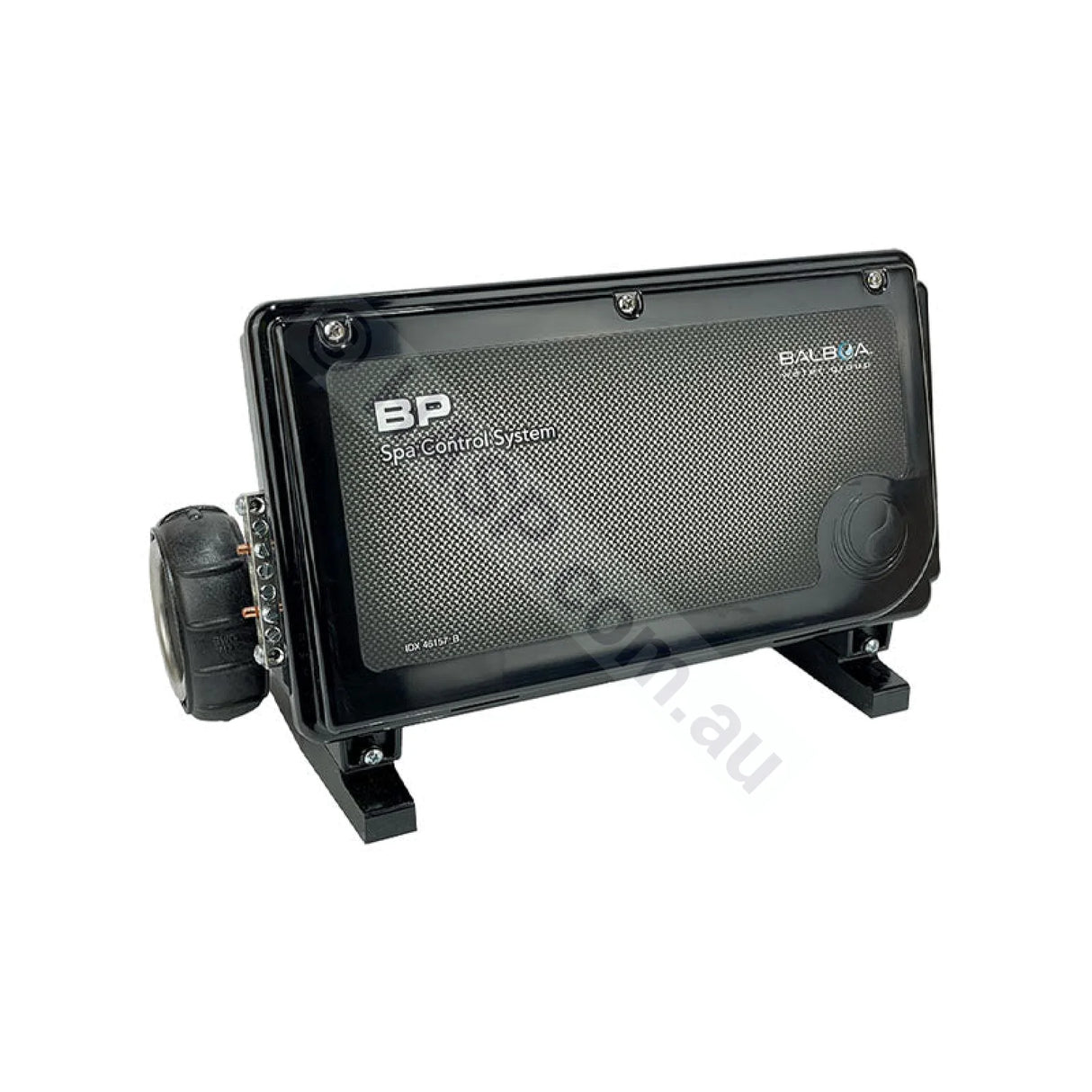

This BP200 replaces all other BP200 & BP100 controllers in Australia / New Zealand. Touchpads are interchangeable. Comes with the heavy-duty Pump Expander board. WiFi module can be added to these controllers. Choose version in options.

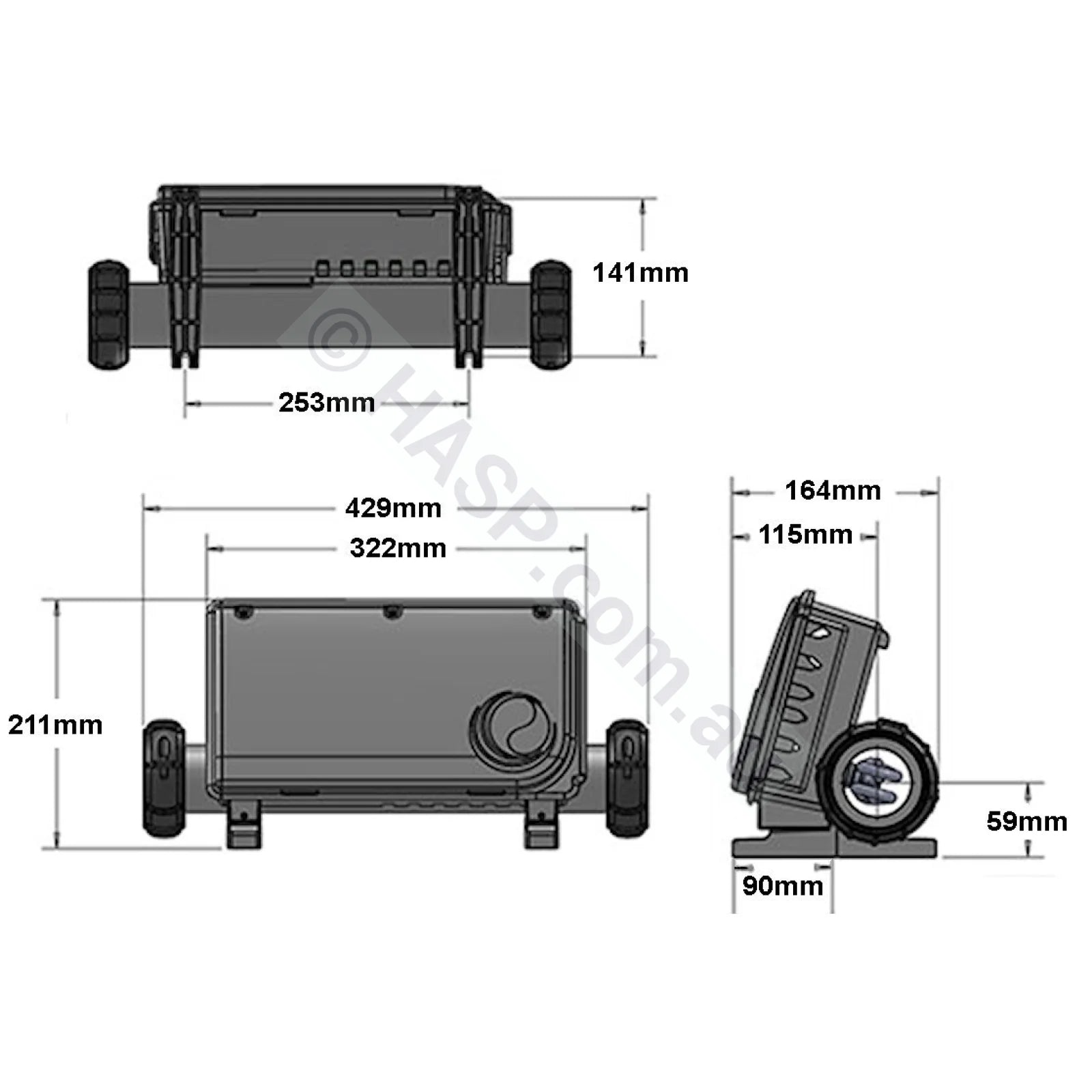

Dimensions:
- 205mm high
- 380mm wide flange to flange
- 160mm total depth. 90mm depth from the front of the pack to the tube/pipe. (This may be an issue if space is restrictive.)

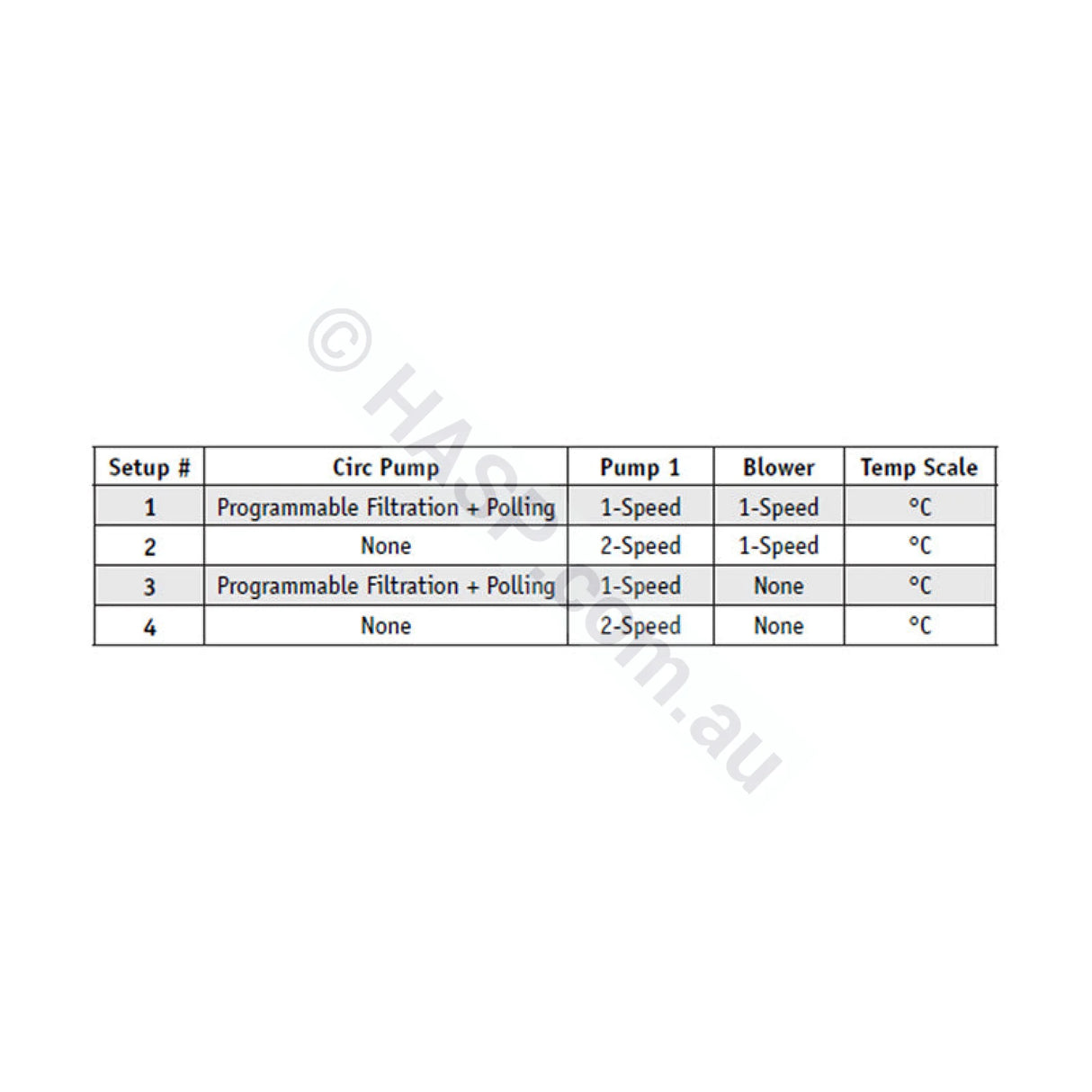

The Balboa BP200 Can Control:
- 1 x Circ Pump(<2A) + 2 x Jet Pumps or + Light + Ozone (or)
- 1 x Circ Pump(<2A) + 1 x Jet Pump + 1 x Blower + Light + Ozone (or)
- 1 x 2-speed Pump + 1 Jet Pump + Light + Ozone (or)
- 1 x 2-speed Pump + Blower + Light + Ozone (or)
Replaces:
- BP200G1
-
BP200G1 240volt Output Sockets

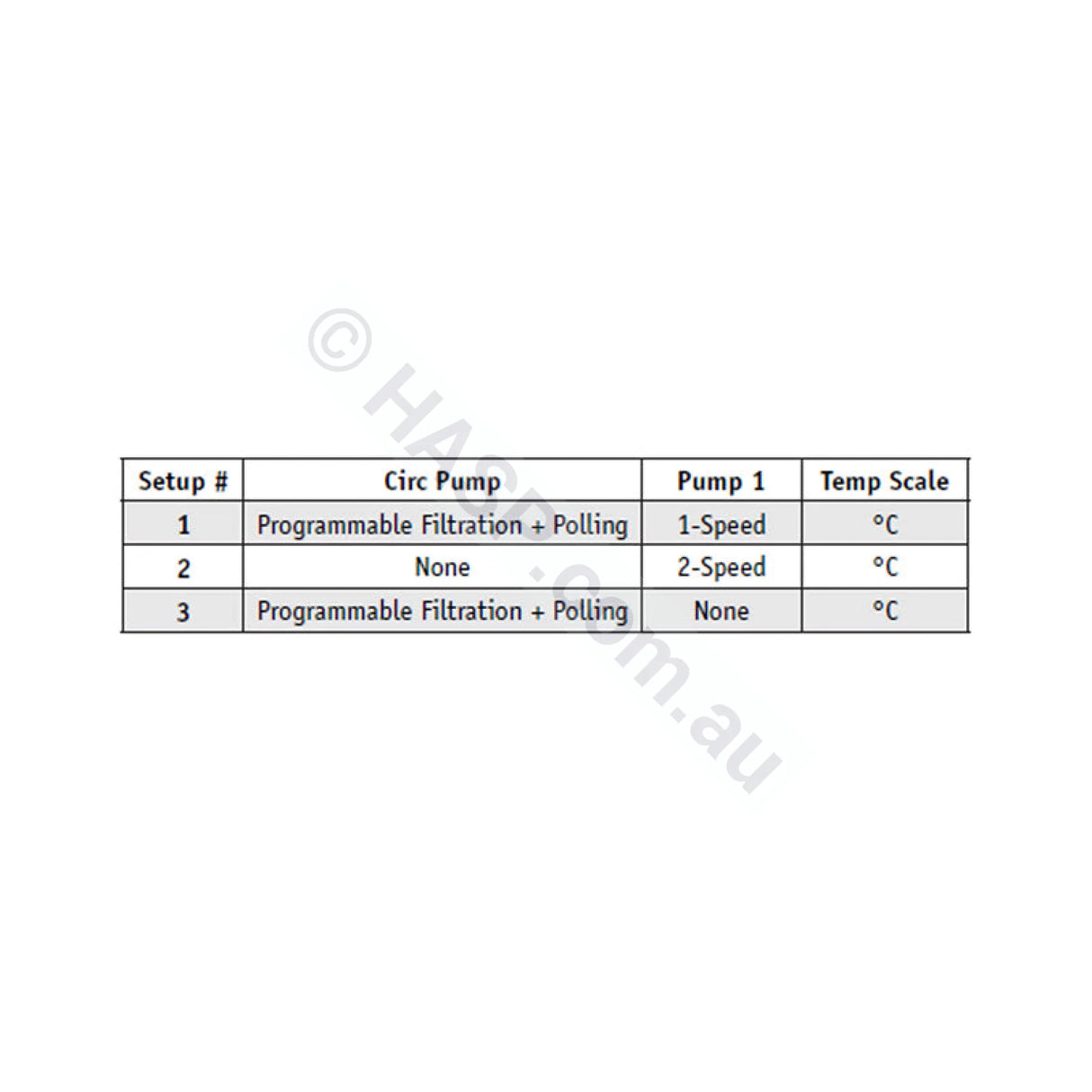

CPUMP: Circ pump(<2A) (must have a circ pump if pump 1 single speed)
PUMP 1: 1Spd Pump or 2Spd Pump
240V: This outlet has a constant 240volts and is not switchable
O3/UV: This outlet is only to be used with an ozone system -
BP200G1 Low Voltage
2 x Touchpad Outlets
1 x Light
1 x Wifi Port -
BP200G1 Tech Sheet
- BP200G2
-
BP200G2 240volt Output Sockets
CPUMP: Circ pump(<2A) (must have a circ pump if pump 1 single speed)
PUMP 1: 1Spd Pump or 2Spd Pump
PUMP 2: 1Spd Pump
240V: This outlet has a constant 240volts and is not switchable
O3/UV: This outlet is only to be used with an ozone system -
BP200G2 Low Voltage
2 x Touchpad Outlets
1 x Light1 x Wifi Port -
BP200G2 Tech Sheet
- BP200G3
- P200G3 240volt Output Sockets
CPUMP: Circ pump(<2A) (must have a circ pump if pump 1 single speed)
PUMP 1: 1Spd Pump or 2Spd Pump
Blower: Blower
240V: This outlet has a constant 240volts and is not switchable
O3/UV: This outlet is only to be used with an ozone system - BP200G3 Low Voltage
2 x Touchpad Outlets
1 x Light
1 x Wifi Port - BP200G3 Tech Sheet
Compatible Touchpads:
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
